D5SB40 datasheet, PDF - EEWORLD Datasheet

D5SB40: DescriptionBridge Rectifier Diode, 5A, 400V V(RRM),; CategoryDiscrete semiconductor diode; File Size68KB，1 Pages; ManufacturerSHINDENGEN; Websitehttps://www.shindengen.com

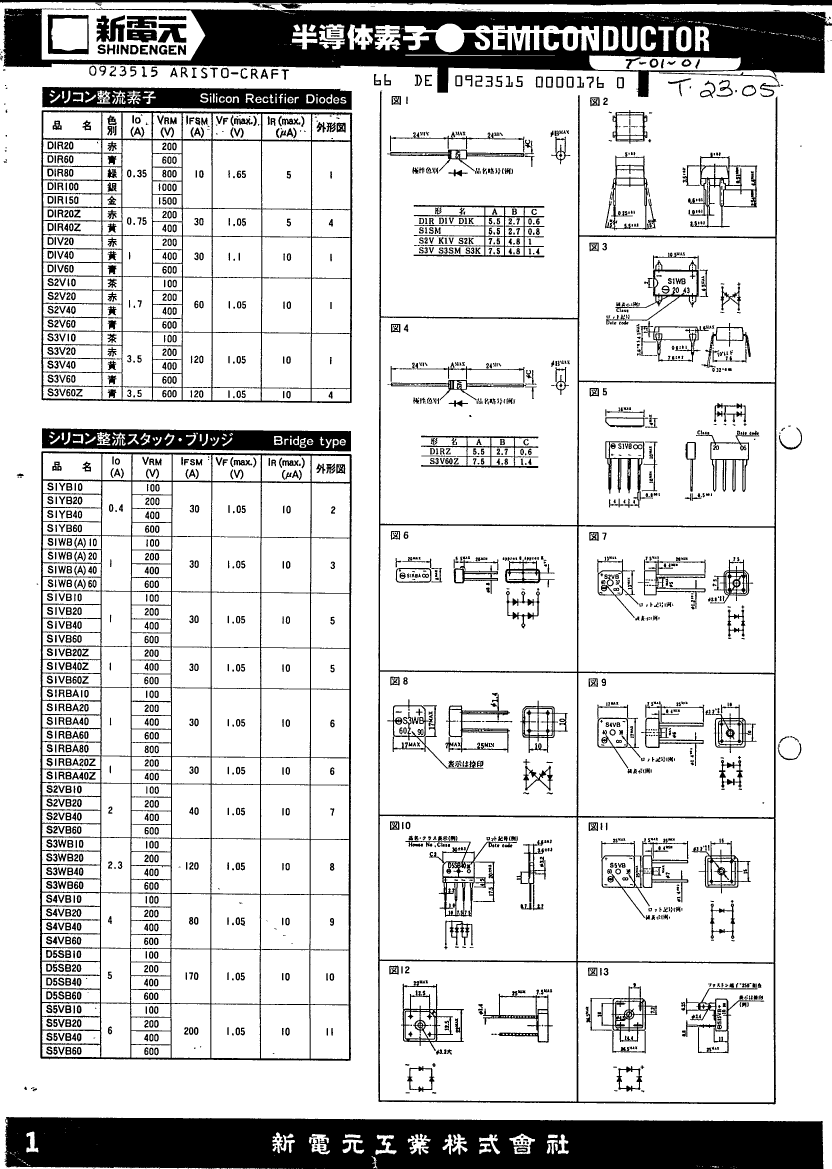

Download Datasheet Parametric Compare View All

D5SB40 Overview

Bridge Rectifier Diode, 5A, 400V V(RRM),

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Reach Compliance Code	unknown
Configuration	BRIDGE, 4 ELEMENTS
Diode type	BRIDGE RECTIFIER DIODE
Maximum forward voltage (VF)	1 V
JESD-609 code	e0
Humidity sensitivity level	2
Maximum non-repetitive peak forward current	170 A
Number of components	4
Maximum operating temperature	150 °C
Maximum output current	5 A
Maximum repetitive peak reverse voltage	400 V
surface mount	NO
Terminal surface	Tin/Lead (Sn/Pb)
Base Number Matches	1

	D5SB40	S1VB20Z	S1VB60Z	S3V10	D5SB10
Description	Bridge Rectifier Diode, 5A, 400V V(RRM),	Bridge Rectifier Diode, 1A, 200V V(RRM),	Bridge Rectifier Diode, 1A, 600V V(RRM),	Rectifier Diode, 1 Element, 3.5A, 100V V(RRM)	Bridge Rectifier Diode, 5A, 100V V(RRM),
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
Configuration	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	SINGLE	BRIDGE, 4 ELEMENTS
Diode type	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	RECTIFIER DIODE	BRIDGE RECTIFIER DIODE
Maximum forward voltage (VF)	1 V	1 V	1 V	1.05 V	1 V
JESD-609 code	e0	e0	e0	e0	e0
Humidity sensitivity level	2	2	2	2	2
Maximum non-repetitive peak forward current	170 A	30 A	30 A	120 A	170 A
Number of components	4	4	4	1	4
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C	150 °C
Maximum output current	5 A	1 A	1 A	3.5 A	5 A
Maximum repetitive peak reverse voltage	400 V	200 V	600 V	100 V	100 V
surface mount	NO	NO	NO	NO	NO
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Base Number Matches	1	1	1	1	1
