D25SB100 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> D25SB100

D25SB100: DescriptionBridge Rectifier Diode, 25A, 1000V V(RRM),; CategoryDiscrete semiconductor diode; File Size127KB，2 Pages; ManufacturerLRC; Websitehttp://www.lrc.cn; Environmental Compliance

Download Datasheet Parametric View All

D25SB100 Overview

Bridge Rectifier Diode, 25A, 1000V V(RRM),

D25SB100 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	unknown
Configuration	BRIDGE, 4 ELEMENTS
Diode type	BRIDGE RECTIFIER DIODE
Maximum forward voltage (VF)	1.1 V
Maximum non-repetitive peak forward current	350 A
Number of components	4
Maximum operating temperature	150 °C
Maximum output current	25 A
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Maximum repetitive peak reverse voltage	1000 V
surface mount	NO
Maximum time at peak reflow temperature	NOT SPECIFIED
Base Number Matches	1

Preview

Download Datasheet

View All

LESHAN RADIO COMPANY

LTD.

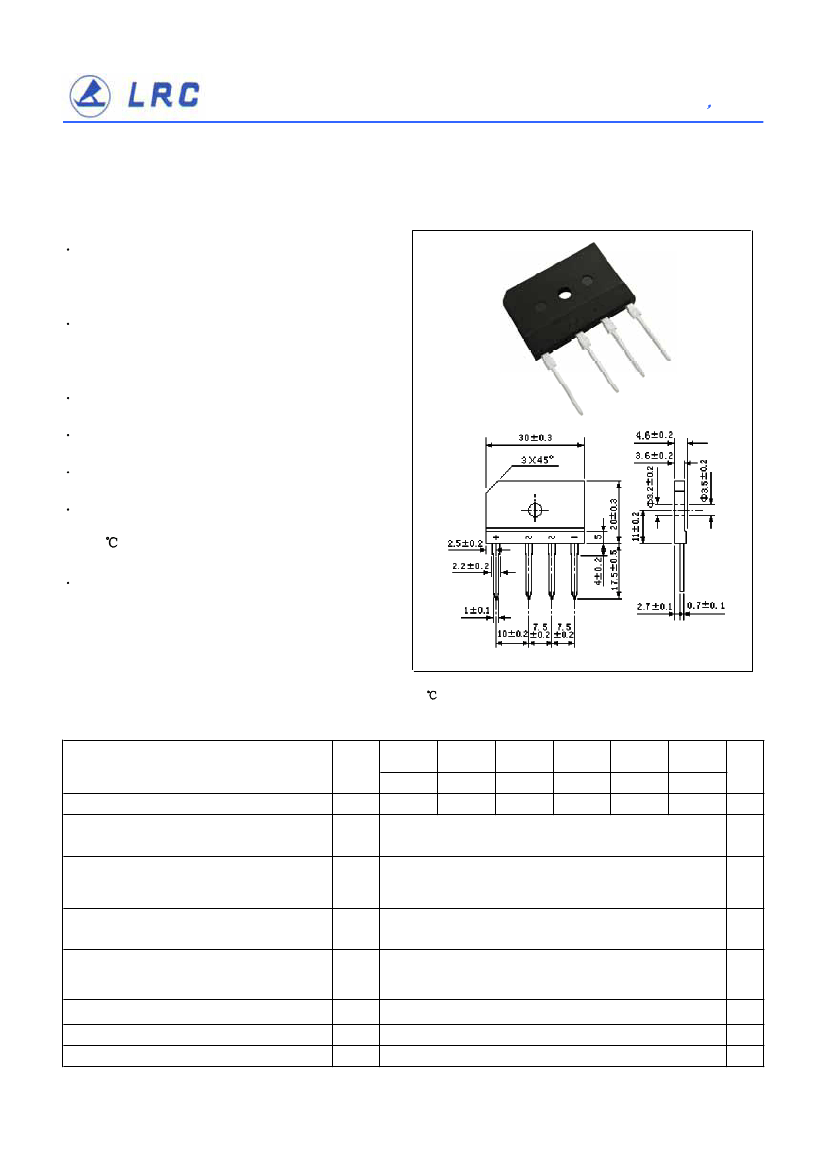

D25SB10(RBV2502S) Thru D25SB100(RBV2507S)

FEATURES

Plastic Package has Underwriters Laboratory

Flammability Classification 94V-0

This series is UL listed under the Recognized

Component index,file number E231047

Single-in-line package

High current capality with small package

Superior thermal conductivity

High temperature soldering guaranted:

260

/10 seconds

High I

FSM

Maximum Ratings & Thermal Characteristics

Ratings at 25

ambient temperature unless otherwise specified.

Parameter Symbol

Maximum repetitive voltage

Maximum DC reverse current

at rated DC blocking voltage

TA=25℃

TA=125℃

Symbol

D25SB10 D25SB20

D25SB40

D25SB60 D25SB80 D25SB100

Unit

µA

RBV2502S RBV2503S RBV2504S RBV2505S RBV2506S RBV2507S

100

200

400

500

350

2.5

1.1

150

600

800

1000

Average rectified forward current 60Hz Sine wave

Resistance load with heat sink Tc=100℃

Peak forward surge current 8.3ms single half sine-

wave superimposed on rated load

Dielectric strength Terminals to case，

AC 1 minute Current 1mA

Max instantaneous forward voltage at 12.5A

Operating junction temperature

Storage temperature

FSM

Vdia

Tstg

℃

-40~150

Recommended Resources

Differential amplifier circuit with constant current source

Replace input signal U1 with positive feedback signal U1

Converter circuit example circuit diagram

Telephone and fax machine protection circuit

Universal mobile phone battery charger circuit (BQ2057)

Color TV remote control 21

Why do some people get electric shocks?: Electric shock is caused by the power supply forming a loop through the human body, and the energy of the current destroys the original bioelectric order in the human body, resulting in destructive re...; quanzx Power technology

What does this warning mean and how to deal with it?: ...; ACE. Analog electronics

Bandpass Active Filter: I made a third-order bandpass filter with a center frequency of 1K and a bandwidth of 200Hz. However, no matter how I change the input, the output is a 1KHz sine wave. Later, when I didn't add any inp...; trust_hua Electronics Design Contest

If you have Sina Weibo, please come in: My name is wanghongyang_eeworldSister SOSO’s name is: soso_EEWORLD Xiaozhi's sister's name is: Xiaozhi_EEWORLD The one from daicheng is: eeworld_daichengOther netizens can post their names, and then I...; wanghongyang Talking

Question: Is it possible to simulate serial port receiving and sending in IAR?: Why is the send interrupt not set? Is it because it cannot be simulated in IAR software?...; lawly Microcontroller MCU

DSP-Sitara course second lecture, watch and take notes: [b] This afternoon I mainly watched the second lecture, and I felt it was quite impressive :Laugh: . . . The following are my study notes, which I took notes while listening . . . Hahaha (If there is ...; qinkaiabc DSP and ARM Processors
