D Subminiature
40 A High Power Straight PCB (Sizes DE-DC)
Plug
Part Numbers with Standoff #4-40 UNC
Shell Size
DE
DA
DA
DA
DA
DB
DB
DB
DB
DB
DC
DC
DC
DC
DC
DC
Layout
5W1
7W2
11W1
3W3
3WK3
5W5
9W4
13W3
17W2
21W1
8W8
13W6
17W5
21WA4
25W3
27W2
Part Number
Without Screw Locks
Without Boardlocks
DEMMV5H1PN
DAMMV7H2PN
DAMMV11H1PN
DAMMV3H3PN
DAMMV3HK3PNTM
DBMMV5H5PN
DBMMV9H4PN
DBMMV13H3PN
DBMMV17H2PN
DBMMV21H1PN
DCMMV8H8PN
DCMMV13H6PN
DCMMV17H5PN
DCMMV21HA4PN
DCMMV25H3PN
DCMMV27H2PN
Military/High Reliability
Reader’s Resource
For contact cavity arrangements,
see page 222.
For P.C. hole patterns, see pages 254-255.
For panel cutouts, see page 221.
For hardware views (Standard), see page 226.
Part Number
Without Screw Locks
With Boardlocks
DEMMZ5H1PN
DAMMZ7H2PN
DAMMZ11H1PN
DAMMZ3H3PN
DAMMZ3HK3PNTM
DBMMZ5H5PN
DBMMZ9H4PN
DBMMZ13H3PN
DBMMZ17H2PN
DBMMZ21H1PN
DCMMZ8H8PN
DCMMZ13H6PN
DCMMZ17H5PN
DCMMZ21HA4PN
DCMMZ25H3PN
DCMMZ27H2PN
Part Number
With Screw Locks
With Boardlocks
DEMMN5H1PN
DAMMN7H2PN
DAMMN11H1PN
DAMMN3H3PN
DAMMN3HK3PNTM
DBMMN5H5PN
DBMMN9H4PN
DBMMN13H3PN
DBMMN17H2PN
DBMMN21H1PN
DCMMN8H8PN
DCMMN13H6PN
DCMMN17H5PN
DCMMN21HA4PN
DCMMN25H3PN
DCMMN27H2PN
Notes: For DD shell sizes, see page 160.
Keyed.

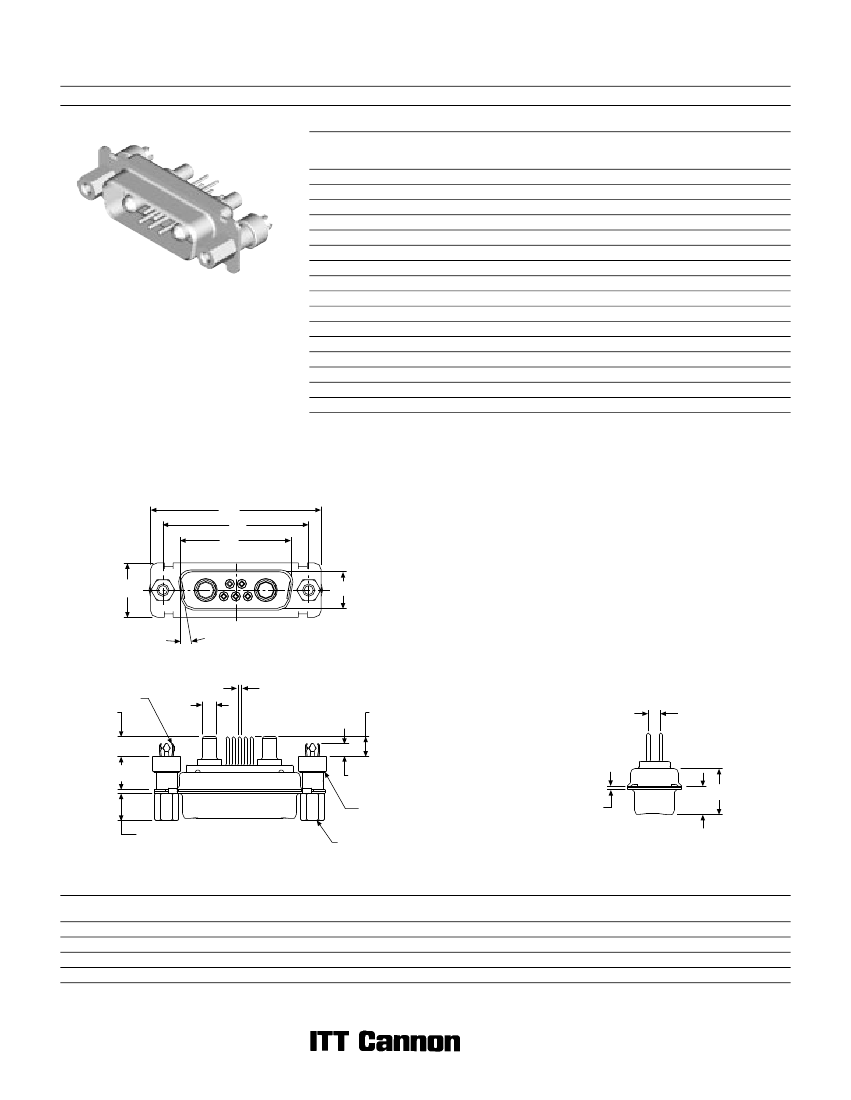

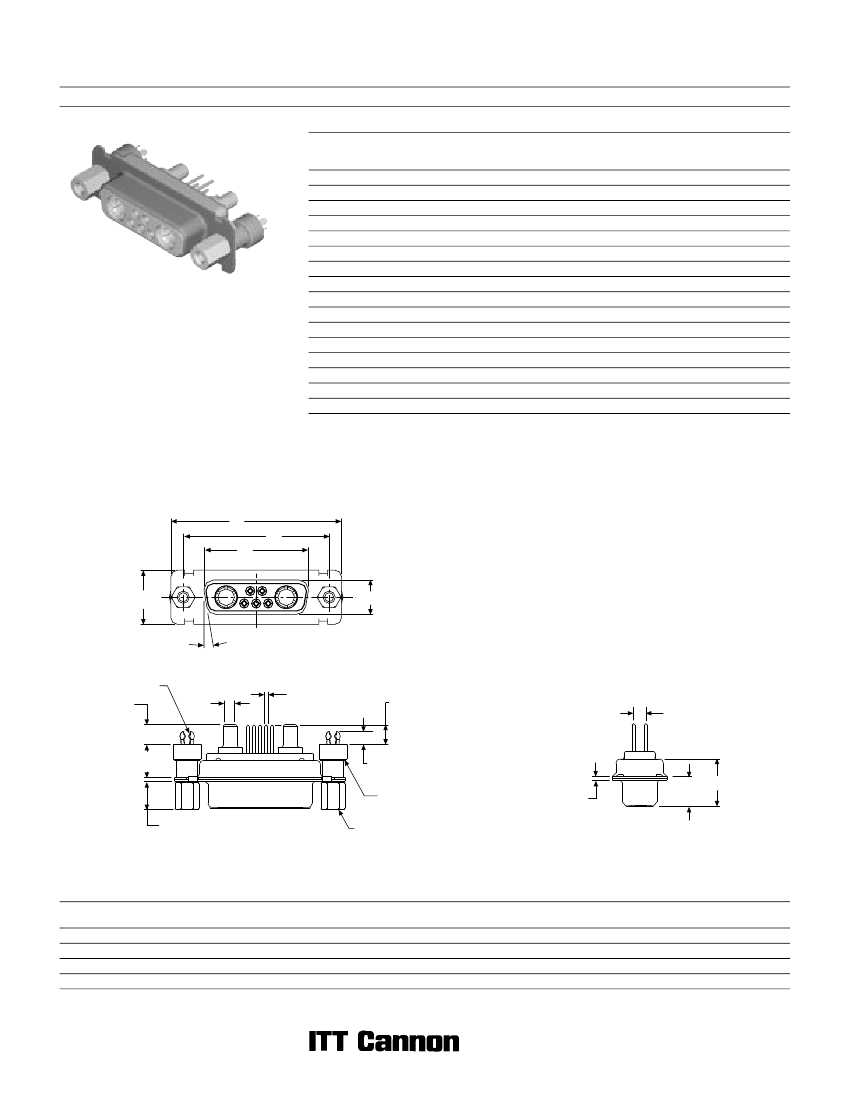

Engaging Face
A
C
B
E
D
10°
BOARDLOCK
4,65
(.183)
Ø 3,18
(.125)
Ø 0,76
(.030)
4,52
(.178)
2,84
(.112)
7,62
±
0,25
(.300
±
.010)
2,92
(.115)
STANDOFF
#4-40 UNC
L
W
F
6,50
±
0,25
(.256
±
.010)
SCREW LOCK
#4-40 UNC
Screw lock, boardlock and high power contact
removed for clarity
Dimensions
Shell Size
DE
DA
DB
DC
A
±0,38
(.015)
30,81 (1.213)
39,14 (1.541)
53,04 (2.088)
69,32 (2.729)
B
±0,13
(.005)
16,92 (.666)
25,25 (.994)
38,96 (1.534)
55,42 (2.182)
C
±0,13
(.005)
24,99 (.984)
33,32 (1.312)
47,04 (1.852)
63,50 (2.500)
D
±0,13
(.005)
8,36 (.329)
8,36 (.329)
8,36 (.329)
8,36 (.329)
E
±0,38
(.015)
12,55 (.494)
12,55 (.494)
12,55 (.494)
12,55 (.494)
F
±0,25
(.010)
10,72 (.422)
10,72 (.422)
10,82 (.426)
10,82 (.426)
W
±0,368
(.0145)
6,693 (.2635)
6,693 (.2635)
—
—
W
±0,41
(.016)
—
—
6,84 (.269)
6,84 (.269)
L
±0,25
(.010)
0,76 (.030)
0,76 (.030)
0,99 (.039)
0,99 (.039)
158
Dimensions are shown in mm (inch)
Dimensions subject to change
D Subminiature
40 A High Power Straight PCB (Sizes DE-DC)
Receptacle
Part Numbers with Standoff #4-40 UNC
Shell Size
DE
DA
DA
DA
DA
DB
DB
DB
DB
DB
DC
DC
DC
DC
DC
DC
Layout
5W1
7W2
11W1
3W3
3WK3
5W5
9W4
13W3
17W2
21W1
8W8
13W6
17W5
21WA4
25W3
27W2
Part Number
Without Screw Locks
Without Boardlocks
DEMMV5H1SN
DAMMV7H2SN
DAMMV11H1SN
DAMMV3H3SN
DAMMV3HK3SNTM
DBMMV5H5SN
DBMMV9H4SN
DBMMV13H3SN
DBMMV17H2SN
DBMMV21H1SN
DCMMV8H8SN
DCMMV13H6SN
DCMMV17H5SN
DCMMV21HA4SN
DCMMV25H3SN
DCMMV27H2SN
Military/High Reliability
Reader’s Resource
For contact cavity arrangements,
see page 223.
For P.C. hole patterns, see pages 257-258.
For panel cutouts, see page 221.
For hardware views (Standard), see page 226.
Part Number
Without Screw Locks
With Boardlocks
DEMMZ5H1SN
DAMMZ7H2SN
DAMMZ11H1SN
DAMMZ3H3SN
DAMMZ3HK3SNTM
DBMMZ5H5SN
DBMMZ9H4SN
DBMMZ13H3SN
DBMMZ17H2SN
DBMMZ21H1SN
DCMMZ8H8SN
DCMMZ13H6SN
DCMMZ17H5SN
DCMMZ21HA4SN
DCMMZ25H3SN
DCMMZ27H2SN
Part Number
With Screw Locks
With Boardlocks
DEMMN5H1SN
DAMMN7H2SN
DAMMN11H1SN
DAMMN3H3SN
DAMMN3HK3SNTM
DBMMN5H5SN
DBMMN9H4SN
DBMMN13H3SN
DBMMN17H2SN
DBMMN21H1SN
DCMMN8H8SN
DCMMN13H6SN
DCMMN17H5SN
DCMMN21HA4SN
DCMMN25H3SN
DCMMN27H2SN
Notes: For DD shell sizes, see page 161.
Keyed.
Engaging Face
A
C
B
E
D
10°
BOARDLOCK
4,65
(.183)
Ø 3,18
(.125)
Ø 0,76
(.030)
4,52 (.178)
2,84
(.112)
7,62
±
0,25
(.300
±
.010)
2,92
(.115)
STANDOFF
#4-40 UNC
L
W
F
6,50
±
0,25
(.256
±
.010)
SCREW LOCK
#4-40 UNC
Screw lock, boardlock and high power contact
removed for clarity
Dimensions
Shell Size
DE
DA
DB
DC
A
±0,38
(.015)
30,81 (1.213)
39,14 (1.541)
53,04 (2.088)
69,32 (2.729)
B
±0,13
(.005)
16,33 (.643)
24,66 (.971)
38,38 (1.511)
54,84 (2.159)
C
±0,13
(.005)
24,99 (.984)
33,32 (1.312)
47,04 (1.852)
63,50 (2.500)
D
±0,13
(.005)
7,90 (.311)
7,90 (.311)
7,90 (.311)
7,90 (.311)
E
±0,38
(.015)
12,55 (.494)
12,55 (.494)
12,55 (.494)
12,55 (.494)
F
±0,25
(.010)
10,90 (.429)
10,90 (.429)
10,90 (.429)
10,90 (.429)
W
±0,38
(.015)
6,94 (.273)
6,94 (.273)
6,94 (.273)
6,94 (.273)
L
±0,25
(.010)
0,76 (.030)
0,76 (.030)
0,76 (.030)
0,76 (.030)
Dimensions are shown in mm (inch)
Dimensions subject to change
159
