DAMY3W3SK126 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> DAMY3W3SK126

Preview

DAMY3W3SK126: DescriptionD Subminiature Connector, 3 Contact(s), Female, Solder Terminal, #4-40, Receptacle,; CategoryThe connector The connector; File Size89KB，2 Pages; ManufacturerITT; Websitehttp://www.ittcannon.com/

Download Datasheet Parametric View All

DAMY3W3SK126 Overview

D Subminiature Connector, 3 Contact(s), Female, Solder Terminal, #4-40, Receptacle,

DAMY3W3SK126 Parametric

Parameter Name	Attribute value
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	SHIELDED
body width	0.494 inch
body length	1.539 inch
Body/casing type	RECEPTACLE
Cable type	RG-179
Connector type	D SUBMINIATURE CONNECTOR
Contact arrangement	S0C3
Contactor design	PREASSEM CONN
Contact to complete cooperation	AU ON NI
Contact completed and terminated	GOLD
Contact point gender	FEMALE
Contact material	COPPER ALLOY
Contact resistance	55 mΩ
Contact style	COAX
DIN compliance	NO
Dielectric withstand voltage	1500VAC V
empty shell	NO
Filter function	NO
IEC compliance	NO
insulator material	POLYESTER
MIL compliance	NO
Manufacturer's serial number	DAMY
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	#4-40
Installation option 2	FLOAT BUSHING
Installation type	PANEL
Maximum operating temperature	150 °C
Minimum operating temperature	-65 °C
Plating thickness	30u inch
Rated current (signal)	5 A
Guideline	UL
reliability	COMMERCIAL
Shell surface	TIN
Shell material	STEEL
Housing size	2/A
Termination type	SOLDER
Total number of contacts	3
UL Flammability Code	94V-0
Maximum wire diameter	20 AWG
Minimum wire diameter	20 AWG
Base Number Matches	1

Preview

Download Datasheet

View All

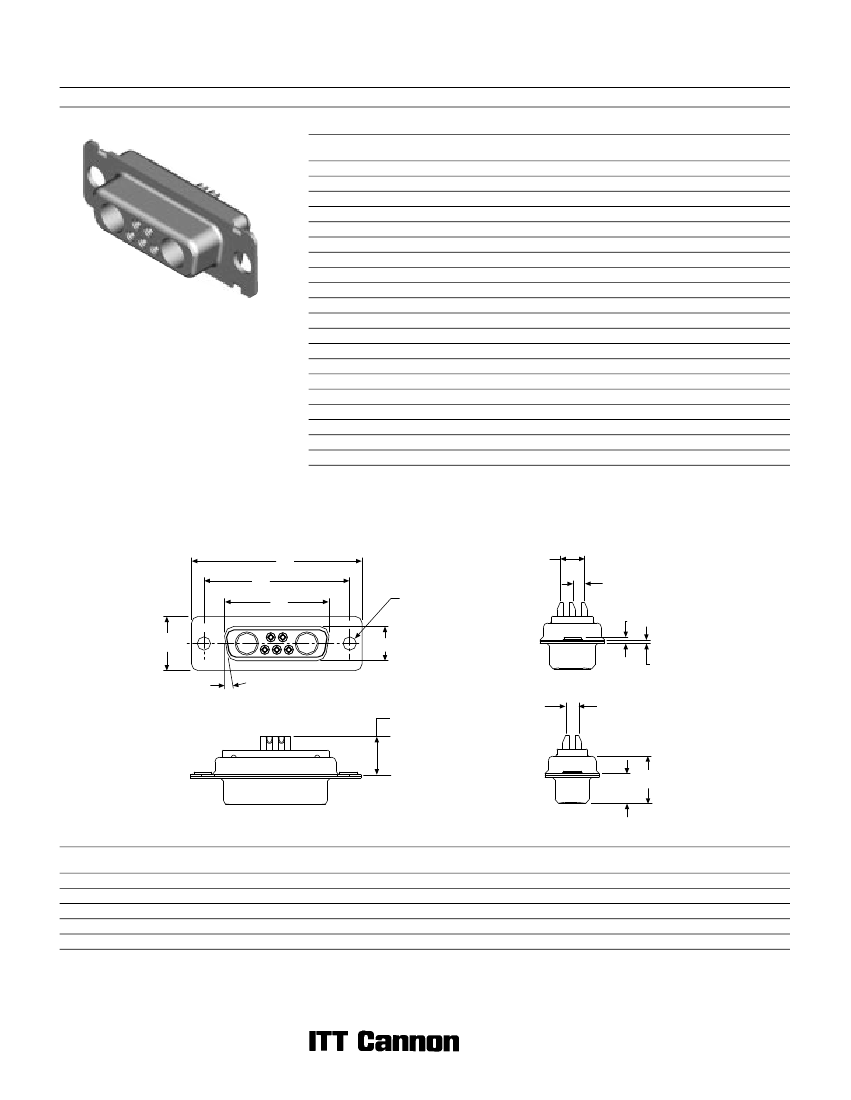

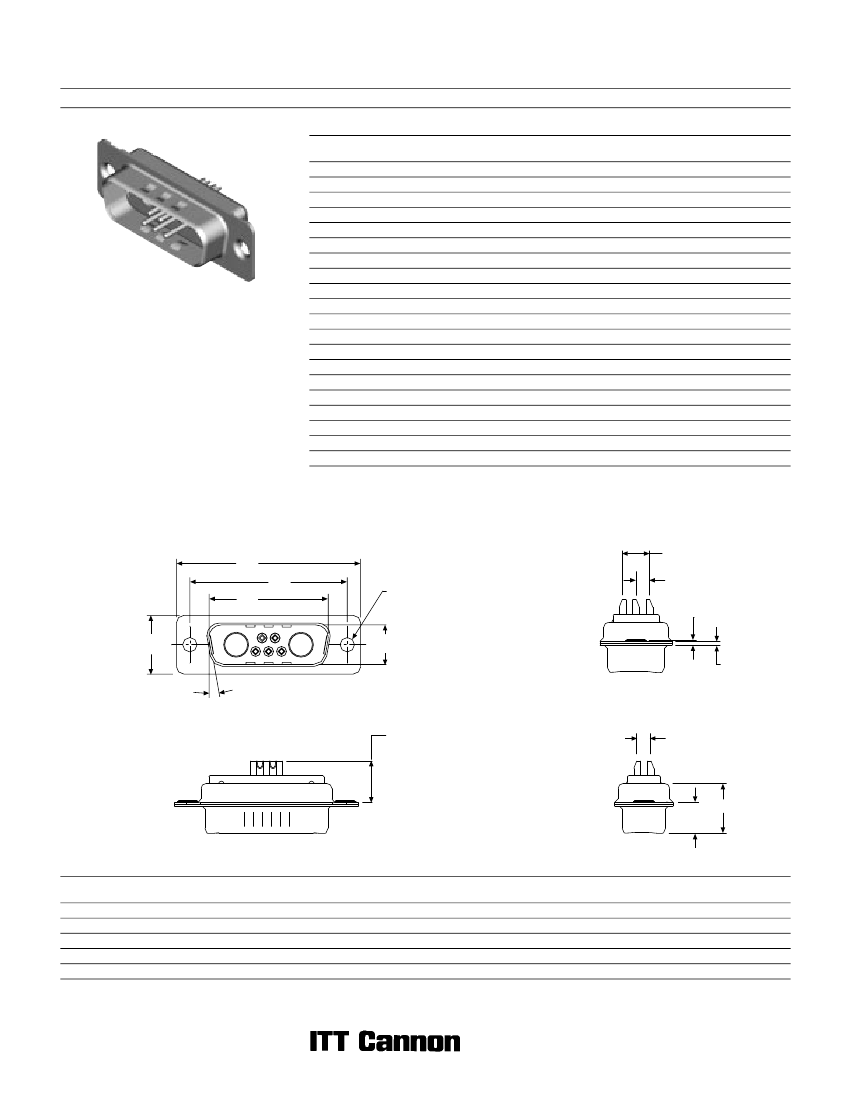

D Subminiature

Solder Cup (Sizes DE-DD)

Plug

Part Numbers

Shell Size

DE

DA

DB

DC

DD

Layout

5W1

7W2

11W1

3W3

3WK3

5W5

9W4

13W3

17W2

21W1

8W8

13W6

17W5

21WA4

25W3

27W2

24W7

36W4

43W2

47W1

Through Hole

DEM5W1PK87

DAM7W2PK87

DAM11W1PK87

DAM3W3PK87

DAM3WK3PK87

DBMP5W5PK87

DBM9W4PK87

DBM13W3PK87

DBM17W2PK87

DBM21W1PK87

DCM8W8PK87

DCM13W6PK87

DCM17W5PK87

DCM21WA4PK87

DCM25W3PK87

DCM27W2PK87

DDM24W7PK87

DDM36W4PK87

DDM43W2PK87

DDM47W1PK87

Dual

Float Mount

DEMY5W1PK87

DAMY7W2PK87

DAMY11W1PK87

DAMY3W3PK87

DAMY3WK3PK87

DBMY5W5PK87

DBMY9W4PK87

DBMY13W3PK87

DBMY17W2PK87

DBMY21W1PK87

DCMY8W8PK87

DCMY13W6PK87

DCMY17W5PK87

DCMY21WA4PK87

DCMY25W3PK87

DCMY27W2PK87

DDMY24W7PK87

DDMY36W4PK87

DDMY43W2PK87

DDMY47W1PK87

Combo D

®

Reader’s Resource

For contact cavity arrangements,

see page 222.

For panel cutouts, see page 221.

For hardware views (Standard), see page 226.

Clinch Nut

#4-40 UNC

DEME5W1PK87

DAME7W2PK87

DAME11W1PK87

DAME3W3PK87

DAME3WK3PK87

DBME5W5PK87

DBME9W4PK87

DBME13W3PK87

DBME17W2PK87

DBME21W1PK87

DCME8W8PK87

DCME13W6PK87

DCME17W5PK87

DCME21WA4PK87

DCME25W3PK87

DCME27W2PK87

DDME24W7PK87

DDME36W4PK87

DDME43W2PK87

DDME47W1PK87

For contacts with 30 microinches gold substitute K127 for K87. Example: DEM5W1PK127

For M3 clinch nuts substitute X for E. Example: DEMX5W1PK87

Keyed.

Engaging Face

A

C

B

Ø 3,05

(.120)

DD Configuration

5,69

(.224)

2,84

(.112)

K

E

D

L

10°

10,72 (.422)

MAX

2,84

(.112)

F

W

Dimensions

Shell Size

DE

DA

DB

DC

DD

A

±0,38

(.015)

30,81 (1.213)

39,14 (1.541)

53,04 (2.088)

69,32 (2.729)

66,93 (2.635)

B

±0,13

(.005)

16,92 (.666)

25,25 (.994)

38,96 (1.534)

55,42 (2.182)

52,81 (2.079)

C

±0,13

(.005)

24,99 (.984)

33,32 (1.312)

47,04 (1.852)

63,50 (2.500)

61,11 (2.406)

D

±0,13

(.005)

8,36 (.329)

11,07 (.436)

E

±0,38

(.015)

12,55 (.494)

15,37 (.605)

F

W

K

±0,25

(.010)

±0,368

(.0145)

±0,41

(.016)

±0,317

(.0125)

±0,25

(.010)

10,72 (.422) 6,693 (.2635)

—

1,206 (.0475)

—

10,72 (.422) 6,693 (.2635)

—

1,206 (.0475)

—

10,82 (.426)

—

6,84 (.269)

—

1,52 (.060)

10,82 (.426)

—

6,84 (.269)

—

1,52 (.060)

10,82 (.426)

—

6,84 (.269)

—

1,52 (.060)

L

±0,25

(.010)

0,76 (.030)

0,99 (.039)

78

Dimensions are shown in mm (inch)

Dimensions subject to change

Recommended Resources

Optical communication receiving circuit diagram

Use 555 to form a DC step-down conversion circuit diagram

Zero-crossing comparison detection circuit diagram

Simple household six-way infrared remote control circuit

AC detection water level alarm
