RD1A-24

Description
Power/Signal Relay, 1 Form A, SPST, Momentary, 0.015A (Coil), 24VDC (Coil), 360mW (Coil), 12A (Contact), 125VDC (Contact), DC Input, Random, AC/DC Output, Through Hole-Straight Mount, ROHS COMPLIANT
CategoryMechanical and electronic products    relay
File Size502KB，2 Pages
ManufacturerWorld Produts Inc.
Websitehttp://www.worldproducts.com
Environmental Compliance
Download Datasheet Parametric Compare View All

RD1A-24 Overview

Power/Signal Relay, 1 Form A, SPST, Momentary, 0.015A (Coil), 24VDC (Coil), 360mW (Coil), 12A (Contact), 125VDC (Contact), DC Input, Random, AC/DC Output, Through Hole-Straight Mount, ROHS COMPLIANT

RD1A-24 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
package instructionROHS COMPLIANT
Reach Compliance Codeunknown
ECCN codeEAR99
body width15.4 mm
body height15 mm
Body length or diameter19.6 mm
Maximum coil current (DC)0.015 A
Coil operating voltage (DC)18 V
Coil power360 mW
Coil release voltage (DC)1.2 V
Coil resistance1600 Ω
Maximum coil voltage (DC)24 V
Nominal coil voltage24 V
Coil/Input Power TypeDC
Contact (AC) maximum rated R load12A@250VAC
Maximum contact current (AC)12 A
Maximum contact current (DC)12 A
Contact (DC) maximum rated R load12A@125VDC
Contact resistance50 mΩ
Maximum contact voltage (AC)250 V
Maximum contact voltage (DC)125 V
Contact/Output Power TypeAC/DC
Electrical life100000 Cycle(s)
End contact materialSilver Alloy
Input switching control typeRandom
Insulation resistance100000000 Ω
Manufacturer's serial numberRD
Installation featuresTHROUGH HOLE-STRAIGHT MOUNT
Number of terminals4
operating hours8 ms
Maximum operating temperature85 °C
Minimum operating temperature-40 °C
PCB hole count4
physical size19.6mm x 15.4mm x 15mm
GuidelineUL
Relay actionMOMENTARY
Relay style1 FORM A
Relay functionSPST
Relay typePOWER/SIGNAL RELAY
release time5 ms
surface mountNO
Terminal length0.003 inch
Termination typeSOLDER
weight9 g
Base Number Matches1

Preview

Download Datasheet

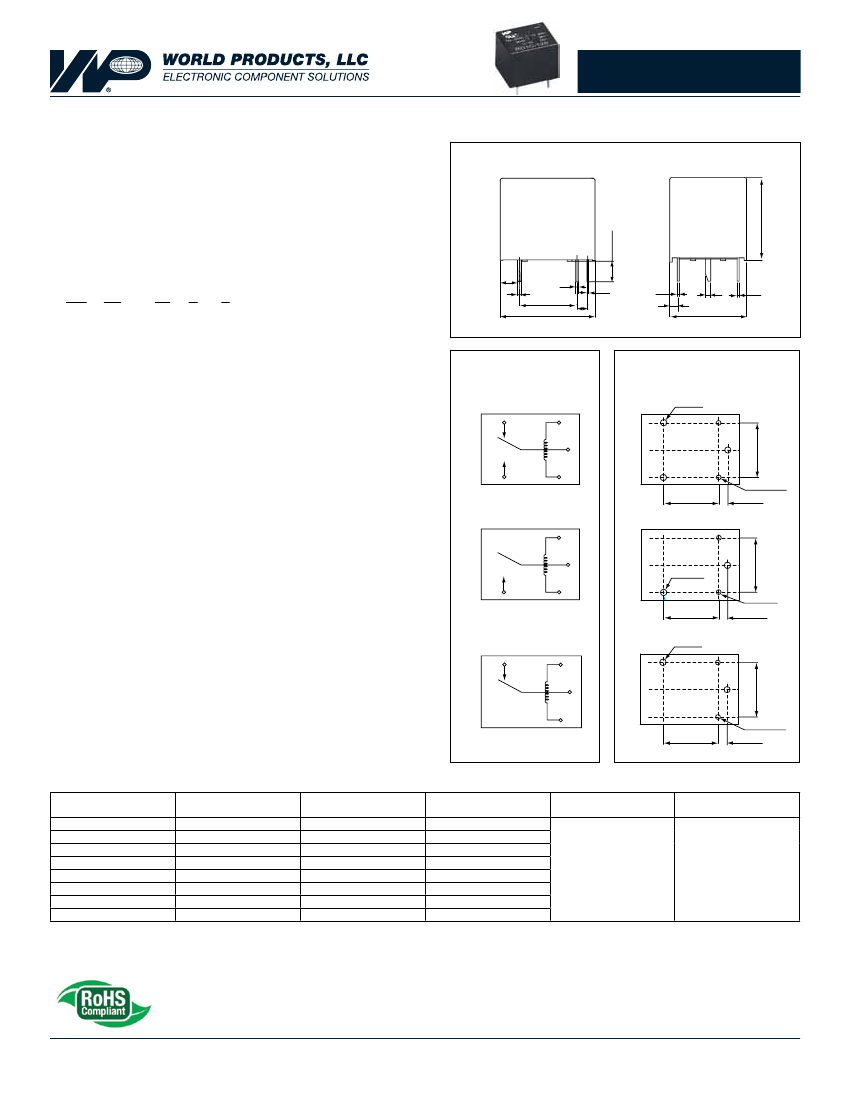

RD SERIES
INDUSTRIAL RELAYS
UL & CUL File #E256619
DIMENSIONS
Unit: mm
FEATURES
1.
2.
3.
4.
ORDERING INFORMATION
RD
(1)
(1)
(2)
3.4
1.0
∆0.6
12.2 ± 0.2
19.6 ± 0.4
2
3.5 ± 0.3
1A -
(2)
12
(3)
S
(4)
F
(5)
(4)
Enclosure
Nil
= Unsealed type
S
= Sealed type
Insulation System
Nil =
Standard
F =
Class F
0.3
0.5
1.0
1.7
± 0.5
15.4 ± 0.5
0.5
Basic Designation
RD
= RD Series
Contact Arrangement
1A
= 1 Form A (SPST-NO)
1B
= 1Form B (SPST-NC)
1C
= 1 Form C (SPDT)
Coil Voltage
3~48V
SCHEMATICS
Bottom view
PCB LAYOUT
Bottom view
Unit: mm
(5)
1C
1C
3 - ∆1.3
(3)
12.2 ± 0.2
2 - ∆1.0
2 ± 0.2
1A
1A
12 ± 0.2
2 - ∆1.0
2 ± 0.2
2 - ∆1.0
2 ± 0.2
Rev. 18.0 (12.14.10)
12 ± 0.2
12.2 ± 0.2
2 - ∆1.3
12.2 ± 0.2
1B
1B
2 - ∆1.3
COIL RATINGS (AT 20°C)
Coil Nominal Voltage
(VDC)
3
5
6
9
12
18
24
48
Coil Resistance
Ω(± 10%)
25
69
100
225
400
900
1600
6400
Pick-Up Voltage
(VDC) max.
2.25
3.75
4.50
6.75
9.00
13.5
18.0
36.0
Drop-Out Voltage
(VDC) min.
0.15
0.25
0.30
0.45
0.60
0.90
1.20
2.40
Nominal Operating
Power (W)
Max. Allowable Voltage
0.36
130% of nominal voltage
World Products, LLC
19654 Eighth Street East, Sonoma, CA 95476 | Phone (707) 996-5201 | Fax (707) 996-3380 | www.worldproducts.com
12
| Industrial Relays Catalog
12 ± 0.2
15.0 ± 0.5
Ultra-miniature size with universal terminal footprint
High contact capacity : 12A
Sealed types available
Low coil power consumption
