D861-H06Y-3A01 Overview

Single Color LED Display Cluster, Yellow

D861-H06Y-3A01 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Reach Compliance Code	compliant
color	YELLOW
Maximum forward current	7 A
JESD-609 code	e0
Number of functions	1
Optoelectronic device types	SINGLE COLOR LED DISPLAY CLUSTER
Terminal surface	Tin/Lead (Sn/Pb)
Base Number Matches	1

Preview

Download Datasheet

View All

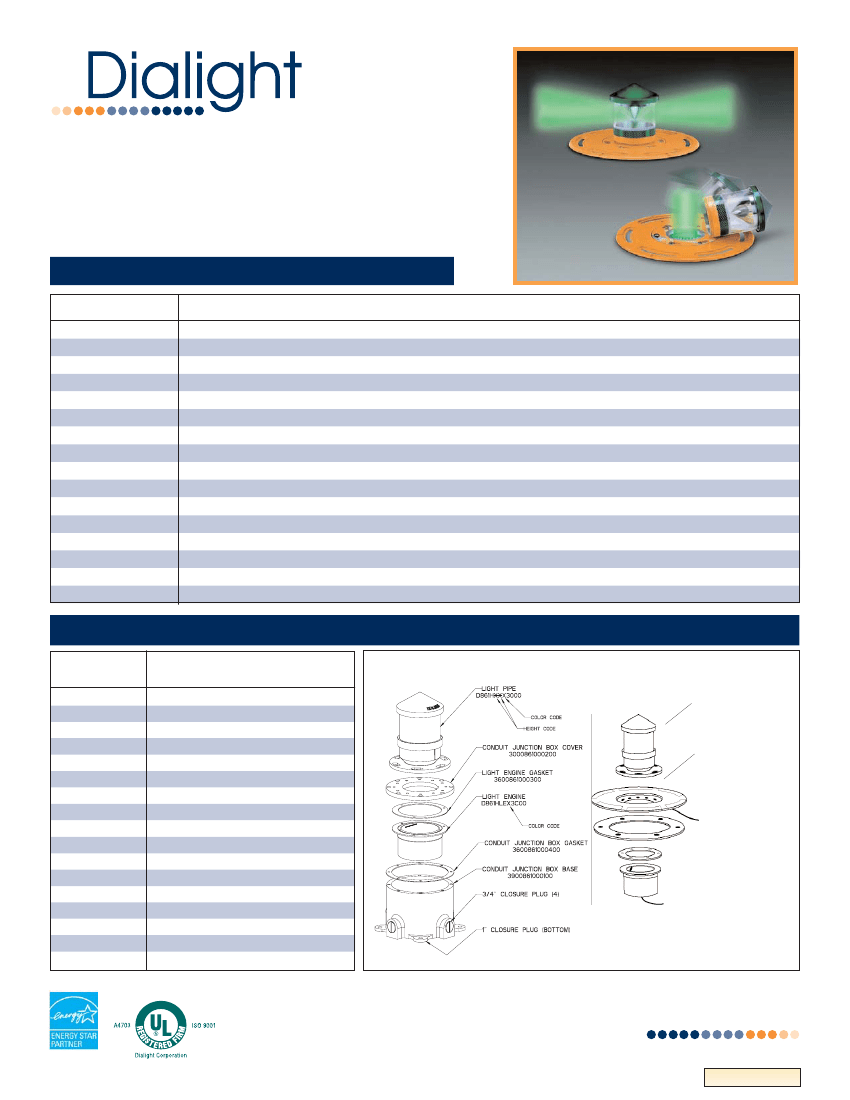

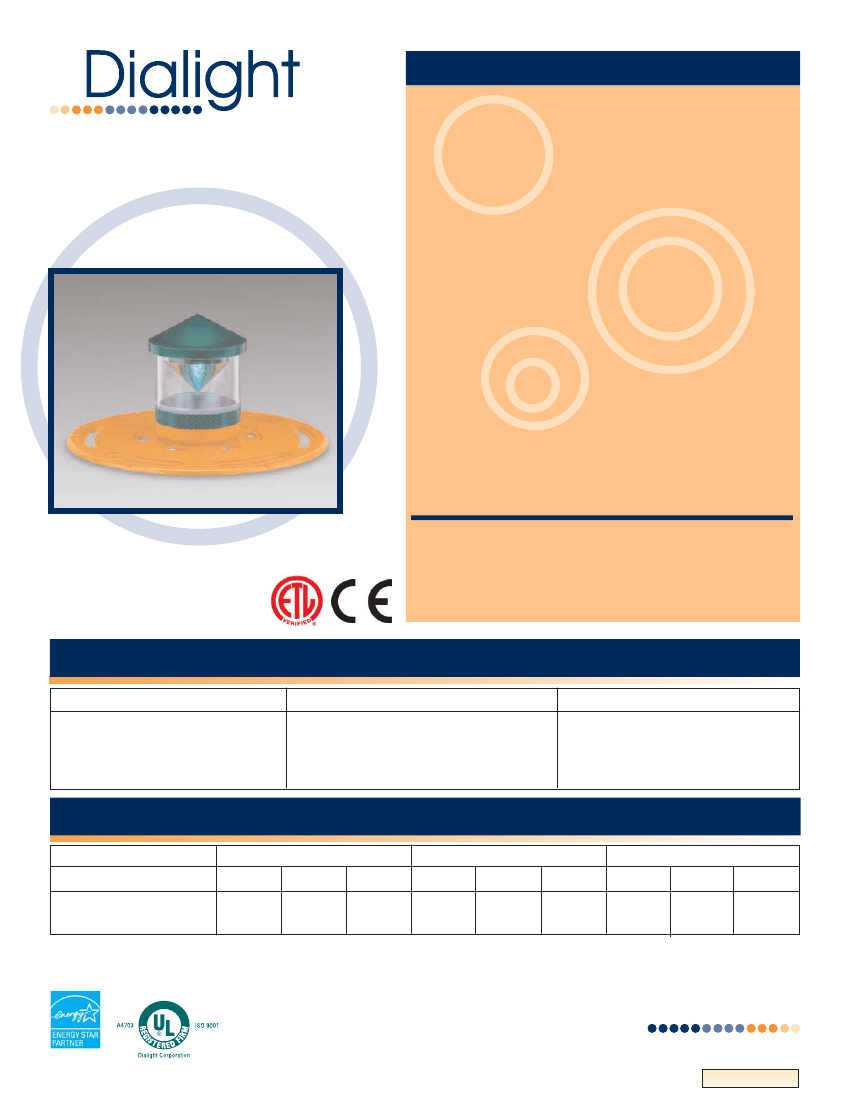

FEATURES / BENEFITS

Designed to replace incandescent elevated heliport edge

fixtures

D861H LED BASED

Elevated Heliport Perimeter

Edge Fixture

FAA Type L861H

Fixture is designed to mount onto standard L867 base can

with a 10.25” Bolt circle, or stake mounted, or with

Dialight Junction Box

Baseplate, Gasket & Mounting Bolts included

Operates on 6.6A series circuit, or 120 VAC

Standard Height of 6”

Easily interface to existing airfield lighting circuits

5 year performance warranty

Weather/corrosion resistant lamp assembly and housing

Leveling Kit available

State-of-the-art high-flux LED technology

Considerable power savings compared to incandescent

Creates no EMI/RFI

Lasts years longer than an incandescent

Elimination of costly fixture and lamp replacement if impacted

while also removing any exposure to potential electrical hazard

L861H - 5 Watts

Resistant to shock and vibration

Emulates incandescent dimming curve

LED based Heliport perimeter edge fixtures are used for all

heliports as a perimeter edge fixture. The omni directional

light is used to define the perimeter of the area the heli-

copter requires for landing and takeoff.

Patent# US 6,533,446

Compliant to the following specifications

FAA AC NO. (150/5345-46B)

Transport Canada (TP312E)

ICAO (Annex 14, July 1990)

WEIGHTS & MEASUREMENTS

OVERALL HEIGHT

6”

14”

24”

30”

APPROX. SHIPPING WEIGHT

12.5lbs/5.7kg

13.5lbs/6.1kg

14.5lbs/6.6kg

15.5lbs/7kg

CONTAINER DIMENSIONS

12 1/4’’x

17 3/8”x 8”

261/4”x 8”

321/4”x 8”

UNIT ELECTRICAL SPECIFICATIONS

I IN

V IN

SERIES

L861H, 6.6 AMP

L861H, 120 VOLT

MIN

6.2A

TYP

6.6A

MAX

7.0A

MIN

2.19

TYP

2.24

MAX

2.29

MIN

13.5

TYP

14.9

MAX

16.0

.2A

.36A

.45A

115

132

18.4

41.4

59.4

Dialight Corporation

1501 Route 34 South • Farmingdale, NJ 07727 USA

Tel: (1) 732.919.3119 • Fax: (1) 732.751.5778 • www.dialight.com

a Roxboro Group Company

MDTG861H001
