DOMINANT
Innovating Illumination
TM
DATA SHEET:
Opto Technologies
Midi DomiLED
TM
InGaN White : DAW-KJG
DomiLED
TM
TM

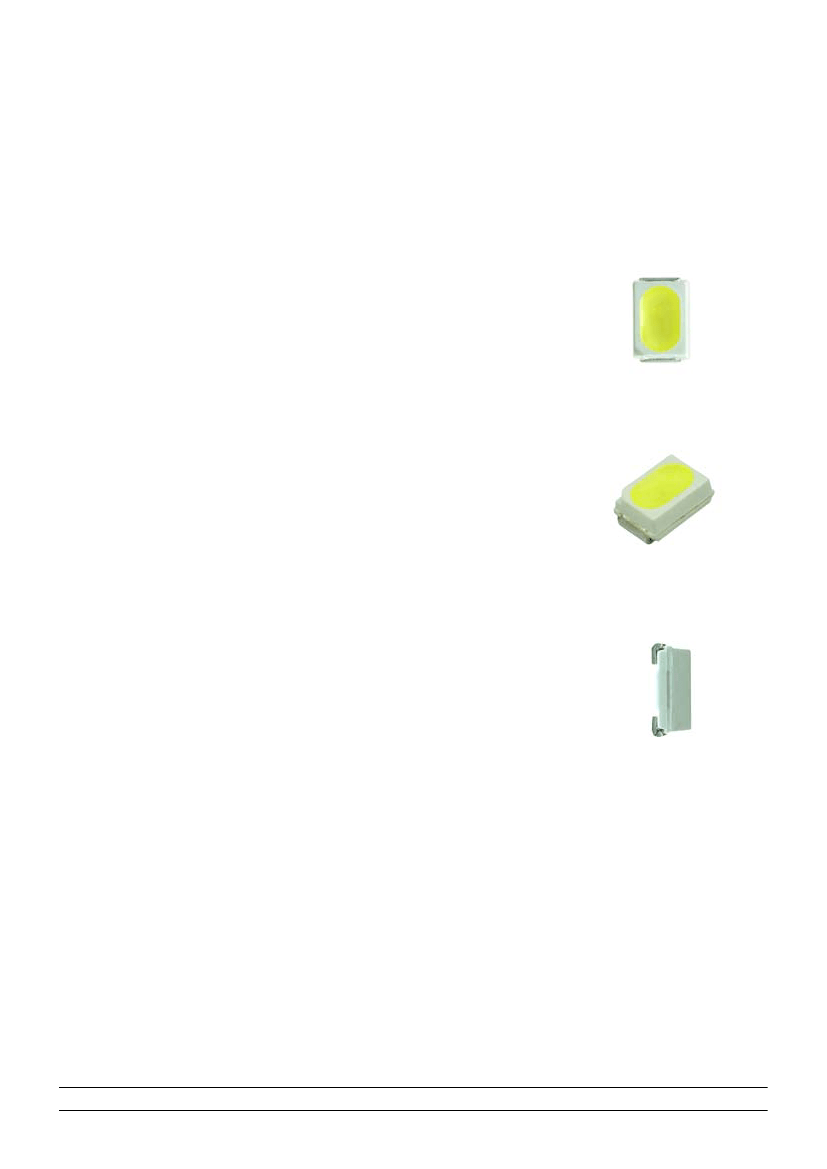

Synonymous with function and performance, the
DomiLED
series is
perfectly suited for a variety of cross-industrial applications due to its
small package outline, durability and superior brightness.
Features:
>
>
>
>
>
>
>
High brightness surface mount LED.
Based on InGaN / Sapphire technology.
120° viewing angle.
Small package outline (LxWxH) of 3.0 x 2.0 x 1.3mm.
IP free solution
Compatible to IR reflow soldering.
Environmental friendly; RoHS compliance.
Applications:
> Consumer Appliances: Backlighting illumination as in PDAs, LCD TV.
> Lighting: architecture lighting, general lighting, garden light, channel
light.
© 2005 DomiLED is a trademark of DOMINANT Opto Technologies.
All rights reserved. Product specifications are subject to change without notice.
1
04/03/2010 V1.0
DOMINANT
Innovating Illumination
TM
Opto Technologies
InGaN White : DAW-KJG
Optical Characteristics at Tj=25˚C
Part Ordering
Number
DAW-KJG-X1X2-1
Color
White
Viewing
Angle˚
120
Luminous Intensity @ IF = 20mA IV (mcd)
Min.
Typ.
Max.
1800.0
2200.0
2850.0
NOTE
1. Luminous intensity is measured with an accuracy of ± 11%.
2. Wavelength binning is carried for all units as per the wavelength-binning table. Only one wavelength group is allowed for each reel.
3. An optional Vf bining is also available upon request. Bining scheme is as per following table.
Electrical Characteristics at Tj=25˚C
Vf @ If = 20mA
Part Number
DAW-KJG
Vr @ Ir = 10uA
Max. (V)
3.5
Min. (V)
2.9
Typ. (V)
3.2
Min. (V)
5
Forward voltage, Vf is measured with an accuracy of ± 0.1 V.
Absolute Maximum Ratings
Maximum Value
DC forward current
Reverse voltage
ESD threshold (HBM)
LED junction temperature
Operating temperature
Storage temperature
30
5
2000
125
-40 … +100
-40 … +100
Unit
mA
V
V
˚C
˚C
˚C
2
04/03/2010 V1.0
DOMINANT
Innovating Illumination
TM
Opto Technologies
InGaN White : DAW-KJG
DAW-KJG, White Color Grouping
White Bin Structure
4,500K
0.40
0.38
0.36
0.34
0.32
10,000K
5,000K
5,650K
6,300K
7,000K
UU
UL
VU
WU
VL
XU
YU
YL
XL
WL
0.30
0.28
0.26
0.24
0.24
0.26
0.28
0.30
0.32
0.34
0.36
0.38
Chromaticity coordinate groups are measured with an accuracy of ± 0.01.
Bin
YU
YL
XU
XL
WU
WL
VU
VL
UU
UL
Cx
Cy
Cx
Cy
Cx
Cy
Cx
Cy
Cx
Cy
Cx
Cy
Cx
Cy
Cx
Cy
Cx
Cy
Cx
Cy
1
0.274
0.301
0.283
0.284
0.303
0.333
0.307
0.316
0.315
0.343
0.317
0.325
0.329
0.354
0.329
0.336
0.347
0.368
0.345
0.350
2
0.283
0.284
0.290
0.270
0.307
0.316
0.310
0.299
0.317
0.325
0.319
0.310
0.329
0.336
0.329
0.319
0.345
0.350
0.343
0.331
3
0.307
0.316
0.310
0.299
0.317
0.325
0.319
0.310
0.329
0.336
0.329
0.319
0.345
0.350
0.343
0.331
0.361
0.365
0.357
0.343
4
0.303
0.333
0.307
0.316
0.315
0.343
0.317
0.325
0.329
0.354
0.329
0.336
0.347
0.368
0.345
0.350
0.364
0.383
0.361
0.365
Dominant color coordinate is measured with an accuracy of ± 0.01.
3
04/03/2010 V1.0
DOMINANT
Innovating Illumination
TM
Opto Technologies
InGaN White : DAW-KJG
Luminous Intensity Group at Tj=25˚C
Brightness Group
X1
X2
Luminous intensity is measured with an accuracy of ± 11%.
Luminous Intensity @
IV (mcd)
1800.0...2240.0
2240.0...2850.0
Vf Binning at Tj=25˚C
Vf Bin @ 20mA
V1
V2
V3
V4
V5
V6
Forward voltage, Vf is measured with an accuracy of ± 0.1 V.
Forward voltage (V)
2.90 - 3.00
3.00 - 3.10
3.10 - 3.20
3.20 - 3.30
3.30 - 3.40
3.40 - 3.50
4
04/03/2010 V1.0
DOMINANT
Innovating Illumination
TM
Opto Technologies
InGaN White : DAW-KJG

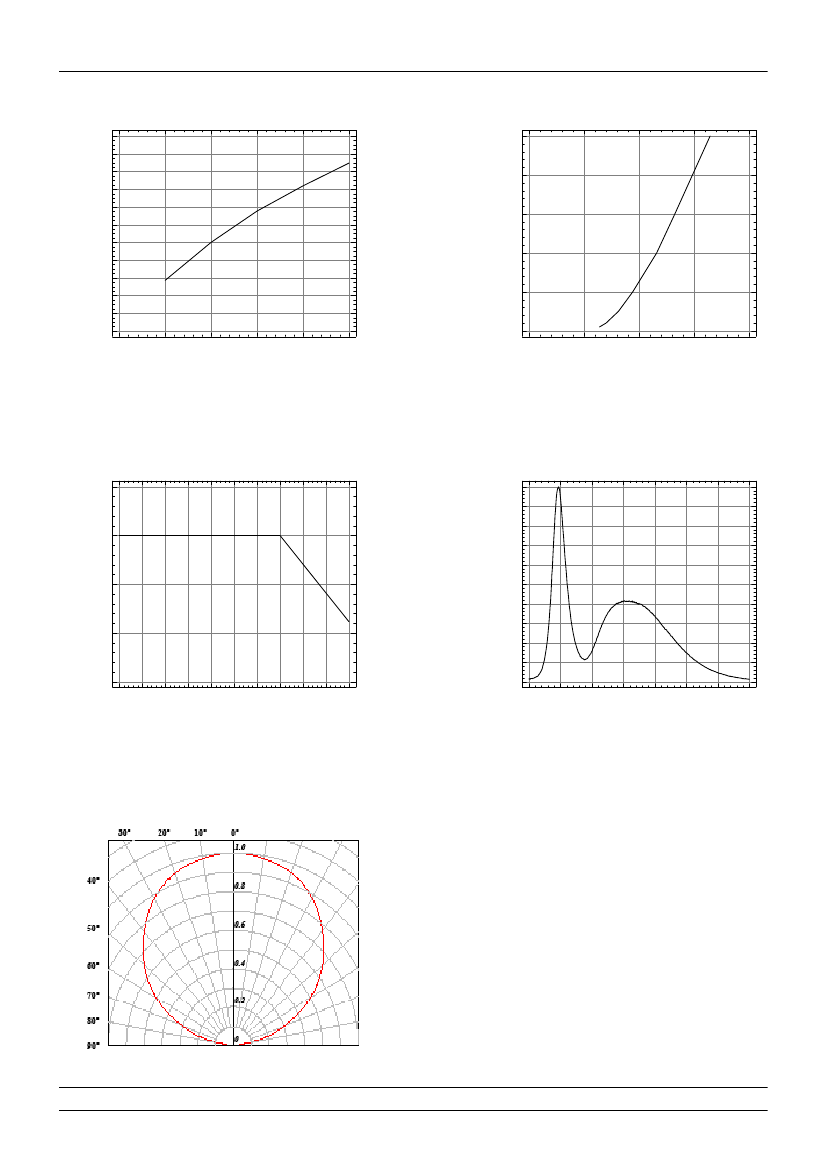

Forward Current Vs Forward Voltage
50
40
30
20
10
0
Relative Luminous Intensity Vs Forward Current
Relative Intensity; Normalized at 20mA
2.2
2
1.6
1.4
1.2
1
0.8
0.6
0.4
0.2
0
0
10
20
30
40
50
1.8
Forward Current; mA
2
2.5
3
3.5
4
Forward Current, mA
Forward Voltage; V
Maximum Current Vs Ambient Temperature
40
1
0.9
0.8
Relative Intensity Vs Wavelength
Forward Current; mA
Relative Intensity
30
0.7
0.6
0.5
0.4
0.3
0.2
0.1
0
20
10
0
0
10
20
30
40
50
60
70
80
90 100
400
450
500
550
600
650
700
750
Ambient Temperature
Wavelength; nm
Radiation Pattern
5
04/03/2010 V1.0
