DWA-PKG-X2Y-1

Description
Single Color LED, Amber, 2.4mm, 3.20 X 2.80 MM, 1.80 MM HEIGHT, ROHS COMPLIANT, PLASTIC PACKAGE-4
CategoryLED optoelectronic/LED    photoelectric
File Size1MB,13 Pages
ManufacturerDOMINANT
Websitehttp://www.dominant-semi.com/
Environmental Compliance
Download Datasheet Parametric Compare View All

DWA-PKG-X2Y-1 Overview

Single Color LED, Amber, 2.4mm, 3.20 X 2.80 MM, 1.80 MM HEIGHT, ROHS COMPLIANT, PLASTIC PACKAGE-4

DWA-PKG-X2Y-1 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
package instruction3.20 X 2.80 MM, 1.80 MM HEIGHT, ROHS COMPLIANT, PLASTIC PACKAGE-4
Reach Compliance Codeunknown
Other featuresSUPPORTS INFRARED
colorAMBER
color@wavelengthAmber
ConfigurationSINGLE
Maximum forward current0.07 A
Maximum forward voltage2.5 V
minimum luminous intensity120 cd
Nominal luminous intensity3550.0 mcd
Installation featuresSURFACE MOUNT
Number of functions1
Number of terminals4
Maximum operating temperature115 °C
Minimum operating temperature-40 °C
Optoelectronic device typesSINGLE COLOR LED
total height1.8 mm
method of packingTAPE AND REEL
peak wavelength617 nm
Maximum reverse voltage12 V
shapeROUND
size2.4 mm
surface mountYES
perspective120 deg
Base Number Matches1
DOMINANT
Innovating Illumination
TM

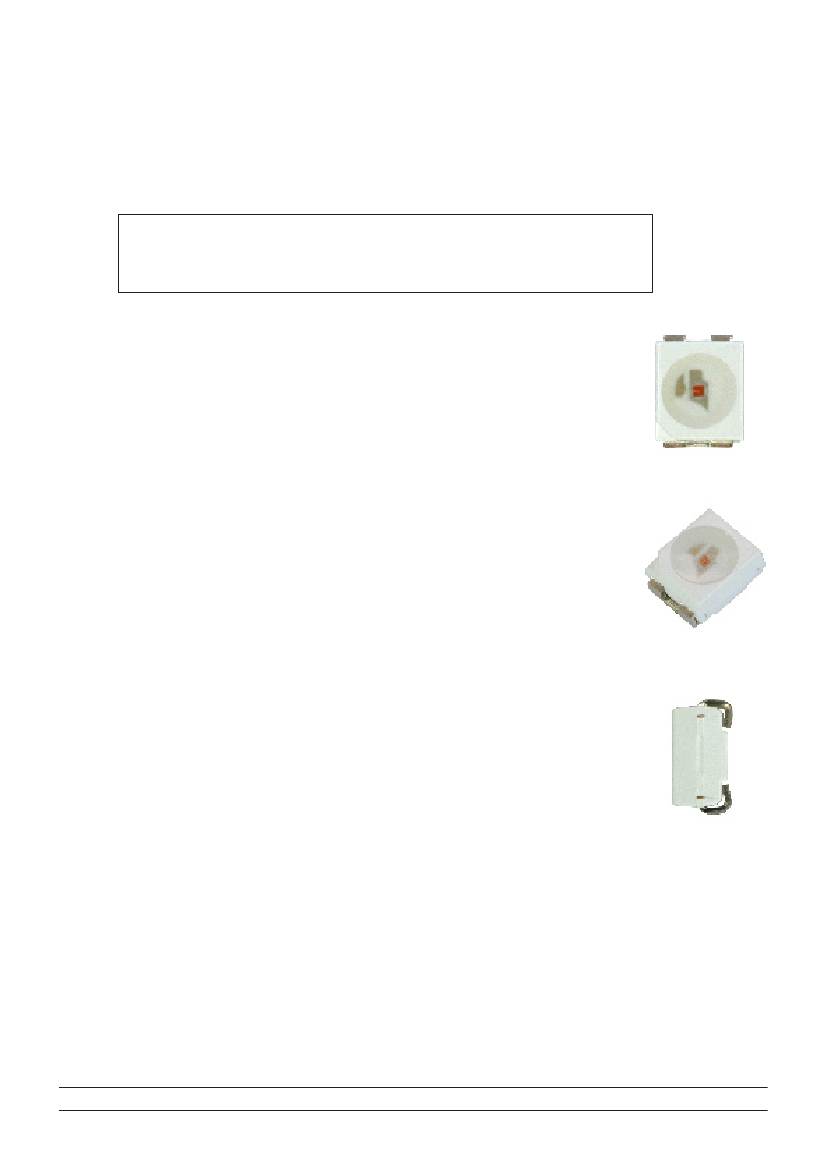

DATA SHEET:
Opto Technologies
Power DomiLED
TM
AlInGaP : DWx-PKG
Product specification will be changed.
Product Change Notice issued on 20 January 2014.
Power DomiLED
TM
With its significant power in terms brightness, viewing angle and variety of
application possibilities,
Power DomiLED™
truly is a standout performer!
Ideal for automotive interior lighting as well as home, office and industrial
applications, it is also a proven performer in electronic signs and signals.
Features:
>
>
>
>
>
>
>
High brightness surface mount LED using thin film technology.
120° viewing angle.
Small package outline (LxWxH) of 3.2 x 2.8 x 1.8mm.
Qualified according to JEDEC moisture sensitivity Level 2.
Compatible to IR reflow soldering.
Environmental friendly; RoHS compliance.
Superior corrosion resistance
Applications:
> Automotive:
Interior applications, eg: switches, telematics, climate control system,
dashboard, etc.
Exterior applications, eg: signal lighting, Center High Mounted Stop Light
(CHMSL)
> Signage: full colour display video notice board, signage, special effect
lighting.
> Lighting: architecture lighting, general lighting, garden light, channel light.
© 2005 DomiLED is a trademark of DOMINANT Opto Technologies.
All rights reserved. Product specifications are subject to change without notice.
1
19/04/2013 V8.0

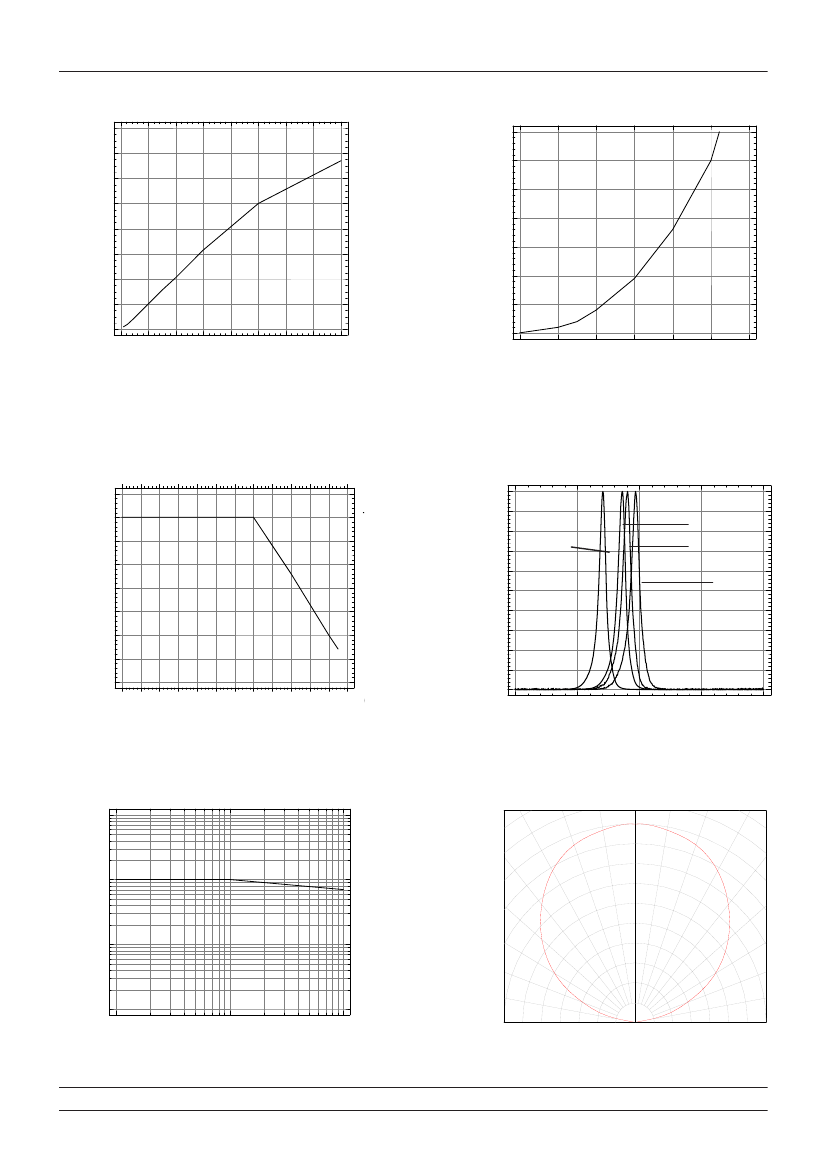

DWA-PKG-X2Y-1 Related Products

DWA-PKG-X2Y-1 DWY-PKG-X2Y-1 DWS-PKG-W2X-1 DWR-PKG-X2Y1-1
Description Single Color LED, Amber, 2.4mm, 3.20 X 2.80 MM, 1.80 MM HEIGHT, ROHS COMPLIANT, PLASTIC PACKAGE-4 Single Color LED, Yellow, 2.4mm, 3.20 X 2.80 MM, 1.80 MM HEIGHT, ROHS COMPLIANT, PLASTIC PACKAGE-4 Single Color LED, Super Red, 2.4mm, 3.20 X 2.80 MM, 1.80 MM HEIGHT, ROHS COMPLIANT, PLASTIC PACKAGE-4 Single Color LED, Red, 2.4mm, 3.20 X 2.80 MM, 1.80 MM HEIGHT, ROHS COMPLIANT, PLASTIC PACKAGE-4
Is it Rohs certified? conform to conform to conform to conform to
package instruction 3.20 X 2.80 MM, 1.80 MM HEIGHT, ROHS COMPLIANT, PLASTIC PACKAGE-4 3.20 X 2.80 MM, 1.80 MM HEIGHT, ROHS COMPLIANT, PLASTIC PACKAGE-4 3.20 X 2.80 MM, 1.80 MM HEIGHT, ROHS COMPLIANT, PLASTIC PACKAGE-4 3.20 X 2.80 MM, 1.80 MM HEIGHT, ROHS COMPLIANT, PLASTIC PACKAGE-4
Reach Compliance Code unknown unknown unknown unknown
color AMBER YELLOW SUPER RED RED
color@wavelength Amber Yellow Orange-Red Orange
Configuration SINGLE SINGLE SINGLE SINGLE
Maximum forward current 0.07 A 0.07 A 0.07 A 0.07 A
Maximum forward voltage 2.5 V 2.5 V 2.5 V 2.5 V
minimum luminous intensity 120 cd 120 cd 120 cd 120 cd
Installation features SURFACE MOUNT SURFACE MOUNT SURFACE MOUNT SURFACE MOUNT
Number of functions 1 1 1 1
Number of terminals 4 4 4 4
Maximum operating temperature 115 °C 115 °C 115 °C 115 °C
Minimum operating temperature -40 °C -40 °C -40 °C -40 °C
Optoelectronic device types SINGLE COLOR LED SINGLE COLOR LED SINGLE COLOR LED SINGLE COLOR LED
total height 1.8 mm 1.8 mm 1.8 mm 1.8 mm
method of packing TAPE AND REEL TAPE AND REEL TAPE AND REEL TAPE AND REEL
peak wavelength 617 nm 589 nm 632 nm 620 nm
Maximum reverse voltage 12 V 12 V 12 V 12 V
shape ROUND ROUND ROUND ROUND
size 2.4 mm 2.4 mm 2.4 mm 2.4 mm
surface mount YES YES YES YES
perspective 120 deg 120 deg 120 deg 120 deg
Base Number Matches 1 1 1 1
Other features SUPPORTS INFRARED SUPPORTS INFRARED - SUPPORTS INFRARED
Nominal luminous intensity 3550.0 mcd 3550.0 mcd - 2850.0 mcd
