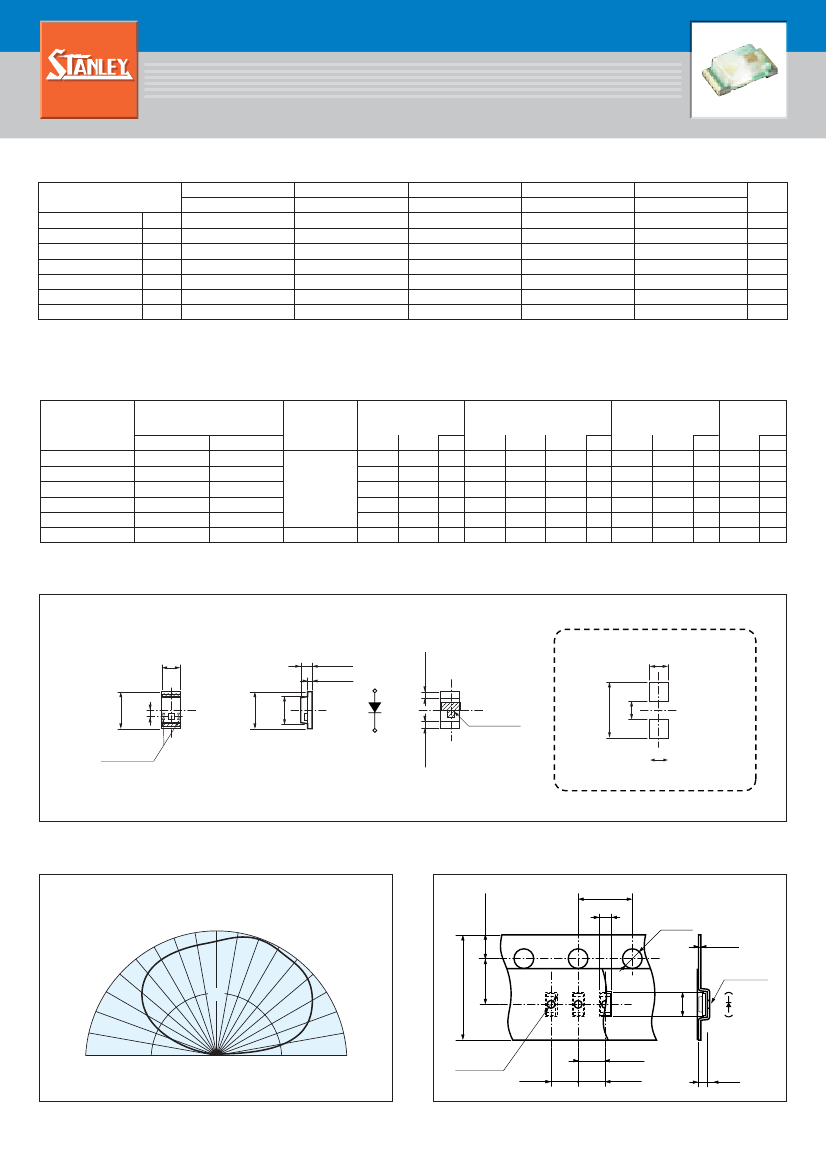

SUPER BRIGHT SURFACE MOUNT LED
1112C Series
Flat LensType 1.6X0.8mm
■
Absolute Maximum Ratings
Blue
DB
Power Dissipation
Forward Current
Peak Forward Current
Reverse Voltage
Operating Temp.
Storage Temp.
Derating
*
Pd
I
F
I
FM
V
R
Topr
Tstg
∆I
F
76
20
48
5
-40~+85
-40~+100
0.28
Green
DG
76
20
48
5
-40~+85
-40~+100
0.28
Yellow
FY
81
30
100
5
-40~+85
-40~+100
0.43
Orange
FA
81
30
100
5
-40~+85
-40~+100
0.43
Red
FR
81
30
100
5
-40~+85
-40~+100
0.43
Ta = 25°C
Unit
mW
mA
mA
V
°C
°C
mA /
°C
*
The current derating for operation applies when temperature is above 25°C.
• I
FM
Condition : tw
≤
1ms, Duty
≤
1/20
_
_
■
Electro-Optical Characteristics
Part No.
Material
DB1112C
DG1112C
FY1112C
FA1112C
FR1112C
Units
InGaN/SiC
InGaN/SiC
AlGaInP
AlGaInP
AlGaInP
Chip
Emitted Color
Blue
Green
Yellow
Orange
Red
Milky
White
Luminous Intensity
Lens
Color
MIN
8.5
24
25
25
25
mcd
I
V
TY P
14
40
65
65
50
mcd
I
F
10
10
20
20
20
mA
λ
d
TYP
470
530
590
605
626
nm
Wavelength
λ
p
TYP
467
522
592
609
635
nm
∆λ
TYP
26
30
15
15
15
nm
I
F
10
10
20
20
20
mA
TYP
3.3
3.3
1.9
1.9
1.9
V
Forward Voltage
V
F
MAX
3.8
3.8
2.4
2.4
2.4
V
I
F
10
10
20
20
20
mA
Ta = 25°C
Reverse Current
I
R
MAX
100
100
100
100
100
µ
A
V
R
5
5
5
5
5
V
■
Package Dimensions
Recommended Soldering pad
0.8±0.1
1
1.6±0.1
1.2±0.1
1.1±0.1
（0.28）
0.35±0.1
0.5±0.05
0.2 ±0.1
（0.8）
1
Unit : mm
1
（2.4）
Polarity Mark
2
Cathode Mark
2
0.35±0.1
2
PWB Camber direction
■
Spatial Distribution
■
Taping Specification
1.75±0.1
4.0±0.1
0.95
φ1.5
0
＋0.1
（0.8）
Unit : mm
0˚
30˚
30˚
（0.2）
3.5±0.05
90˚
90˚
（
φ0.6）
Center Hole
2.0±0.1
2.0±0.05
2.0±0.1
（0.7）
（1.8）
60˚
0.5
60˚
8±0.2
Center Hole
*
Quantity 4,000 pcs/Reel
■
SUPER BRIGHT SURFACE MOUNT LED
DB1112C
■

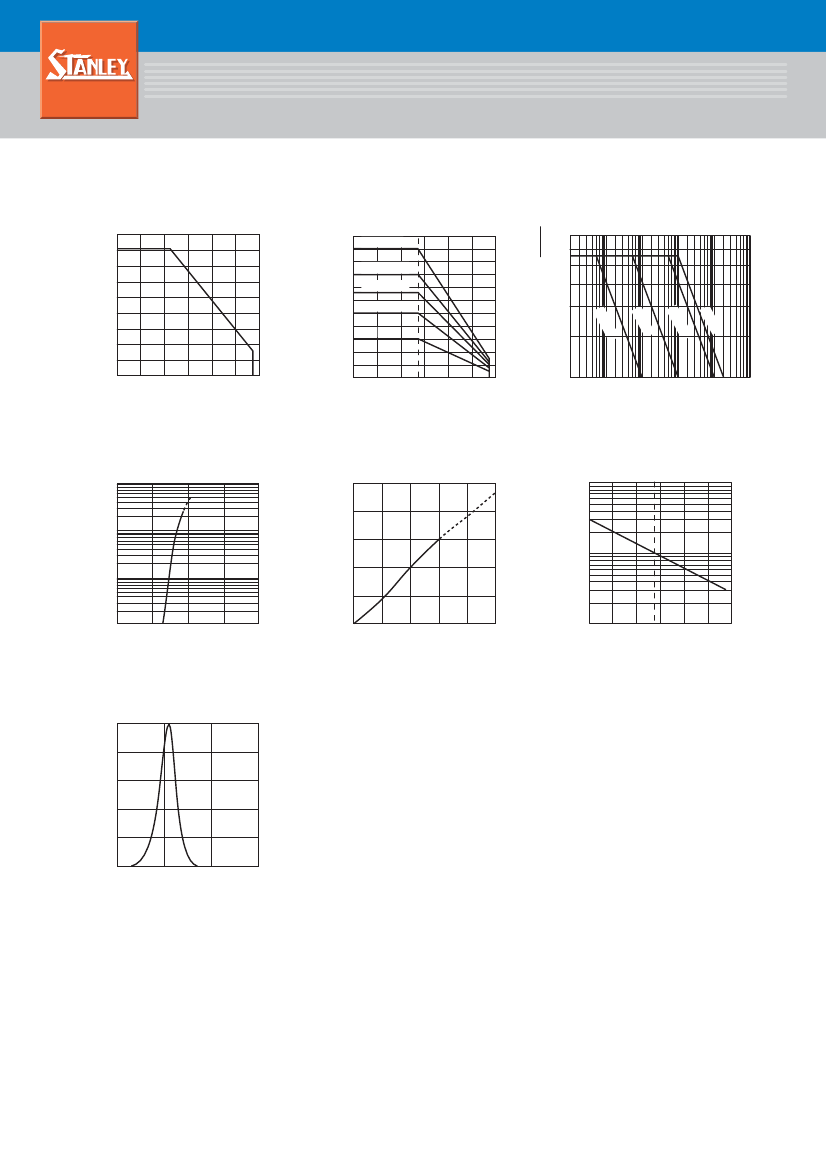

Power Dissipation vs. Ambient Temperature
Power Dissipation Pd(mW)
■
Ambient Temperature vs. Maximum Forward Current
Maximum Forward Current I
F
(mA)
■
Pulse Duration vs.Maximum Tolerable Peak Current
Ratio of Maximum Tolerable Peak Current
I
DC
MAX.
I
PEAK
MAX.
80
70
60
50
40
30
20
10
0
-40 -20 0 20 40 60 80 100
Ambient Temperature Ta(˚C)
60
50
40
30
20
10
Duty=5%
10%
20%
50%
DC
_
f
≥
50Hz
_
tw
≤
1ms
10
Ta=25˚C
5
2
10
z
KH
10
0H
z
Hz
1K
50
Hz
0
-40 -20 0 20 40 60 80 100
Ambient Temperature Ta(˚C)
1
1
10
1
10
2
10
3
10
4
10
5
Pulse Duration
■
Forward Voltage vs. Forward Current
100
Forward Current I
F
(mA)
■
Forward Current vs. Relative Intensity
3.0
2.5
Relative Intensity
■
Ambient Temperature vs. Relative Intensity
10.0
Relative Intensity
Ta=25˚C
Ta= 25˚C
I
F
=10mA
10
1
0.1
0.01
1.5 2.0 2.5 3.0 3.5 4.0 4.5
Forward Voltage V
F
(V)
2.0
1.5
1.0
0.5
0.0
0
5
10
15
20
25 30
1.0
0.1
-40 -20 0 20 40 60 80 100
Ambient Temperature Ta(˚C)
Forward Current I
F
(mA)
■
Spectral Distribution
1.0
Relative Intensity
Ta=25˚C
I
F
=10mA
0.8
0.6
0.4
0.2
0
400
450
500
550
600
Wave Length
λ(nm)
■
SUPER BRIGHT SURFACE MOUNT LED
DG1112C
■
Power Dissipation vs. Ambient Temperature
Power Dissipation Pd(mW)
■
Ambient Temperature vs. Maximum Forward Current
Maximum Forward Current I
F
(mA)
■
Pulse Duration vs.Maximum Tolerable Peak Current
Ratio of Maximum Tolerable Peak Current
I
DC
MAX.
I
PEAK
MAX.
80
70
60
50
40
30
20
10
0
-40 -20 0 20 40 60 80 100
Ambient Temperature Ta(˚C)
60
50
40
30
20
10
Duty=5%
10%
20%
50%
DC
_
f
≥
50Hz
_
tw
≤
1ms
10
Ta=25˚C
5
2
10
z
KH
10
0H
z
Hz
1K
50
Hz
0
-40 -20 0 20 40 60 80 100
Ambient Temperature Ta(˚C)
1
1
10
1
10
2
10
3
10
4
10
5
Pulse Duration
■
Forward Voltage vs. Forward Current
100
Forward Current I
F
(mA)
■
Forward Current vs. Relative Intensity
3.0
2.5
Relative Intensity
■
Ambient Temperature vs. Relative Intensity
10.0
Relative Intensity
Ta=25˚C
Ta= 25˚C
I
F
=10mA
10
1
0.1
0.01
1.5 2.0 2.5 3.0 3.5 4.0 4.5
Forward Voltage V
F
(V)
2.0
1.5
1.0
0.5
0.0
0
5
10
15
20
25 30
1.0
0.1
-40 -20 0 20 40 60 80 100
Ambient Temperature Ta(˚C)
Forward Current I
F
(mA)
■
Spectral Distribution
1.0
Relative Intensity
Ta=25˚C
I
F
=10mA
0.8
0.6
0.4
0.2
0
400
450
500
550
600
Wave Length
λ(nm)
■
SUPER BRIGHT SURFACE MOUNT LED
FY1112C
■
Power Dissipation vs. Ambient Temperature
90
80
70
60
50
40
30
20
10
0
-30 -10 10 30 50 70 90
Ambient Temperature Ta(˚C)
Power Dissipation Pd(mW)
■
Ambient Temperature vs. Maximum Forward Current
Maximum Forward Current I
F
(mA)
I
PEAK
MAX.
■
Pulse Duration vs.Maximum Tolerable Peak Current
Ratio of Maximum Tolerable Peak Current
I
DC
MAX.
110 Duty 5%
100
90 Duty 10%
80
70 Duty 20%
60 Duty 50%
50
40
DC
30
20
10
0
-30 -10 10 30 50 70 90
Ambient Temperature Ta(˚C)
_
f
≥
50Hz
_
tw
≤
1ms
4
3.5
3
2.5
2
Ta=25˚C
50
10
z
kH
10
1
1k
Hz
Hz
0H
1.5
z
1
0.1
10
1
10
2
10
3
10
4
Pulse Duration
■
Forward Voltage vs. Forward Current
100
50
30
20
10
5
2
1
0.5
0.2
0.1
1.0
Ta=25˚C
■
Forward Current vs. Relative Intensity
2.5
Relative Intensity
■
Ambient Temperature vs. Relative Intensity
10
5
Relative Intensity
Ta=25˚C
I
F
=20mA
Forward Current I
F
(mA)
2.0
1.5
1.0
0.5
0
0
2
1
0.5
0.2
1.5
2.0
2.5
3.0
10
20
30
40
50
0.1
-30 -10 10 30 50
70 90
Forward Voltage V
F
(V)
Forward Current I
F
(mA)
Ambient Temperature Ta(˚C)
■
Spectral Distribution
1.0
Relative Intensity
Ta=25˚C
I
F
=20mA
0.8
0.6
0.4
0.2
0
550
600
650
700
Wave Length
λ(nm)
■
SUPER BRIGHT SURFACE MOUNT LED
FA1112C
■
Power Dissipation vs. Ambient Temperature
90
80
70
60
50
40
30
20
10
0
-30 -10 10 30 50 70 90
Ambient Temperature Ta(˚C)
Power Dissipation Pd(mW)
■
Ambient Temperature vs. Maximum Forward Current
Maximum Forward Current I
F
(mA)
I
PEAK
MAX.
■
Pulse Duration vs.Maximum Tolerable Peak Current
Ratio of Maximum Tolerable Peak Current
I
DC
MAX.
110 Duty 5%
100
90 Duty 10%
80
70 Duty 20%
60 Duty 50%
50
40
DC
30
20
10
0
-30 -10 10 30 50 70 90
Ambient Temperature Ta(˚C)
_
f
≥
50Hz
_
tw
≤
1ms
4
3.5
3
2.5
2
Ta=25˚C
50
10
z
kH
10
1
1k
Hz
Hz
0H
1.5
z
1
0.1
10
1
10
2
10
3
10
4
Pulse Duration
■
Forward Voltage vs. Forward Current
100
50
30
20
10
5
2
1
0.5
0.2
0.1
1.0
Ta=25˚C
■
Forward Current vs. Relative Intensity
2.5
Relative Intensity
■
Ambient Temperature vs. Relative Intensity
10
5
Relative Intensity
Ta=25˚C
I
F
=20mA
Forward Current I
F
(mA)
2.0
1.5
1.0
0.5
0
0
2
1
0.5
0.2
1.5
2.0
2.5
3.0
10
20
30
40
50
0.1
-30 -10 10 30 50
70 90
Forward Voltage V
F
(V)
Forward Current I
F
(mA)
Ambient Temperature Ta(˚C)
■
Spectral Distribution
1.0
Relative Intensity
Ta=25˚C
I
F
=20mA
0.8
0.6
0.4
0.2
0
550
600
650
700
Wave Length
λ(nm)
