DRO-NJS-UV1-1 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> DRO-NJS-UV1-1

DRO-NJS-UV1-1: DescriptionSingle Color LED, Orange, 3.20 X 2.80 MM, 1.80 MM HEIGHT, ROHS COMPLIANT, PLASTIC PACKAGE-2; CategoryLED optoelectronic/LED photoelectric; File Size947KB，14 Pages; ManufacturerDOMINANT; Websitehttp://www.dominant-semi.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

DRO-NJS-UV1-1 Overview

Single Color LED, Orange, 3.20 X 2.80 MM, 1.80 MM HEIGHT, ROHS COMPLIANT, PLASTIC PACKAGE-2

DRO-NJS-UV1-1 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
package instruction	3.20 X 2.80 MM, 1.80 MM HEIGHT, ROHS COMPLIANT, PLASTIC PACKAGE-2
Reach Compliance Code	unknown
Other features	SUPPORTS INFRARED
color	ORANGE
Configuration	SINGLE
Maximum forward current	0.05 A
Nominal luminous intensity	560.0 mcd
Installation features	SURFACE MOUNT
Number of functions	1
Number of terminals	2
Maximum operating temperature	100 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	SINGLE COLOR LED
total height	1.75 mm
method of packing	TAPE AND REEL
shape	ROUND
surface mount	YES
Terminal pitch	3 mm
perspective	120 deg
Base Number Matches	1

Preview

Download Datasheet

View All

DOMINANT

Innovating Illumination

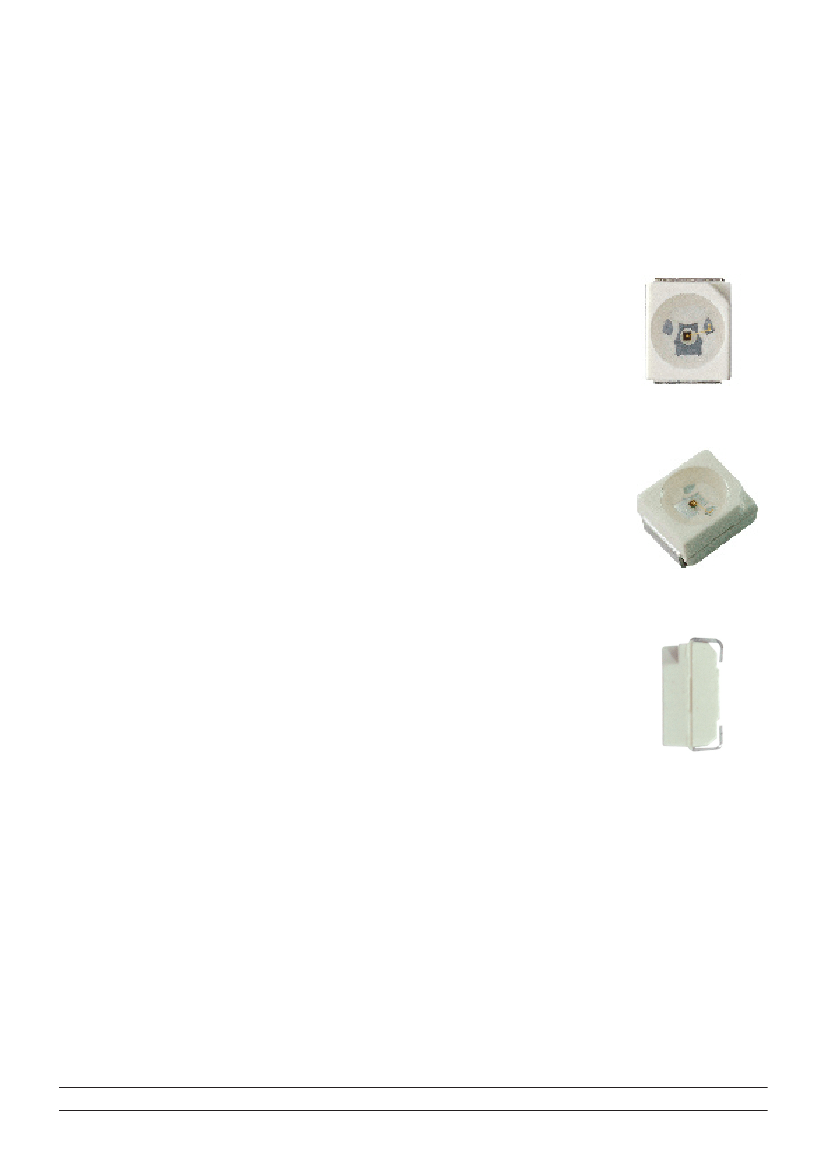

DATA SHEET:

Opto Technologies

DomiLED

AlInGaP : DRx-NJS

DomiLED

Synonymous with function and performance, the

DomiLED

series is

perfectly suited for a variety of cross-industrial applications due to its

small package outline, durability and superior brightness.

Features:

High brightness surface mount LED using thin film technology.

120° viewing angle.

Small package outline (LxWxH) of 3.2 x 2.8 x 1.8mm.

Qualified according to JEDEC moisture sensitivity Level 2.

Compatible to both IR reflow soldering.

Environmental friendly; RoHS compliance.

Applications:

> Automotive: Interior applications, eg: switches, telematics, climate

control system, dashboard, etc

> Signage: full colour display video notice board, signage, special effect

lighting.

> Industrial: white goods (eg: Oven, microwave, etc.), light bar,

illuminated advertising.

09/12/2013 V13.0

DRO-NJS-UV1-1 Related Products

	DRO-NJS-UV1-1	DRY-NJS-UV1-1	DRS-NJS-T2U-1	DRS-NJS-TU1-1	DRA-NJS-UV1-1	DRS-NJS-UV1-1	DRR-NJS-T2U-1
Description	Single Color LED, Orange, 3.20 X 2.80 MM, 1.80 MM HEIGHT, ROHS COMPLIANT, PLASTIC PACKAGE-2	Single Color LED, Yellow, 3.20 X 2.80 MM, 1.80 MM HEIGHT, ROHS COMPLIANT, PLASTIC PACKAGE-2	Single Color LED, Super Red, 3.20 X 2.80 MM, 1.80 MM HEIGHT, ROHS COMPLIANT, PLASTIC PACKAGE-2	Single Color LED, Super Red, 3.20 X 2.80 MM, 1.80 MM HEIGHT, ROHS COMPLIANT, PLASTIC PACKAGE-2	Single Color LED, Amber, 3.20 X 2.80 MM, 1.80 MM HEIGHT, ROHS COMPLIANT, PLASTIC PACKAGE-2	Single Color LED, Super Red, 3.20 X 2.80 MM, 1.80 MM HEIGHT, ROHS COMPLIANT, PLASTIC PACKAGE-2	Single Color LED, Red, 3.20 X 2.80 MM, 1.80 MM HEIGHT, ROHS COMPLIANT, PLASTIC PACKAGE-2
package instruction	3.20 X 2.80 MM, 1.80 MM HEIGHT, ROHS COMPLIANT, PLASTIC PACKAGE-2	3.20 X 2.80 MM, 1.80 MM HEIGHT, ROHS COMPLIANT, PLASTIC PACKAGE-2	3.20 X 2.80 MM, 1.80 MM HEIGHT, ROHS COMPLIANT, PLASTIC PACKAGE-2	3.20 X 2.80 MM, 1.80 MM HEIGHT, ROHS COMPLIANT, PLASTIC PACKAGE-2	3.20 X 2.80 MM, 1.80 MM HEIGHT, ROHS COMPLIANT, PLASTIC PACKAGE-2	3.20 X 2.80 MM, 1.80 MM HEIGHT, ROHS COMPLIANT, PLASTIC PACKAGE-2	3.20 X 2.80 MM, 1.80 MM HEIGHT, ROHS COMPLIANT, PLASTIC PACKAGE-2
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown
color	ORANGE	YELLOW	SUPER RED	SUPER RED	AMBER	SUPER RED	RED
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Maximum forward current	0.05 A	0.05 A	0.05 A	0.05 A	0.05 A	0.05 A	0.05 A
Nominal luminous intensity	560.0 mcd	560.0 mcd	450.0 mcd	355.0 mcd	560.0 mcd	560.0 mcd	450.0 mcd
Installation features	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Number of functions	1	1	1	1	1	1	1
Number of terminals	2	2	2	2	2	2	2
Maximum operating temperature	100 °C	100 °C	100 °C	100 °C	100 °C	100 °C	100 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Optoelectronic device types	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED
total height	1.75 mm	1.75 mm	1.75 mm	1.75 mm	1.75 mm	1.75 mm	1.75 mm
method of packing	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL
shape	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND
surface mount	YES	YES	YES	YES	YES	YES	YES
Terminal pitch	3 mm	3 mm	3 mm	3 mm	3 mm	3 mm	3 mm
perspective	120 deg	120 deg	120 deg	120 deg	120 deg	120 deg	120 deg
Other features	SUPPORTS INFRARED	SUPPORTS INFRARED	-	SUPPORTS INFRARED	SUPPORTS INFRARED	-	SUPPORTS INFRARED
Base Number Matches	1	1	1	1	-	-	-
JESD-609 code	-	e3	-	e3	e3	e3	e3
Terminal surface	-	TIN	-	TIN	TIN	TIN	TIN
