DOMINANT
Innovating Illumination
TM
DATA SHEET:
Opto Technologies
DomiLED
TM
AlInGaP : DRx-MJS
DomiLED
TM
TM

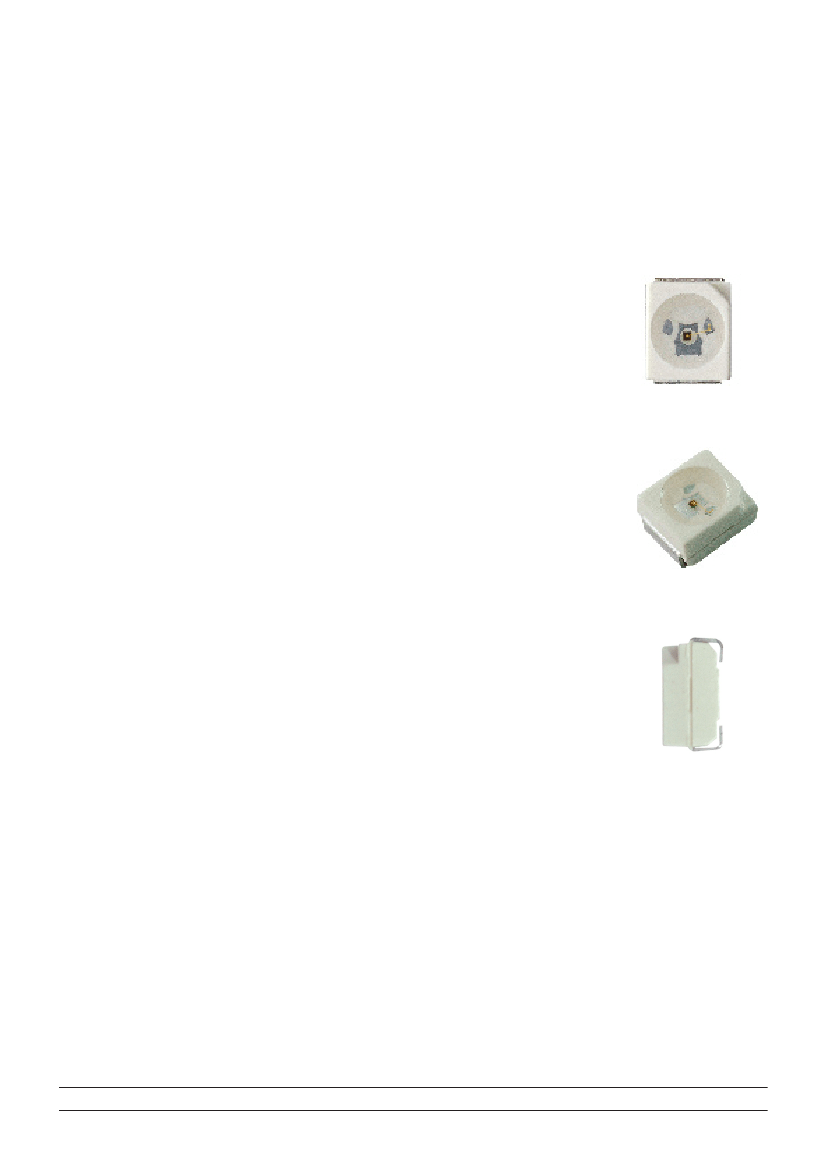

Synonymous with function and performance, the
DomiLED
series is
perfectly suited for a variety of cross-industrial applications due to its
small package outline, durability and superior brightness.
Features:
>
>
>
>
>
>
High brightness surface mount LED using thin film technology.
120° viewing angle.
Small package outline (LxWxH) of 3.2 x 2.8 x 1.8mm.
Qualified according to JEDEC moisture sensitivity Level 2.
Compatible to both IR reflow soldering.
Environmental friendly; RoHS compliance.
Applications:
>
Automotive: interior applications, eg: switches, telematics,
climate control system, dashboard, etc.
> Signage: full colour display video notice board, signage, special
effect lighting.
> Industrial: white goods (eg: Oven, microwave, etc.), light bar,
illuminated advertising.
© 2005 DomiLED is a trademark of DOMINANT Opto Technologies.
All rights reserved. Product specifications are subject to change without notice.
1
11/12/2013 V8.0
DOMINANT
Innovating Illumination
TM
Opto Technologies
AlInGaP : DRx-MJS
Optical Characteristics at Tj=25˚C
Part Ordering
Number
DRS-MJS-UV1-1
DRR-MJS-U2V-1
DRA-MJS-VW1-1
DRO-MJS-VW1-1
DRY-MJS-VW1-1
Color
Super Red, 632nm
Red, 625nm
Amber, 615nm
Orange, 605nm
Yellow, 587nm
Viewing
Angle˚
120
120
120
120
120
Luminous Intensity @ IF = 20mA IV (mcd)
Min.
Typ.
Max.
450.0
560.0
715.0
715.0
715.0
675.0
900.0
1125.0
1125.0
1125.0
900.0
1125.0
1400.0
1400.0
1400.0
NOTE
1. All part number above comes in a quantity of 2000 units per reel.
2. Luminous intensity is measured with an accuracy of ± 11%.
3. Wavelength binning is carried for all units as per the wavelength-binning table. Only one wavelength group is allowed for each reel.
4. An optional Vf bining is also available upon request. Bining scheme is as per following table.
Electrical Characteristics at Tj=25˚C
Part Number
DRx-MJS
Vf @ If = 20mA
Min. (V)
1.8
V
r
@ I
r
= 10uA
Max. (V)
2.6
Typ. (V)
2.1
Min. (V)
12
Forward voltages are measure using a current pulse of 1 ms and with an accuracy of ± 0.1V.
Absolute Maximum Ratings
Maximum Value
DC forward current
Peak pulse current; (tp ≤ 10µs, Duty cycle = 0.10)
Reverse voltage
ESD threshold (HBM)
LED junction temperature
Operating temperature
Storage temperature
Power dissipation (at room temperature)
Thermal resistance
- Junction / ambient, R
th JA
- Junction / solder point, R
th JS
360
150
K/W
K/W
50
100
12
2
120
-40 … +100
-40 … +100
140
Unit
mA
mA
V
kV
˚C
˚C
˚C
mW
(Mounting on FR4 PCB, pad size >= 16 mm
2 per pad)
2
11/12/2013 V8.0
DOMINANT
Innovating Illumination
TM
Opto Technologies
AlInGaP : DRx-MJS
Wavelength Grouping at Tj=25˚C
Color
Group
Wavelength distribution (nm)
DRS; Super Red
DRR; Red
DRA; Amber
Full
Full
Full
W
X
625 - 640
620 - 630
610 - 621
610 - 615
615 - 621
600 - 612
600 - 603
603 - 606
606 - 609
609 - 612
582 - 594
582 - 585
585 - 588
588 - 591
591 - 594
DRO; Orange
Full
W
X
Y
Z
DRY; Yellow
Full
W
X
Y
Z
Dominant wavelength is measured with an accuracy of ± 1 nm.
Luminous Intensity Group at Tj=25˚C
Brightness Group
U1
U2
V1
V2
W1
Luminous intensity is measured with an accuracy of ± 11%.
Luminous Intensity
IV (mcd)
450.0...560.0
560.0...715.0
715.0...900.0
900.0...1125.0
1125.0...1400.0
3
11/12/2013 V8.0
DOMINANT
Innovating Illumination
TM
Opto Technologies
AlInGaP : DRx-MJS
Vf Bining (Optional)
Vf @ If = 20mA
V1
V2
V3
V4
V5
V6
1.80 ... 1.95
1.95 ... 2.10
2.10 ... 2.25
2.25 ... 2.40
2.40 ... 2.55
2.55 ... 2.70
Forward voltage, Vf is measured with an accuracy of ± 0.1V.
Please consult sales and marketing to incorporate special part number to incorporate Vf binning.
4
11/12/2013 V8.0
DOMINANT
Innovating Illumination
TM
Opto Technologies
AlInGaP : DRx-MJS
Forward Current
Vs Forward Current
Forward Voltage
vs Forward Voltage
Variables
Col_19
70
2.8
60
Relative Intensity Vs
X-Y Plot
Current
Relative Intensity Vs Forward Current
Multiple
Forward
Relative Intensity; Normalized at 50mA
Relative Intensity; Normalized at 20mA
1.2
3
3
1
2.5
2.5
0.8
2
2
0.6
1.5
1.5
0.4
1
1
Forward Current; mA
Forward Voltage, V
50
40
30
20
10
2.4
2
0.5
0.2
0.5
0
0
0
1.6
0
0
0
10
10
20
0
10
20
30
20
30
40
30
50
40
60
40
50
60
70
50
80
60
0
1.7
10
30
1.8
20
1.9
40
2
50
2.1
60
70
2.2
80
2.3
Forward
Col_18
mA
Current,
Forward Current; mA
Forward Current, mA
Forward Voltage; V

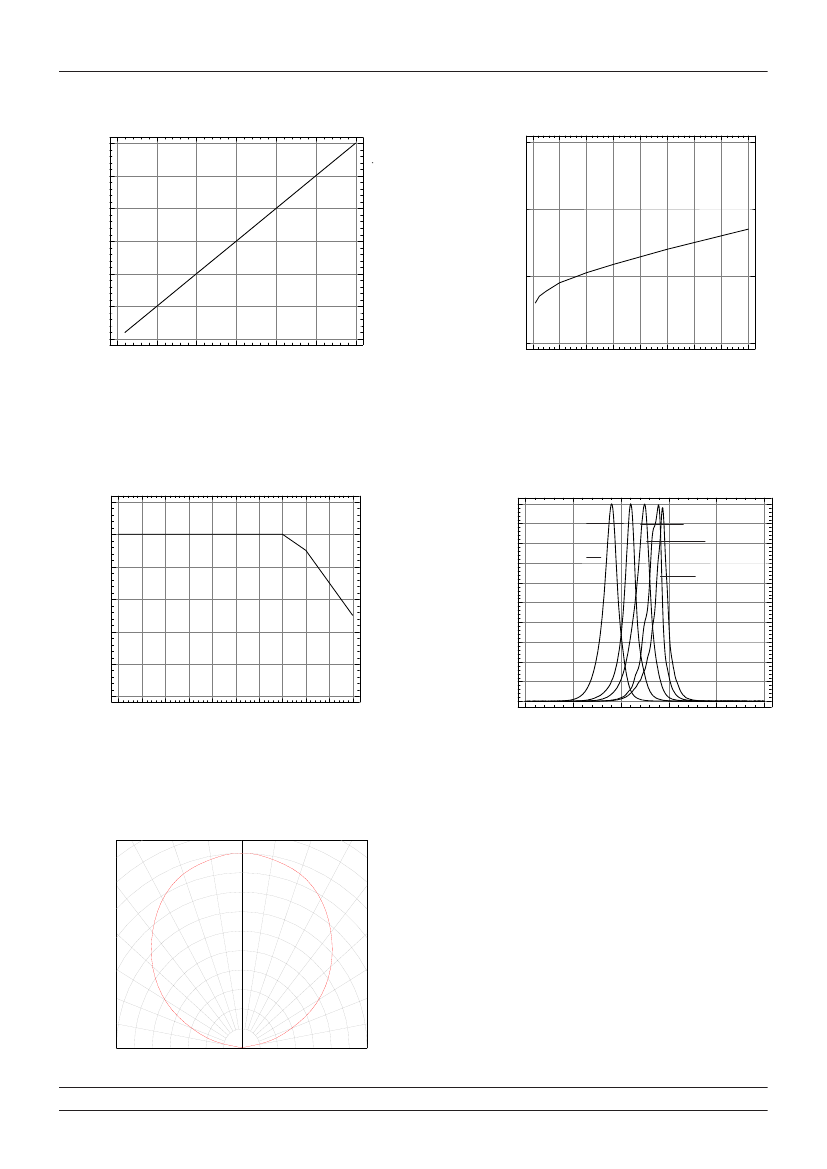

Maximum Current Vs Ambient Temperature
Maximum Current Vs Ambient Temperature
80
60
1
1
1
Relative Intensity
Vs Wavelength
Relative Intensity vs Wavelength
Relative Intensity
Vs Wavelength
Orange
Yellow
Yellow
Yellow
Red
Amber Red
Super
Amber
Red
Red
Amber
Super Red
a
Forward Current, mA
Forward Current, mA
70
50
0.9
0.9
0.9
0.8
0.8
0.8
Super R
Red
Amber
Yellow
Relative Intensity
60
40
50
40
30
30
20
20
10
10
0
0
0
0
10
10
20
20
30
30
40
40
50
50
60
60 70 80 90 100
70 80 90 100
0.7
0.7
0.7
0.6
0.6
0.6
0.5
0.5
0.5
0.4
0.4
0.4
0.3
0.3
0.2
0.2
0.1
0.1
0.3
0.2
0.1
0
0
0
500
500
500
550
550
550
600
600
600
650
650
650
700
700
700
750
750
750
Ambient Temperature
Ambient Temperature
Wavelength; nm
Wavelength; nm
Wavelength
Radiation Pattern
Allowable Forward Current Vs Duty ratio
30°
20°
10°
0°
1.0
1
0.9
Relative Intensity vs Wavelength
a
1000
Super R
Red
Amber
Yellow
Allowable Forward Current; mA
40°
0.8
0.8
0.7
100
50°
60°
0.6
0.6
0.5
0.4
0.4
0.3
0.2
0.1
0
500
550
600
650
700
750
10
70°
80°
90°
0.2
0
1
1
10
100
5
Wavelength
11/12/2013 V8.0
Duty Ratio, %
Relative Intensity vs Wavelength
