D4890H

Description
Trigger Output SSR, 1-Channel, 4000V Isolation, PLASTIC PACKAGE-4
CategoryLED optoelectronic/LED    photoelectric
File Size687KB,7 Pages
ManufacturerCrydom
Websitehttp://www.crydom.com/en/index.shtml
Environmental Compliance
Download Datasheet Parametric View All

D4890H Overview

Trigger Output SSR, 1-Channel, 4000V Isolation, PLASTIC PACKAGE-4

D4890H Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
package instructionPLASTIC PACKAGE-4
Reach Compliance Codecompliant
Other featuresUL RECOGNIZED, VDE APPROVED, ZERO VOLTAGE CROSSING
ConfigurationSINGLE WITH BUILT-IN RESISTOR
control current0.002 A
control voltage3 V
input typeDC
Maximum insulation voltage4000 V
Number of components1
Maximum on-state current90 A
Maximum operating temperature80 °C
Minimum operating temperature-40 °C
Optoelectronic device typesTRIGGER OUTPUT SSR
Output circuit typeBack to Back SCR
total height22.9 mm
total length58.4 mm
Base Number Matches1

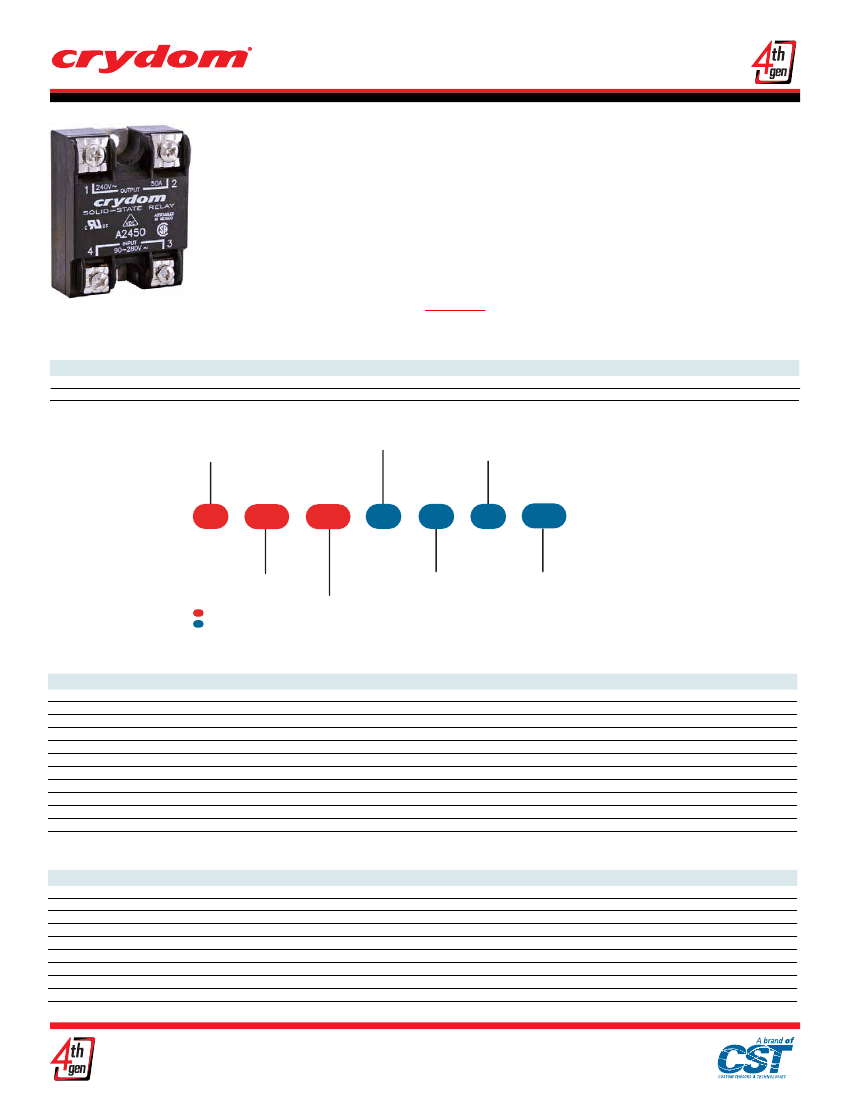

DataSheet
Panel Mount
Series 1 480 VAC
Ratings from 25A to 90A @ 48-530 VAC
SCR output for heavy industrial loads
Zero turn-on or instantaneous turn-on outputs
UL/CSA/VDE Approved, CE Compliant to EN60950-1
Improved SEMS screw and washer
Redesigned housing with anti-rotation barriers
For
Generation 3
datasheet
click here
AC or DC control
Direct bond copper substrate
EMC compliant to Level 3
Direct power lead frame
Epoxy free design
PRODUCT SELECTION
Control Voltage
4-32 VDC
90-280 VAC
25A
D4825
A4825
50A
D4850
A4850
75A
D4875
A4875
90A
D4890
A4890
AVAILABLE OPTIONS
Control Voltage
A:
90-280 VAC
D:
4-32 VDC
Termination
Blank:
Screw
F:
Quick Connect
(7)
K:
Round standoffs
Thermal Pad
Blank:
Not Included
H:
Included
A
48
25
K
S
H
-10
Switching Type
Blank:
Zero Voltage Turn-On
-10:
Instantaneous Turn-On
(8)
Operating
Rated Load Current
Voltage
25:
25 Amps
48:
48-530 VAC
50:
50 Amps
75:
75 Amps
90:
90 Amps
Required for valid part number
For options only and not required for valid part number
Snubber
Blank:
Not Included
S:
Included
OUTPUT SPECIFICATIONS
(1)
Description
Operating Voltage (47-440Hz) [Vrms]
(2)
Transient Overvoltage [Vpk]
Maximum Off-State Leakage Current @ Rated Voltage [mArms]
(3)
Minimum Off-State dv/dt @ Maximum Rated Voltage [V/µsec]
Maximum Load Current [Arms]
(4)
Minimum Load Current [mArms]
Maximum 1 Cycle Surge Current (50/60Hz) [Apk]
Maximum On-State Voltage Drop @ Rated Current [Vrms]
Thermal Resistance Junction to Case (Rjc) [°C/W]
Maximum 1/2 Cycle I² t for Fusing (50/60Hz) [A² sec]
Minimum Power Factor (at Maximum Load)
25A
48-530
800
1
500
25
150
239/250
1.15
0.8
285/259
0.5
50A
48-530
800
1
500
50
150
597/625
1.15
0.45
1770/1621
0.5
75A
48-530
800
1
500
75
150
954/1000
1.15
0.3
4555/4150
0.5
90A
48-530
800
1
500
90
150
1145/1200
1.15
0.27
6560/5976
0.5
INPUT SPECIFICATIONS
(1)
Description
Control Voltage Range
Maximum Reverse Voltage
Minimum Turn-On Voltage
Minimum Turn-Off Voltage
Minimum Input Current
Maximum Input Current
Nominal Input Impedance
Maximum Turn-On Time [msec]
Maximum Turn-Off Time [msec]
D48xx
4-32 VDC
-32
4.0 VDC
(5)
1.0 VDC
7.0 mA
12 mA
Current Regulated
1/2 Cycle
(6)
1/2 Cycle
A48xx
90-280 Vrms (60Hz)
-
90 Vrms
10 Vrms
5.0 mA
10 mA
Current Regulated
20
30

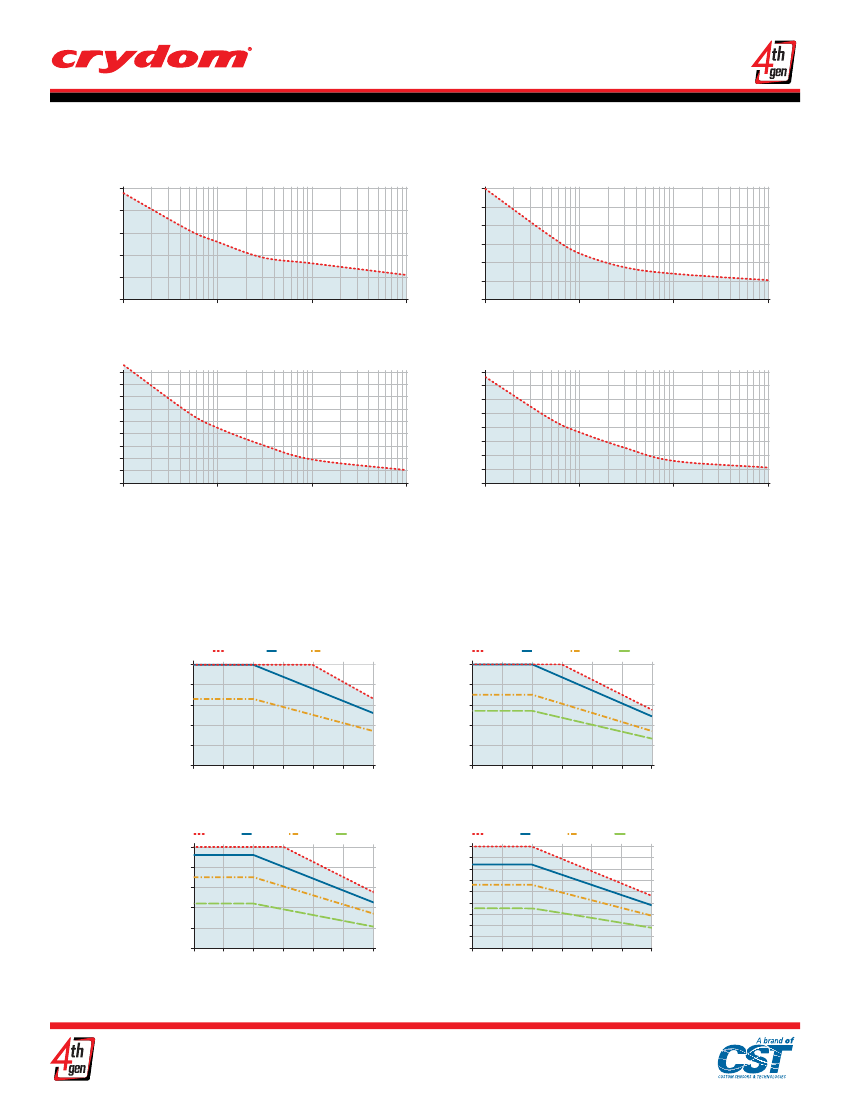

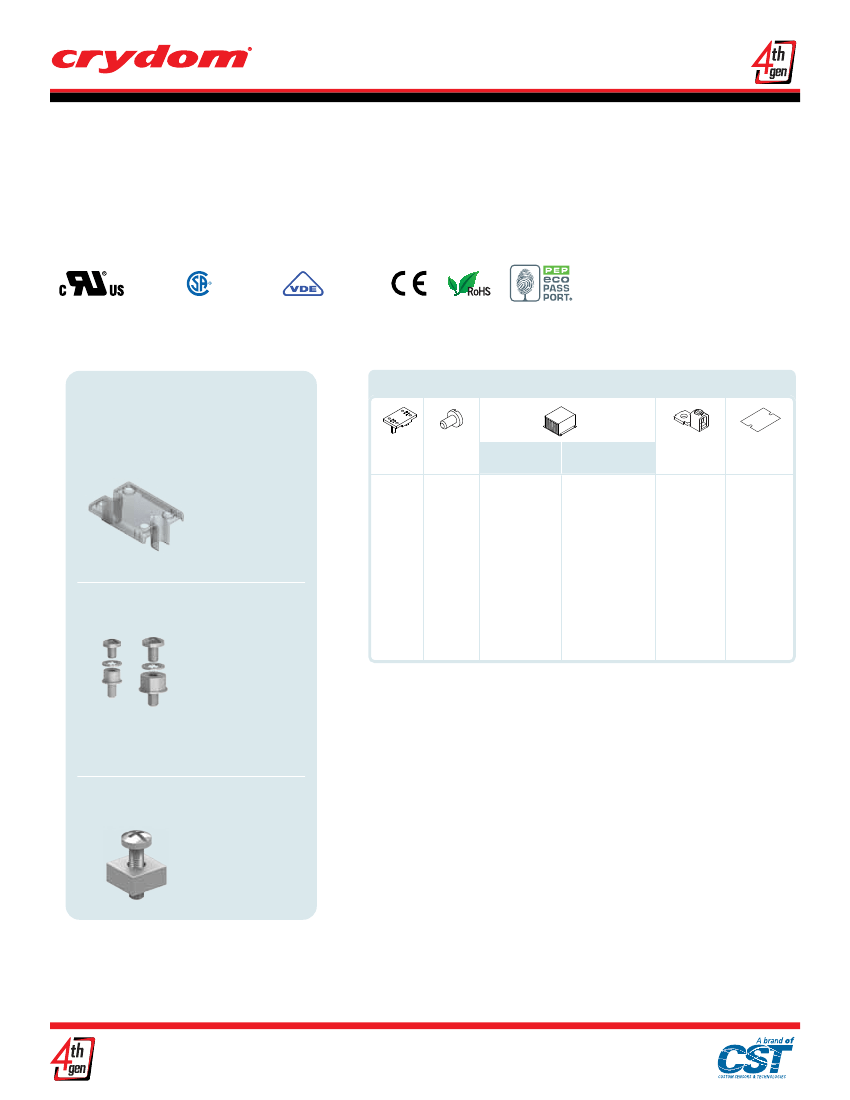

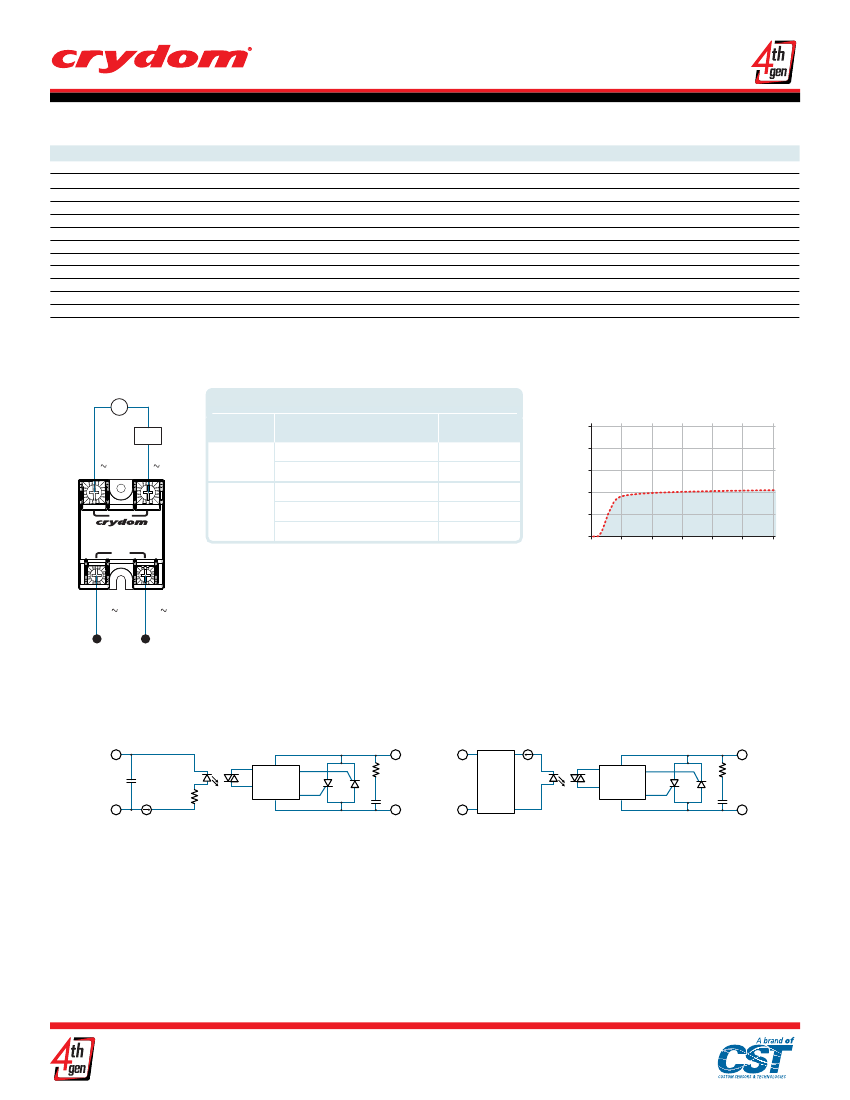

Do not forget to visit us at:
www.crydom.com
Copyright © 2013 Crydom Inc. Specifications subject to change without notice.
