Datasheet> All Categories > Passive components> Crystal/resonator> DMX-38(AT)-FREQ-3OT-STBY2-TOL1-CL1

Preview

DMX-38(AT)-FREQ-3OT-STBY2-TOL1-CL1: DescriptionParallel - 3Rd Overtone Quartz Crystal, 3.57MHz Min, 40MHz Max; CategoryPassive components Crystal/resonator; File Size60KB，1 Pages; ManufacturerDaishinku Corp.; Websitehttp://www.kds.info/; Environmental Compliance

Download Datasheet Parametric View All

DMX-38(AT)-FREQ-3OT-STBY2-TOL1-CL1 Overview

Parallel - 3Rd Overtone Quartz Crystal, 3.57MHz Min, 40MHz Max

DMX-38(AT)-FREQ-3OT-STBY2-TOL1-CL1 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	unknown
Other features	AT CUT CRYSTAL
Ageing	5 PPM/YEAR
Crystal/Resonator Type	PARALLEL - 3RD OVERTONE
Drive level	50 µW
frequency stability	0.01%
frequency tolerance	50 ppm
JESD-609 code	e3
load capacitance	8 pF
Manufacturer's serial number	DMX-38(AT)
Installation features	SURFACE MOUNT
Maximum operating frequency	40 MHz
Minimum operating frequency	3.57 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
physical size	L13.2XB4.4XH4.5 (mm)
surface mount	YES
Terminal surface	Tin (Sn)
Base Number Matches	1

Preview

Download Datasheet

View All

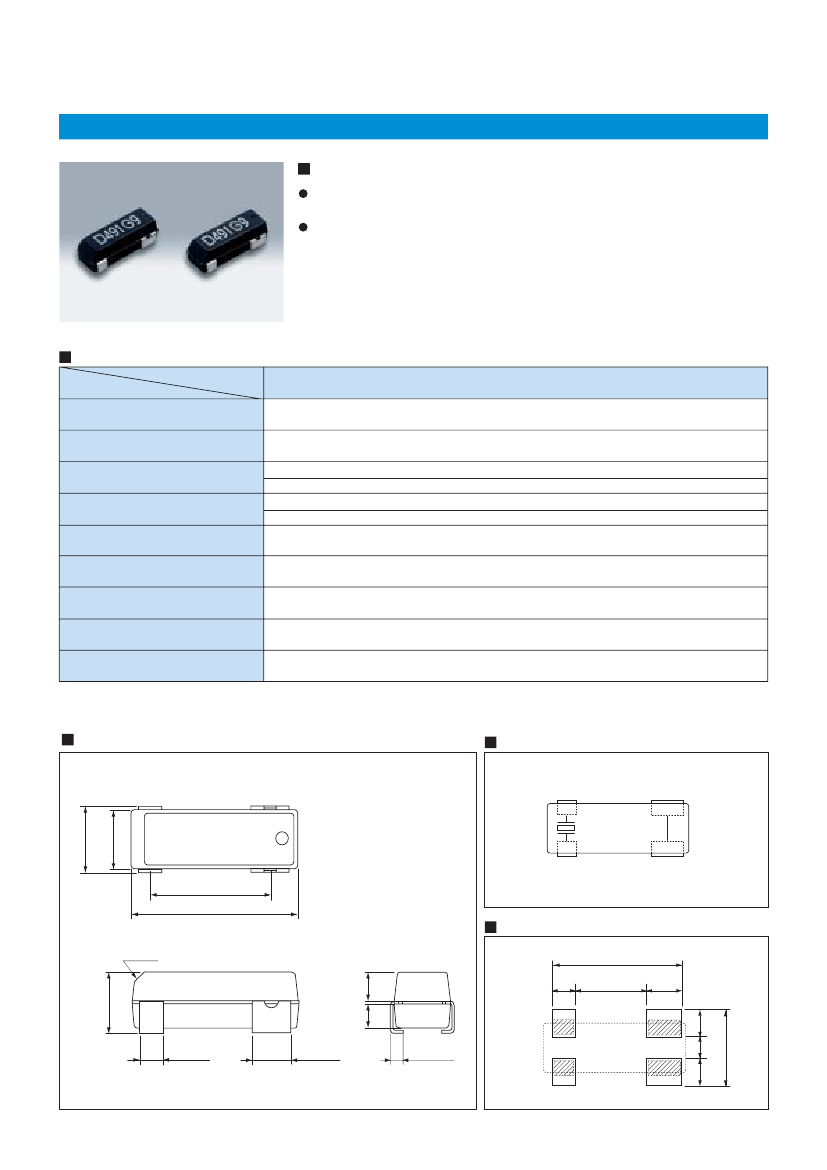

SMD Type Crystal Resonators

DMX-38(AT)

Features

Surface mount type of AT-38 crystal resonators

with mold package.

Good for automatic mounting and reflow soldering.

Generic Specification

Item

Frequency Range

Vibration Mode

Load Capacitance

Drive Level

Frequency Tolerance

Series Resistance

Frequency Characteristics

over Temperature

Storage Temperature Range

Aging

Packing Unit : 1000pcs./reel

Type

DMX-38(AT)

3.57∼40MHz

Fundamental, 3rd overtone

Series 12pF, 16pF, 20pF, 32pF（Fund.）

8pF, 10pF, 12pF, 16pF（3rd）

Fund :10μW（300μW max.）

3rd : 50μW（1mW max.）

±50×10

-6

, ±100×10

-6

（at 25℃）

40∼300Ω

±50×10

-6

, ±100×10

-6

／−40∼＋85℃(Ref. to 25℃)

−40∼＋85℃

±5×10

-6

max.／year

Consult our sales representative for other specifications or special specifications.

Dimensions[mm]

Internal Connections

〈Top View〉

4.9±0.2

4.4±0.1

D □ □ □ □ □

9.4±0.1

13.2±0.2

Recommended Land Pattern [mm]

C1

2.2

12.0

2.0

6.8

3.2

4.5±0.3

1.8

2.5

1.0±0.2

1.8±0.1

3.0±0.1

16

2.5

2.0

7.0

Recommended Resources

Light controlled delay circuit (3)

Low voltage circuit diagram

Multifunctional electric fan controller circuit

225MHz front-end circuit

555 kinds of waveform generator circuits (2)

Application circuit of surface acoustic wave resonator in radio remote control
