DUG06A: DescriptionSmart/Normal 7 Seg Numeric LED Display, Green, 8mm, ROHS COMPLIANT PACKAGE-10; CategoryLED optoelectronic/LED photoelectric; File Size176KB，4 Pages; ManufacturerSUNLED; Websitehttp://www.sunled.com/; Environmental Compliance

Download Datasheet Parametric View All

DUG06A Overview

Smart/Normal 7 Seg Numeric LED Display, Green, 8mm, ROHS COMPLIANT PACKAGE-10

DUG06A Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT PACKAGE-10
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	IC COMPATIBLE
color	GREEN
Configuration	COMMON ANODE, 1 DIGIT WITH DECIMAL POINT
Display height	8 mm
Maximum forward current	0.025 A
Number of functions	1
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY
Base Number Matches	1

Preview

Download Datasheet

View All

Part Number:

www.SunLED.com

DUG06A

8mm (0.32”) SINGLE DIGIT NUMERIC DISPLAY

Features

●

0.32 INCH DIGIT HEIGHT.

●

LOW CURRENT OPERATION.

●

EXCELLENT CHARACTER APPEARANCE.

●

HIGH LIGHT OUTPUT.

●

EASY MOUNTING ON P.C. BOARDS OR SOCKETS.

●

I.C. COMPATIBLE.

●

MECHANICALLY RUGGED.

●

STANDARD: GRAY FACE,WHITE SEGMENT.

●

RoHS COMPLIANT.

Notes:

1. All dimensions are in millimeters (inches).

2. Tolerance is ± 0.25(0.01") unless otherwise noted.

3.Specifications are subject to change without notice.

Absolute Maximum Ratings

=25°C)

Reverse Voltage

Forward Current

Forward Current (Peak)

1/10 Duty Cycle

0.1ms Pulse Width

Power Dissipation

Operating Temperature

Storage Temperature

Lead Solder Temperature

[2mm Below Package Base]

Tstg

(GaP)

140

62.5

-40 ~ +85

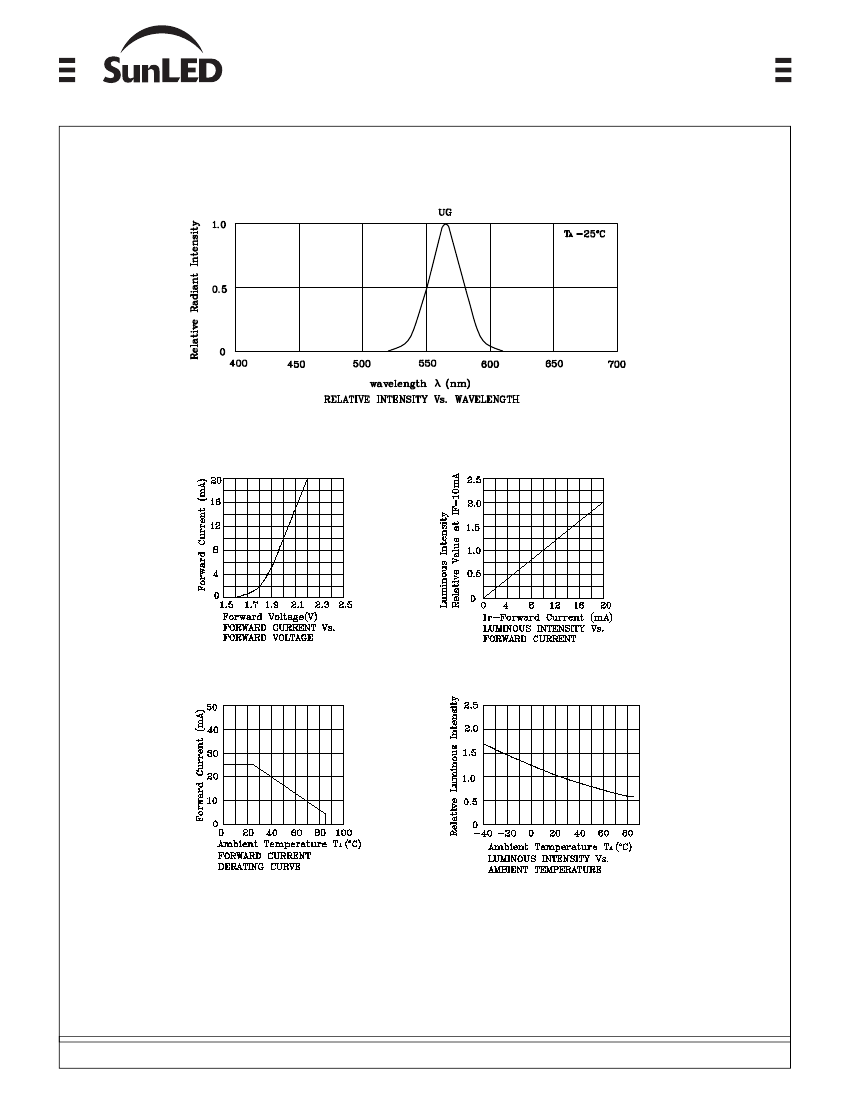

Operating Characteristics

=25°C)

Forward Voltage (Typ.)

=10mA)

Unit

°C

Forward Voltage (Max.)

=10mA)

Reverse Current (Max.)

=5V)

Wavelength of Peak

Emission (Typ.)

=10mA)

Wavelength of Dominant

Emission (Typ.)

=10mA)

Spectral Line Full Width

At Half-Maximum (Typ.)

=10mA)

Capacitance (Typ.)

=0V, f=1MHz)

Luminous

Intensity

(IF=10mA)

ucd

min.

typ.

8427

565

Wavelength

(GaP)

2.0

2.5

Unit

565

568

Δλ

260°C For 3~5 Seconds

Part

Number

Emitting

Color

Emitting

Material

Description

DUG06A

Green

GaP

1900

Common Anode.Rt.Hand Decimal

Published Date : FEB 29.2008

Drawing No :SDSA2010

Checked : Shin Chi

P.1/4
