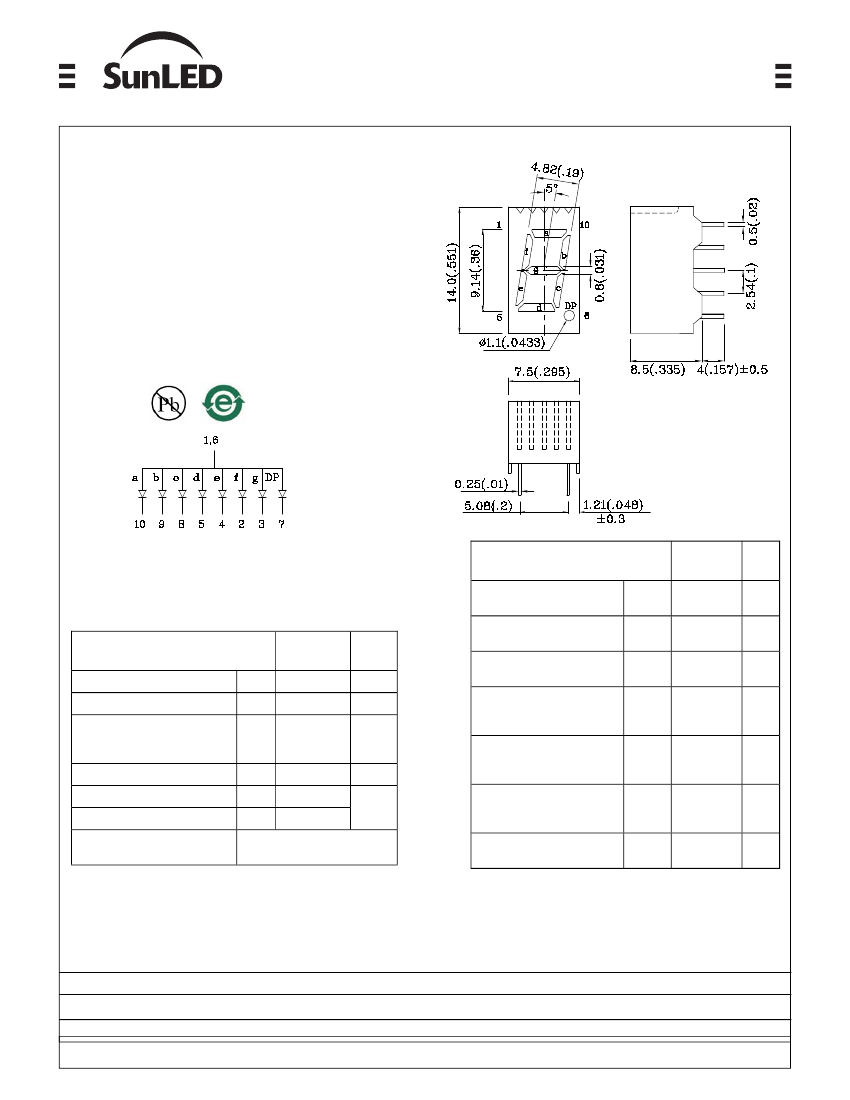

Part Number:
DMR09A
www.SunLED.com
9
.14mm (0.36”) SINGLE DIGIT NUMERIC DISPLAY
Features
0.36 INCH DIGIT HEIGHT.
LOW CURRENT OPERATION.
EXCELLENT CHARACTER APPEARANCE.
EASY MOUNTING ON P.C. BOARDS OR SOCKETS.
I.C. COMPATIBLE.
CATEGORIZED FOR LUMINOUS INTENSITY.
MECHANICALLY RUGGED.
STANDARD : GRAY FACE, WHITE SEGMENT.
RoHS COMPLIANT.
Notes:
1. All dimensions are in millimeters (inches).
2. Tolerance is ± 0.25(0.01") unless otherwise noted.
3.Specifications are subject to change without notice
.
Absolute Maximum Ratings
(TA=25°C)
Reverse Voltage
Forward Current
Forward Current (Peak)
1/10 Duty Cycle
0.1ms Pulse Width
Power Dissipation
Operating Temperature
Storage Temperature
Lead Solder Temperature
[2mm Below Package Base]
V
R
I
F
i
FS
P
T
T
A
Tstg
MR
(GaAlAs)
5
30
155
75
-40 ~ +85
-40 ~ +85
Unit
V
mA
mA
mW
°C
Operating Characteristics
(T
A
=25°C)
Forward Voltage (Typ.)
(I
F
=10mA)
Forward Voltage (Max.)
(I
F
=10mA)
Reverse Current (Max.)
(V
R
=5V)
Wavelength of Peak
Emission (Typ.)
(I
F
=10mA)
Wavelength of Dominant
Emission (Typ.)
(I
F
=10mA)
Spectral Line Full Width At
Half-Maximum (Typ.)
(I
F
=10mA)
Capacitance (Typ.)
(V
F
=0V, f=1MHz)
V
F
V
F
I
R
MR
(GaAlAs)
1.8
2.5
10
Unit
V
V
uA
λ
P
660
nm
λ
D
640
nm
Δλ
20
nm
260°C For 3 –5Seconds
C
45
pF
Part
Number
Emitting
Color
Emitting
Material
Luminous
Intensity
(IF=10mA)
ucd
min.
typ.
8190
Wavelength
nm
λ
P
Description
DMR09A
Red
GaAlAs
1900
660
Common Anode, Rt. Hand Decimal.
Published Date : MAR 03, 2008
Drawing No : SDSA2030
V4
Checked : Shin Chi
P.1/4
Part Number:
DMR09A
www.SunLED.com
9
.14mm (0.36”) SINGLE DIGIT NUMERIC DISPLAY

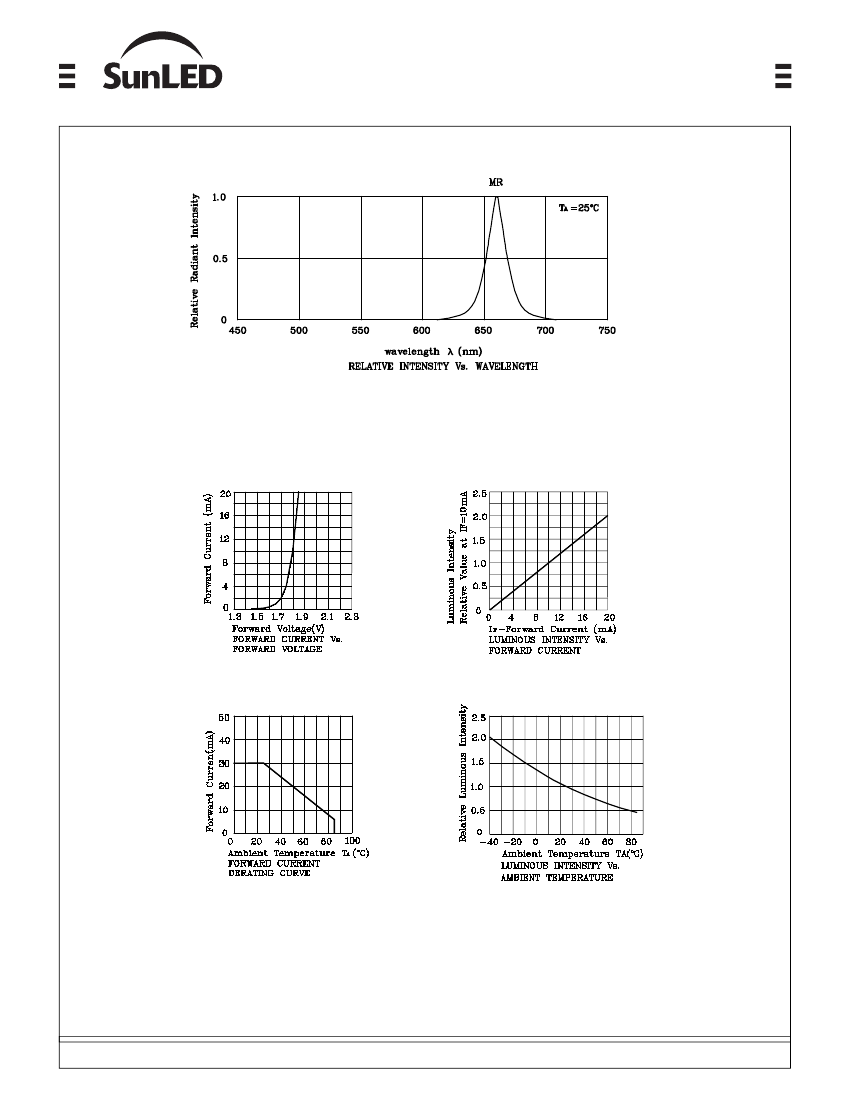

MR
Published Date : MAR 03, 2008
Drawing No : SDSA2030
V4
Checked : Shin Chi
P.2/4
Part Number:
DMR09A
www.SunLED.com
9
.14mm (0.36”) SINGLE DIGIT NUMERIC DISPLAY
Remarks:
If special sorting is required (e.g. binning based on forward voltage, Luminous intensity / luminous flux, or wavelength),
the typical accuracy of the sorting process is as follows:
1. Wavelength: +/-1nm
2. Luminous intensity / luminous flux: +/-15%
3. Forward Voltage: +/-0.1V
Note: Accuracy may depend on the sorting parameters.
Published Date : MAR 03, 2008
Drawing No : SDSA2030
V4
Checked : Shin Chi
P.3/4
Part Number:
DMR09A
www.SunLED.com
9
.14mm (0.36”) SINGLE DIGIT NUMERIC DISPLAY

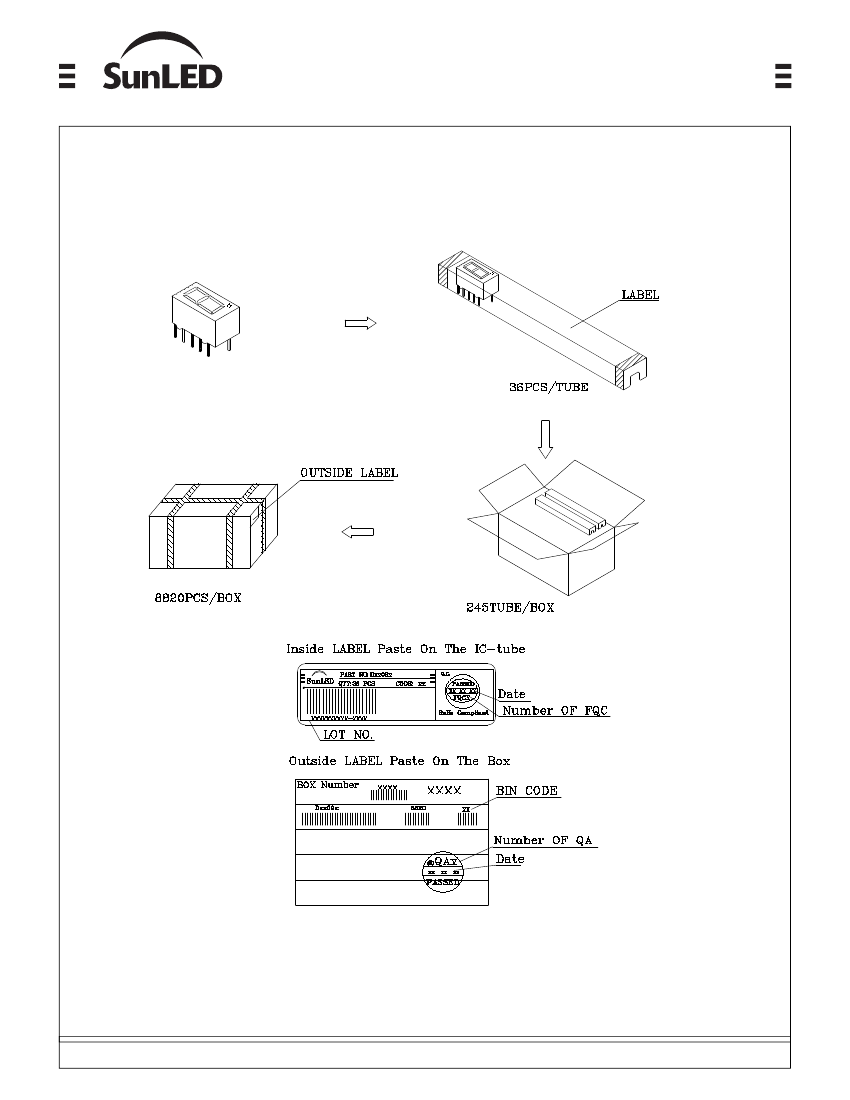

PACKING & LABEL SPECIFICATIONS
DMR09A
Published Date : MAR 03, 2008
Drawing No : SDSA2030
V4
Checked : Shin Chi
P.4/4
