DRR060FREQ4KPC00T datasheet, PDF

Datasheet> All Categories > Passive components> Crystal/resonator> DRR060FREQ4KPC00T

DRR060FREQ4KPC00T: DescriptionRectangular Type Dielectric Resonator, 1000MHz Min, 1690MHz Max; CategoryPassive components Crystal/resonator; File Size52KB，2 Pages; ManufacturerMurata; Websitehttps://www.murata.com

Download Datasheet Parametric Compare View All

DRR060FREQ4KPC00T Overview

Rectangular Type Dielectric Resonator, 1000MHz Min, 1690MHz Max

DRR060FREQ4KPC00T Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
Crystal/Resonator Type	RECTANGULAR TYPE
Dielectric constant	92
Manufacturer's serial number	K
Installation features	SURFACE MOUNT
Maximum operating frequency	1690 MHz
Minimum operating frequency	1000 MHz
physical size	B6XH6 (mm)
surface mount	YES
Terminal surface	COPPER
Base Number Matches	1

Preview

Download Datasheet

View All

Please read rating and

!CAUTION

(for storage and operating, rating, soldering and mounting, handling) in this catalog to prevent smoking and/or burning, etc.

!Note

•Please read rating and

!CAUTION

(for storage and operating, rating, soldering and mounting, handling) in this PDF catalog to prevent smoking and/or burning, etc.

•This catalog has only typical specifications. Therefore, you are requested to approve our product specification please approve our product specification or transact the approval sheet for product specification before ordering.

This catalog has only typical specifications because there is no space for detailed specifications. Therefore, or to transact the approval sheet for product specificaion before ordering.

O95E8.pdf 02.7.9

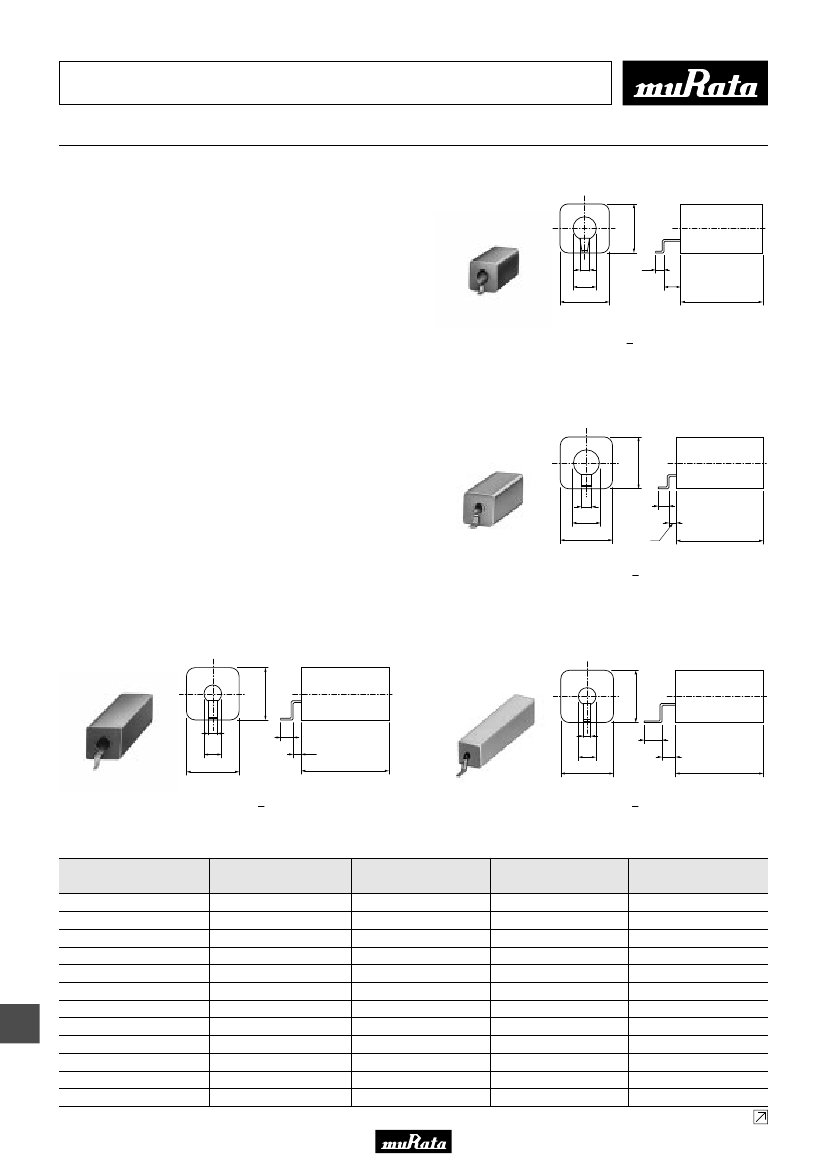

Dielectric Resonators (RESOMICSr)

Dielectric Resonator K Series (DRR Copper Plated Type)

Features

1. TEM mode resonators plated with copper have the

lower price those plated than with silver.

2. Excellent Solderability.

3. High dielectric constant : Er=92.

4. These resonators cover wide range of resonant

frequency (by 10MHz step)

5. Please consult our sales representatives or

engineers as regards the products of other

frequency.

6.0

1.0

2.6

6.0

2.0

DRR060 Type

* Dimension L can be calculated by the following,

using dielectric constant and resonant frequency.

L = 3 x 10

/(n√εr • f

) (f

: Hz)

/ 4 TEM mode : n=4

/ 2 TEM mode : n=2

(in mm)

4.0

0.6

2.0

4.0

0.7

0.5

DRR040 Type

* Dimension L can be calculated by the following,

using dielectric constant and resonant frequency.

L = 3 x 10

/(n√εr • f

) (f

: Hz)

/ 4 TEM mode : n=4

/ 2 TEM mode : n=2

(in mm)

3.0

0.5

1.0

3.0

0.7

0.3

0.5

0.6

2.0

0.7

0.5

DRR030 Type

* Dimension L can be calculated by the following,

using dielectric constant and resonant frequency.

L = 3 x 10

/(n√εr • f

) (f

: Hz)

/ 4 TEM mode : n=4

/ 2 TEM mode : n=2

(in mm)

DRR020 Type

* Dimension L can be calculated by the following,

using dielectric constant and resonant frequency.

L = 3 x 10

/(n√εr • f

) (f

: Hz)

/ 4 TEM mode : n=4

/ 2 TEM mode : n=2

(in mm)

Part Number

DRR060pppppKTC00T

DRR060pppppKPC00T

DRR040pppppKTC00R

(MHz)

440 to 490

500 to 790

800 to 1300

1000 to 1690

1700 to 2200

500 to 540

550 to 640

650 to 790

800 to 890

900 to 1490

1500 to 1800

1000 to 1390

Unloaded Q (min)

330

350

400

470

510

200

220

240

260

270

290

300

Wavelength

Lambda/4

Lambda/2

Lambda/4

Lambda/2

(ohm)

5.7 (Nominal Value)

4.8 (Nominal Value)

Continued on the following page.

DRR040pppppKTC00R

DRR040pppppKPC00R

DRR060FREQ4KPC00T Related Products

	DRR060FREQ4KPC00T	DRR060FREQ5KPC00T	DRR040FREQ8KPC00R	DRR040FREQ9KPC00R	DRR040FREQ7KPC00R
Description	Rectangular Type Dielectric Resonator, 1000MHz Min, 1690MHz Max	Rectangular Type Dielectric Resonator, 1700MHz Min, 2200MHz Max	Rectangular Type Dielectric Resonator, 1400MHz Min, 1890MHz Max	Rectangular Type Dielectric Resonator, 1900MHz Min, 3000MHz Max	Rectangular Type Dielectric Resonator, 1000MHz Min, 1390MHz Max
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
Crystal/Resonator Type	RECTANGULAR TYPE	RECTANGULAR TYPE	RECTANGULAR TYPE	RECTANGULAR TYPE	RECTANGULAR TYPE
Dielectric constant	92	92	92	92	92
Manufacturer's serial number	K	K	K	K	K
Installation features	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Maximum operating frequency	1690 MHz	2200 MHz	1890 MHz	3000 MHz	1390 MHz
Minimum operating frequency	1000 MHz	1700 MHz	1400 MHz	1900 MHz	1000 MHz
physical size	B6XH6 (mm)	B6XH6 (mm)	B4XH4 (mm)	B4XH4 (mm)	B4XH4 (mm)
surface mount	YES	YES	YES	YES	YES
Terminal surface	COPPER	COPPER	COPPER	COPPER	COPPER
Base Number Matches	1	1	1	-	-
