DS1000K-40 datasheet, PDF - EEWORLD Datasheet

DS1000K-40: DescriptionSilicon Delay Line, 1-Func, 5-Tap, True Output, CMOS, PDIP8,; Categorylogic logic; File Size148KB，6 Pages; ManufacturerDALLAS; Websitehttp://www.dalsemi.com

Download Datasheet Parametric View All

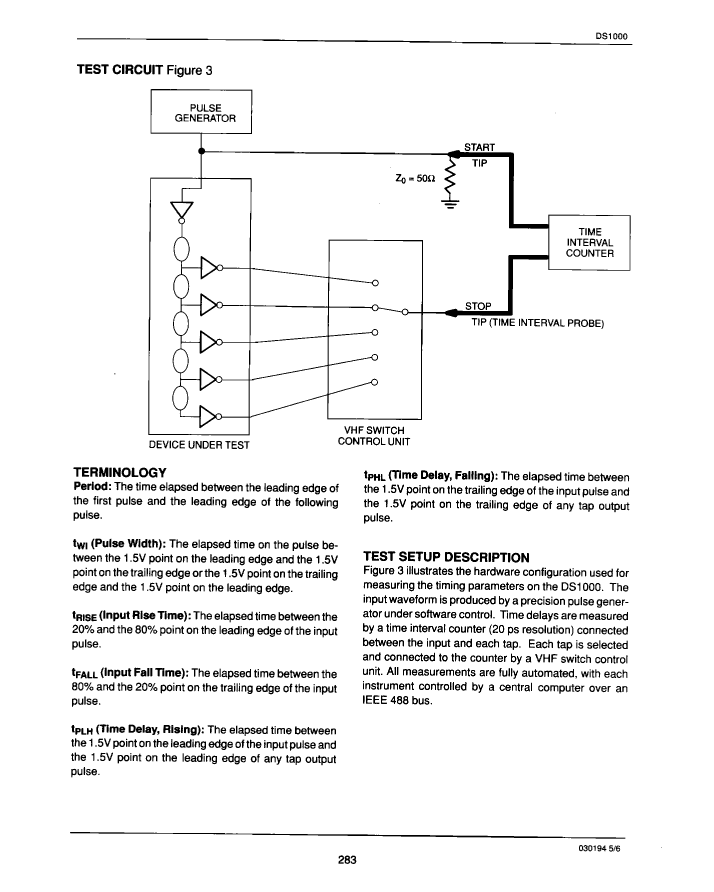

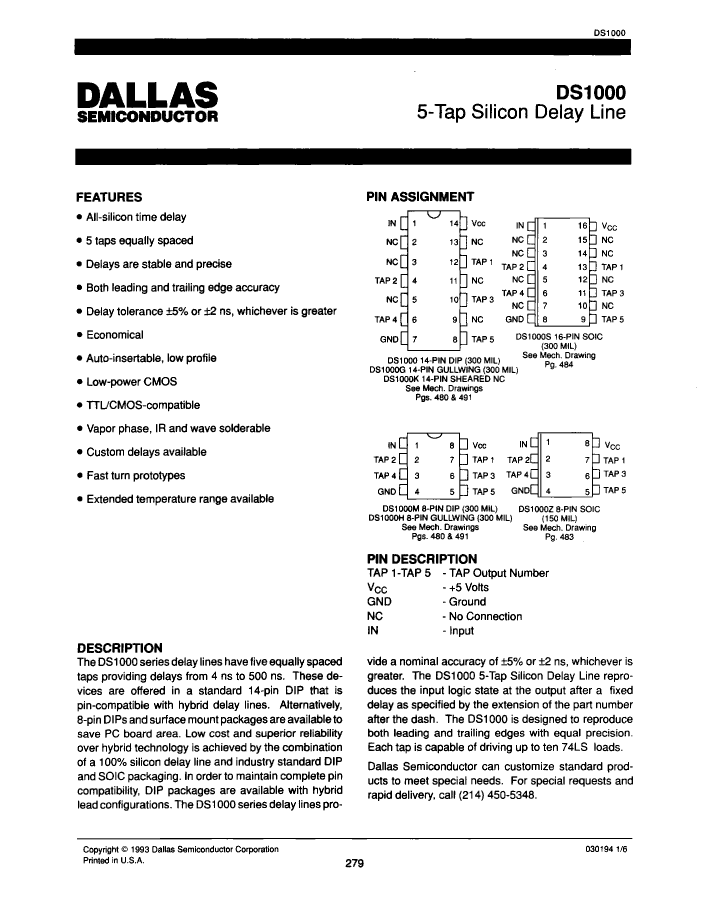

DS1000K-40 Overview

Silicon Delay Line, 1-Func, 5-Tap, True Output, CMOS, PDIP8,

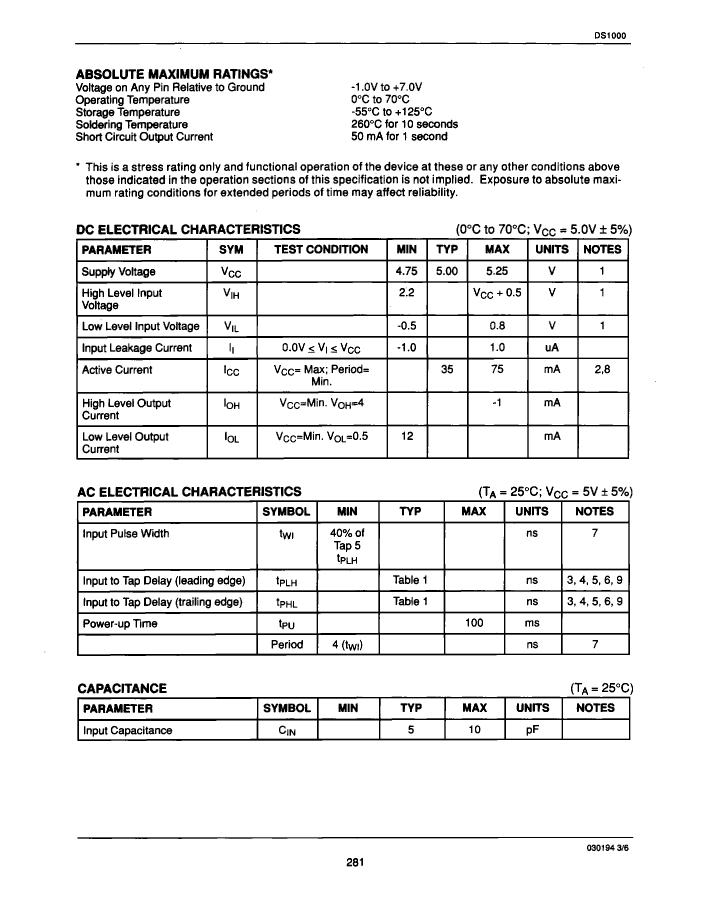

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Reach Compliance Code	unknown

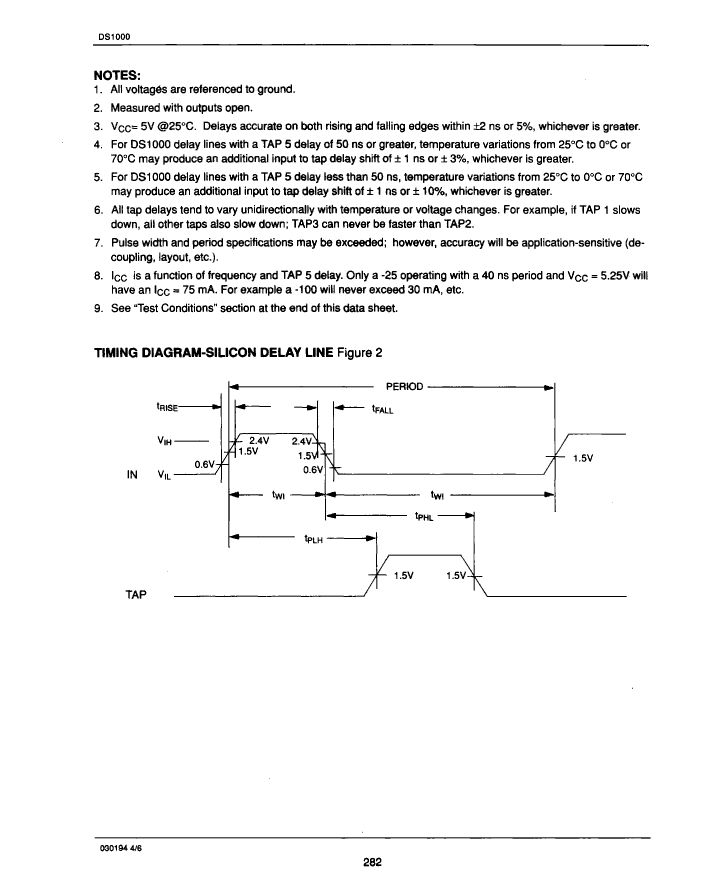

Other features	BOTH LEADING & TRAILING EDGE ACCURACY; MAX FAN OUT OF 10 74LS LOAD PER OUTPUT
series	CMOS/TTL
Input frequency maximum value (fmax)	15.625 MHz
JESD-30 code	R-PDIP-T8
JESD-609 code	e0
Logic integrated circuit type	SILICON DELAY LINE
Number of functions	1

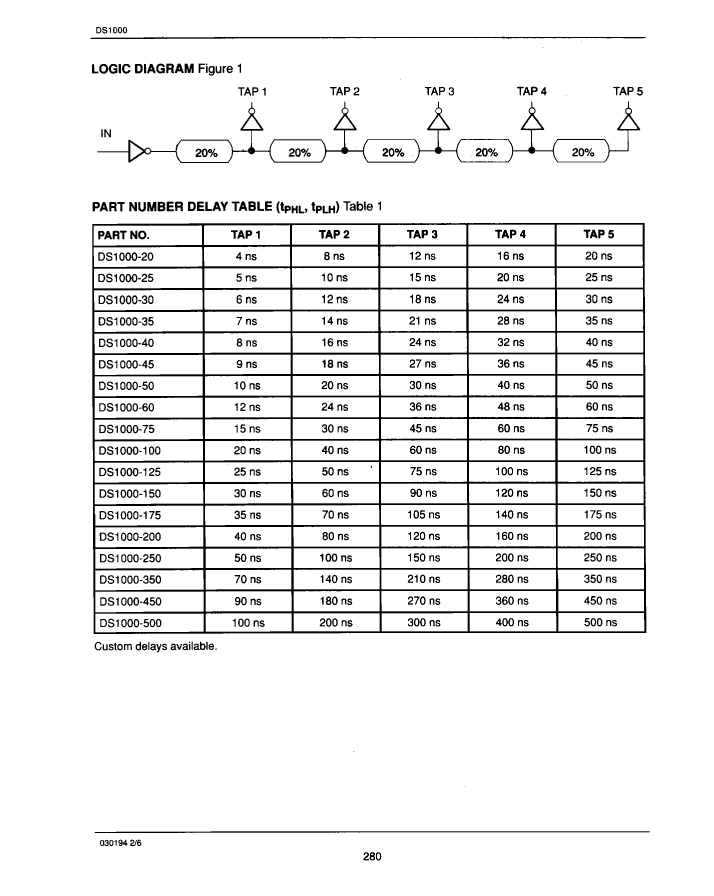

Number of taps/steps	5
Number of terminals	8
Maximum operating temperature	70 °C
Minimum operating temperature
Output polarity	TRUE
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP14,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	5 V
Maximum supply current (ICC)	75 mA
programmable delay line	NO
Prop。Delay @ Nom-Sup	40 ns
Certification status	Not Qualified
Maximum supply voltage (Vsup)	5.25 V
Minimum supply voltage (Vsup)	4.75 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Total delay nominal (td)	40 ns
Base Number Matches	1
