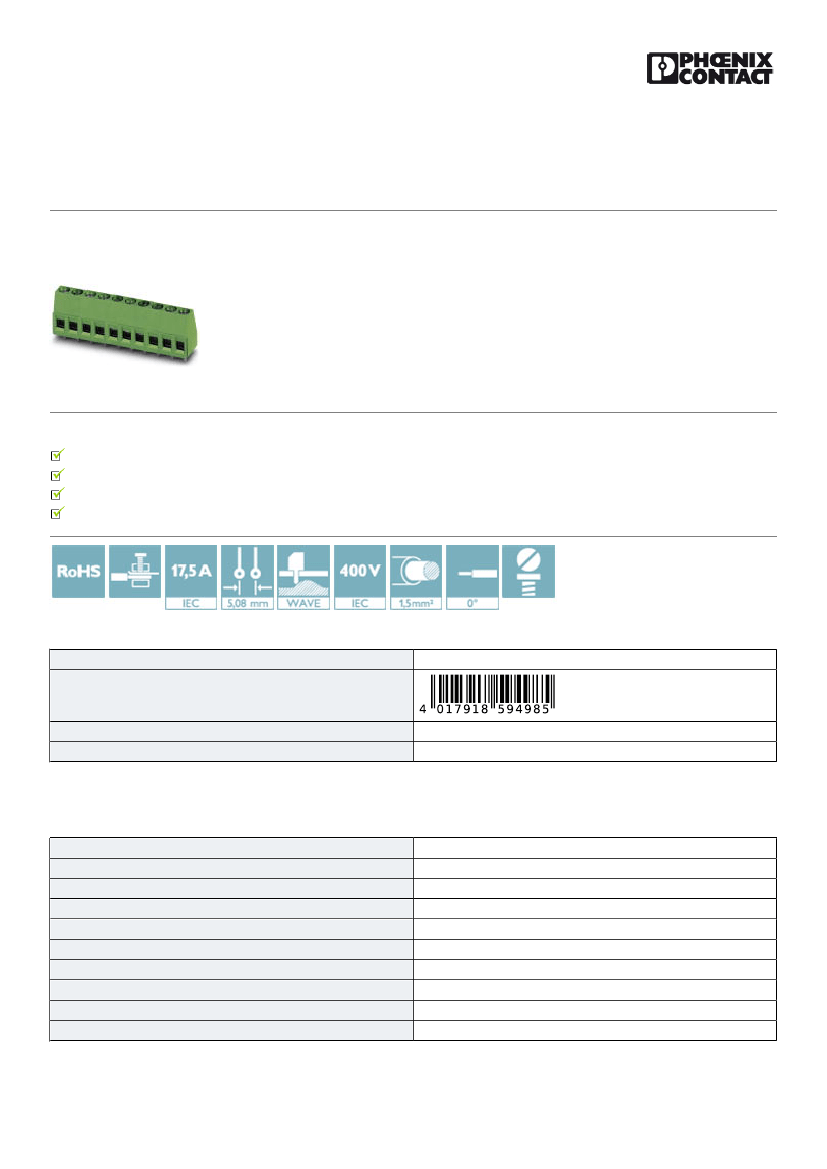

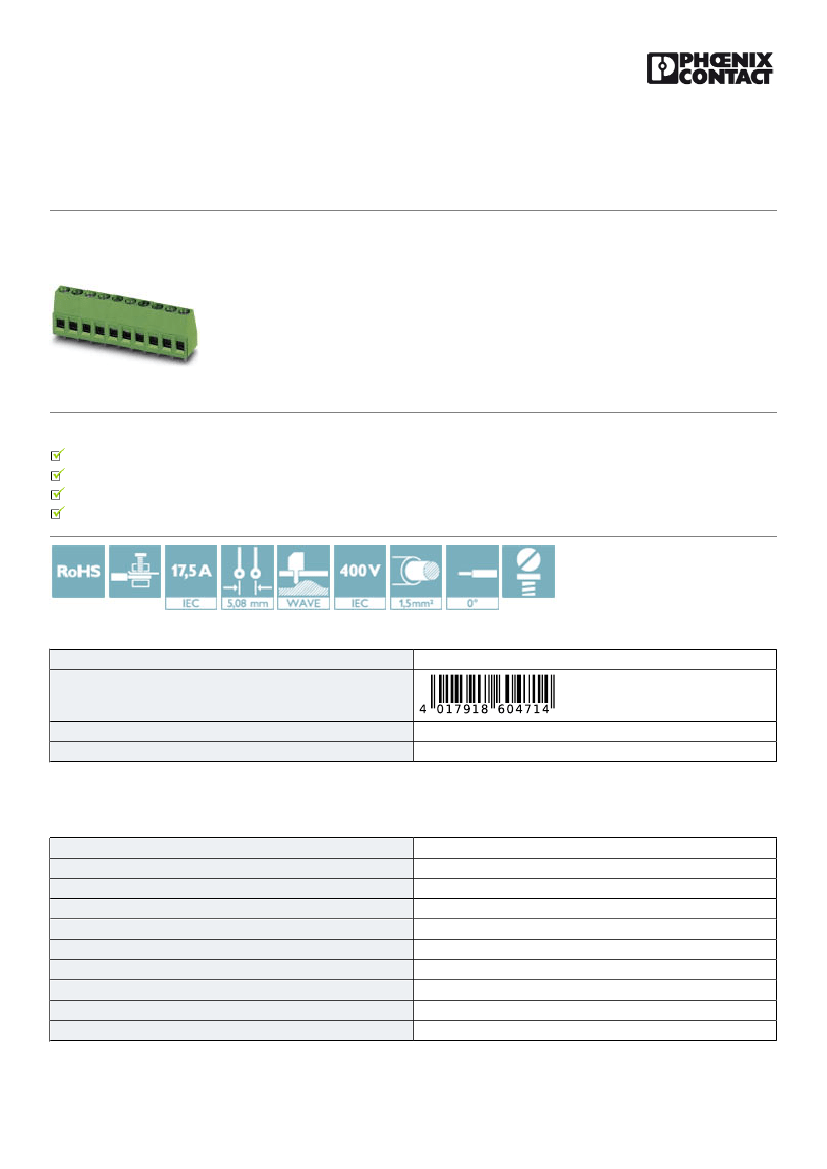

PCB terminal block - MKDS 1,5/ 8-5,08 BK NZ 5080050 - 1929986
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
PCB terminal block, nominal current: 17.5 A, nom. voltage: 400 V, pitch: 5.08 mm, number of positions:
8, connection method: Screw connection with tension sleeve, mounting: Wave soldering, conductor/PCB
connection direction: 0 °, color: black
The figure shows a 10-position
version of the product
Your advantages
Well-known connection principle allows worldwide use
Low temperature rise, thanks to maximum contact force
Allows connection of two conductors
The latching on the side enables various numbers of positions to be combined
Key Commercial Data
Packing unit
GTIN
GTIN
Custom tariff number
4017918604714
85369010
1
Technical data
Item properties
Brief article description
Range of articles
Pitch
Number of positions
Connection method
Drive form screw head
Screw thread
Mounting type
Pin layout
Number of levels
PCB terminal block
MKDS 1,5
5.08 mm
8
Screw connection with tension sleeve
Slotted (L)
M3
Wave soldering
Linear pinning
1
01/19/2019 Page 1 / 6
https://www.phoenixcontact.com/in/products/1929986
PCB terminal block - MKDS 1,5/ 8-5,08 BK NZ 5080050 - 1929986
Technical data
Electrical parameters
Rated current
Rated insulation voltage (III/2)
Rated surge voltage (III/2)
17.5 A
400 V
4 kV
Connection capacity
Conductor cross section solid
Conductor cross section flexible
Conductor cross section AWG / kcmil
Conductor cross section flexible, with ferrule without plastic sleeve
Conductor cross section, flexible, with ferrule, with plastic sleeve
2 conductors with same cross section, solid
2 conductors with same cross section, flexible
2 conductors with same cross section, stranded, ferrules without plastic
sleeve
0.14 mm² ... 2.5 mm²
0.14 mm² ... 1.5 mm²
26 ... 14
0.25 mm² ... 1.5 mm²
0.25 mm² ... 1.5 mm²
0.14 mm² ... 1 mm²
0.14 mm² ... 0.75 mm²
0.25 mm² ... 0.5 mm²
2 conductors with same cross section, stranded, with TWIN ferrules with
0.5 mm² ... 1 mm²
plastic sleeve
Stripping length
Torque
7 mm
0.5 Nm ... 0.6 Nm
Material data - contact
Note
Contact material
Surface characteristics
Metal surface terminal point (top layer)
Metal surface soldering area (top layer)
WEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/
JEDEC JESD 201
Cu alloy
Tin-plated
Tin (4 - 8 µm Sn)
Tin (4 - 8 µm Sn)
Material data - housing
Insulating material
Insulating material group
CTI according to IEC 60112
Flammability rating according to UL 94
Glow wire flammability index GWFI according to EN 60695-2-12
Glow wire ignition temperature GWIT according to EN 60695-2-13
Temperature for the ball pressure test according to EN 60695-10-2
PA
I
600
V0
850
775
125 °C
Dimensions for the product
Caption
Length [ l ]
Width [ w ]
Height [ h ]
Pitch
Height (without solder pin)
Schematic representation – for additional information, see product range
drawing in the Download Center
9.8 mm
40.64 mm
17.3 mm
5.08 mm
13.8 mm
01/19/2019 Page 2 / 6
https://www.phoenixcontact.com/in/products/1929986
PCB terminal block - MKDS 1,5/ 8-5,08 BK NZ 5080050 - 1929986
Technical data
Dimensions for the product
Solder pin [P]
Pin dimensions
Dimension a
3.5 mm
0.9 x 0.9 mm
35.56 mm
Dimensions for PCB design
Hole diameter
1.3 mm
Packaging information
Type of packaging
Pieces per package
Denomination packing units
packed in cardboard
50
Pcs.
General product information
Type of note
Note on application
For safe conductor connection, always adhere to a defined tightening
torque. Particularly in the case of PCB terminal blocks with two or
three positions, the individual solder pin for each contact point cannot
compensate for this. That is why the terminal blocks must be supported
during conductor connection (held with one hand, support on the
housing).
Note
Ambient conditions
Ambient temperature (storage/transport)
Ambient temperature (assembly)
Ambient temperature (operation)
-40 °C ... 70 °C
-5 °C ... 100 °C
-40 °C
Termination and connection method
Pull-out test
Pull-out test
Conductor cross section / conductor type / tensile force
IEC 60998-2-1:1990-04
Test passed
0.14 mm² / solid / > 10 N
0.14 mm² / flexible / > 10 N
2.5 mm² / solid / > 50 N
1.5 mm² / flexible / > 40 N
Mechanical tests according to standard
Test specification
IEC 60998-2-1 (in parts)
Electrical tests
Rated current
Rated insulation voltage (III/2)
Rated surge voltage (III/2)
17.5 A
400 V
4 kV
Air clearances and creepage distances
Insulating material group
Voltage
Rated insulation voltage (III/3)
I
250 V
250 V
01/19/2019 Page 3 / 6
https://www.phoenixcontact.com/in/products/1929986
PCB terminal block - MKDS 1,5/ 8-5,08 BK NZ 5080050 - 1929986
Technical data
Air clearances and creepage distances
Rated insulation voltage (III/2)
Rated insulation voltage (II/2)
Rated surge voltage (III/3)
Rated surge voltage (III/2)
Rated surge voltage (II/2)
400 V
630 V
4 kV
4 kV
4 kV
Current carrying capacity / derating curves
Specification
IEC 60998-2-1 (in parts)
Vibration test
Resistance to ageing, to humidity conditions, to ingress of solid objects
and to harmful ingress of water
Test result
Test specification
Dry heat
Humid heat
Test passed IEC 60998-2-1:1990-04 168 h/100°C 48 h/30 °C/92 %
Test passed
IEC 60998-2-1:1990-04
168 h/100°C
48 h/30 °C/92 %
Resistance to ageing, humidity and penetration of solids
Test result
Test specification
Dry heat
Humid heat
Test passed
IEC 60998-2-1:1990-04
168 h/100°C
48 h/30 °C/92 %
Standards and Regulations
Connection in acc. with standard
EN-VDE
CSA
Environmental Product Compliance
REACh SVHC
China RoHS
Lead 7439-92-1
Environmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”,
Category “Manufacturer's declaration”
Classifications
eCl@ss
eCl@ss 4.0
eCl@ss 4.1
eCl@ss 5.0
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
eCl@ss 8.0
eCl@ss 9.0
27141109
27141109
27141190
27261100
27261100
27440401
27440401
27440401
01/19/2019 Page 4 / 6
https://www.phoenixcontact.com/in/products/1929986
PCB terminal block - MKDS 1,5/ 8-5,08 BK NZ 5080050 - 1929986
Classifications
ETIM
ETIM 3.0
ETIM 4.0
ETIM 5.0
ETIM 6.0
EC001121
EC002643
EC002643
EC002643
UNSPSC
UNSPSC 6.01
UNSPSC 7.0901
UNSPSC 11
UNSPSC 12.01
UNSPSC 13.2
30211801
39121432
39121432
39121432
39121432
Approvals
Approvals
Approvals
DNV GL / CSA / CCA / IECEE CB Scheme / SEV / EAC / cULus Recognized
Ex Approvals
Approval details
DNV GL
D
300 V
10 A
28-14
http://exchange.dnv.com/tari/
TAE00001EV
CSA
Nominal voltage UN
Nominal current IN
mm²/AWG/kcmil
CCA
Nominal voltage UN
mm²/AWG/kcmil
http://www.csagroup.org/services-industries/product-listing/
B
300 V
10 A
28-14
250 V
2.5
13631
IK-3249
01/19/2019 Page 5 / 6
