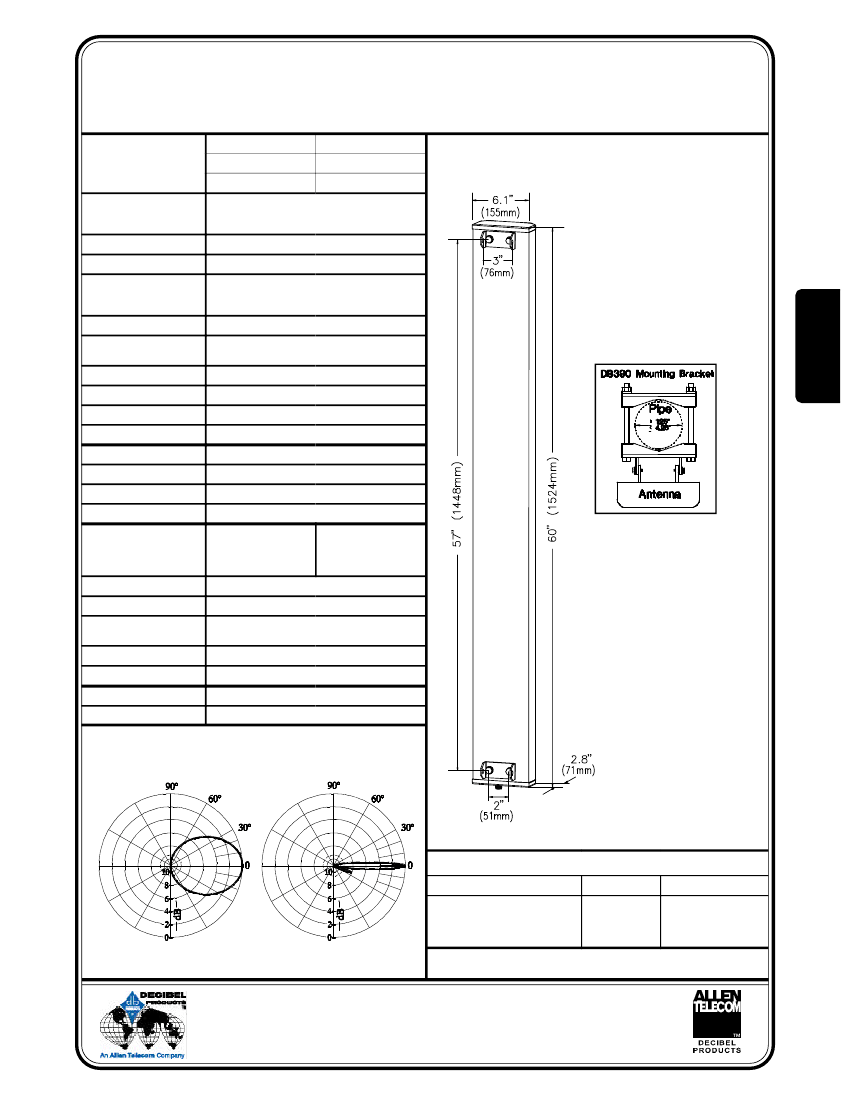

DB980H65(E/N/A/B/R/S)-M
65°, 16.5 dBd Directional Antenna
1850 - 1990 MHz
Model Number
DB980H65E-M
DB980H65A-M
DB980H65R-M
Connector Options
Bottom: E = 7-16 DIN
Back: A = 7-16 DIN
Top:
R = 7-16 DIN
DB980H65N-M
DB980H65B-M
DB980H65S-M
N = Type N Female
B = Type N Female
S = Type N Female
Frequency Range
Gain
Null Fill
1850 - 1990 MHz
16.5 dBd or 18.6 dBi
First lower null is less than 18 dB
down from max. First upper side lobe
suppressed.
65°
VSWR
Beamwidth
(3 dB from max.)
Front-to-Back Ratio
Polarization
Max. Input Power
Application
Weight
Wind Area
Wind Load
Max. Wind Speed
Material
< 1.4 : 1
Horizontal:
Vertical:
65° ± 5°
5.5° ± .5°
> 25 dB
Vertical
250 Watts
PCN, PCS, DCS 1800
8.5 lb. (4.0 kg)
2.5 ft² (0.24 m²)
100 lbf (445N) 44.9 kp (at 100 mph)
165 mph (266 km/h)
Reflector Screen:
Radiators:
Radome:
Mounting Hdw:
Normal: Gray
DB390 pipe mount kit, included.
DB5098
Fully protected by backplate and radome.
All metal parts grounded.
72" x 7" x 6" (183 x 18 x 15 cm)
15 lb. (6.8 kg)
Pass. Aluminum
Brass
PVC, UV Resistant
Galvanized Steel
Color
Mounting
Downtilt Brackets
(Optional)
Weather Protection
Lightning Protection
Packing Size
Shipping Weight
16.5 dBd (18.6 dBi) gain
directional antenna with
65° horizontal 3 dB
beamwidth for 1850-
1990 MHz.
Antenna Patterns
Electrical Downtilt (T) Option
Model Number
980H65T2E/N-M
980H65T3E/N-M
980H65T4E/N-M
980H65T6E/N-M
Horizontal
Vertical
Specifications are for reference only.
Downtilt
2°
3°
4°
6°
Gain
16.5 dBd
16.5 dBd
16.2 dBd
16.0 dBd
099045-001-M 11/99
DECIBEL
Allen Telecom Inc.
PRODUCTS
A Division of
8635 Stemmons Freeway • P. O. Box 569610 • Dallas, Texas 75356-9610
214 / 631-0310 • Fax: 214 / 631-4706
