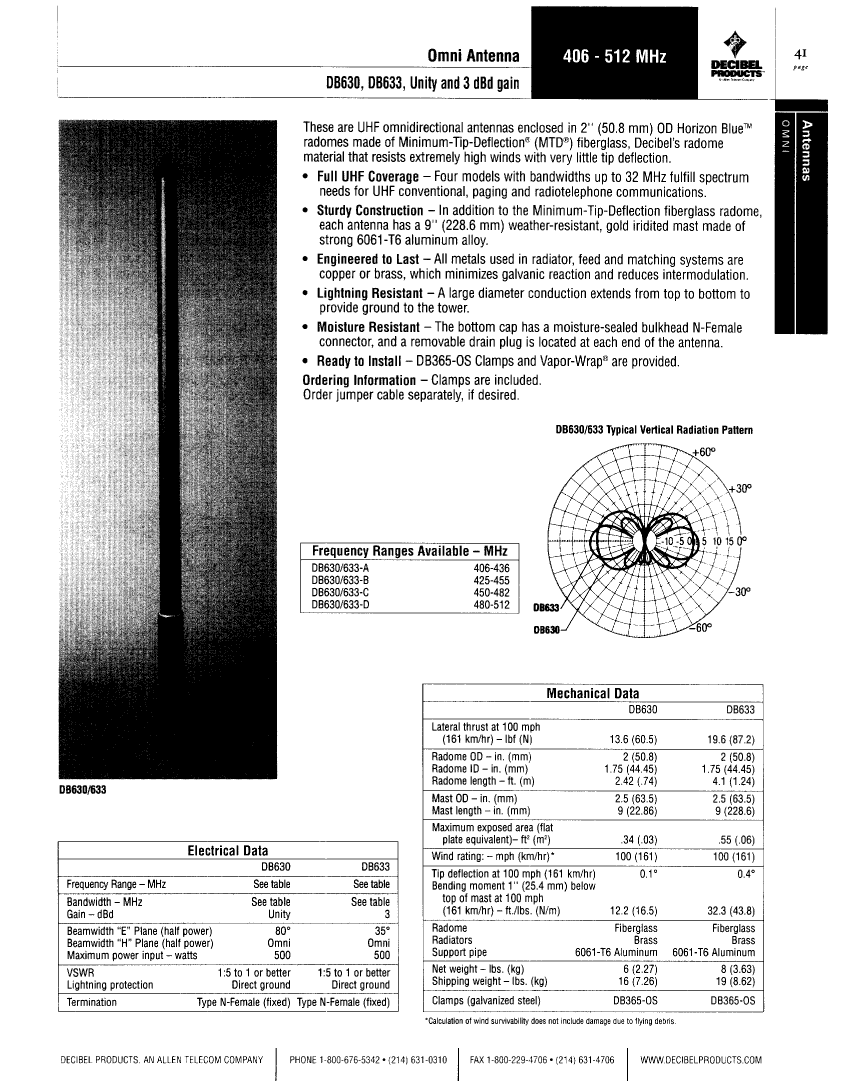

Preview

DB630-B: DescriptionBase Station/Broadcast Transmission Antenna, 425MHz Min, 455MHz Max, 2.15dB Gain, 360deg 3dB Beamwidth; CategoryWireless rf/communication Radio frequency and microwave; File Size334KB，1 Pages; ManufacturerCommScope Inc

Download Datasheet Parametric Compare View All

DB630-B Overview

Base Station/Broadcast Transmission Antenna, 425MHz Min, 455MHz Max, 2.15dB Gain, 360deg 3dB Beamwidth

DB630-B Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
Other features	UPS SHIPPABLE
application	PAGING
bandwidth	30 MHz
Beam Width-E	80 deg
Beamwidth-H	360 deg
Gain	2.15 dB
Omnidirectional	YES
Maximum operating frequency	455 MHz
Minimum operating frequency	425 MHz
polarization	LINEAR VERTICAL
RF/Microwave Device Types	BASE STATION/BROADCAST TRANSMISSION ANTENNA
Maximum transmission power	500 W
Maximum voltage standing wave ratio	1.5
Commentary	225 mph
Base Number Matches	1

Preview

Download Datasheet

View All

DB630-B Related Products

	DB630-B	DB630-C	DB630-D	DB630-A	DB633-A	DB633-D	DB633-C
Description	Base Station/Broadcast Transmission Antenna, 425MHz Min, 455MHz Max, 2.15dB Gain, 360deg 3dB Beamwidth	Base Station/Broadcast Transmission Antenna, 450MHz Min, 482MHz Max, 2.15dB Gain, 360deg 3dB Beamwidth	Base Station/Broadcast Transmission Antenna, 480MHz Min, 512MHz Max, 2.15dB Gain, 360deg 3dB Beamwidth	Base Station/Broadcast Transmission Antenna, 406MHz Min, 436MHz Max, 2.15dB Gain, 360deg 3dB Beamwidth	Base Station/Broadcast Transmission Antenna, 406MHz Min, 436MHz Max, 5.15dB Gain, 360deg 3dB Beamwidth	Base Station/Broadcast Transmission Antenna, 480MHz Min, 512MHz Max, 5.15dB Gain, 360deg 3dB Beamwidth	Base Station/Broadcast Transmission Antenna, 450MHz Min, 482MHz Max, 5.15dB Gain, 360deg 3dB Beamwidth
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Other features	UPS SHIPPABLE	-	UPS SHIPPABLE	UPS SHIPPABLE	UPS SHIPPABLE	UPS SHIPPABLE	-
application	PAGING	-	PAGING	PAGING	PAGING	PAGING	-
bandwidth	30 MHz	-	32 MHz	30 MHz	30 MHz	32 MHz	-
Beam Width-E	80 deg	-	80 deg	80 deg	35 deg	35 deg	-
Beamwidth-H	360 deg	-	360 deg	360 deg	360 deg	360 deg	-
Gain	2.15 dB	-	2.15 dB	2.15 dB	5.15 dB	5.15 dB	-
Omnidirectional	YES	-	YES	YES	YES	YES	-
Maximum operating frequency	455 MHz	-	512 MHz	436 MHz	436 MHz	512 MHz	-
Minimum operating frequency	425 MHz	-	480 MHz	406 MHz	406 MHz	480 MHz	-
polarization	LINEAR VERTICAL	-	LINEAR VERTICAL	LINEAR VERTICAL	LINEAR VERTICAL	LINEAR VERTICAL	-
RF/Microwave Device Types	BASE STATION/BROADCAST TRANSMISSION ANTENNA	-	BASE STATION/BROADCAST TRANSMISSION ANTENNA	BASE STATION/BROADCAST TRANSMISSION ANTENNA	BASE STATION/BROADCAST TRANSMISSION ANTENNA	BASE STATION/BROADCAST TRANSMISSION ANTENNA	-
Maximum transmission power	500 W	-	500 W	500 W	500 W	500 W	-
Maximum voltage standing wave ratio	1.5	-	1.5	1.5	1.5	1.5	-
Commentary	225 mph	-	225 mph	225 mph	225 mph	225 mph	-
Base Number Matches	1	1	1	1	-	-	-
Maker	-	CommScope Inc	-	-	CommScope Inc	CommScope Inc	CommScope Inc
