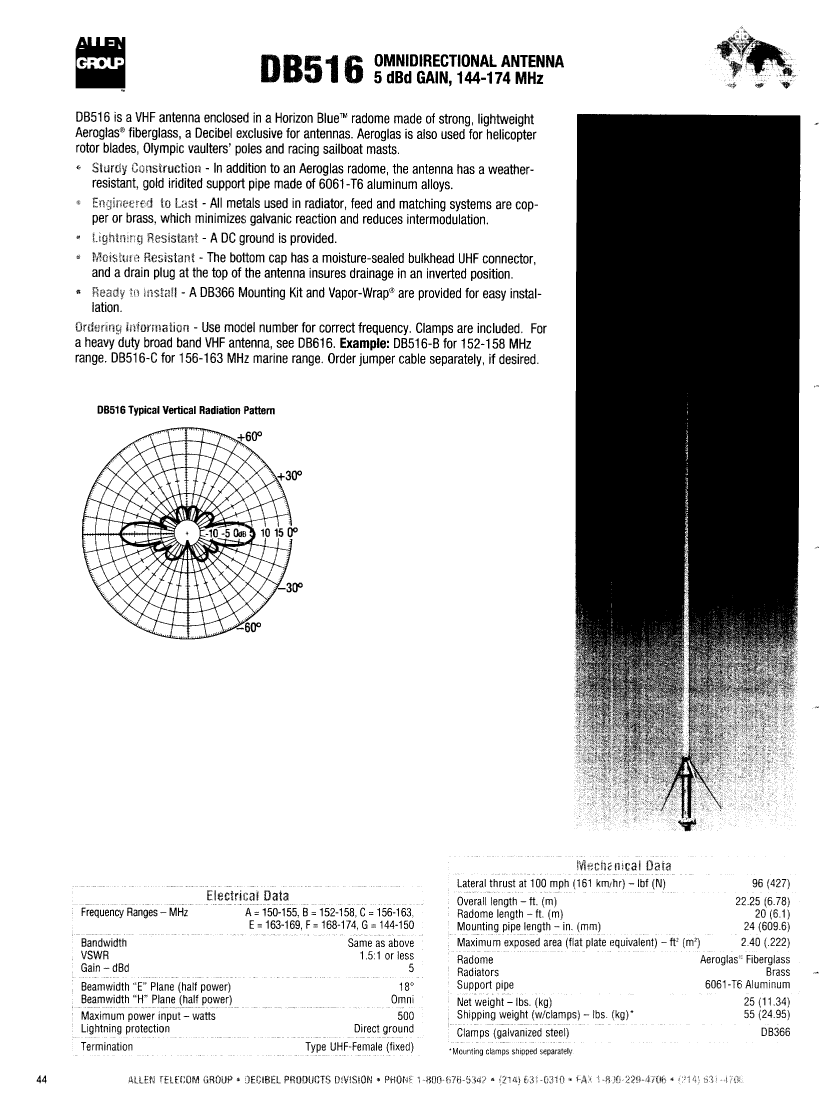

DB516-F: DescriptionBase Station/Broadcast Transmission Antenna, 168MHz Min, 174MHz Max, 7.15dB Gain, 360deg 3dB Beamwidth; CategoryWireless rf/communication Radio frequency and microwave; File Size144KB，1 Pages; ManufacturerCommScope Inc

Download Datasheet Parametric Compare View All

DB516-F Overview

Base Station/Broadcast Transmission Antenna, 168MHz Min, 174MHz Max, 7.15dB Gain, 360deg 3dB Beamwidth

DB516-F Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
application	MULTIPOINT COMMUNICATION SYSTEM
bandwidth	6 MHz
Beam Width-E	18 deg
Beamwidth-H	360 deg
Gain	7.15 dB
Omnidirectional	YES
Maximum operating frequency	174 MHz
Minimum operating frequency	168 MHz
polarization	LINEAR VERTICAL
RF/Microwave Device Types	BASE STATION/BROADCAST TRANSMISSION ANTENNA
Maximum transmission power	500 W
Maximum voltage standing wave ratio	1.5
Base Number Matches	1
