Preview

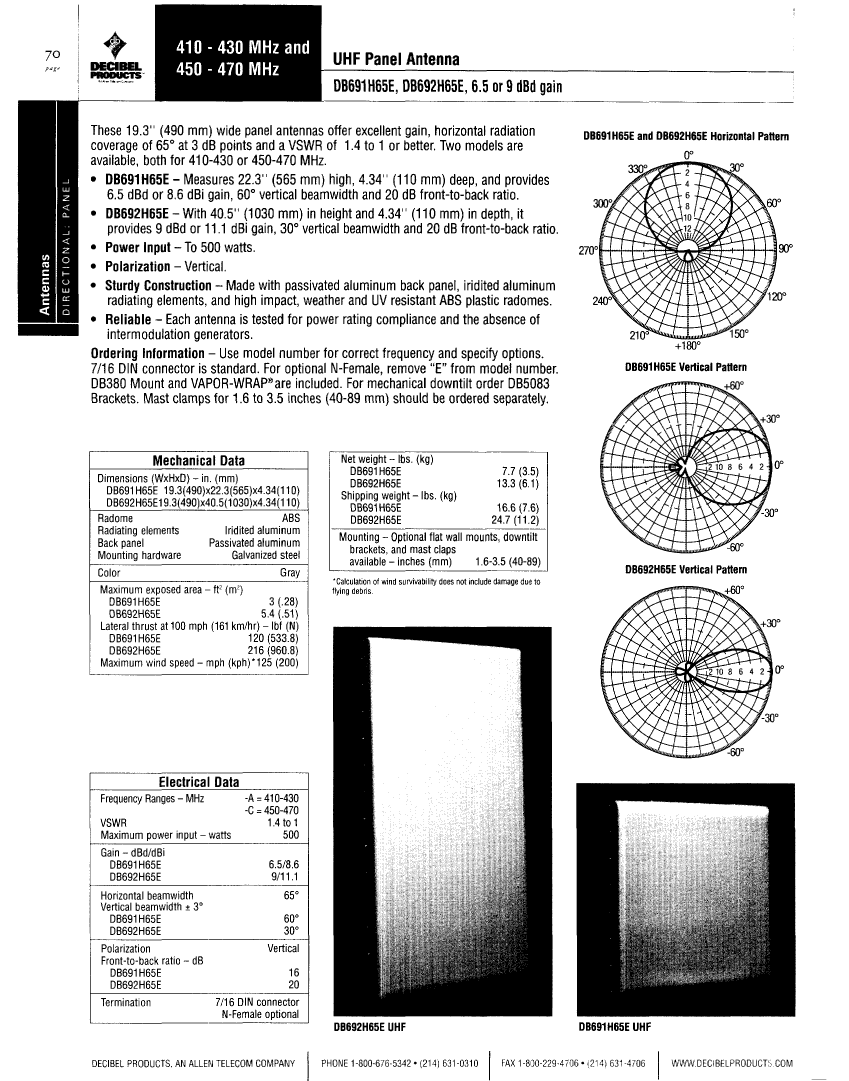

DB691H65-A: DescriptionBase Station/Broadcast Transmission Antenna, 410MHz Min, 430MHz Max, 8.6dB Gain, 65deg 3dB Beamwidth; CategoryWireless rf/communication Radio frequency and microwave; File Size231KB，1 Pages; ManufacturerCommScope Inc

Download Datasheet Parametric Compare View All

DB691H65-A Overview

Base Station/Broadcast Transmission Antenna, 410MHz Min, 430MHz Max, 8.6dB Gain, 65deg 3dB Beamwidth

DB691H65-A Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
Beam Width-E	60 deg
Beamwidth-H	65 deg
front to back ratio	16 dB
Gain	8.6 dB
Omnidirectional	NO
Maximum operating frequency	430 MHz
Minimum operating frequency	410 MHz
polarization	LINEAR VERTICAL
RF/Microwave Device Types	BASE STATION/BROADCAST TRANSMISSION ANTENNA
Maximum transmission power	500 W
Maximum voltage standing wave ratio	1.4
Commentary	125 mph
Base Number Matches	1

Preview

Download Datasheet

View All

DB691H65-A Related Products

	DB691H65-A	DB691H65-C	DB691H65E-A	DB691H65E-C	DB692H65-A	DB692H65-C	DB692H65E-A	DB692H65E-C
Description	Base Station/Broadcast Transmission Antenna, 410MHz Min, 430MHz Max, 8.6dB Gain, 65deg 3dB Beamwidth	Base Station/Broadcast Transmission Antenna, 450MHz Min, 470MHz Max, 8.6dB Gain, 65deg 3dB Beamwidth	Base Station/Broadcast Transmission Antenna, 410MHz Min, 430MHz Max, 8.6dB Gain, 65deg 3dB Beamwidth	Base Station/Broadcast Transmission Antenna, 450MHz Min, 470MHz Max, 8.6dB Gain, 65deg 3dB Beamwidth	Base Station/Broadcast Transmission Antenna, 410MHz Min, 430MHz Max, 11.1dB Gain, 65deg 3dB Beamwidth	Base Station/Broadcast Transmission Antenna, 450MHz Min, 470MHz Max, 11.1dB Gain, 65deg 3dB Beamwidth	Base Station/Broadcast Transmission Antenna, 410MHz Min, 430MHz Max, 11.1dB Gain, 65deg 3dB Beamwidth	Base Station/Broadcast Transmission Antenna, 450MHz Min, 470MHz Max, 11.1dB Gain, 65deg 3dB Beamwidth
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Beam Width-E	60 deg	60 deg	60 deg	60 deg	30 deg	30 deg	30 deg	30 deg
Beamwidth-H	65 deg	65 deg	65 deg	65 deg	65 deg	65 deg	65 deg	65 deg
front to back ratio	16 dB	16 dB	16 dB	16 dB	20 dB	20 dB	20 dB	20 dB
Gain	8.6 dB	8.6 dB	8.6 dB	8.6 dB	11.1 dB	11.1 dB	11.1 dB	11.1 dB
Omnidirectional	NO	NO	NO	NO	NO	NO	NO	NO
Maximum operating frequency	430 MHz	470 MHz	430 MHz	470 MHz	430 MHz	470 MHz	430 MHz	470 MHz
Minimum operating frequency	410 MHz	450 MHz	410 MHz	450 MHz	410 MHz	450 MHz	410 MHz	450 MHz
polarization	LINEAR VERTICAL	LINEAR VERTICAL	LINEAR VERTICAL	LINEAR VERTICAL	LINEAR VERTICAL	LINEAR VERTICAL	LINEAR VERTICAL	LINEAR VERTICAL
RF/Microwave Device Types	BASE STATION/BROADCAST TRANSMISSION ANTENNA	BASE STATION/BROADCAST TRANSMISSION ANTENNA	BASE STATION/BROADCAST TRANSMISSION ANTENNA	BASE STATION/BROADCAST TRANSMISSION ANTENNA	BASE STATION/BROADCAST TRANSMISSION ANTENNA	BASE STATION/BROADCAST TRANSMISSION ANTENNA	BASE STATION/BROADCAST TRANSMISSION ANTENNA	BASE STATION/BROADCAST TRANSMISSION ANTENNA
Maximum transmission power	500 W	500 W	500 W	500 W	500 W	500 W	500 W	500 W
Maximum voltage standing wave ratio	1.4	1.4	1.4	1.4	1.4	1.4	1.4	1.4
Commentary	125 mph	125 mph	125 mph	125 mph	125 mph	125 mph	125 mph	125 mph
