DTS8003
Typical Values @ +25 °C
0.1 TO 8.0 GHz
THRESHOLD DETECTOR
DTS8003
Wide Frequency Range
. . . . . . . . . . . . . . . . . . . . . . . . .
0.1 to 8.0 GHz
Wide Power Range
. . . . . . . . . . . . . . . . . . . . . . . . . . . .
-10.0 to +15.0 dBm
Temperature Stability
. . . . . . . . . . . . . . . . . . . . . . . . . .
± 0.50 dB
Power Flatness.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
± 0.50 dB
Standard Size TO-8 or Surface Mount Package
External Adjustable Threshold Level, Fast Response Time, Low Drift,
Insensitive Threshold Level to Applied Voltage
DTC8003
TO-8 Package for Detectors
SPECIFICATIONS
*
Parameter
Frequency (Min.)
Input Power Range (Min.)
VSWR (Max.)
Power Flatness (Max.)
Threshold Temperature Stability
(Max.)
Threshold Hysteresis (Max.)
Pulse Response (Max.)
Logic: Pin > Pth
Output Voltage Hi @ 5mA source
Output Voltage Lo @ 5mA sink
Supply Current (Max.)
Typical
0.1-9.0 GHz
-10 to +15 dBm*
1.2:1
±0.5 dB
±0.25 dB
±0.2 dB
50^ µsec
1
4.4 Volts
0.1 Volts
1.0 mA
Guaranteed
0 to 50 °C
-40 to +85 °C
0.1-8.0 GHz
-5 to +15 dBm*
1.7:1‡
±0.75‡ dB
±0.5 dB
±0.5 dB
100^ µsec
1
3.5 Volts
0.25 Volts
2.0 mA
0.1-8.0 GHz
-5 to +15 dBm*
1.7:1‡
±0.75‡ dB
±0.5 dB
±0.5 dB
100^ µsec
1
3.5 Volts
0.25 Volts
2.0 mA
DTS8003
* Measured in a 50 Ohm system at V
s
=+5.0 Vdc. R
TH
=100 ohm to 100 KOhm unless otherwise specified.
^ 50% RF to 10 or 90% Video Response time for input change 3 dB above Pth. ‡ For TO-8 model
(DTC8003) VSWR degraded to 2.0:1 above 4 GHz and flatness degraded to ±1.0 dB above 7 GHz.
SMTO-8 Package for Detectors
MAXIMUM RATINGS
DC Voltage
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Continuous RF Input Power
. . . . . . . . . . . . . . . . . . . . .
Operating Case Temperature
. . . . . . . . . . . . . . . . . . . .
Storage Temperature
. . . . . . . . . . . . . . . . . . . . . . . . . . .
Burn-In Temperature
. . . . . . . . . . . . . . . . . . . . . . . . . . .
Detector Thermal Resistance
1
(θjc) . . . . . . . . . . . . . . .
Temperature Rise @ 0 dBm
. . . . . . . . . . . . . . . . . . . . .
1
Thermal
+15 V
+20.0 dBm
-40 °C to +125 °C
-65 °C to +150 °C
+125 °C
+3500 °C/Watt
+3.5 °C
resistance is based on RF input power. Ratings based on +25 °C.
APPLICATION NOTES
This unit is DC coupled and employs a RF choke at the input (DC short).
DO NOT bypass the Threshold Control pin. Capacitance greater than 50pF may cause
instabilities. Keep the threshold programming resistor or circuit close to this pin.
Average power detection is obtained at power levels below approximately +7 dBm.
The output of this unit is derived from an op-amp, not a true logic device.
Connect external threshold resistor from Rcntl port to ground.

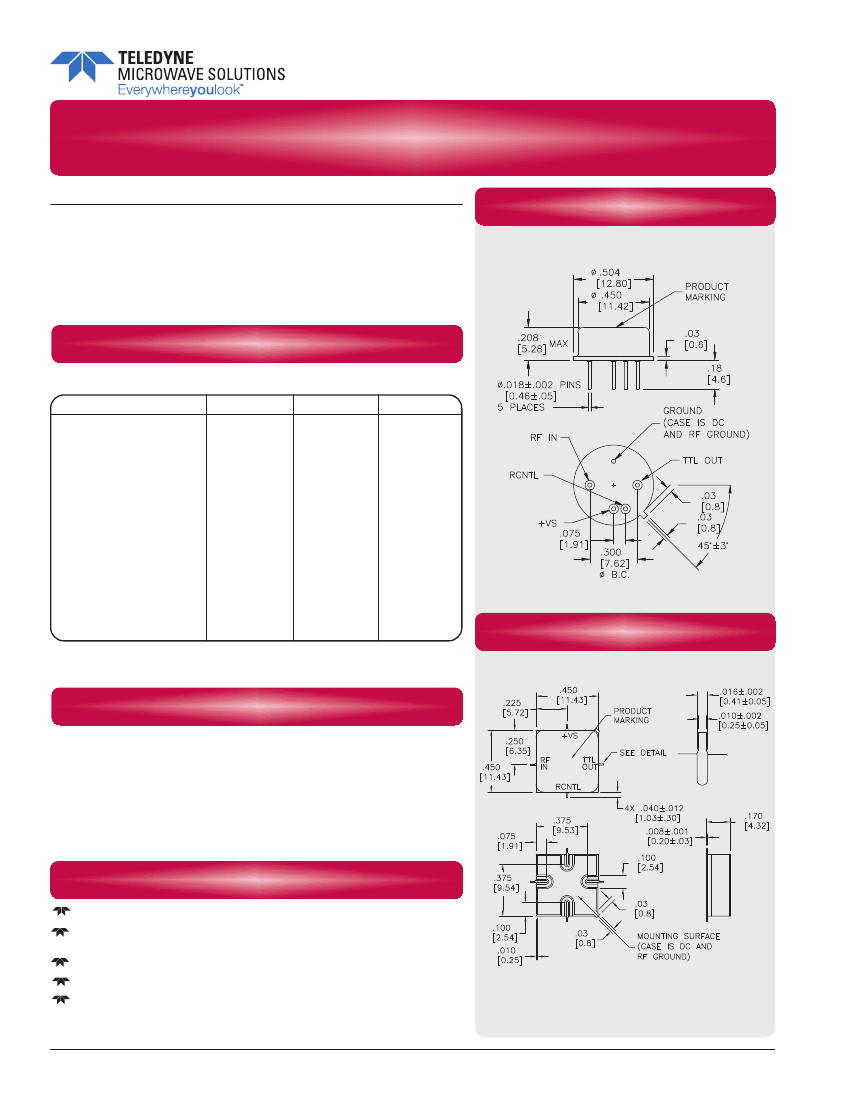

DIMENSIONS ARE IN INCHES [MILLIMETERS]
650-691-9800 • Fax: 650-962-6845 • Updates: www.teledynemicrowave.com • microwave@teledyne.com
DTS8003

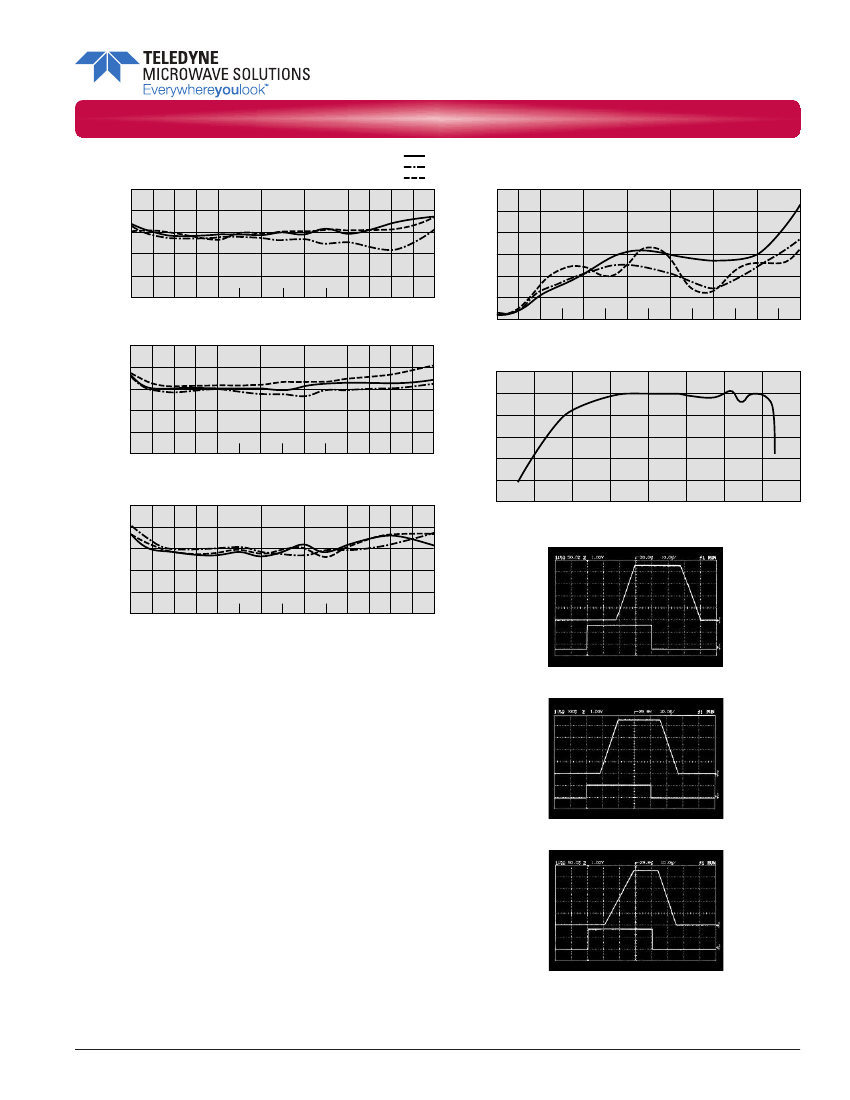

TYPICAL PERFORMANCE
Threshold Power @ R = 100
-1.0
RF INPUT - dBm
-2.0
-3.0
VSWR
-4.0
-5.0
-6.0
0.1 0.5
1.0
1.5
2.0
3.0 4.0 5.0 6.0 7.0
FREQUENCY - GHz
8.0
8.5
9.0
9.5 10.0
1.0
0.1 1.0
2.0
2.5
3.0
3.5 4.0 4.5 5.0 5.5
FREQUENCY - GHz
6.0
6.5
7.0
7.5 8.0
KEY: +25
°C
+85
°C
Ohms
-40
°C
1.6
1.5
1.4
1.3
1.2
1.1
R
Input VSWR @ Pin = +10 dBm
Threshold Power @ R = 1 KOhms
7.0
RF INPUT - dBm
6.0
5.0
4.0
3.0
2.0
0.1 0.5
1.0
1.5
2.0
3.0 4.0 5.0 6.0 7.0
FREQUENCY - GHz
8.0
8.5
9.0
9.5 10.0
+
HYSTERISIS - dB
1
0
Hysterisis Vs Input Power @ 25° C
-0.1
-0.2
-0.3
-0.4
-0.5
Threshold Power @ R = 20 KOhms
16.0
RF INPUT - dBm
15.0
14.0
13.0
12.0
11.0
0.1 0.5
1.0
1.5
2.0
3.0 4.0 5.0 6.0 7.0
FREQUENCY - GHz
8.0
8.5
9.0
9.5 10.0
-0.6
-20
-15
-10
-5
0
5
INPUT POWER - dBm
10
15
20
Pulse Response @ RTH =100 Ohms
Pulse Response @ RTH = 1 KOhms
R
Pulse Response @ RTH = 20 KOhms
Top Trace: TTL Logic Out
Bottom Trace: RF Input
Time Base: 10.0 µs/div
