High Frequency 2 and 4
Way Broadband Power
Dividers 40 GHz
RLC Electronics’ series D-0640-* is a 6.0-40
GHz in phase power divider/combiner with high
isolation, small size and superior performance in
a single package. It uses a multi-section
“Wilkinson” type design with excellent electrical
performance over the frequency range. This was
accomplished by today’s most advanced
technology in design & precision etching of a
single microstrip board..
Specifications
D-0640
-2-4
Model.
No.
D-0640-2
D-0640-4
VSWR
(Max.)
2.0:1
2.0:1
Insertion
Loss (Max.)
1.0 dB
1.6 dB
Isolation
(Min.)
15 dB
15 dB
Amplitude
Balance
+/-.5
+/-.5
Phase
Balance
+/-15 deg
+/-15 deg
Power
:
10 watts average
(outputs terminated with a VSWR less than 1.35)
200 mW average
(outputs terminated with any VSWR and phase)
Frequency:
6.0-40.0 GHz
Connectors:
“K” female (2.92mm)
Impedance:
50 ohms
Environmental
:
MIL-E-5400, Class 1A

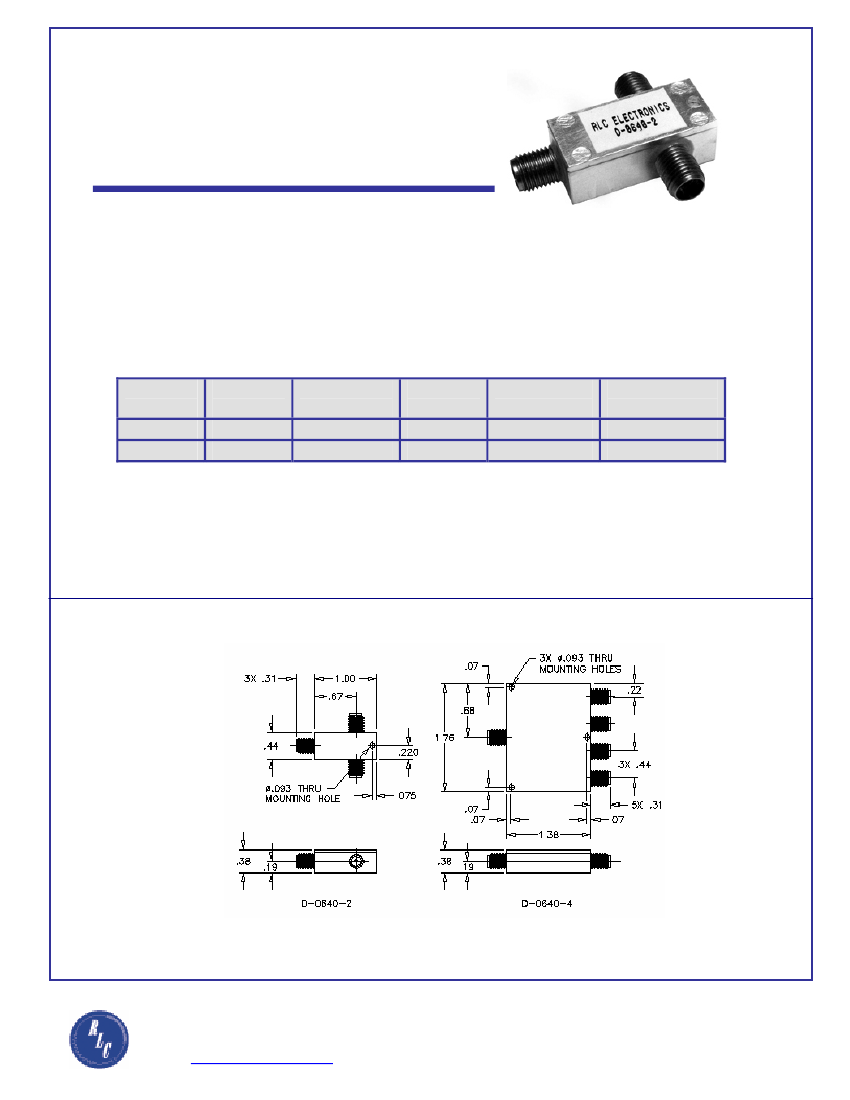

OUTLINE DRAWING
Specifications subject to change without notification.
Tolerances unless otherwise specified are .xx +/- .02, xxx +/- .005
Specials requiring closer tolerances, different frequency ranges, special connectors
different materials, finishes, etc. can be furnished upon request.
RLC ELECTRONICS, INC.
83 Radio Circle, Mount Kisco, New York 10549 Telephone 914-241-1334 Fax 914-241-1753
e-mail:
sales@rlcelectronics.com
www.rlcelectronics.com
