D023540-0: Description35000 MHz - 40000 MHz RF/MICROWAVE DIRECTIONAL COUPLER, 1.5 dB INSERTION LOSS-MAX; CategoryWireless rf/communication Radio frequency and microwave; File Size36KB，1 Pages; ManufacturerMITEQ Inc

Download Datasheet Parametric Compare View All

D023540-0 Overview

35000 MHz - 40000 MHz RF/MICROWAVE DIRECTIONAL COUPLER, 1.5 dB INSERTION LOSS-MAX

D023540-0 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
Other features	K
structure	COAXIAL
Maximum input power (CW)	30 dBm
Maximum insertion loss	1.5 dB
Maximum operating frequency	40000 MHz
Minimum operating frequency	35000 MHz
Maximum operating temperature	70 °C
Minimum operating temperature
RF/Microwave Device Types	DIRECTIONAL COUPLER
Maximum voltage standing wave ratio	1.7
Base Number Matches	1

Preview

Download Datasheet

View All

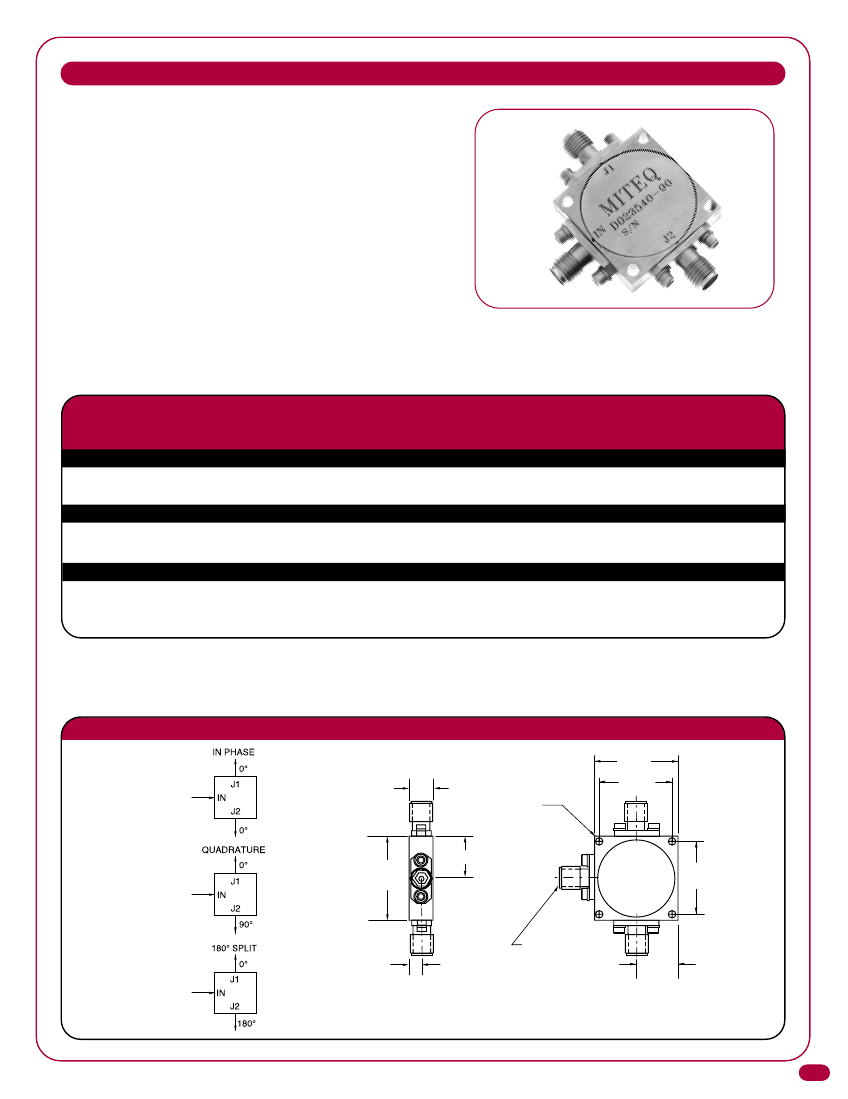

3 dB HYBRIDS

FEATURES

•

0°, 90° and 180° split

Up to 40 GHz

Compact package

Low loss

Tight amplitude and phase balance

MITEQ offers a variety of 3 dB hybrids including in-phase, quadrature, and 180 degree split types. Custom designs

covering multioctave bands up to 40 GHz are also available. We offer MIL-STD-883 screening of our couplers and

can accommodate special connector requirements.

Frequency

Range

(GHz)

35 – 40

Nominal

Split

(dB)

3.01

Insertion

Loss

Isolation

(dB, Max.) (dB, Min.)

1.5

18

Amplitude

Balance

(±dB, Max.)

0.5

Phase

Balance

(±Deg., Max.)

5

Model

Number

D023540-0

VSWR

1.7:1

RF

Connectors

K connectors,

field replaceable

K connectors,

field replaceable

K connectors,

field replaceable

Outline

See

below

See

below

See

below

0° HYBRIDS

QUADRATURE 90° HYBRIDS

35 – 40

D023540-90

3.01

1.5

18

0.5

5

1.7:1

19 – 21

141295

3.01

1

180° HYBRIDS

20

0.25

5

1.5:1

Additional frequency ranges are available for all hybrids. Consult factory for options.

ENVIRONMENTAL CONDITIONS

Operating temperature . . . . . . . . . . . . . . . . 0 to 70°C

Storage temperature . . . . . . . . . . . . . . . . . . -30 to +85°C

FUNCTIONAL BLOCK DIAGRAM

OUTLINE DRAWING

1.00

[25.4]

.82

[20.83]

.25 [6.35]

0.104 [2.64]

DIA.THRU

TYP. (4) PLACES

.50 [12.7]

1.00

[25.4]

J1

IN

J2

"K" CONNECTOR

TYP. (3) PLACES

.82

[20.83]

0.125 [3.18]

.50

[12.7]

GENERAL NOTES:

1. Dimensions shown in brackets [ ] are in millimeters.

2. Tolerance as follows: .xx = ±0.01 [.xx = ±0.25], .xxx = ±0.005 [.xxx = ±0.13]

12

D023540-0 Related Products

	D023540-0	D023540-90	141295
Description	35000 MHz - 40000 MHz RF/MICROWAVE DIRECTIONAL COUPLER, 1.5 dB INSERTION LOSS-MAX	90 Degree Hybrid Coupler, 35000MHz Min, 40000MHz Max, 1.5dB Insertion Loss-Max	19000 MHz - 21000 MHz RF/MICROWAVE 180 DEGREE HYBRID COUPLER, 1 dB INSERTION LOSS-MAX
Reach Compliance Code	unknown	unknown	unknown
Other features	K	K	K
structure	COAXIAL	COAXIAL	COAXIAL
Maximum insertion loss	1.5 dB	1.5 dB	1 dB
Maximum operating frequency	40000 MHz	40000 MHz	21000 MHz
Minimum operating frequency	35000 MHz	35000 MHz	19000 MHz
Maximum operating temperature	70 °C	70 °C	70 °C
RF/Microwave Device Types	DIRECTIONAL COUPLER	90 DEGREE HYBRID COUPLER	180 DEGREE HYBRID COUPLER
Maximum voltage standing wave ratio	1.7	1.7	1.5
Base Number Matches	1	1	1
Maximum input power (CW)	30 dBm	30 dBm	-
