DMX0418LM: Description4000 MHz - 18000 MHz RF/MICROWAVE DOUBLE BALANCED MIXER, 10 dB CONVERSION LOSS-MAX, HERMETIC SEALED PACKAGE; CategoryWireless rf/communication Radio frequency and microwave; File Size73KB，2 Pages; ManufacturerMITEQ Inc

Download Datasheet Parametric Compare View All

DMX0418LM Overview

4000 MHz - 18000 MHz RF/MICROWAVE DOUBLE BALANCED MIXER, 10 dB CONVERSION LOSS-MAX, HERMETIC SEALED PACKAGE

DMX0418LM Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
Other features	SMA-F, HIGH RELIABILITY
structure	COAXIAL
Maximum frequency conversion loss	10 dB
Maximum operating frequency	18000 MHz
Minimum operating frequency	4000 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-54 °C
RF/Microwave Device Types	DOUBLE BALANCED
Maximum voltage standing wave ratio	2
Base Number Matches	1

Preview

Download Datasheet

View All

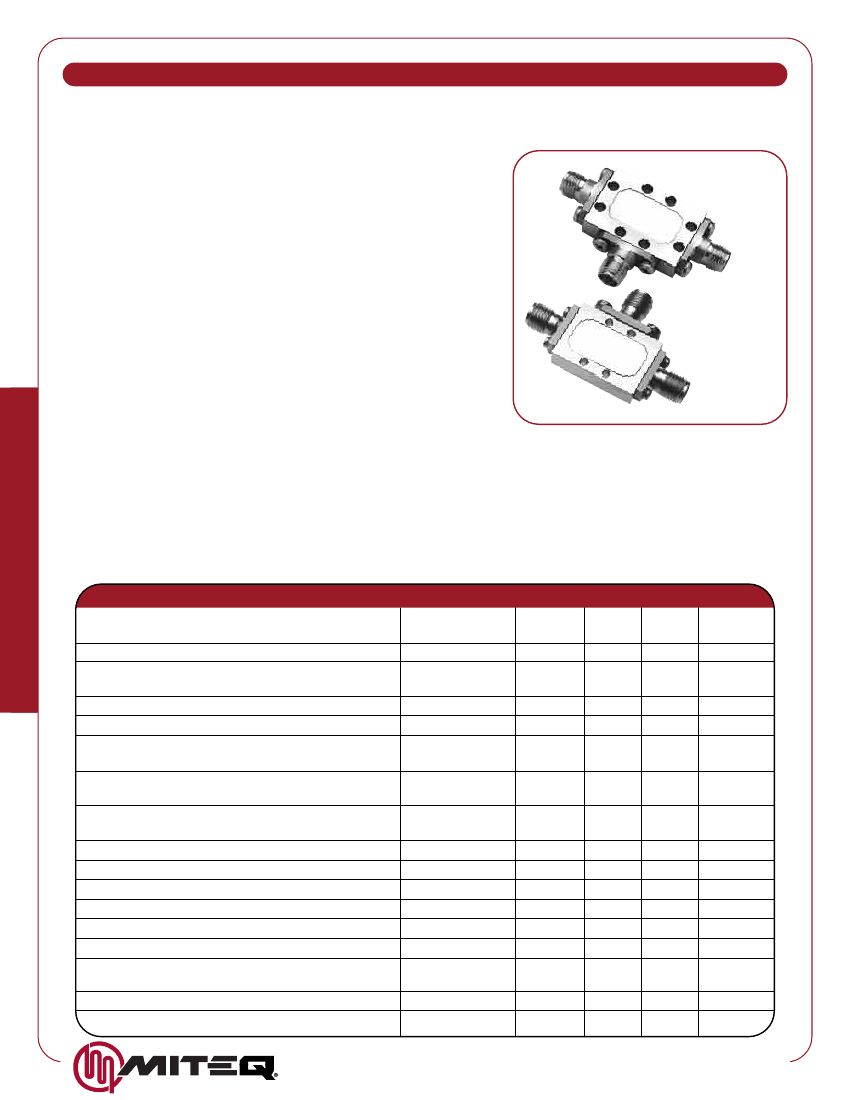

4 TO 18 GHz DOUBLE-BALANCED MIXER

MODELS: DMX0418L, DMY0418L, DMX0716L AND DMY0716L

FEATURES

• RF/LO coverage ................ 4 to 18 GHz

• IF operation ....................... DC to 4 GHz

• LO power range ................ +7 to +13 dBm

• Conversion loss................ 5 dB typical

• LO-to-RF isolation ............ 35 dB typical

• Packaging.......................... Hermetically sealed

MIXER PRODUCTS

MITEQ’s DMX and DMY Series of mixers are constructed using double-tuned microstrip RF and LO baluns with a DC-

coupled IF structure. The construction, coupled with the hermetic packaging, provides for high inherent reliability and

isolation over an extremely broad frequency range. This device performs as an up- or downconverter covering most

EW bands and communication applications. This mixer is also available with medium or high forward voltage diodes

(M, H) yielding proportional changes in LO power and spurious performance.

ELECTRICAL SPECIFICATIONS

INPUT PARAMETERS

RF frequency range

RF VSWR (RF = -10 dBm, LO = +10 dBm)

LO frequency range

LO power range

LO VSWR (LO = +10 dBm)

7 to 16 GHz

4 to 18 GHz

CONDITION

7 to 16 GHz

4 to 18 GHz

DC to 4 GHz

LO = +10 dBm

LO = +13 dBm

CONDITION

2 dB bandwidth

7 to 16 GHz

4 to 18 GHz

CONDITION

UNITS

GHz

Ratio

GHz

dBm

Ratio

UNITS

dBm

UNITS

GHz

Ratio

+10

MIN.

2:1

+13

TYP.

MAX.

MIN.

2:1

2.5:1

TYP.

MAX.

9.5

MIN.

2:1

3:1

+13

TYP.

MAX.

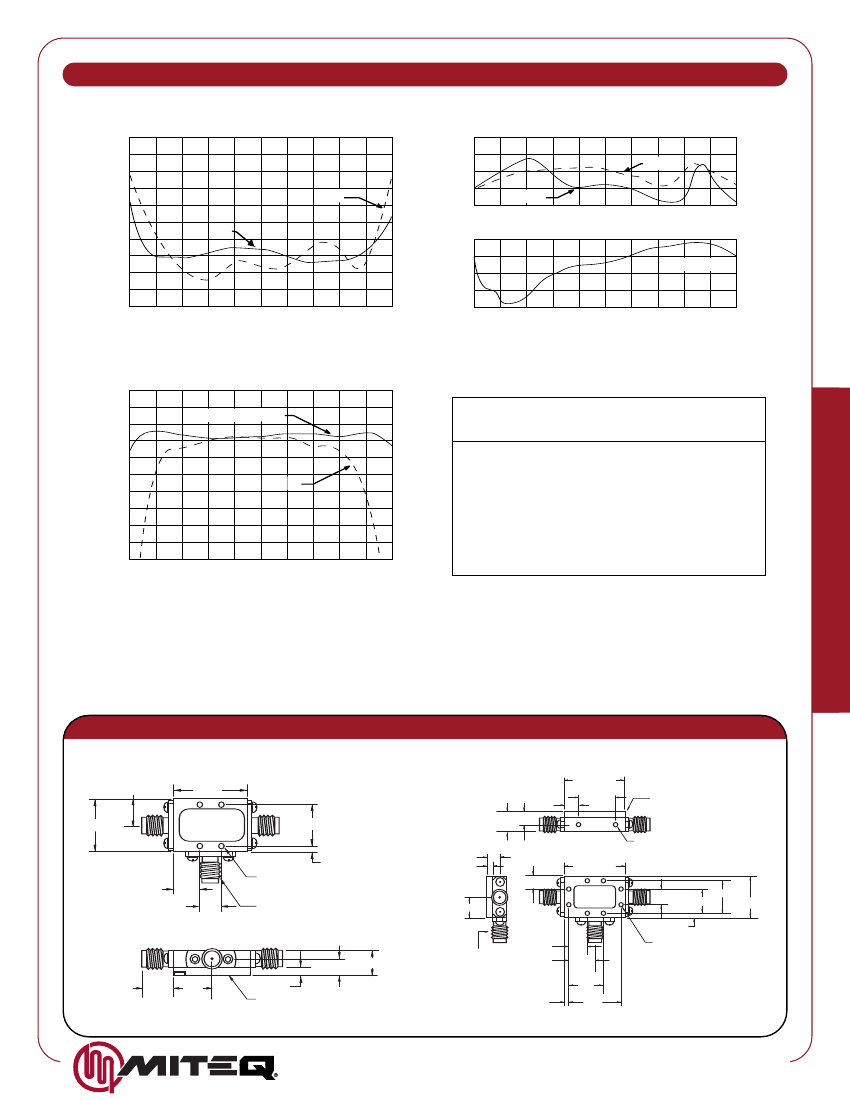

TRANSFER CHARACTERISTICS

Conversion loss (IF = 100 MHz, LO = +10 dBm)

Single-sideband noise figure

LO-to-RF isolation

LO-to-IF isolation

IF-to-RF isolation

Input power at 1 dB compression

Input two-tone third-order intercept point

OUTPUT PARAMETERS

IF frequency range

IF VSWR (IF = -10 dBm, LO = +10 dBm)

100 Davids Drive, Hauppauge, NY 11788 • TEL: (631) 436-7400 • FAX: (631) 436-7430 •

www.miteq.com
