S23DP16A1 datasheet, PDF - EEWORLD Datasheet

S23DP16A1: DescriptionSilicon Controlled Rectifier, 190000mA I(T), 1600V V(DRM); CategoryAnalog mixed-signal IC Trigger device; File Size203KB，5 Pages; ManufacturerInternational Rectifier （ Infineon ）; Websitehttp://www.irf.com/

Download Datasheet Parametric View All

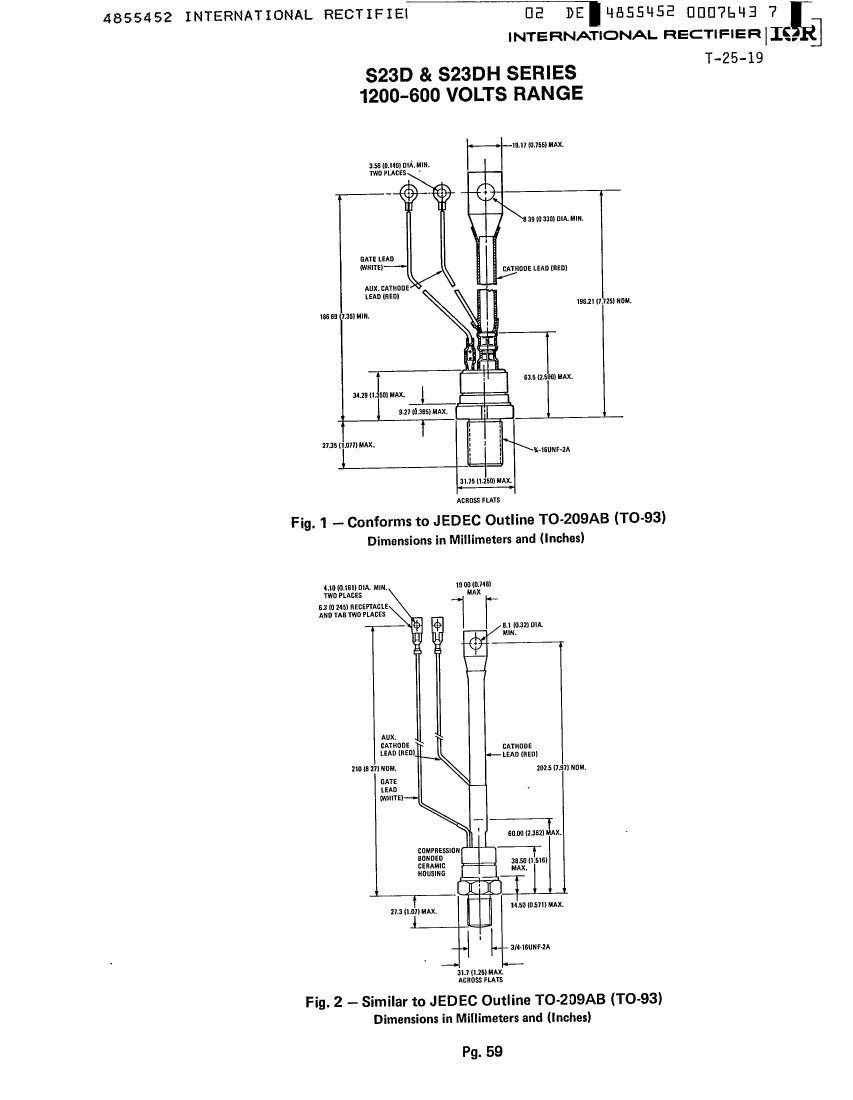

S23DP16A1 Overview

Silicon Controlled Rectifier, 190000mA I(T), 1600V V(DRM)

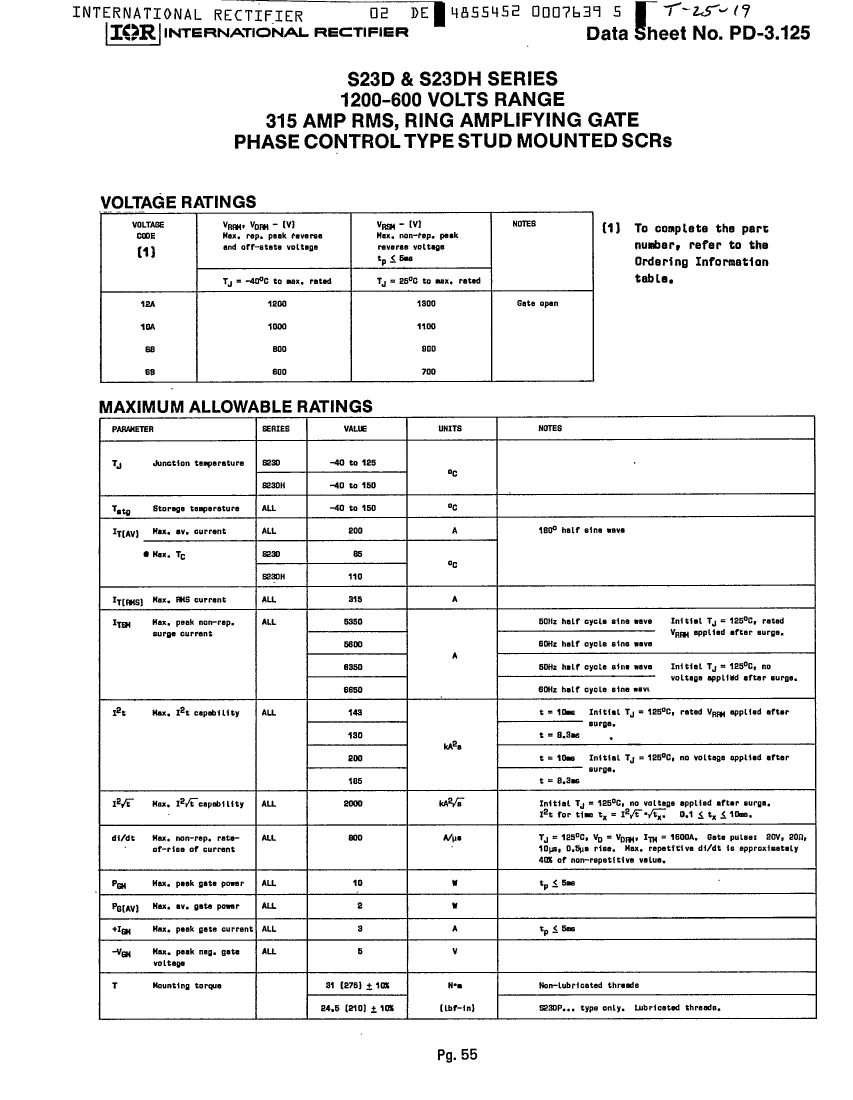

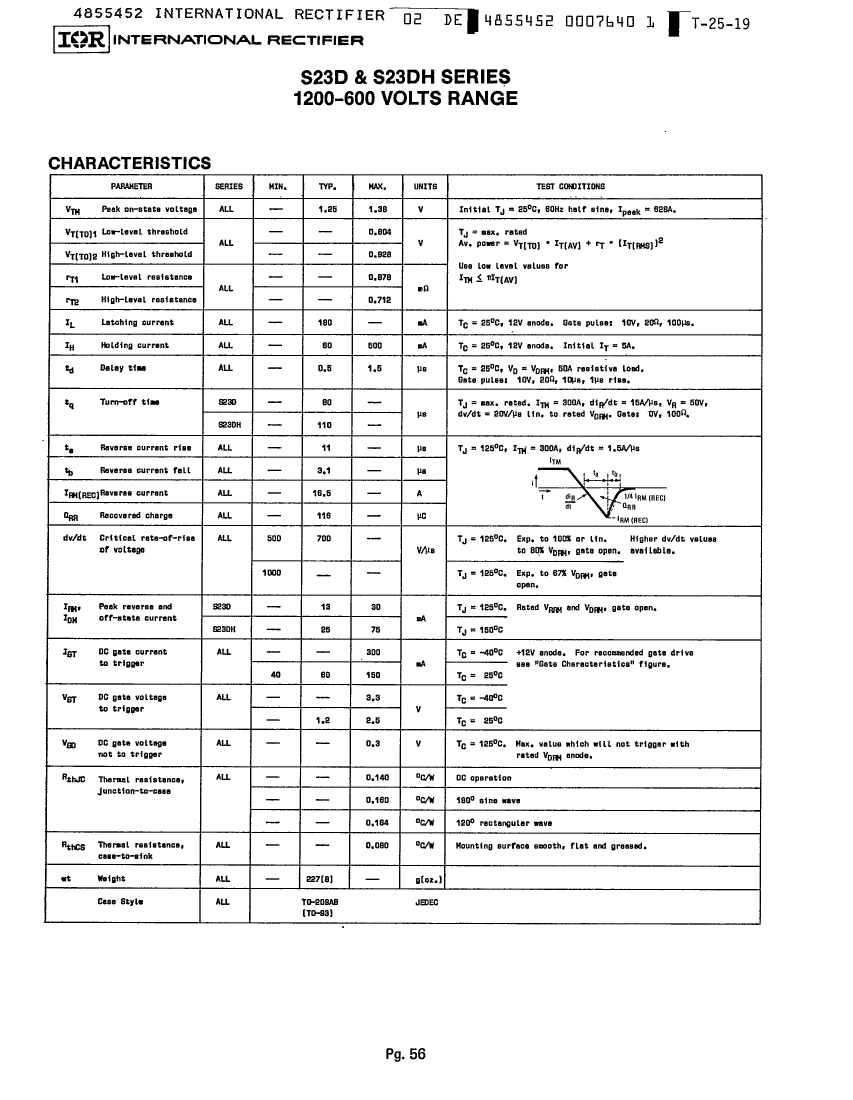

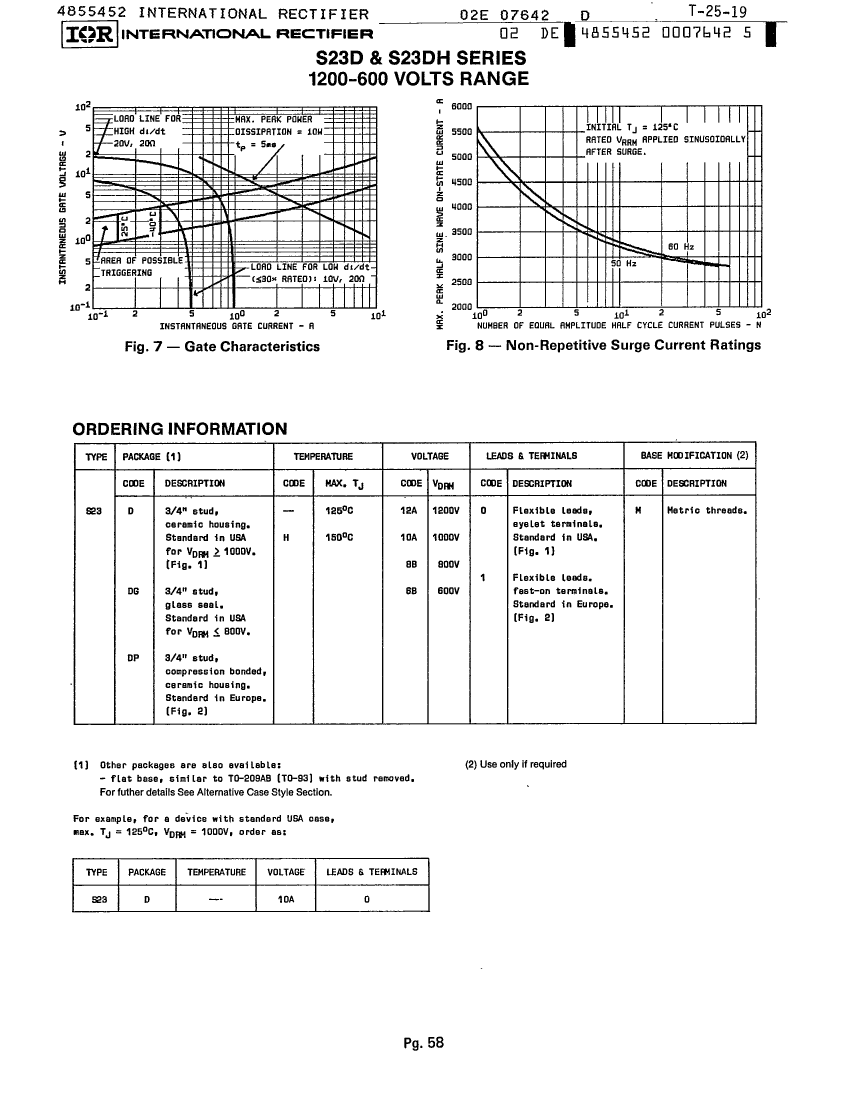

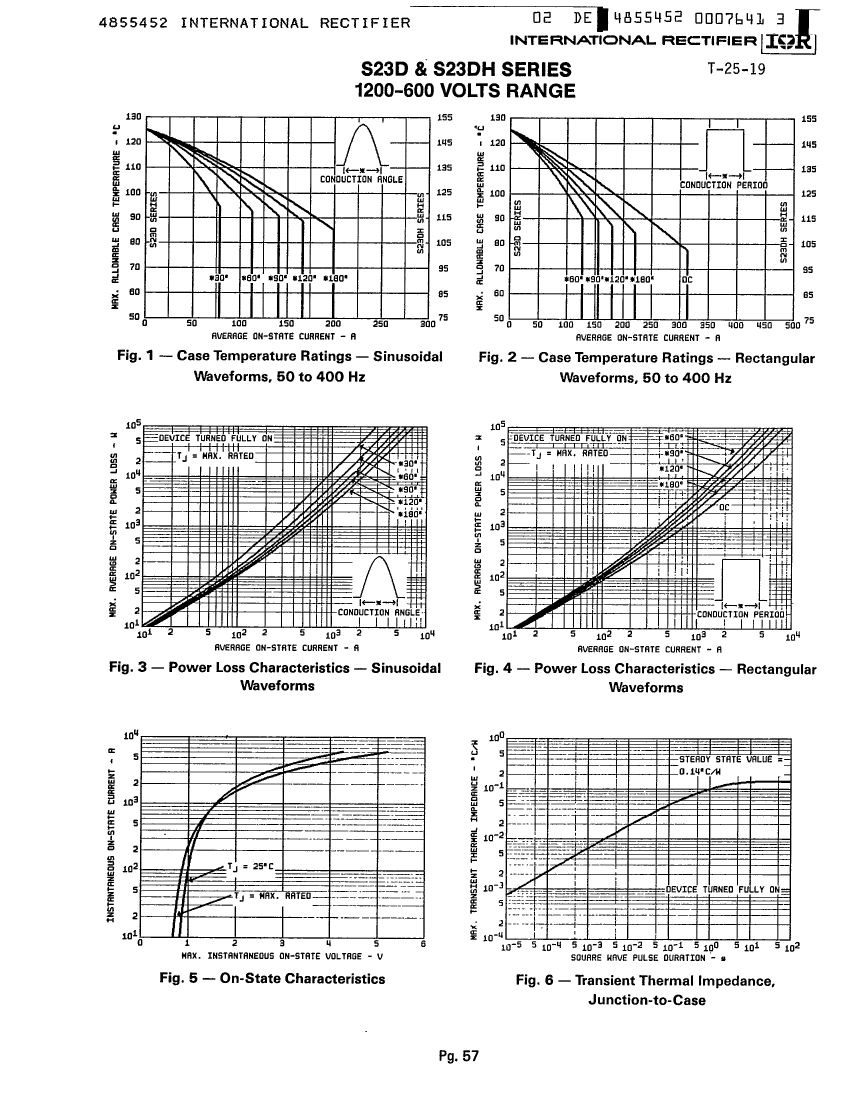

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
package instruction	,
Reach Compliance Code	unknown
ECCN code	EAR99
Nominal circuit commutation break time	95 µs
Critical rise rate of minimum off-state voltage	500 V/us
Maximum DC gate trigger current	150 mA
Maximum DC gate trigger voltage	2.5 V
Maximum holding current	500 mA
Maximum leakage current	30 mA
On-state non-repetitive peak current	6200 A
Maximum on-state current	190000 A
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Off-state repetitive peak voltage	1600 V
surface mount	NO
Trigger device type	SCR
Base Number Matches	1
