DCI0605C: DescriptionCMOS Sensor, 640 Horiz pixels, 480 Vert pixels, 30fps, Square, Surface Mount, CQCC-32; CategoryThe sensor Sensor/transducer; File Size288KB，2 Pages; ManufacturerTeledyne Technologies Incorporated; Websitehttp://www.teledyne.com/

Download Datasheet Parametric Compare View All

DCI0605C Overview

CMOS Sensor, 640 Horiz pixels, 480 Vert pixels, 30fps, Square, Surface Mount, CQCC-32

DCI0605C Parametric

Parameter Name	Attribute value
package instruction	CQCC-32
Reach Compliance Code	compliant
Other features	ELECTRONIC SHUTTER
body width	10.66 mm
body height	1.65 mm
Body length or diameter	10.66 mm
data rate	13 Mbps
Dynamic Range	56 dB
Frame rate	30 fps
horizontal pixels	640
Installation features	SURFACE MOUNT
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
optical format	1/4 inch
Output interface type	I2C INTERFACE
Output type	DIGITAL OUTPUT
Package Shape/Form	SQUARE
Pixel size	5.60 µm
Sensor/Transducer Type	IMAGE SENSOR,CMOS
Maximum supply voltage	3.6 V
Minimum supply voltage	2.6 V
surface mount	YES
Termination type	SOLDER
vertical pixels	480
Base Number Matches	1

Preview

Download Datasheet

View All

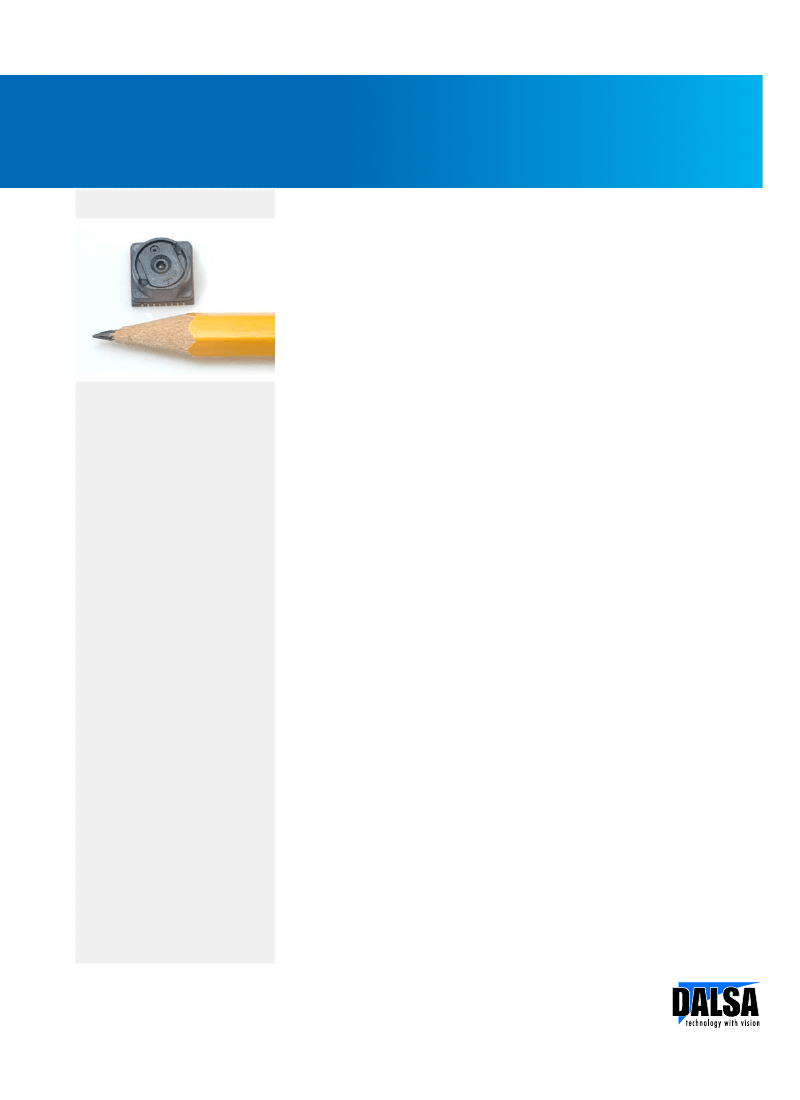

DALSA DCI0605C

CMOS VGA Sensor Module

Overview

CMOS VGA Image Sensor Module with

integrated two-element lens and digital output,

available for high volume applications.

Key Features

Compact size sensor module

with integrated two-element lens

system

640H x 480V (VGA)

Up to 30 fps @ 12 MHz

4.48 mm (1/4") active image

diagonal

Highly sensitive, low noise

Bayer-RGB color filter array with

micro lenses

Antiblooming

Integrated on-chip timing

Programmable via I²C serial

interface

Electronic shutter control

24dB Programmable Gain (255

steps of 0.094 dB/step)

9 bit digital output

User programmable window of

interest

Single 2.6 - 3.6V supply voltage

range, low power consumption

Real time white pixel correction

Typical Applications

Mobile phone

PDA

PC camera

Automotive

Security

The DCI0605C is a fixed-focus, highly integrated 1/4" CMOS color imager module that

supports up to VGA resolution formats in a small package including a focused optical

system with high sensitivity and low noise. The sensor is digitally programmable via an I²C

serial interface and is equipped with an integrated Programmable Gain Amplifier and a 9-bit

A-to-D Converter. The embedded flexible timing generator enables easy matching to various

digital signal processing chips.

The module can operate as a master or as a slave. In the master mode, line and frame

synchronization output signals are generated by the module. In the slave mode, the same

pins are used as input for the horizontal and vertical synchronization signals.

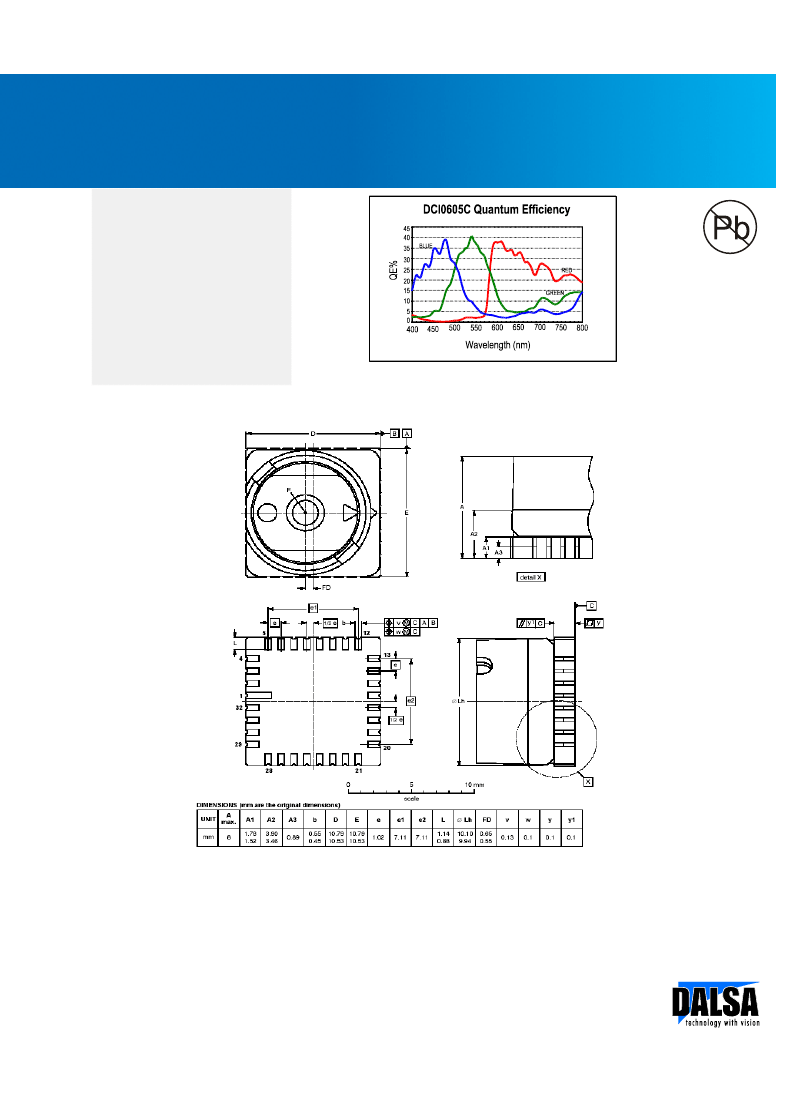

Specifications

Resolution

Pixel Size

Optical Size

Max. Line/Frame Rate

Data Rate

Responsivity

Dynamic Range

Package

Operating Temperature

Example Part Number

640 x 480

5.6 µm

3.6 mm x 2.7 mm

30 fps

13 MHz 9 Bit Digital

1500 mV/lux•s (green)

56 dB

32 pin ceramic quad chip carrier

-20 °C to 70 °C

DCI0605C

111
