D3PD20F datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> D3PD20F

D3PD20F: DescriptionDirectional Coupler, 815MHz Min, 960MHz Max, 0.3dB Insertion Loss-Max, ROHS COMPLIANT, SURFACE MOUNT PACKAGE-4; CategoryWireless rf/communication Radio frequency and microwave; File Size86KB，3 Pages; ManufacturerSmiths Group

Download Datasheet Parametric Compare View All

D3PD20F Overview

Directional Coupler, 815MHz Min, 960MHz Max, 0.3dB Insertion Loss-Max, ROHS COMPLIANT, SURFACE MOUNT PACKAGE-4

D3PD20F Parametric

Parameter Name	Attribute value
package instruction	ROHS COMPLIANT, SURFACE MOUNT PACKAGE-4
Reach Compliance Code	unknown
Other features	HIGH ISOLATION
structure	COMPONENT
Maximum input power (CW)	49.03 dBm
Maximum insertion loss	0.3 dB
Maximum operating frequency	960 MHz
Minimum operating frequency	815 MHz
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	DIRECTIONAL COUPLER
Maximum voltage standing wave ratio	1.2
Base Number Matches	1

Preview

Download Datasheet

View All

COUPLER

DIRECTIONAL 80 WATT

DATA SHEET

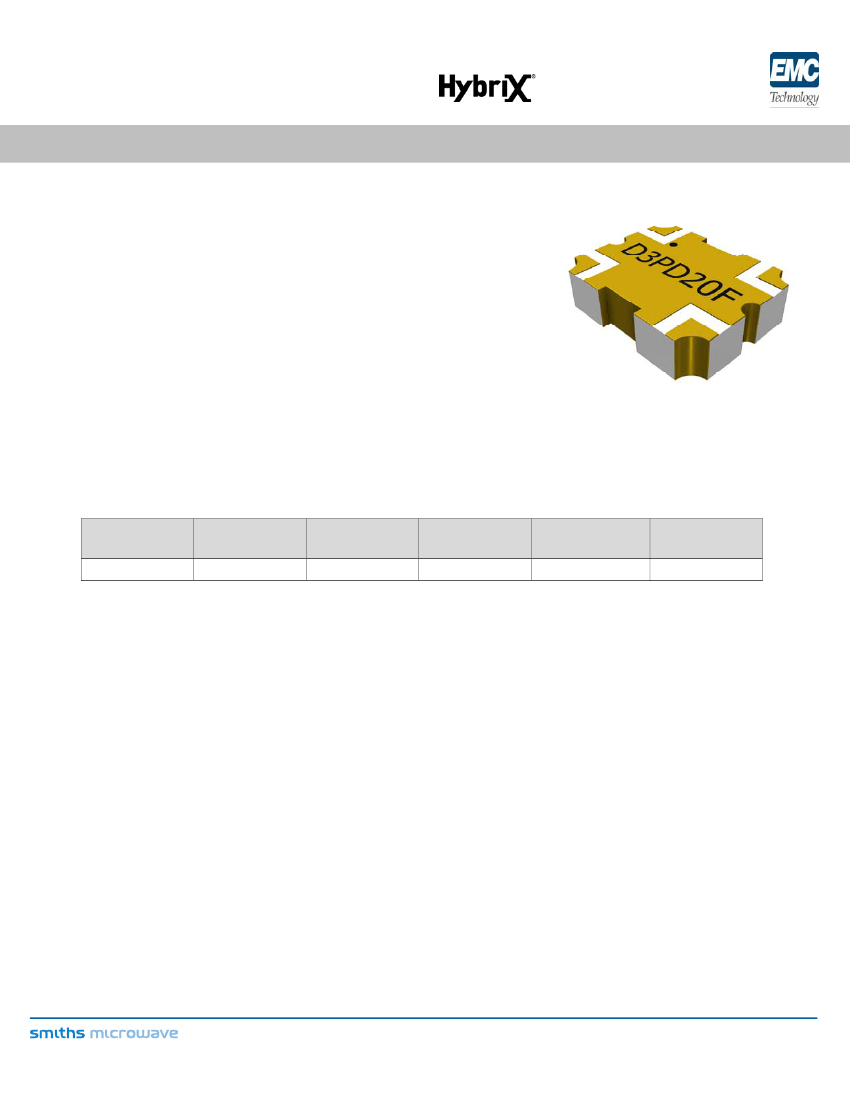

FEATURES

Low Profile Surface Mount Package

High Power

Low Insertion Loss

High Directivity

High Reliability

PART SERIES: D3PD20F

APPLICATIONS

Power Amplifiers

Power Monitors

Reflectometers

Signal Distribution Networks

Antenna Feeds

Switch Networks

SHEET 1 OF 3

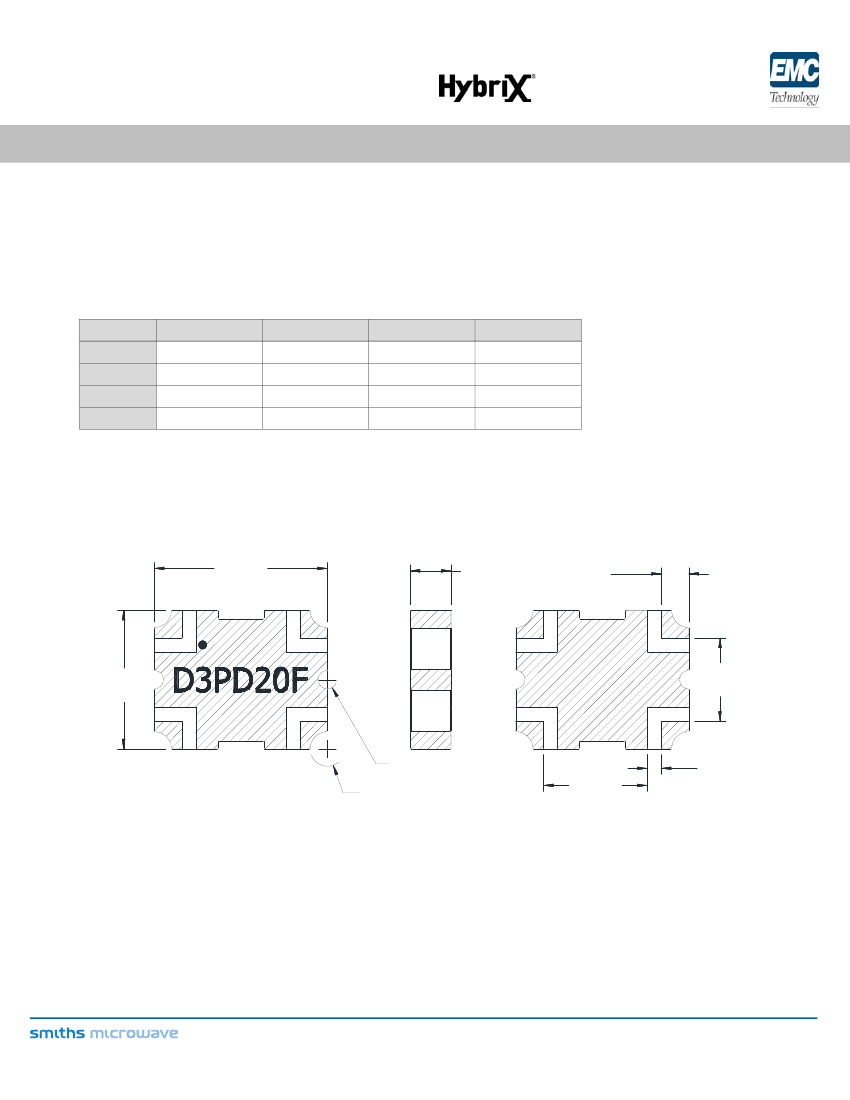

Dwg D3PD20F

EN 13-3456

Revision -

GENERAL DESCRIPTION

EMC Technology offers high performance directional couplers in a low profile, surface

mount package. These couplers are designed for demanding applications where high

power, low loss and excellent directivity are required.

ORDERING INFORMATION

Part Identifier:

D3PD20F

SPECIFICATIONS

1.0 ELECTRICAL

Frequency

815 to 960 MHz

Coupling

20 ± 1.0 dB

Insertion

Loss

0.3 dB Max

VSWR

1.2:1 Max

Directivity

20 dB Min

Power

Handling

80 Watts CW

2.0 ENVIRONMENTAL

Operating Temperature:

-55ºC to +125ºC

3.0 MARKING

Part Number and Pin 1 Indicator

4.0 QUALITY ASSURANCE

Sample Inspect Per MIL-STD-105, Level II, 1.0% AQL.

Visual and Mechanical Examination for Conformance To Outline Drawing Requirements.

Measure Amplitude Balance and VSWR

Test Data Requirements

No Test Data Required

Data Retention – 12 months

5.0 PACKAGING

Standard:

Tape and Reel

Note: Specifications are subject to change.

423F107 Rev-

Cage Codes: 24602 / 2Y194

www.emc-rflabs.com • +1 772-286-9300

AS 9100, ISO 9001 and 14001 Certified

D3PD20F Related Products

	D3PD20F
Description	Directional Coupler, 815MHz Min, 960MHz Max, 0.3dB Insertion Loss-Max, ROHS COMPLIANT, SURFACE MOUNT PACKAGE-4
package instruction	ROHS COMPLIANT, SURFACE MOUNT PACKAGE-4
Reach Compliance Code	unknown
Other features	HIGH ISOLATION
structure	COMPONENT
Maximum input power (CW)	49.03 dBm
Maximum insertion loss	0.3 dB
Maximum operating frequency	960 MHz
Minimum operating frequency	815 MHz
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	DIRECTIONAL COUPLER
Maximum voltage standing wave ratio	1.2
Base Number Matches	1
