D396MS datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> D396MS

D396MS: DescriptionSplitter And Combiner, 800MHz Min, 900MHz Max, 19dB Insertion Loss-Max; CategoryWireless rf/communication Radio frequency and microwave; File Size271KB，3 Pages; ManufacturerCobham Semiconductor Solutions

Download Datasheet Parametric Compare View All

D396MS Overview

Splitter And Combiner, 800MHz Min, 900MHz Max, 19dB Insertion Loss-Max

D396MS Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
Other features	SMA
Characteristic impedance	50 Ω
structure	COAXIAL
Maximum input power (CW)	30 dBm
Maximum insertion loss	19 dB
Maximum operating frequency	900 MHz
Minimum operating frequency	800 MHz
Maximum operating temperature	60 °C
Minimum operating temperature	-20 °C
RF/Microwave Device Types	SPLITTER AND COMBINER
Maximum voltage standing wave ratio	1.25
Base Number Matches	1

Preview

Download Datasheet

View All

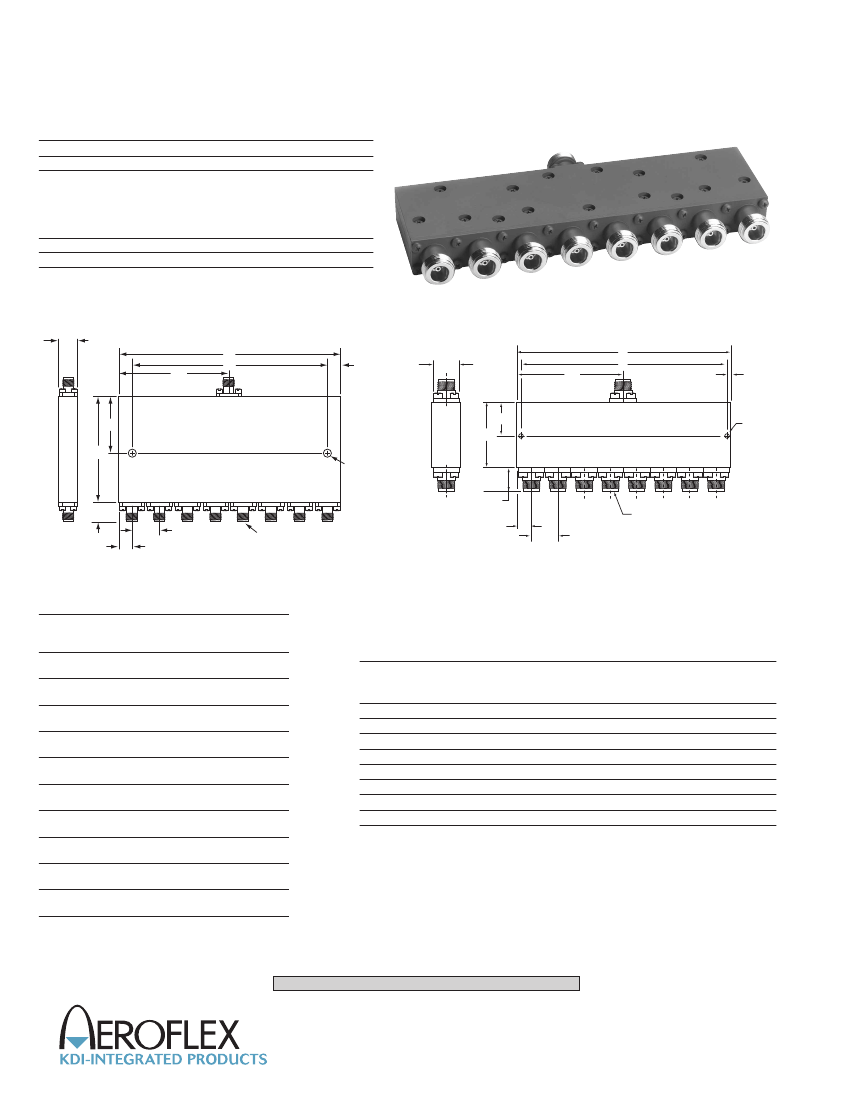

IN-PHASE 8-WAY

DIVIDERS/COMBINERS, POWER

WITH SMA OR N CONNECTORS 0.5-18 GHz

GENERAL SPECIFICATIONS

Frequency Range:

RF Impedance:

RF Power:

0.5 to 18.0 GHz

50 Ohms

The power handling capability for load

VSWR ’s less than 1.50 is 1 watt CW and

1 kW peak for frequencies up to 2.0 GHz,

and 400 mW CW and 0.4 kW peak for

frequencies from 2.0 GHz to 18.0 GHz.

–55°C to +85°C

SMA ot Type N Female

SERIES YE

Operating Temperature:

Connectors:

0.38[9,7]

A/2

0.10[2,54]

1.00

[25,4]

A/2

0.15[3,8]

B/2

0.156[3,96

DIA. THRU

2 MTG. HO

0.125[3,18]

DIA. THRU

2 MOUNTING

HOLES

OUT

0.74

[18,8]

TYP.

1.50

[38,1]

1.00

[25,4]

TYP.

OUT

N FEMALE TYP.

0.38[9,7]

TYP.

SMA FEMALE

TYP.

FIGURE 1 SERIES YE

FIGURE 2 SERIES YE-N

Out-

line

[mm]

4.50

[114,3]

4.0

[101,6]

3.20

[81,3]

3.20

[81,3]

3.20

[81,3]

5.20

[132,1]

3.20

[81,3]

8.00

[203,2]

8.00

[203,2]

8.00

[203,2]

[mm]

2.75

[69,9]

2.25

[57,2]

2.00

[50,8]

2.85

[72,4]

2.50

[63,5]

4.20

[106,7]

4.00

[101,6]

2.50

[63,5]

2.25

[57,2]

1.75

[44,5]

[mm]

4.300

[109,22]

3.800

[96,52]

3.000

[76,2]

3.000

[76,2]

3.000

[76,2]

4.950

[125,6]

3.00

[76,2]

7.70

[195,6]

7.70

[195,6]

7.70

[195,6]

[mm]

0.50

[12,7]

0.25

[6,4]

0.20

[5,1]

0.20

[5,1]

0.20

[5,1]

0.50

[12,7]

0.20

[5,1]

—

[mm]

0.50

[12,7]

0.50

[12,7]

0.40

[10,2]

0.40

[10,2]

0.40

[10,2]

0.60

[15,02]

0.40

[10,2]

—

ELECTRICAL PERFORMANCE

8 WAY TYPE

Model No.

SMA

YE-09

YE-1328

YE-11

YE-21

YE-28

YE-41

YE-68

YE-81

Type

YE-09N

—

YE-11N

YE-21N

YE-28N

YE-41N

—

Frequency Maximum

Range

In/Out

GHz

VSWR

0.5-1.0

1.35/1.30

0.5-2.0

1.60/1.40

1.0-2.0

1.40/1.35

2.0-4.0

1.45/1.40

2.0-8.0

1.70/1.65

4.0-8.0

1.60/1.55

6.0-18.0 2.00/1.90

8.0-12.0 1.70/1.65

Maximum

Insertion

Loss dB

0.7

1.5

0.8

1.1

1.5

1.4

2.3

1.2

Minimum

Isolation

18**

Phase Amplitude

Balance Balance

Degrees

0.35

0.4

0.35

0.7

0.6

1.0

0.4

Out- Out-

line line

SMA N

—

3 10

—

* Units with Type N connectors: up to 4GHz multiply VSWR’s by 1.05 and subtract 2 dB from isolation. Above

4GHz multiply VSWR’s by 1.10 and subtract 3dB from isolation.

** Greater than 25 dB over most of the frequency band.

KEY:

Inches[Millimeters] .XX ±.03 .XXX ±.010 [.X ±0.8 .XX ±0.25]

60 South Jefferson Road, Whippany, NJ 07981

Tel: 973-887-8100 • Fax: 973-884-0445

email: sales@aeroflex-kdi.com

See us on the web @ www.aeroflex-kdi.com

8-10-07

D396MS Related Products

	D396MS	D397MS	D393JS	D393MS
Description	Splitter And Combiner, 800MHz Min, 900MHz Max, 19dB Insertion Loss-Max	Splitter And Combiner, 1900MHz Min, 1970MHz Max, 20dB Insertion Loss-Max	Splitter And Combiner, 800MHz Min, 900MHz Max, 11dB Insertion Loss-Max	Splitter And Combiner, 869MHz Min, 894MHz Max, 25dB Insertion Loss-Max
Reach Compliance Code	unknown	unknown	unknown	unknown
Other features	SMA	SMA	SMB	SMA
Characteristic impedance	50 Ω	50 Ω	50 Ω	50 Ω
structure	COAXIAL	COAXIAL	COAXIAL	COAXIAL
Maximum input power (CW)	30 dBm	30 dBm	30 dBm	30 dBm
Maximum insertion loss	19 dB	20 dB	11 dB	25 dB
Maximum operating frequency	900 MHz	1970 MHz	900 MHz	894 MHz
Minimum operating frequency	800 MHz	1900 MHz	800 MHz	869 MHz
Maximum operating temperature	60 °C	60 °C	70 °C	60 °C
Minimum operating temperature	-20 °C	-20 °C	-30 °C	-20 °C
RF/Microwave Device Types	SPLITTER AND COMBINER	SPLITTER AND COMBINER	SPLITTER AND COMBINER	SPLITTER AND COMBINER
Maximum voltage standing wave ratio	1.25	1.2	1.5	1.2
Maker	-	Cobham Semiconductor Solutions	Cobham Semiconductor Solutions	Cobham Semiconductor Solutions
