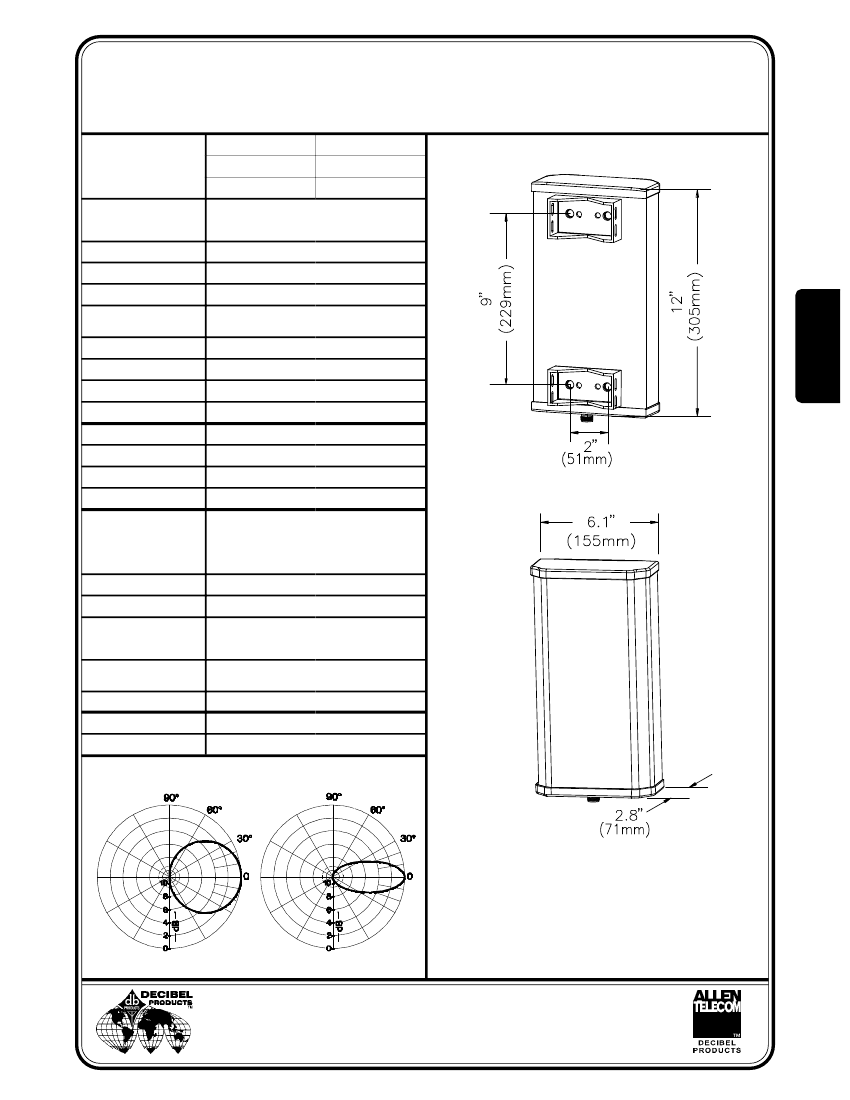

DB972H90(E/N/A/B/R/S)-M
90°, 9 dBd Directional Antenna
1850-1990 MHz
Model Number
DB972H90E-M
DB972H90A-M
DB972H90R-M
Connector Options
DIN Bottom:E = 7-16
DIN Back: A = 7-16
DIN Top:
R = 7-16
DB972H90N-M
DB972H90B-M
DB972H90S-M
N = Type N Female
B = Type N Female
S = Type N Female
Frequency Range
Gain
VSWR
Beamwidth
(3dB from max)
Front to Back Ratio
Polarization
Max. Input Power
Application
Weight
Wind Area
Wind Load
Max. Wind Speed
Material
1850 - 1990 MHz
9.0 dBd or 11.1 dBi
< 1.4:1
Horizontal
Vertical
90° ± 7°
30° ± 2°
> 25 dB
Vertical
250 Watts
PCN, PCS, DCS1800
1.8 lbs (0.8 kg)
.5 ft² (.05 m²)
20 lbf (89N) 9.0 kp (at 100 mph)
165 mph (266 km/h)
Reflector Screen:
Radiators:
Radome:
Mtg. Hardware:
Normal: Gray
DB392 and band clamps included.
DB5095
(Note: Contact Decibel's Applications
Engineering for galvanized steel option.)
Fully protected by backplate and radome.
All metal parts grounded.
29" x 7" x 6" (74 x 18 x 15 cm)
4 lbs (1.8 kg)
Pass. Aluminum
Brass
PVC, UV Resistant
Pass. Aluminum,
Stainless Steel
90°
Color
Mounting
Downtilt Brackets
(Optional)
Weather Protection
Lightning Protection
Packing Size
Shipping Weight
Antenna Patterns
9 dBd (11.1 dBi) Gain Directional
Antenna with 90° horizontal 3 dB
beamwidth 1850-1990 MHz.
Horizontal
Vertical
Specifications are for reference only.
099048-000-L 12/99
DECIBEL
Allen Telecom Inc.
PRODUCTS
A Division of
8635 Stemmons Freeway • P. O. Box 569610 • Dallas, Texas 75356-9610
214 / 631-0310 • Fax: 214 / 631-4706
