D834N datasheet, PDF - EEWORLD Datasheet

D834N: DescriptionRF/Microwave Splitter/Combiner, 3700 MHz - 4200 MHz RF/MICROWAVE SPLITTER AND COMBINER, 1 dB INSERTION LOSS; CategoryWireless rf/communication Radio frequency and microwave; File Size38KB，1 Pages; ManufacturerCobham PLC

Download Datasheet Parametric Compare View All

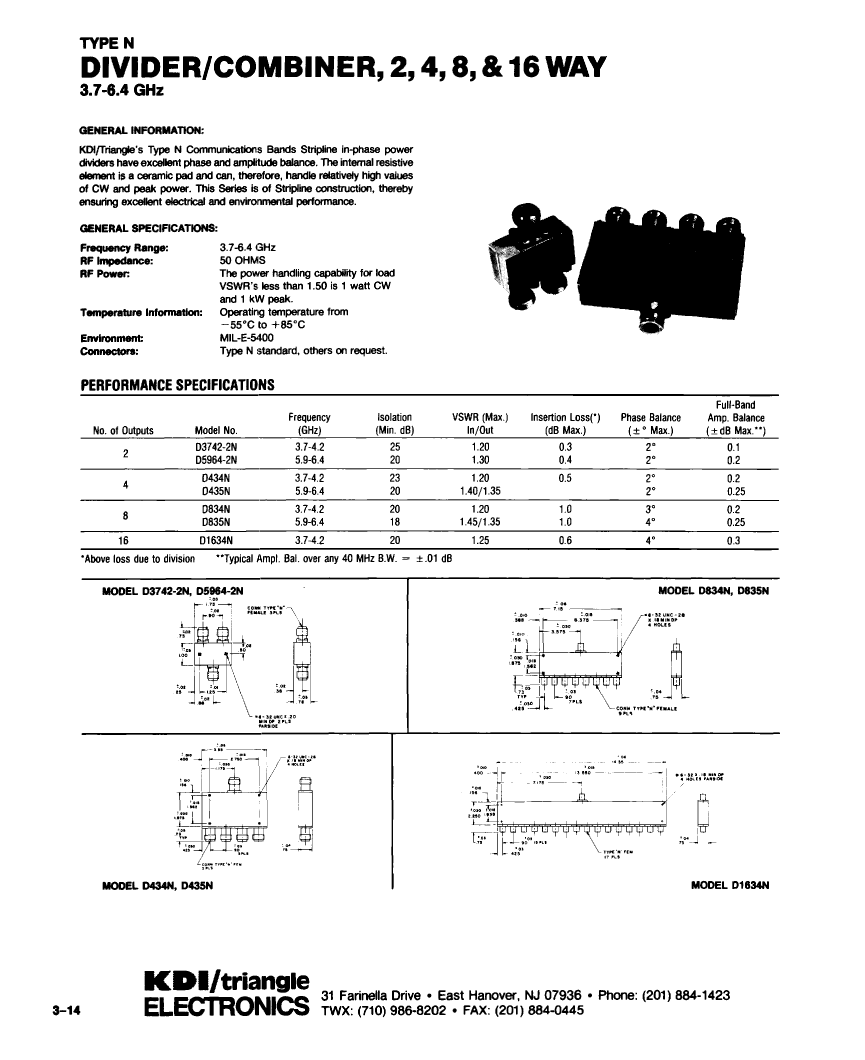

D834N Overview

RF/Microwave Splitter/Combiner, 3700 MHz - 4200 MHz RF/MICROWAVE SPLITTER AND COMBINER, 1 dB INSERTION LOSS

Parameter Name	Attribute value
Reach Compliance Code	unknown
Characteristic impedance	50 Ω
structure	MODULE
Maximum input power (CW)	30 dBm
Maximum insertion loss	1 dB
Maximum operating frequency	4200 MHz
Minimum operating frequency	3700 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	SPLITTER AND COMBINER
Maximum voltage standing wave ratio	1.2
Base Number Matches	1

	D834N	163A19129X	D5964-2N	D835N	D434N	D435N
Description	RF/Microwave Splitter/Combiner, 3700 MHz - 4200 MHz RF/MICROWAVE SPLITTER AND COMBINER, 1 dB INSERTION LOSS	D-SUB MALE	RF/Microwave Splitter/Combiner, 5900 MHz - 6400 MHz RF/MICROWAVE SPLITTER AND COMBINER, 0.4 dB INSERTION LOSS	RF/Microwave Splitter/Combiner, 5900 MHz - 6400 MHz RF/MICROWAVE SPLITTER AND COMBINER, 1 dB INSERTION LOSS	Splitter And Combiner, 3700MHz Min, 4200MHz Max, 0.5dB Insertion Loss-Max	Splitter And Combiner, 5900MHz Min, 6400MHz Max
Reach Compliance Code	unknown	-	unknown	unknown	unknown	unknown
Characteristic impedance	50 Ω	-	50 Ω	50 Ω	50 Ω	50 Ω
structure	MODULE	-	MODULE	MODULE	MODULE	MODULE
Maximum input power (CW)	30 dBm	-	30 dBm	30 dBm	30 dBm	30 dBm
Maximum insertion loss	1 dB	-	0.4 dB	1 dB	0.5 dB	-
Maximum operating frequency	4200 MHz	-	6400 MHz	6400 MHz	4200 MHz	6400 MHz
Minimum operating frequency	3700 MHz	-	5900 MHz	5900 MHz	3700 MHz	5900 MHz
Maximum operating temperature	85 °C	-	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-55 °C	-	-55 °C	-55 °C	-55 °C	-55 °C
RF/Microwave Device Types	SPLITTER AND COMBINER	-	SPLITTER AND COMBINER	SPLITTER AND COMBINER	SPLITTER AND COMBINER	SPLITTER AND COMBINER
Maximum voltage standing wave ratio	1.2	-	1.3	1.35	1.2	1.35
Maker	-	-	Cobham PLC	Cobham PLC	Cobham PLC	Cobham PLC
