DMBI-12A datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> DMBI-12A

DMBI-12A: DescriptionDouble Balanced Mixer, 1000MHz Min, 12000MHz Max, 16dB Conversion Loss-Max; CategoryWireless rf/communication Radio frequency and microwave; File Size82KB，2 Pages; ManufacturerMACOM; Websitehttp://www.macom.com

Download Datasheet Parametric Compare View All

DMBI-12A Overview

Double Balanced Mixer, 1000MHz Min, 12000MHz Max, 16dB Conversion Loss-Max

DMBI-12A Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
Maximum frequency conversion loss	16 dB
Maximum operating frequency	12000 MHz
Minimum operating frequency	1000 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	DOUBLE BALANCED
Base Number Matches	1

Preview

Download Datasheet

View All

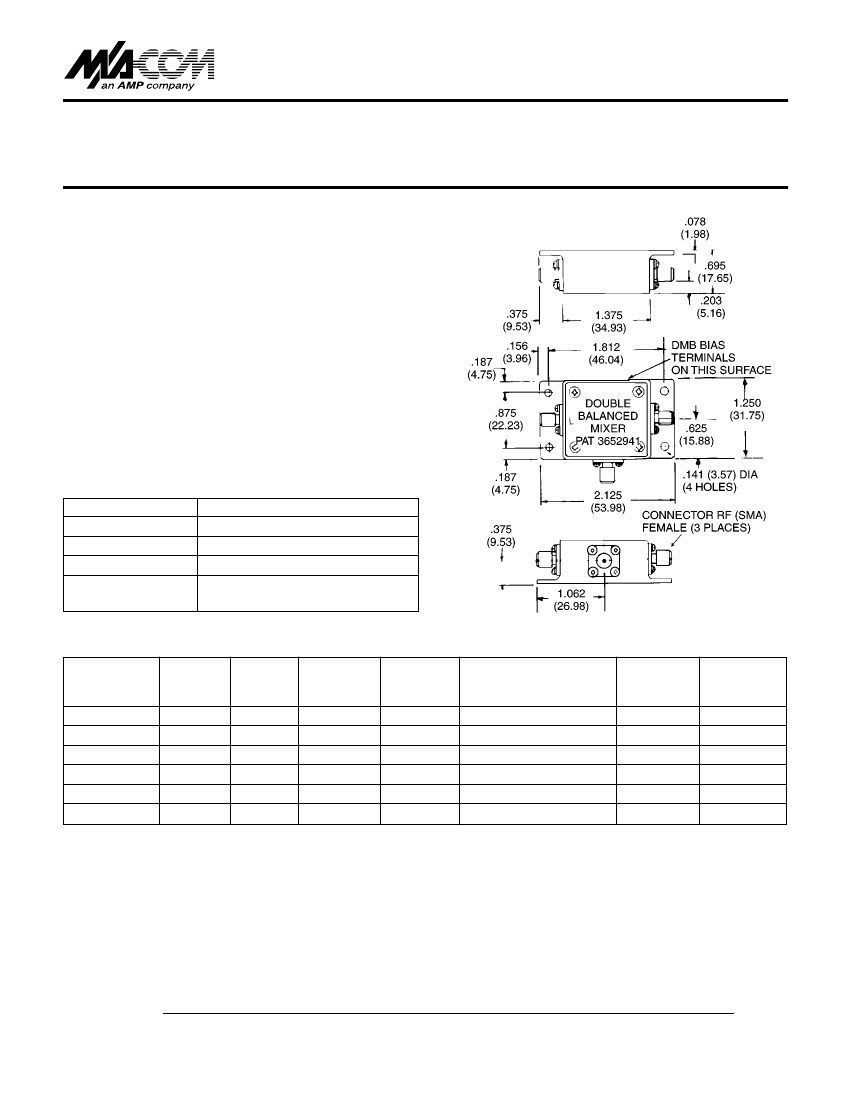

Flange Mounted Double-Balanced

Biasable Mixers

Description

Part Number DMB1-12A is a two-port mixer utilizing

bridge diode quad. RF and IF are diplexed into the same

port via an internal diplexer. At crossover frequency

(RF = IF), response for each is down 3 dB. Self-adjusting

biasing automatically reduces dc bias level as the LO

power is increased. Available with options such as

built-in PIN limiter on the RF port. Contact factory.

Part Number DMB2-18A is a one-port design utilizing a

bridge quad of Schottky diodes. RF and IF are directed

into separate ports via an internal diplexer. The LO port

uses a self-adjusting biasing circuit which automatically

decreases the dc voltage as the LO power is increased.

DMB Series

V2.00

Environmental

Parameter

Operating Temp. Max.

Storage Temp. Max.

Humidity

Vibration

-55°C to + 85°C

-65°C to + 125°C

95% non-condensing

7G’s rms, 50 to 2000 cps, per

MIL-STD-810-B, Method 514, Proced. 5

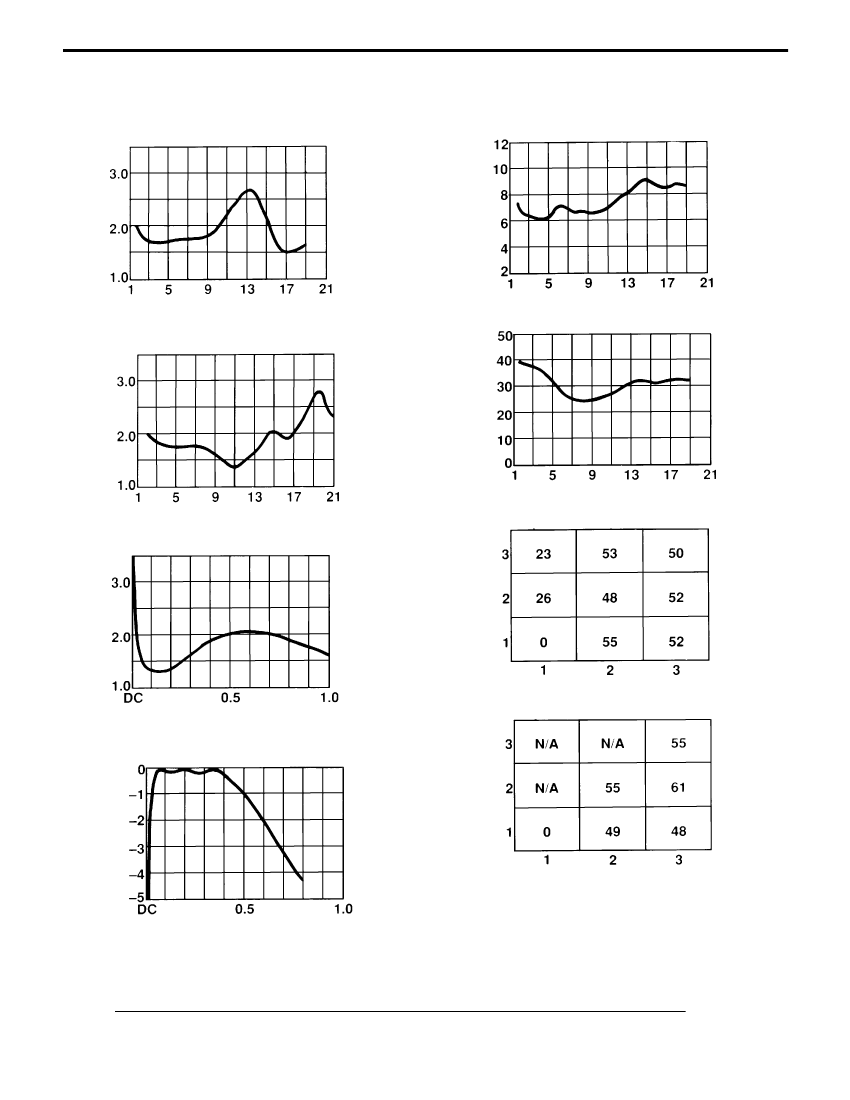

Speciﬁcations

@ 25°C

RF/LO

Frequency

Range (GHz)

1.0-12.0

L-R

Isolation

(dB)

L-l

Isolation

(dB)

3dB IF

Bandwidth

(GHz)

.001-.3

LO Range

(dBm)

-10/+10

Conversion

Loss (dB)

Typ./Max.

8/10 LO Drive = +10 dBm

9/12 LO Drive = 0 dBm

10/16 LO Drive = -10 dBm

8/10 LO Drive = +10 dBm

2.0-18.0

.01-0.5

-10/+10

9/12 LO Drive = 0 dBm

10/16 LO Drive = -10 dBm

Notes:

1. Tested with 0 dBm LO.

2. dc Power: +12/8 Volts/mA. +15V available.

Input I dB

Compr. Pt.

(dBm)

-5

Part Number

DMBI-12A

-10

DMB2-18A

Speciﬁcations Subject to Change Without Notice.

M/A-COM, Inc.

North America:

Tel. (800) 366-2266

Fax (800) 618-8883

Asia/Paciﬁc: Tel. +81 (03) 3226-1671

Fax +81 (03) 3226-1451

Europe: Tel. +44 (1344) 869 595

Fax +44 (1344) 300 020

DMBI-12A Related Products

	DMBI-12A	DMB2-18A
Description	Double Balanced Mixer, 1000MHz Min, 12000MHz Max, 16dB Conversion Loss-Max	Double Balanced Mixer, 2000MHz Min, 18000MHz Max, 16dB Conversion Loss-Max
Reach Compliance Code	unknown	unknown
Maximum frequency conversion loss	16 dB	16 dB
Maximum operating frequency	12000 MHz	18000 MHz
Minimum operating frequency	1000 MHz	2000 MHz
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-55 °C	-55 °C
RF/Microwave Device Types	DOUBLE BALANCED	DOUBLE BALANCED
Base Number Matches	1	1
