DB806TL-Z datasheet, PDF - EEWORLD Datasheet

DB806TL-Z: DescriptionBase Station/Broadcast Transmission Antenna, 851MHz Min, 941MHz Max, 360deg 3dB Beamwidth; CategoryWireless rf/communication Radio frequency and microwave; File Size86KB，1 Pages; ManufacturerCommScope Inc

Download Datasheet Parametric Compare View All

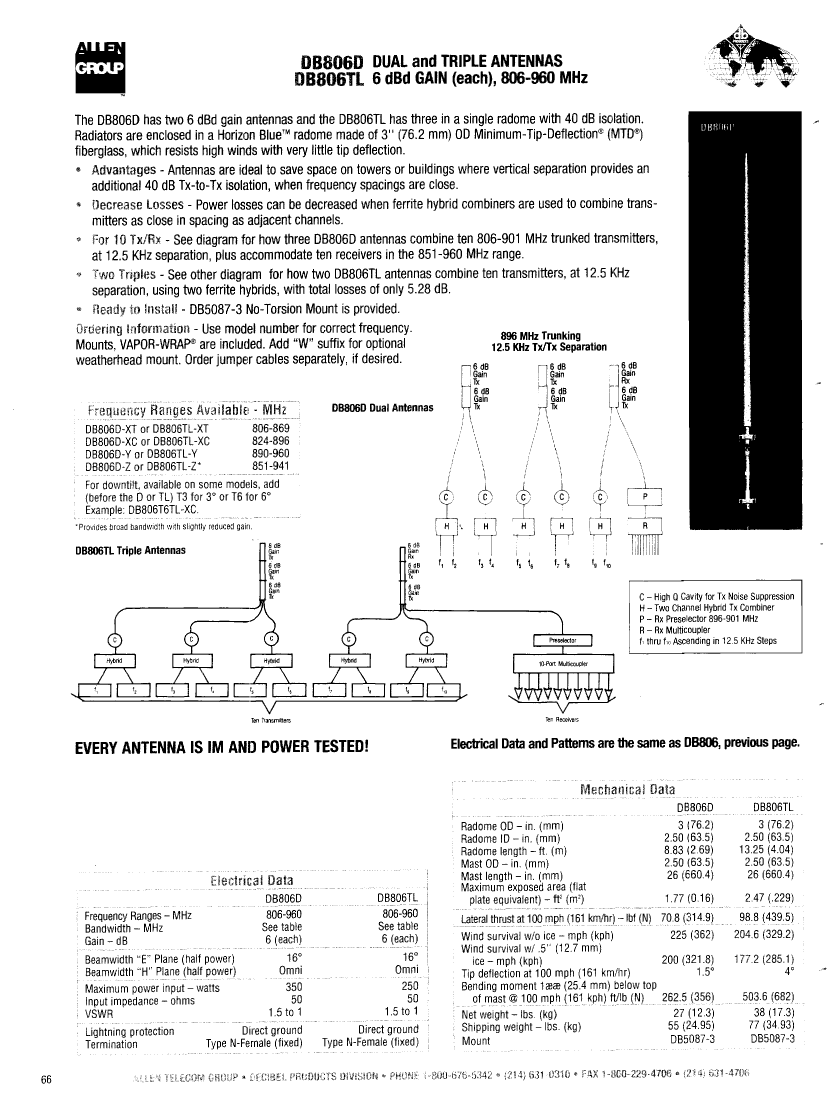

DB806TL-Z Overview

Base Station/Broadcast Transmission Antenna, 851MHz Min, 941MHz Max, 360deg 3dB Beamwidth

Parameter Name	Attribute value
Reach Compliance Code	unknown
Other features	TRIPLE ANTENNA
application	TRUNKING FIXED
Beam Width-E	16 deg
Beamwidth-H	360 deg
Characteristic impedance	50 Ω
Omnidirectional	YES
Maximum operating frequency	941 MHz
Minimum operating frequency	851 MHz
polarization	LINEAR VERTICAL
RF/Microwave Device Types	BASE STATION/BROADCAST TRANSMISSION ANTENNA
Maximum transmission power	250 W
Maximum voltage standing wave ratio	1.5
Commentary	204.6 mph
Base Number Matches	1

	DB806TL-Z	DB806D-Z
Description	Base Station/Broadcast Transmission Antenna, 851MHz Min, 941MHz Max, 360deg 3dB Beamwidth	Base Station/Broadcast Transmission Antenna, 851MHz Min, 941MHz Max, 360deg 3dB Beamwidth
Reach Compliance Code	unknown	unknown
Other features	TRIPLE ANTENNA	DUAL ANTENNA
application	TRUNKING FIXED	TRUNKING FIXED
Beam Width-E	16 deg	16 deg
Beamwidth-H	360 deg	360 deg
Characteristic impedance	50 Ω	50 Ω
Omnidirectional	YES	YES
Maximum operating frequency	941 MHz	941 MHz
Minimum operating frequency	851 MHz	851 MHz
polarization	LINEAR VERTICAL	LINEAR VERTICAL
RF/Microwave Device Types	BASE STATION/BROADCAST TRANSMISSION ANTENNA	BASE STATION/BROADCAST TRANSMISSION ANTENNA
Maximum transmission power	250 W	350 W
Maximum voltage standing wave ratio	1.5	1.5
Commentary	204.6 mph	225 mph
Base Number Matches	1	1
