DEXE806TNX Overview

RF/Microwave Antenna, MOBILE STATION ANTENNA

DEXE806TNX Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
RF/Microwave Device Types	MOBILE STATION ANTENNA
Base Number Matches	1

Preview

Download Datasheet

View All

UHF, TRUNKING, & SMR

Every Portable antenna part number has 3 sections; Style +

Frequency + Connector. First choose the Style. Then choose the

Frequency in bold - either specify or select from the chart number

referenced for each section. Finally, select the 2 letter connector

code listed in bold to create your part number. Example: DB150BN

= Style DB, 150-162 Mhz with a BNC connector.

DEXC

Antenna Style

Ordering Guide

Clear, Easy & Sensible!

DEXC902TNX

DEXC Style Antenna, 902-960 MHz, with a TNC Male CFOonnector

DEXE, DEXC, DEXG, DESC, DTE, DEXR,

DEXES, DEXP, DEXS, DEXF

806-866

1850-1970

821-902

2400-2500

902-960

ANTENEX

INC.

902

Frequency

Ordering Guide

Clear, Easy & Sensible!

DEXW400TNX

DEXW Style Antenna, 400-420 MHz, with a TNC Male Connector

DEXW

400

Antenna Style

Frequency

DEXC, DEXW, DEXD, DEXR

308-322

420-450

312-318

450-470

400-420

470-512

TNX

Connector Style

HT, KR, MD, MX, = Threaded connectors

BN, BNX, GE, PE, PL, MR, MU, SF, SFJ, SFU,

SM, SMS, TN, TNX = Coax connectors.

No. Style

Frequency

Connector

TRUNKING AND SMR APPLICATIONS

This antenna is a 1/2 wavelength, 2.5 dB suction cup antenna for attaching to car window. This

antenna comes complete with 12' of RG58/U cable. The length of this antenna is 8".

24) DESC

806-866

BN, MU, TN

902-960

This antenna is injection molded with a 1/4 wavelength flexible cable design antenna. This

antenna is highly durable due to its strain relief base. The length of this antenna is 4".

25) DEXC

806-866

HT, KR, MD, MX

821-902

BN, BNX, MR,

902-960

SF, SFJ, SFU,

SM, TN, TNX

This injection molded 2.5 dB 1/2 wavelength dipole antenna is highly durable due to its strain

relief base. The length of this antenna is 8".

26) DEXE

806-866

BN, BNX, MD,

821-902

SF, SFJ, SFU,

902-960

SM, TN, TNX

2400-2500

This antenna is an injection molded, shortened 1/2 wavelength dipole model with 2.5 dB gain.

The length of this antenna is 6½".

27) DEXES

806-866

SF, SFJ, SFU,

902-960

This antenna is a 1/2 wavelength, 2.5 dB model. This antenna features fixed 90° & 180°

rotational movement. The length of this antenna is 8”.

28)

DEXF

806-866

MU, TN

This injection molded, 3 dB gain, 5/8 wavelength flexible antenna is highly durable due to it’s

strain relief base. The length of this antenna is 8" long.

29) DEXG

BN, TN, MU

This injection molded antenna is an end fed 1/2 wavelength 2.5 dB gain model. It is available

up to 941 MHz. The length of this antenna is 6½".

30) DEXP

806-866

SF, SFJ, SFU,

902-960

SMS

The antenna is a 1/2 wavelength 2.5 dB suction cup model for attaching to car window. This

antenna ships complete with 12’ of cable. The length of this antenna is 8”.

31) DEXR

806-866

BN,MU,TN

821-902

902-960

1850-1970

BN, TN

2400-2500

This injection molded helically wound 1/4 wavelength antenna is available up to 960 MHz. The

length of this antenna is 2¼".

32) DEXS

806-866

TN,MD,SF,

902-960

SFJ,SFU, SM,

SMS

3dB gain collinear antenna with flexible black coated whip. 14" long. 1/2 wavelength coaxial

antenna with an adjustable (0-90°) connector. This antenna is 9" long.

33) DTE

806-866

902-960

TNX

Connector Style

HT, KR, MD, MX, = Threaded connectors

BN, BNX, GE, PE, PL, MR, MU, SF, SFJ, SFU,

SM, SMS, TN, TNX = Coax connectors.

Description

No. Model

Frequency

Connecter

UHF 300-512 MHz and Dual Band

This antenna is an injection molded flexible cable design. The antenna is 1/4 wavelength and

is highly durable due to its strain relief base. The overall length is approximately 6”.

HT, KR, MD, MX

18)

DEXC

All bands

BN, BNX, MR,

SF, SFJ, SFU

TN, TX

This antenna is an injection molded, shortened, helically wound design. The antenna is 1/4

wavelength and has a highly durable strain relief base. The length is approximately 3".

HT, KR, MD, MX

19)

DEXD

All bands

(Also available

BN, BNX, MR, SF,

in 300 MHz)

SFJ, SFU, SM,

TN, TNX

This coaxial antenna is an injection molded 1/2 wavelength design. This antenna includes an

adjustable (0-90

) locking connector. The overall length is approximately 6 ½".

KR, MX

20)

DEXR

All bands

BN, TN

This antenna is a highly efficient, injection molded, broadband design. There is only one model

for entire UHF Band! The overall length is 4¼".

MX, KR

21)

DEXW

400-512

BNX, TNX

This injection molded, highly durable, dual band antenna is made for your specific amateur

or commercial band needs. The overall length is 6¼".

144-148 /

440-450

BNX,TNX

22)

DEXY

148-174 /

400-450

148-174 /

450-480

148-174 /

470-512

This 2.5 dB gain, base loaded, 1/2 wavelength antenna is encapsulated in high gloss PVC.

The overall length is 8 1/2”.

400-512

BN, TN

23)

“ANTENEX

portable antennas out perform

ANTENEX

many of the original radio manufacture antennas.”

- Tyler, Communications Specialist

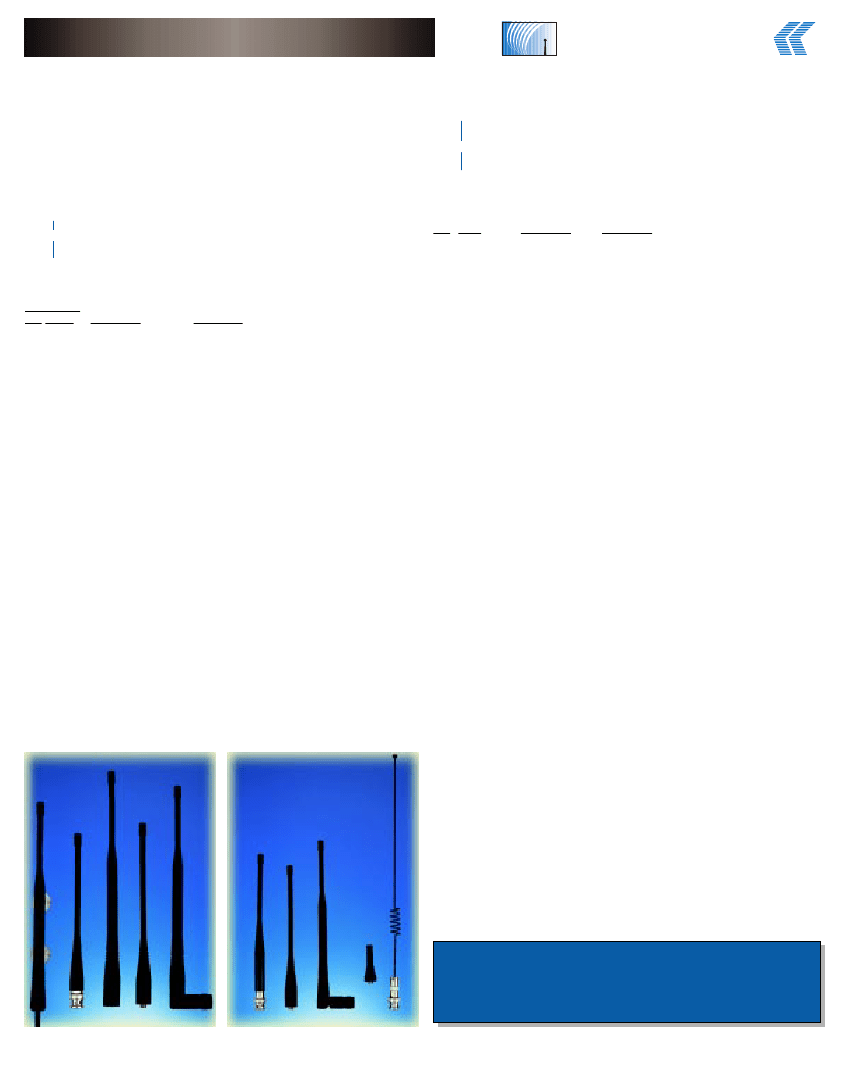

TRUNKING 1 of 2

32 33

TRUNKING 2 of 2
