D4-40003 datasheet, PDF - EEWORLD Datasheet

D4-40003: Description10 MHz - 500 MHz RF/MICROWAVE BI-DIRECTIONAL COUPLER, 0.5 dB INSERTION LOSS-MAX; CategoryWireless rf/communication Radio frequency and microwave; File Size260KB，1 Pages; ManufacturerInterpoint （ Crane Aerospace & Electronics ）; Websitehttp://www.interpoint.com

Download Datasheet Parametric Compare View All

D4-40003 Overview

10 MHz - 500 MHz RF/MICROWAVE BI-DIRECTIONAL COUPLER, 0.5 dB INSERTION LOSS-MAX

Parameter Name	Attribute value
Reach Compliance Code	unknown
Characteristic impedance	50 Ω
structure	COMPONENT
Maximum input power (CW)	34.77 dBm
Maximum insertion loss	0.5 dB
Maximum operating frequency	500 MHz
Minimum operating frequency	10 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-54 °C
RF/Microwave Device Types	BI-DIRECTIONAL COUPLER
Maximum voltage standing wave ratio	1.2
Base Number Matches	1

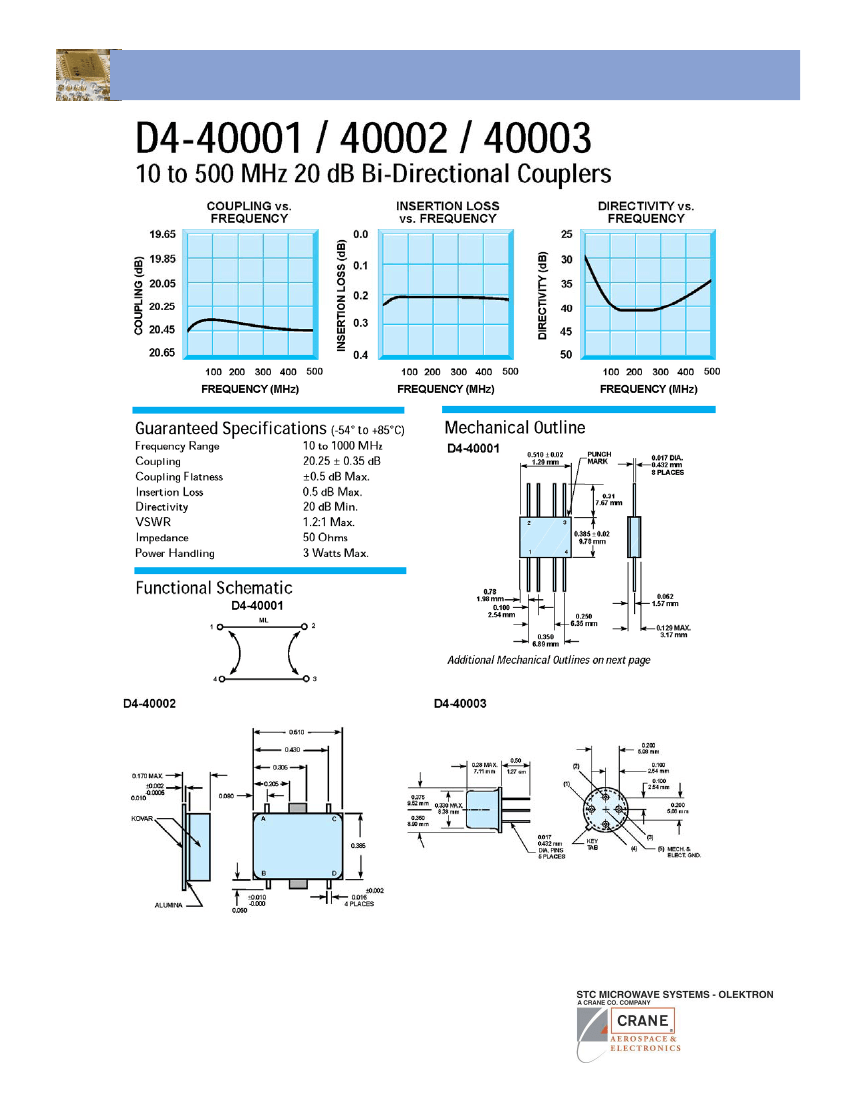

D4-40001-40002-40003 20

D

B B

I

-D

IRECTIONAL

C

OUPLERS

STC Microwave Systems – www.craneae.com

28 Tozer Road

•

phone: 978-524-7200

•

Beverly, MA 01915

email: electronics@craneae.com

Revision D3-40001-40002-40003 2005 08252005

	D4-40003	D4-40001	D4-40002
Description	10 MHz - 500 MHz RF/MICROWAVE BI-DIRECTIONAL COUPLER, 0.5 dB INSERTION LOSS-MAX	10 MHz - 500 MHz RF/MICROWAVE BI-DIRECTIONAL COUPLER, 0.5 dB INSERTION LOSS-MAX	10 MHz - 500 MHz RF/MICROWAVE BI-DIRECTIONAL COUPLER, 0.5 dB INSERTION LOSS-MAX
Reach Compliance Code	unknown	unknown	unknow
Characteristic impedance	50 Ω	50 Ω	50 Ω
structure	COMPONENT	COMPONENT	COMPONENT
Maximum input power (CW)	34.77 dBm	34.77 dBm	34.77 dBm
Maximum insertion loss	0.5 dB	0.5 dB	0.5 dB
Maximum operating frequency	500 MHz	500 MHz	500 MHz
Minimum operating frequency	10 MHz	10 MHz	10 MHz
Maximum operating temperature	85 °C	85 °C	85 °C
Minimum operating temperature	-54 °C	-54 °C	-54 °C
RF/Microwave Device Types	BI-DIRECTIONAL COUPLER	BI-DIRECTIONAL COUPLER	BI-DIRECTIONAL COUPLER
Maximum voltage standing wave ratio	1.2	1.2	1.2
Base Number Matches	1	1	-
