DCK-7J2N: DescriptionSplitter, 1MHz Min, 500MHz Max, 1.2dB Insertion Loss-Max; CategoryWireless rf/communication Radio frequency and microwave; File Size197KB，2 Pages; ManufacturerSYNERGY; Websitehttp://www.synergymwave.com/

Download Datasheet Parametric View All

DCK-7J2N Overview

Splitter, 1MHz Min, 500MHz Max, 1.2dB Insertion Loss-Max

DCK-7J2N Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Reach Compliance Code	unknown
Other features	N-F, ISOLATION-MIN (DB):18
Characteristic impedance	50 Ω
structure	COAXIAL
Maximum input power (CW)	30 dBm
Maximum insertion loss	1.2 dB
Maximum operating frequency	500 MHz
Minimum operating frequency	1 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-30 °C
RF/Microwave Device Types	SPLITTER
Base Number Matches	1

Preview

Download Datasheet

View All

- PROPRIETARY INFORMATION -

3-WAY POWER DIVIDER

MODEL: DCK-7J2N

WIDE BANDWIDTH

SPECIFICATIONS:

Operating Frequency:

Insertion Loss: (dB)

1 - 5 MHz

5 - 250 MHz

250 - 500 MHz

Isolation: (dB)

1 - 5 MHz

5 - 250 MHz

250 - 500 MHz

1 - 500 MHz

(Typ) / (Max)

0.4 / 0.75

0.5 / 0.9

0.8 / 1.2

(Typ) / (Min)

30 / 20

25 / 18

Phase Unbalance: (Max)

1 - 5 MHz

5 - 250 MHz

250 - 500 MHz

Amplitude Unbalance: (Max)

1 - 5 MHz

5 - 250 MHz

250 - 500 MHz

Impedance:

Operating Temp. Range:

2º

3º

4º

0.2 dB

0.3 dB

0.4 dB

50 ohms

-30ºC to +85º C

1 - 500 MHz

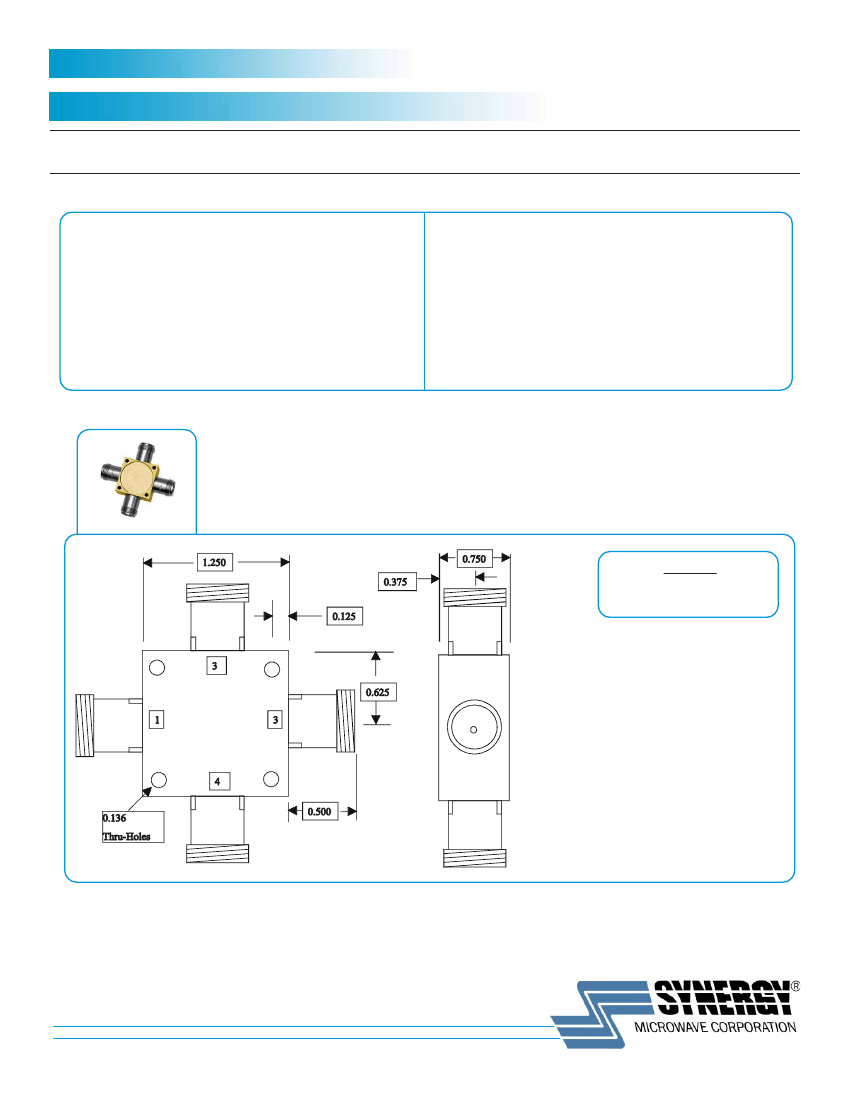

MECHANICAL OUTLINE:113N

PIN-OUT

Input

Outputs

1

2,3,4

201 McLean Boulevard • Paterson, New Jersey 07504 • Tel: (973) 881-8800 • Fax: (973) 881-8361

E-Mail: sales@synergymwave.com • World Wide Web: http://www.synergymwave.com

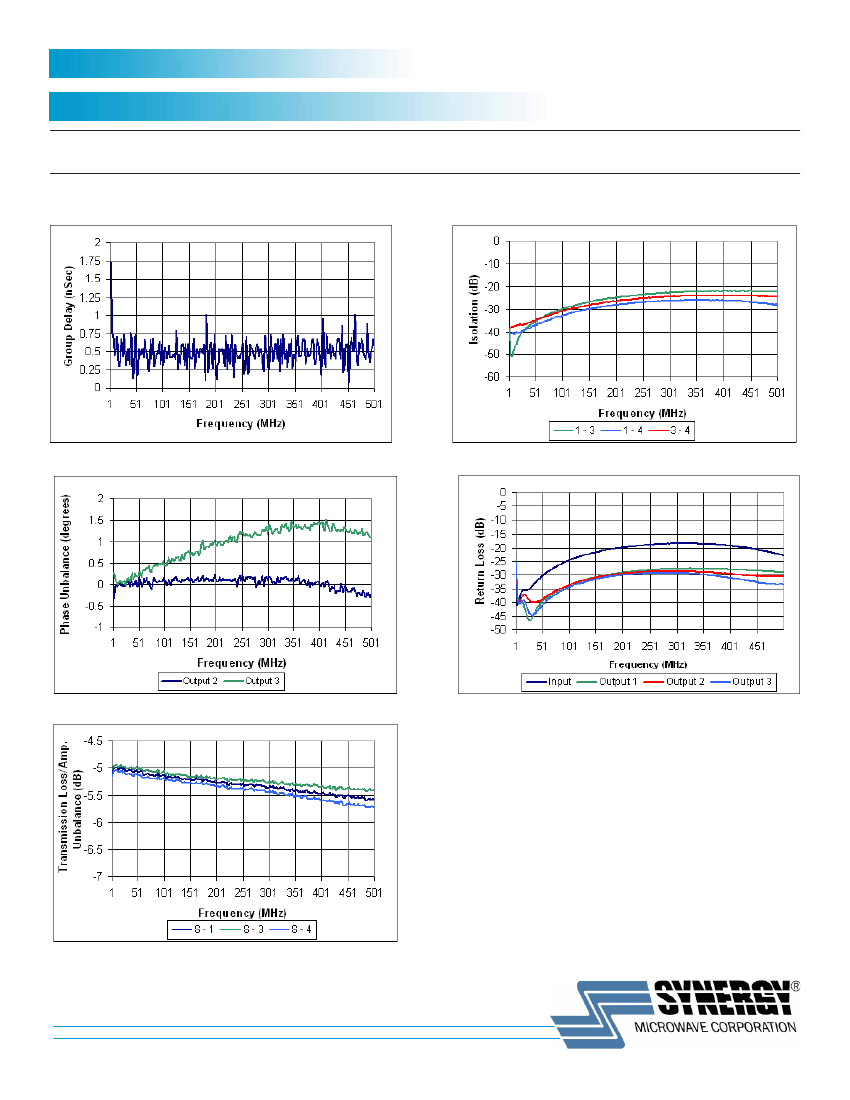

[ 1 of 2 ]
