D3AA10F: DescriptionDirectional Coupler, 180MHz Min, 210MHz Max, 0.3dB Insertion Loss-Max, ROHS COMPLIANT, SURFACE MOUNT PACKAGE-4; CategoryWireless rf/communication Radio frequency and microwave; File Size437KB，2 Pages; ManufacturerEMC Technology RF Labs

Download Datasheet Parametric Compare View All

D3AA10F Overview

Directional Coupler, 180MHz Min, 210MHz Max, 0.3dB Insertion Loss-Max, ROHS COMPLIANT, SURFACE MOUNT PACKAGE-4

D3AA10F Parametric

Parameter Name	Attribute value
package instruction	ROHS COMPLIANT, SURFACE MOUNT PACKAGE-4
Reach Compliance Code	unknown
Other features	HIGH ISOLATION
structure	COMPONENT
Maximum input power (CW)	53.01 dBm
Maximum insertion loss	0.3 dB
Maximum operating frequency	210 MHz
Minimum operating frequency	180 MHz
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	DIRECTIONAL COUPLER
Maximum voltage standing wave ratio	1.2
Base Number Matches	1

Preview

Download Datasheet

View All

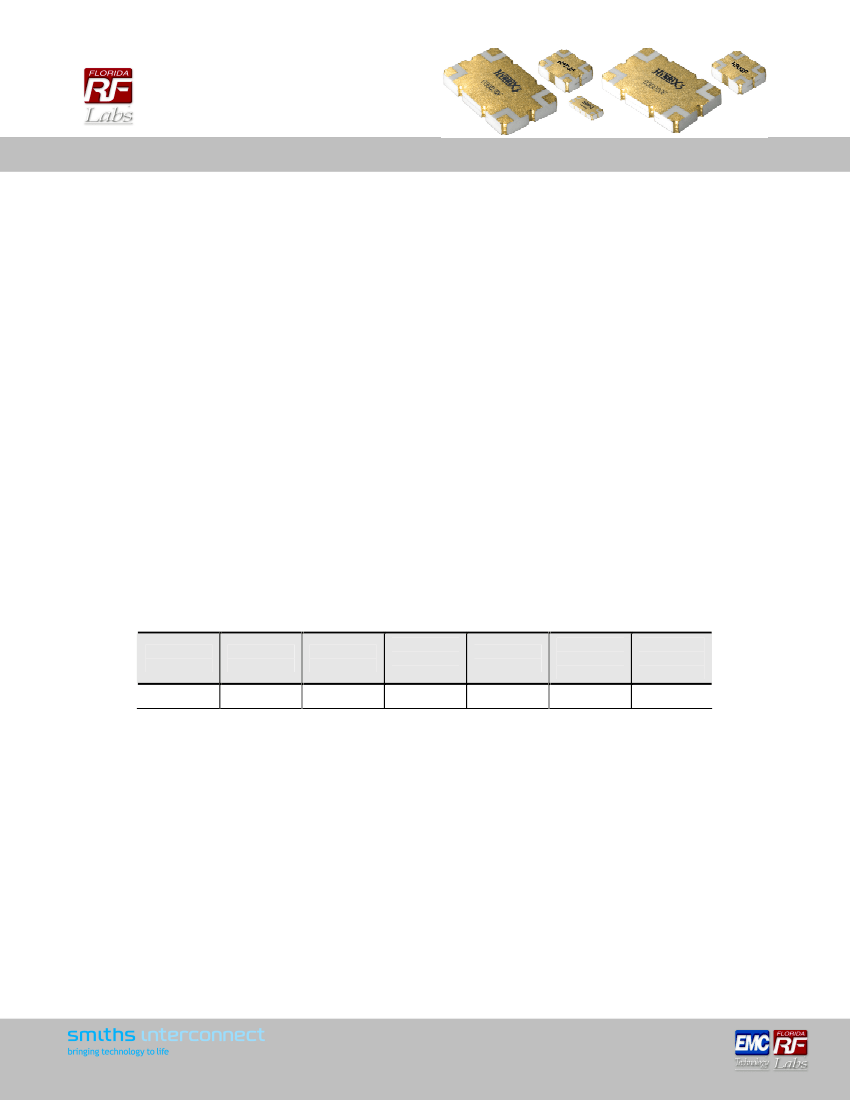

LTCC DIRECTIONAL

COUPLERS

DA T A S HE E T

D3AA10F

6.24.2010

FEATURES

•

APPLICATIONS

Power Amplifiers

Power Monitors

Reflectometers

Signal Distribution Networks

Antenna Feeds

Switch Networks

Phase Shifters

Low Profile Surface Mount Package

•

High Power

•

Low Insertion Loss

•

High Isolation

•

RoHS Compliant

•

Tape and Reel available for High Volume Production

•

100% RF Tested

•

GENERAL DESCRIPTION

The D3AA10F is a high performance directional coupler in a surface mount package. This low profile coupler handles

up to 200 watts of CW power. The D3AA10F is designed for those demanding applications where high power, low loss

and excellent directivity are required.

The D3AA10F is manufactured with materials that have thermal expansion characteristics compatible with industry

standard board materials like RO3003, RO4350, FR4 and others. The couplers are available in a RoHS compliant finish

and packaged in tape and reel.

ELECTRICAL SPECIFICATIONS*

Frequency

MHz

180-210

Coupling

(dB)

10 ± 1.0

Directivity

dB (min)

18

Insertion

Loss

dB (max)

0.3

VSWR

(max)

1.2

Power

Handling

Watts CW

200

Operating

Temperature

°

C

-55 to +125

Specification Notes:

* Measured on Florida RF Labs test fixture. Specifications are subject to change without notice.

1

emct.com • rflabs.com • 772-286-9300

AS 9100, ISO 9001, ISO 14001, OHSAS 18001 Certified

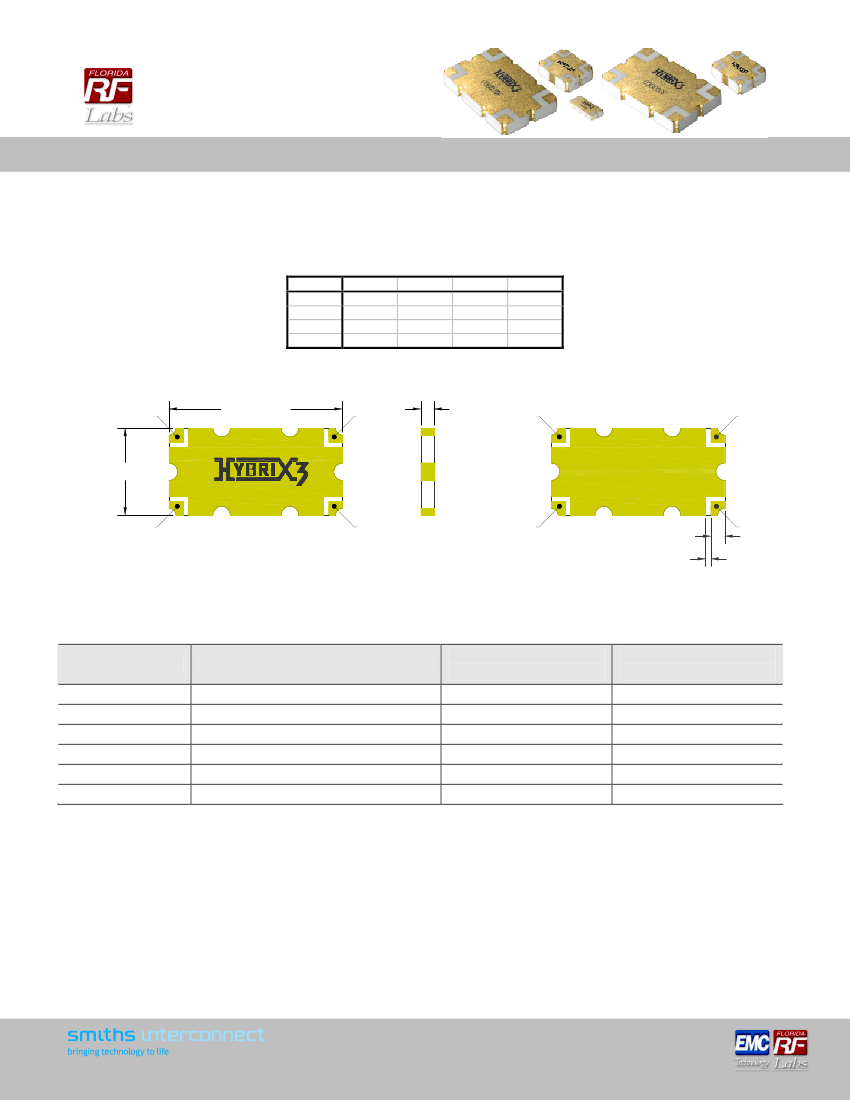

D3AA10F Related Products

	D3AA10F
Description	Directional Coupler, 180MHz Min, 210MHz Max, 0.3dB Insertion Loss-Max, ROHS COMPLIANT, SURFACE MOUNT PACKAGE-4
package instruction	ROHS COMPLIANT, SURFACE MOUNT PACKAGE-4
Reach Compliance Code	unknown
Other features	HIGH ISOLATION
structure	COMPONENT
Maximum input power (CW)	53.01 dBm
Maximum insertion loss	0.3 dB
Maximum operating frequency	210 MHz
Minimum operating frequency	180 MHz
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	DIRECTIONAL COUPLER
Maximum voltage standing wave ratio	1.2
Base Number Matches	1
