DCAF28711TN Overview

RF/Microwave Antenna

DCAF28711TN Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
RF/Microwave Device Types	ANTENNA-OTHER
Base Number Matches	1

Preview

Download Datasheet

View All

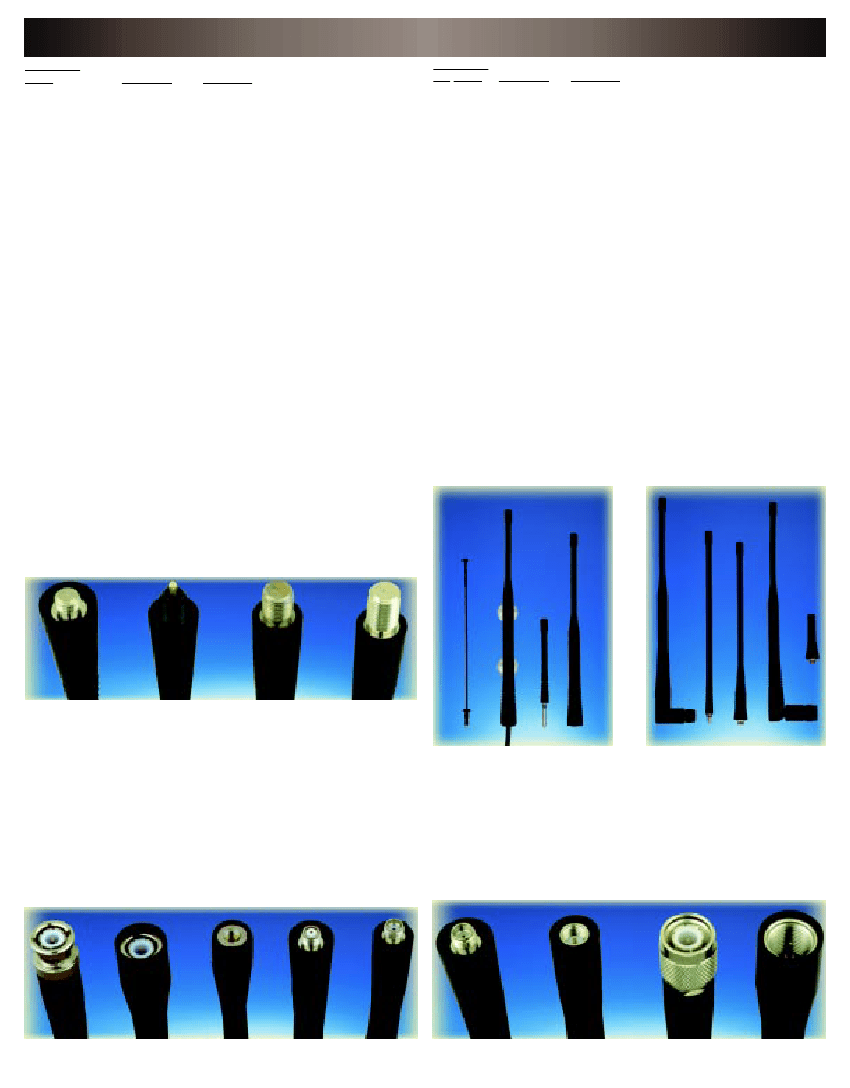

SPECIAL APPS, PORTABLE CONNECTORS, & CELLULAR

Description

Model

Frequency

Connecter

Description

No. Model

Frequency

Connecter

SPECIAL APPLICATION ANTENNAS

2.4 GHz molded 1 db 1/2 wavelength with reverse TNC

DCAF28711TN

2400-2500

2.4 GHz molded 1 db 1/2 wavelength with reverse SMA

DCAF28763SM

2400-2500

2.4 GHz molded 1 db 1/2 wavelength Right angle with reverse TNC

DCAFR28777TNR

2400-2500

2.4 GHz molded 1/4 wavelength with SMA

DEXC2400SM

2400-2500

2.4 GHz molded 1 db 1/2 wavelength with SMA

DEXE2400SM

2400-2500

1850 MHz molded 1 db 1/2 wavelength right angle with TNC

DEXR1850TN

1850-1970

2.4 GHz molded 1 db 1/2 wavelength right angle with TNC

DEXR2400TN

2400-2500

902 MHz molded 1 db 1/2 wavelength with reverse TNC

DEXE902TNSP

902-960

902 MHz molded 1 db 1/2 wavelength right angle with reverse TNC

DEXR902TNSP

902-960

CELLULAR TELEPHONE ANTENNAS

OEM retractable, replacement antenna with 2.5 dB gain. Fits most cell phones that have a

pull up antenna. 5½" long.

See Page 47

23)

DCPU

821

2.5 dB gain 1/2 wave suction cup cellular antenna for attaching to a car window. 8” long.

See Page 47

24)

DCSC

821

Molded 1/4 wave antenna. Fits NEC, Motorola

, Nokia

Mobira™, OKI, Novateland most

popular phones. 4" long.

25)

DCXC

821

See Page 47

2.5 dB gain, 1/2 wave, flexible antenna, Highly durable molded design. 6" long.

See Page 47

26)

DCXE

821

Molded fixed, right angle antenna with 2.5 dB gain. 8½" long.

See Page 47

28)

DCXF

821

Molded base loaded, 1/2 wave with 2.5 dB gain. May be used as a replacement for

retractable. 6" long.

See Page 47

28)

DCXH

821

Molded base loaded 1/2 wave with 2.5 dB gain. 6½" long.

See Page 47

29)

DCXP

821

Stubby molded 1/4 wave antenna. Fits Motorola

, Nokia

Mobira™, OKI & most popular

phones. 1½" long.

See Page 47

30)

DCXS

821

Molded 0-90° angle antenna with 2.5 dB gain. Connector will rotate 360°. Perfect for

transportables. 8½" long.

See Page 47

31)

DCXR

821

PORTABLE CONNECTORS

Threaded Connectors

1) HT - 5/16-32 x 1/2 For Motorola® HT200, HT210, MH, MT, MT500, MX600; older Ritron®;

older Uniden®. Insulated base very common thread.

KR - 5/16-32x 3/8. For King Radio®; Ritron® Jobcom™.

MD - (Molded antennas only) M7 x 1.0. For GE®, MPA, MPD, MTL, TPX.

4) MX - 1/4-32 x 7/32. For Motorola® MX, P100, P110, P200, GP300, MT1000, HT10, HT50,

HT600, Radius®, Saber®; Spirit®; Expo®; Kenwood ®TK230, TK250, TK340, TK350; Maxon®

SP120, SP2550, SL70; Midland®; Wilson® MH200.

Threaded Connectors

Coaxial Connectors

5) BN - BNC Male. For all equipment requiring BNC, including GE ® MPI, PLS, PCS;

Kenwood® TK-100, TK-210, TK-300; Motorola® HT440, HT90; old Maxon®; E.F. Johnson ®

577, 578.

6) BNX - Covered BNC Male. Same as above. (molded antennas only). For Bearcat®

Trunktracker™, and the Maxon® CP series.

MR - 12-28 Female. For GE,MPR,MPX, MPS.

Cellular 1 of 2

Cellular 2 of 2

10) SFU - (Molded antennas only). King Radio® 800 MHz, Uniden ®800 MHz, newer VHF/

UHF, SPU416K, SPU48K.

11) SM - (Molded antennas only). SMA Connector Male. For GE® Marc V™ 800 MHz, STS®,

Technophone®; Standard ® HX585.

12) TN - TNC Male. For all equipment requiring TNC, Speaker/mic. Icom® ICU18, Standard®

HX-340.

13) TNX - Covered TNC Male (Molded antennas only).

8) SF - (Molded antennas only). Special SMA Connector Female. For Motorola 800 MHz,

MX360, STX, MTX800, HT1000, MT1000, MT2000, MTX8000, MTX9000, VISAR; Kenwood

TK430, SEA700

9) SFJ - (Molded antennas only). For E.F. Johnson® 8790; Kenwood® TK480, TK481. (No

skirt).

Coaxial Connectors 1 of 2

Coaxial Connectors 2 of 2
