DTS6015

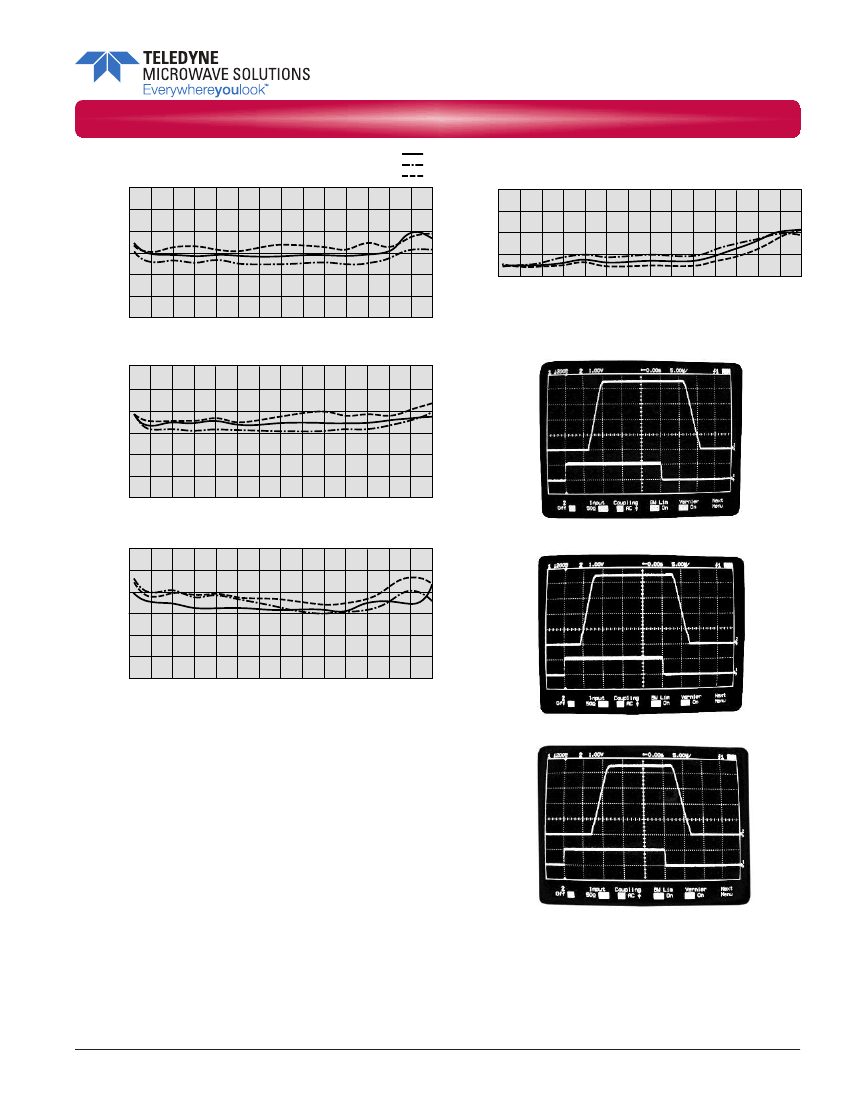

Typical Values @ +25 °C
0.1 TO 6.0 GHz
THRESHOLD DETECTOR
DTS6015
Wide Frequency Range
. . . . . . . . . . . . . . . . . . . . . . . . .
0.1 to 6.0 GHz
Wide Power Range
. . . . . . . . . . . . . . . . . . . . . . . . . . . .
-30.0 to -5.0 dBm
Temperature Stability
. . . . . . . . . . . . . . . . . . . . . . . . . .
± 0.25 dB
Power Flatness.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
± 0.50 dB
Standard SMTO-8 Package
External Adjustable Threshold Level, Fast Response Time, Low Drift
DTS6015
SMTO-8 for Detectors
SPECIFICATIONS
*
Parameter
Frequency (Min.)
Input Power Range (Min.)
VSWR (Max.)
Power Flatness (Max.)
Threshold Temperature Stability
(Max.)
Threshold Hysteresis
Pulse Response
Logic: Pin > Pth
Output Voltage Hi @ 5mA source
Output Voltage Lo @ 5mA sink
Supply Current
Typical
0.1-7.0 GHz
-30 to -5 dBm*
1.5:1†
±0.5 dB
±0.25 dB^
±0.2 dB
15 µsec^‡
1
4.4 Volts
0.1 Volts
2.5 mA
Guaranteed
0 to 50 °C
-55 to +85 °C
0.1-6.0 GHz
-25 to -5 dBm*
2.0:1†
±0.75 dB
±0.5 dB^
±0.5 dB
50 µsec^‡
1
3.5 Volts
0.5 Volts
5.0 mA
0.1-6.0 GHz
-25 to -5 dBm*
2.0:1†
±0.75 dB
±0.5 dB^
±0.5 dB
50 µsec^‡
1
3.5 Volts
0.5 Volts
5.0 mA
* Measured in a 50 Ohm system at V
s
=+5.0 Vdc. R
TH
=10 to 100 KOhm unless otherwise specified.
^ R
TH
= 1 KOhm. †Pin
≤–15
dBm. ‡ 50% RF to 10 or 90% Video Response time for input change
≥3
dB
above Pth.
MAXIMUM RATINGS
DC Voltage
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Continuous RF Input Power
. . . . . . . . . . . . . . . . . . . . .
Operating Case Temperature
. . . . . . . . . . . . . . . . . . . .
Storage Temperature
. . . . . . . . . . . . . . . . . . . . . . . . . . .
Burn-In Temperature
. . . . . . . . . . . . . . . . . . . . . . . . . . .
Detector Thermal Resistance
1
(θjc) . . . . . . . . . . . . . . .
Temperature Rise @ 0 dBm
. . . . . . . . . . . . . . . . . . . . .
1
Thermal
+7 V
+14.0 dBm
-55 °C to +100 °C
-65 °C to +125 °C
+100 °C
+3500 °C/Watt
+3.5 °C
resistance is based on RF input power. Ratings based on +25 °C.
APPLICATION NOTES
This unit is DC coupled and employs a RF choke at the input (DC short).
DO NOT bypass the Threshold Control pin. Capacitance greater than 50pF may cause
instabilities. Keep the threshold programming resistor or circuit close to this pin.
Average power detection is obtained at power levels below approximately –13 dBm.
The output of this unit is derived from an op-amp, not a true logic device.
Connect external threshold resistor from Rcntl port to ground.

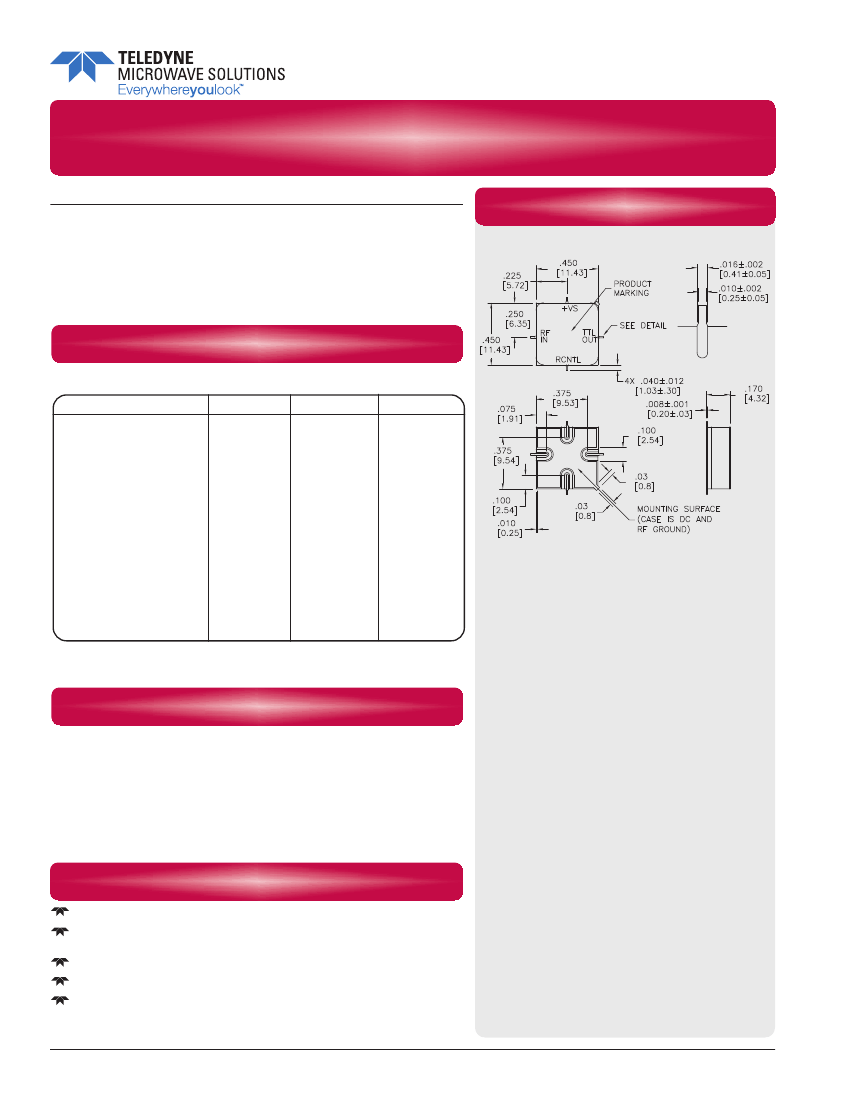

DIMENSIONS ARE IN INCHES [MILLIMETERS]
