DB980H90A-M

Description
Base Station/Broadcast Transmission Antenna, 1850MHz Min, 1990MHz Max, 17.1dB Gain, 90deg 3dB Beamwidth
CategoryWireless rf/communication    Radio frequency and microwave
File Size67KB，1 Pages
ManufacturerCommScope Inc
Download Datasheet Parametric Compare View All

DB980H90A-M Overview

Base Station/Broadcast Transmission Antenna, 1850MHz Min, 1990MHz Max, 17.1dB Gain, 90deg 3dB Beamwidth

DB980H90A-M Parametric

Parameter NameAttribute value
Reach Compliance Codeunknown
applicationCELLULAR
Beam Width-E5.5 deg
Beamwidth-H90 deg
front to back ratio25 dB
Gain17.1 dB
OmnidirectionalNO
Maximum operating frequency1990 MHz
Minimum operating frequency1850 MHz
polarizationLINEAR VERTICAL
RF/Microwave Device TypesBASE STATION/BROADCAST TRANSMISSION ANTENNA
Maximum transmission power250 W
Maximum voltage standing wave ratio1.4
Commentary165 mph
Base Number Matches1

Preview

Download Datasheet

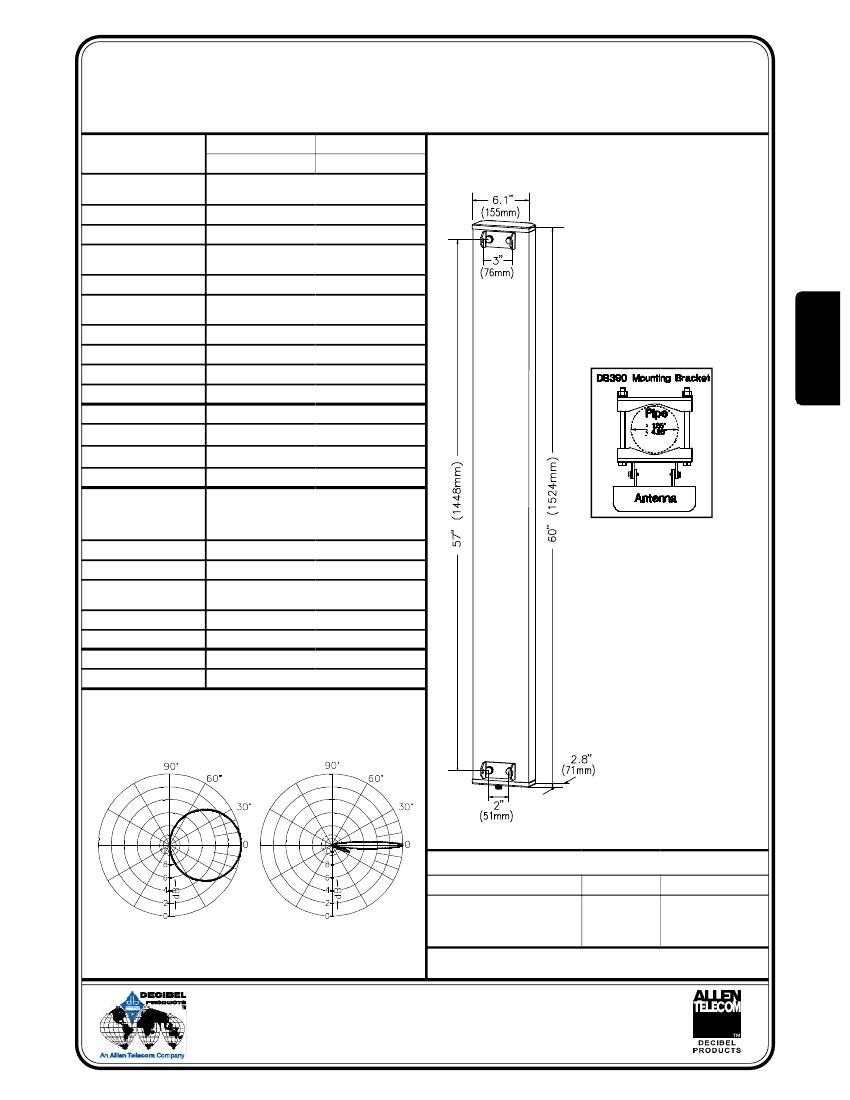

DB980H90(E/N)-M
90°, 15 dBd Directional Antenna
1850-1990 MHz
Model Number
DB980H90E-M
DB980H90A-M
Connector Options
Frequency Range
Gain
Side Lobe
Suppression
VSWR
Beamwidth
(3dB from max)
Front to Back Ratio
Polarization
Max. Input Power
Application
Weight
Wind Area
Wind Load
Max. Wind Speed
Material
Bottom: E = 7-16 DIN
Back: A = 7-16 DIN
DB980H90N-M
DB980H90B-M
N = Type N Female
B = Type N Female
1850 - 1990 MHz
15 dBd or 17.1 dBi
First upper side lobe suppressed >15 dB
< 1.4:1
Horizontal 90° ± 7°
Vertical
5.5° ± .5°
90°
> 25 dB
Vertical
250 Watts
PCN, PCS, DCS1800
8.5 lbs (4.0 kg)
2.5 ft² (.24 m²)
100 lbf (445N) 44.9 kp (at 100 mph)
165 mph (266 km/h)
Reflector Screen:
Radiators:
Radome:
Mtg. Hardware:
Normal: Gray
DB390 pipe mount kit, included.
DB5098
Fully protected by backplate and radome.
All metal parts grounded.
72" x 7" x 6" (183 x 18 x 15 cm)
15 lbs (6.8 kg)
Pass. Aluminum
Brass
PVC, UV Resistant
Galvanized Steel
Color
Mounting
Downtilt Brackets
(Optional)
Weather Protection
Lightning Protection
15 dBd (17.1 dBi) Gain
Directional Antenna with
90° horizontal 3 dB
beamwidth for 1850-1990
MHz.
Packing Size
Shipping Weight
Antenna Patterns
Electrical Downtilt (T) Option
Model Number
980H90T2E/N-M
980H90T3E/N-M
980H90T4E/N-M
980H90T6E/N-M
Specifications are for reference only.
Downtilt
2°
3°
4°
6°
Horizon Gain
15.0 dBd
14.9 dBd
14.4 dBd
14.2 dBd
099045-000-P 05/00
Horizontal
Vertical
DECIBEL
Allen Telecom Inc.
PRODUCTS
A Division of
8635 Stemmons Freeway • P. O. Box 569610 • Dallas, Texas 75356-9610
214 / 631-0310 • Fax: 214 / 631-4706

DB980H90A-M Related Products

DB980H90A-M 980H90T6N-M DB980H90E-M 980H90T2N-M 980H90T6E-M 980H90T2E-M 980H90T4E-M 980H90T4N-M DB980H90B-M 980H90T3E-M
Description Base Station/Broadcast Transmission Antenna, 1850MHz Min, 1990MHz Max, 17.1dB Gain, 90deg 3dB Beamwidth Base Station/Broadcast Transmission Antenna, 1850MHz Min, 1990MHz Max, 17.1dB Gain, 90deg 3dB Beamwidth Base Station/Broadcast Transmission Antenna, 1850MHz Min, 1990MHz Max, 17.1dB Gain, 90deg 3dB Beamwidth Base Station/Broadcast Transmission Antenna, 1850MHz Min, 1990MHz Max, 17.1dB Gain, 90deg 3dB Beamwidth Base Station/Broadcast Transmission Antenna, 1850MHz Min, 1990MHz Max, 17.1dB Gain, 90deg 3dB Beamwidth Base Station/Broadcast Transmission Antenna, 1850MHz Min, 1990MHz Max, 17.1dB Gain, 90deg 3dB Beamwidth Base Station/Broadcast Transmission Antenna, 1850MHz Min, 1990MHz Max, 17.1dB Gain, 90deg 3dB Beamwidth Base Station/Broadcast Transmission Antenna, 1850MHz Min, 1990MHz Max, 17.1dB Gain, 90deg 3dB Beamwidth Base Station/Broadcast Transmission Antenna, 1850MHz Min, 1990MHz Max, 17.1dB Gain, 90deg 3dB Beamwidth Base Station/Broadcast Transmission Antenna, 1850MHz Min, 1990MHz Max, 17.1dB Gain, 90deg 3dB Beamwidth
Reach Compliance Code unknown unknown unknown unknown unknown unknown unknown unknown unknown unknow
application CELLULAR CELLULAR CELLULAR CELLULAR CELLULAR CELLULAR CELLULAR CELLULAR CELLULAR CELLULAR
Beam Width-E 5.5 deg 5.5 deg 5.5 deg 5.5 deg 5.5 deg 5.5 deg 5.5 deg 5.5 deg 5.5 deg 5.5 deg
Beamwidth-H 90 deg 90 deg 90 deg 90 deg 90 deg 90 deg 90 deg 90 deg 90 deg 90 deg
front to back ratio 25 dB 25 dB 25 dB 25 dB 25 dB 25 dB 25 dB 25 dB 25 dB 25 dB
Gain 17.1 dB 17.1 dB 17.1 dB 17.1 dB 17.1 dB 17.1 dB 17.1 dB 17.1 dB 17.1 dB 17.1 dB
Omnidirectional NO NO NO NO NO NO NO NO NO NO
Maximum operating frequency 1990 MHz 1990 MHz 1990 MHz 1990 MHz 1990 MHz 1990 MHz 1990 MHz 1990 MHz 1990 MHz 1990 MHz
Minimum operating frequency 1850 MHz 1850 MHz 1850 MHz 1850 MHz 1850 MHz 1850 MHz 1850 MHz 1850 MHz 1850 MHz 1850 MHz
polarization LINEAR VERTICAL LINEAR VERTICAL LINEAR VERTICAL LINEAR VERTICAL LINEAR VERTICAL LINEAR VERTICAL LINEAR VERTICAL LINEAR VERTICAL LINEAR VERTICAL LINEAR VERTICAL
RF/Microwave Device Types BASE STATION/BROADCAST TRANSMISSION ANTENNA BASE STATION/BROADCAST TRANSMISSION ANTENNA BASE STATION/BROADCAST TRANSMISSION ANTENNA BASE STATION/BROADCAST TRANSMISSION ANTENNA BASE STATION/BROADCAST TRANSMISSION ANTENNA BASE STATION/BROADCAST TRANSMISSION ANTENNA BASE STATION/BROADCAST TRANSMISSION ANTENNA BASE STATION/BROADCAST TRANSMISSION ANTENNA BASE STATION/BROADCAST TRANSMISSION ANTENNA BASE STATION/BROADCAST TRANSMISSION ANTENNA
Maximum transmission power 250 W 250 W 250 W 250 W 250 W 250 W 250 W 250 W 250 W 250 W
Maximum voltage standing wave ratio 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4
Commentary 165 mph 165 mph 165 mph 165 mph 165 mph 165 mph 165 mph 165 mph 165 mph 165 mph
Base Number Matches 1 1 1 1 1 1 1 1 - -
