DB976H90(E/N/A/B/R/S)-M
90°, 12.5 dBd Directional Antenna
1850-1990 MHz
Model Number
DB976H90E-M
DB976H90A-M
DB976H90R-M
Connector Options
Bottom: E = 7-16 DIN
Back: A = 7-16 DIN
Top:
R = 7-16 DIN
DB976H90N-M
DB976H90B-M
DB976H90S-M
N = Type N Female
B = Type N Female
S = Type N Female
Frequency Range
Gain
Null Fill
1850 - 1990 MHz
12.5 dBd or 14.6 dBi
First lower null is less than 18 dB down
from max. First upper side lobe
suppressed.
< 1.4:1
Horizontal
Vertical
90° ± 7°
9° ± 2°
> 25 dB
Vertical
250 Watts
PCS and PCN
5 lbs (2.3 kg)
1.5 ft² (.14 m²)
60 lbf (267N) 27 kp (at 100 mph)
165 mph (266 km/h)
Reflector Screen
Radiators:
Radome
Mtg. Hardware
Normal: Gray
DB392 and dual band clamps, included.
DB391 is included for models with a
connector on the backplate.
DB5095
(Note: Contact Decibel's Applications
Engineering for galvanized steel option.)
Fully protected by backplate and radome.
All metal parts grounded.
53" x 7" x 6" (135 x 18 x 15 cm)
8 lbs (3.6 kg)
Pass. Aluminum
Brass
PVC, UV Resistant
Pass. Aluminum,
Stainless Steel
VSWR
Beamwidth
(3dB from max)
Front to Back Ratio
Polarization
Max. Input Power
Application
Weight
Wind Area
Wind Load
Max. Wind Speed
Material
90°
Color
Mounting
Downtilt Brackets
(Optional)
Weather Protection
Lightning Protection
Packing Size
Shipping Weight

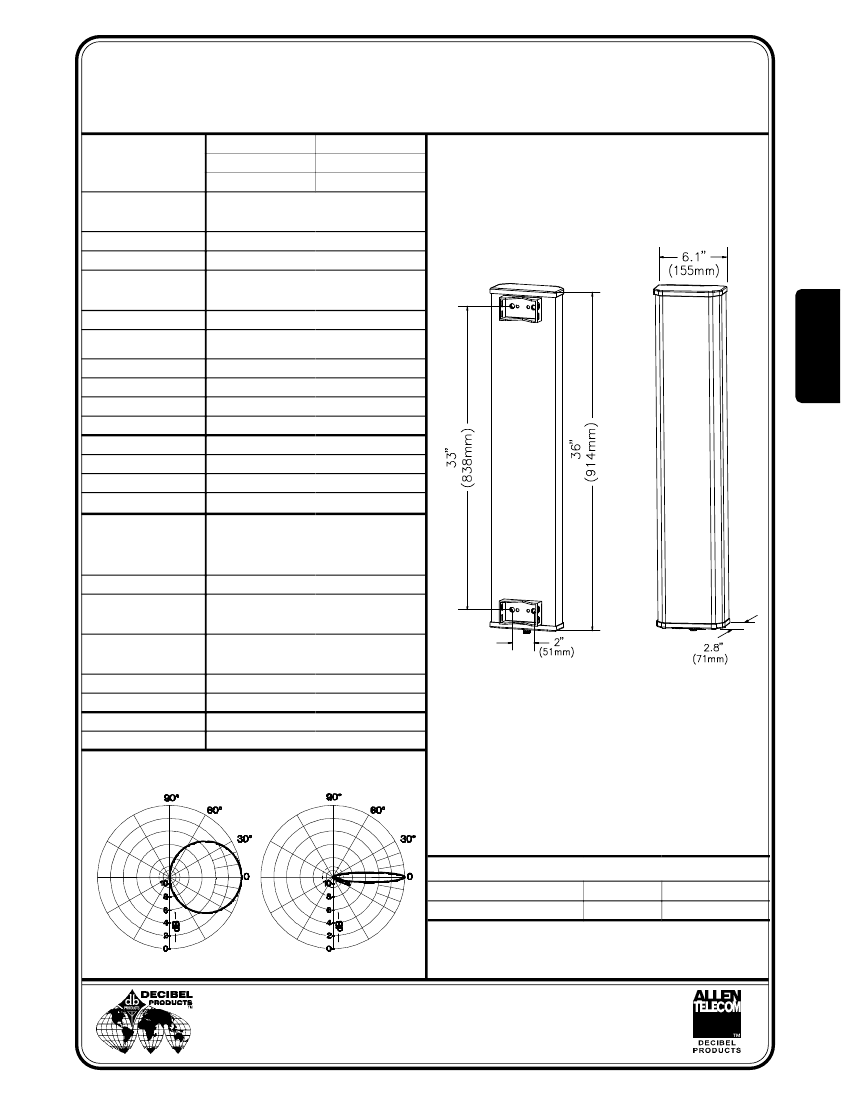

Antenna Patterns
12.5 dBd (14.6 dBi) Gain Directional Antenna with
90° horizontal 3 dB beamwidth 1850-1990 MHz.
Electrical Downtilt (T) Option
Model Number
976H90T2E/N-M
Downtilt
2°
Gain (dBd)
12.5
Horizontal
Vertical
Specifications are for reference only.
099103-001-H 04/00
