DB846F90E-SX

Description
Base Station/Broadcast Transmission Antenna
CategoryWireless rf/communication    Radio frequency and microwave
File Size87KB,1 Pages
ManufacturerCommScope Inc
Download Datasheet Parametric View All

DB846F90E-SX Overview

Base Station/Broadcast Transmission Antenna

DB846F90E-SX Parametric

Parameter NameAttribute value
Reach Compliance Codeunknown
RF/Microwave Device TypesBASE STATION/BROADCAST TRANSMISSION ANTENNA
Base Number Matches1

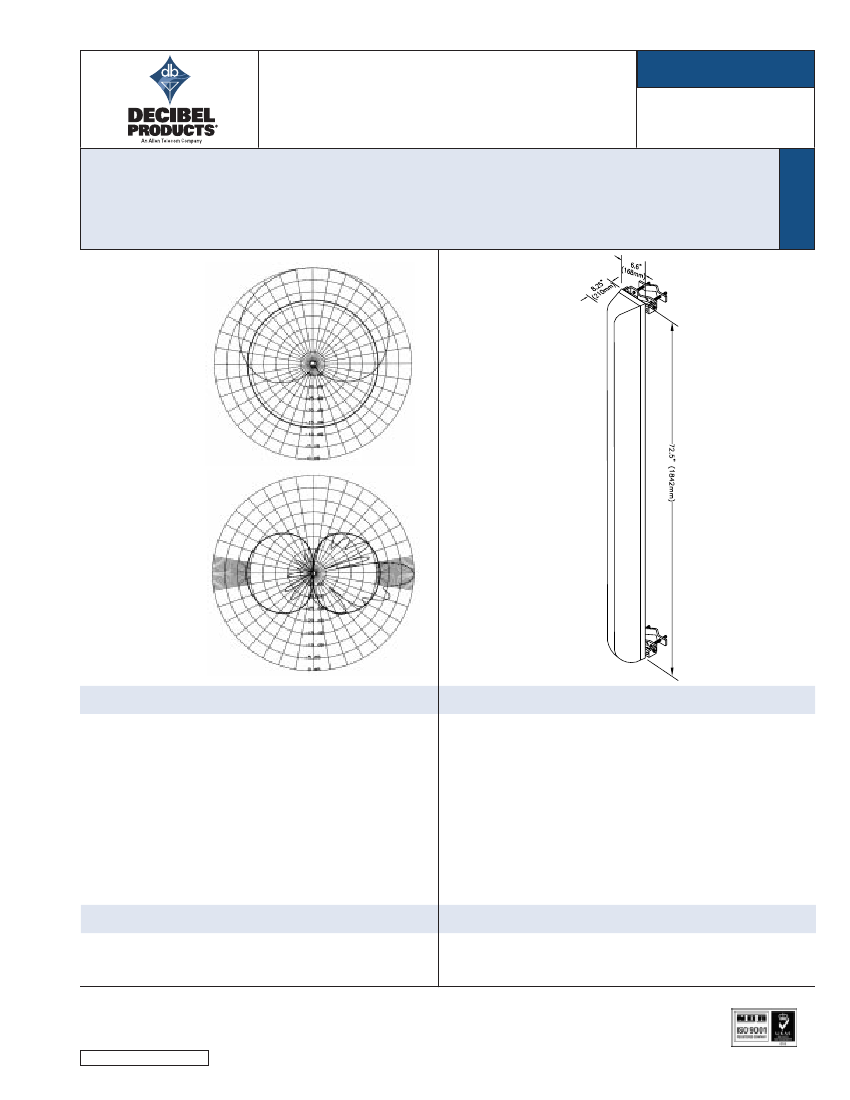

DB846F90E-SX
13.5 dBd
Log Periodic Antenna
806-896 MHz
MaxFill
dB Director
®
806-896 MHz
13.5 dBd (15.6 dBi) Gain
Vertical Polarization
90° Azimuth BW
• 11° Elevation BW
• 7/16 DIN, Back Mount
• Cellular and Trunking
90°
Azimuth
(Horizontal)
Elevation
(Vertical)
Electrical
VSWR:
Null Fill:
USLS:
Front-to-Back Ratio:
Max. Input Power:
Impedance:
Lightning Protection:
< 1.4:1
< 14 dB
> 18 dB
40 dB, typical
500 Watts
50 Ohms
All metal parts are grounded.
Weight:
Wind Area:
Frontal Thrust:
Lateral Thrust:
Max. Wind Speed:
Radiators:
Back Panel:
Radome:
Mounting Hardware:
Color:
Mechanical
15 lbs (6.8 kg)
4.2 ft² (0.39 m²)
132 lbf (587N) 59.3 kp (at 100 mph)
166 lbf (740N) 75.5 kp (at 100 mph)
125 mph (201 km/h)
Brass
Pass. Aluminum
ABS, UV Stabilized
Galvanized Steel
Gray
Mounting Options
Standard:
Downtilt:
DB380 pipe mount kit (max. 3.5” OD),
included.
DB5083 downtilt bracket, optional.
Shipping Information
Packing Size:
Shipping Weight:
82” x 10” x 15” (208 x 25 x 38 cm)
36 lbs (16.4 kg)
099214-005
03/01-D
8635 Stemmons Freeway • Dallas, Texas U.S.A. 75247-3701
Dallas/Ft.Worth Area Tel: 214.631.0310 • Fax: 214.631.4706
Toll Free Tel: 1.800.676.5342 • Fax: 1.800.229.4706
www.decibelproducts.com
dbtech@decibelproducts.com
ISO9001 Compliant
