DB784SM5N-XT datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> DB784SM5N-XT

DB784SM5N-XT: DescriptionBase Station/Broadcast Transmission Antenna; CategoryWireless rf/communication Radio frequency and microwave; File Size84KB，1 Pages; ManufacturerCommScope Inc

Download Datasheet Parametric Compare View All

DB784SM5N-XT Overview

Base Station/Broadcast Transmission Antenna

DB784SM5N-XT Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
RF/Microwave Device Types	BASE STATION/BROADCAST TRANSMISSION ANTENNA
Base Number Matches	1

Preview

Download Datasheet

View All

DB784SM5N-SX (806-869 MH

)

DB784SM5N-XC (824-896 MH

)

DB784SM5(N/E)

-SY (870-960 MH

)

DB784SM5N

-XT

(806-869 MH

)

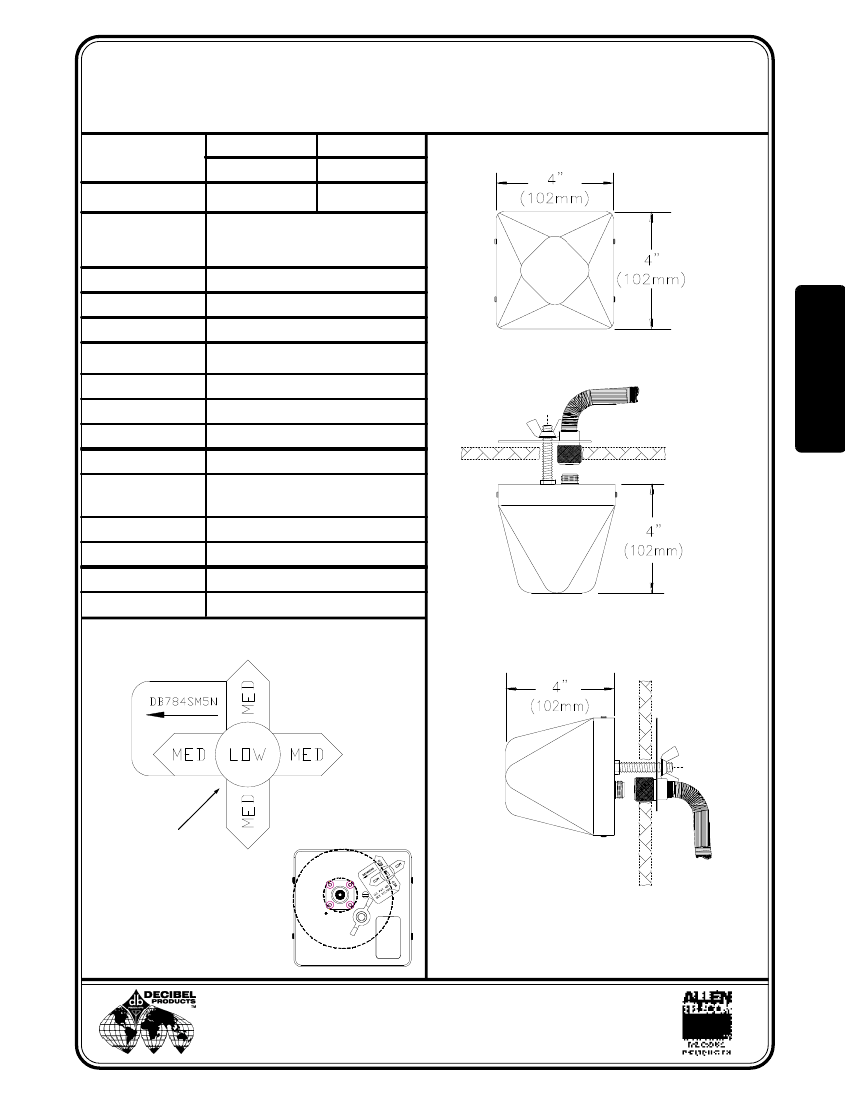

dB Diamond™ Series Indoor Antennas

Single Monopole, Omni-Directional in the Backplate Plane

DB784SM5N-XC

DB784SM5N-XT

Model Number(s)

DB784SM5N-SX

DB784SM5(N/E)-SY

Connector Options

Frequency Range(s)

N= Type N-Female

E= 7/16 DIN (-SY only)

SX:

SY:

XC:

XT:

806-896 MHz

870-960 MHz

824-896 MHz

806-869 MHz

Impedance

Gain

VSWR

Pattern

Characteristic

Polarization

Max. Input Power

Application

Weight

Material

50 ohms

INDOOR

Unity (< 2.15 dBi)

< 1.5:1

Omni pattern with frequency null directly

below antenna.

Vertical

50 Watts

Indoor Omni celing mount.

1.1 lbs (.45 kg)

Back Panel:

Radiating Elements:

Radome:

Aluminum

Brass

ABS

Color

Mounting

Packing Size

Shipping Weight

Off-White

Universal one hole mount.

12" x 12" x 9" (30 x 30 x 23 cm)

2.0 lbs (.9 kg)

Ceiling Mount

Relative Field Strength

Perpendicular

to Back Plane

Wall Mount

Specifications are for reference only.

099099-000-H 4/99

DECIBEL

Allen Telecom Inc.

PRODUCTS

A Division of

8635 Stemmons Freeway • P. O. Box 569610 • Dallas, Texas 75356-9610

214 / 631-0310 • Fax: 214 / 631-4706

DB784SM5N-XT Related Products

	DB784SM5N-XT	DB784SM5E-SY	DB784SM5N-SX
Description	Base Station/Broadcast Transmission Antenna	Base Station/Broadcast Transmission Antenna	Base Station/Broadcast Transmission Antenna
Reach Compliance Code	unknown	unknown	unknown
RF/Microwave Device Types	BASE STATION/BROADCAST TRANSMISSION ANTENNA	BASE STATION/BROADCAST TRANSMISSION ANTENNA	BASE STATION/BROADCAST TRANSMISSION ANTENNA
Base Number Matches	1	1	-
