DB874H83(E)-SX
12 dBd 83°, Directional Panel Antenna
806-869 MHz
Model Number
Terminations
Frequency Range
Gain
VSWR
Beamwidth
(3dB from max)
Front-to-Back Ratio
Polarization
Max. Input Power
Application
Weight
Wind Area
Wind Load
Max. Wind Speed
Material
DB874H83-SX
Type N-Female
DB874H83E-SX
7-16 DIN ("E")
806 - 896 MHz
12 dBd or 14.1 dBi
< 1.5 : 1
Horizontal: 83° ± 7°
Vertical: 14° ± 3°
> 20 dB
Vertical
500 Watts
Trunking
15 lb (6.8 kg)
4 ft² (0.37 m²)
160 lbf (712N) 71.9 kp (at 100 mph)
136 mph (219 km/h)
Reflector:
Radiators:
Radome:
Mounting Hdw:
Light Gray
DB380 pipe mount kit (max. 3.5" OD),
included.
DB5083
Fully protected by backplate and radome.
All metal parts grounded.
59" x 16" x 12" (150 x 41 x 30 cm)
26 lb (12 kg)
Pass. Aluminum
Silver-Plated Brass
ABS, UV Resistant
Galvanized Steel
83°
Color, Radome
Mounting
Downtilt Bracket
(Optional)
Weather Protection
Lightning Protection
Packing Size
Shipping Weight

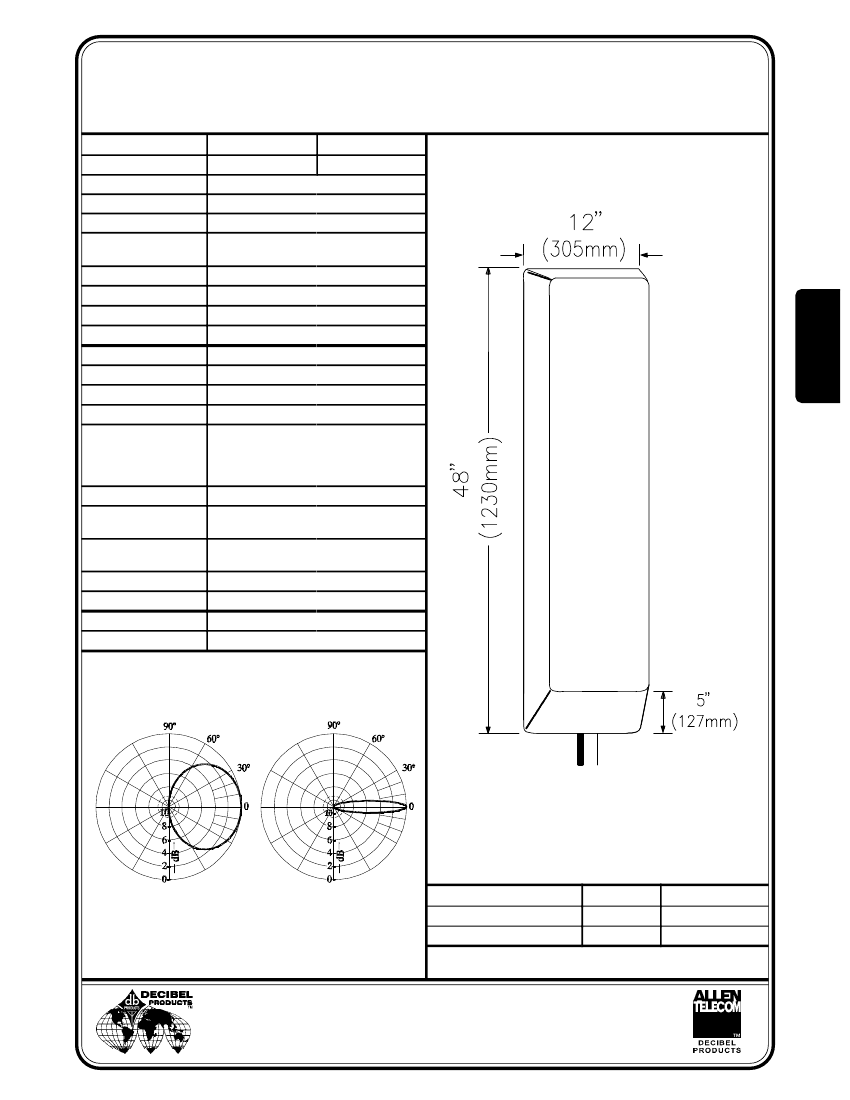

Antenna Patterns
12 dBd (14.1 dBi) Directional Antenna with 83°
horizontal 3 dB beamwidth in a UV resistant
ABS radome for 806-869 MHz.
Model Number
874H83T4(E)-SX
874H83T6(E)-SX
Specifications are for reference only.
Horizontal
Vertical
Downtilt
4°
6°
Gain
12 dBd
11.8 dBd
099062-013A 5/00
DECIBEL
Allen Telecom Inc.
PRODUCTS
A Division of
8635 Stemmons Freeway • P. O. Box 569610 • Dallas, Texas 75356-9610
214 / 631-0310 • Fax: 214 / 631-4706
