Preview

DB972H120S-M: DescriptionBase Station/Broadcast Transmission Antenna, 1850MHz Min, 1990MHz Max, 10.1dB Gain, 120deg 3dB Beamwidth; CategoryWireless rf/communication Radio frequency and microwave; File Size435KB，1 Pages; ManufacturerCommScope Inc

Download Datasheet Parametric Compare View All

DB972H120S-M Overview

Base Station/Broadcast Transmission Antenna, 1850MHz Min, 1990MHz Max, 10.1dB Gain, 120deg 3dB Beamwidth

DB972H120S-M Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
application	CELLULAR
Beam Width-E	30 deg
Beamwidth-H	120 deg
front to back ratio	25 dB
Gain	10.1 dB
Omnidirectional	NO
Maximum operating frequency	1990 MHz
Minimum operating frequency	1850 MHz
polarization	LINEAR VERTICAL
RF/Microwave Device Types	BASE STATION/BROADCAST TRANSMISSION ANTENNA
Maximum transmission power	250 W
Maximum voltage standing wave ratio	1.4
Commentary	165 mph
Base Number Matches	1

Preview

Download Datasheet

View All

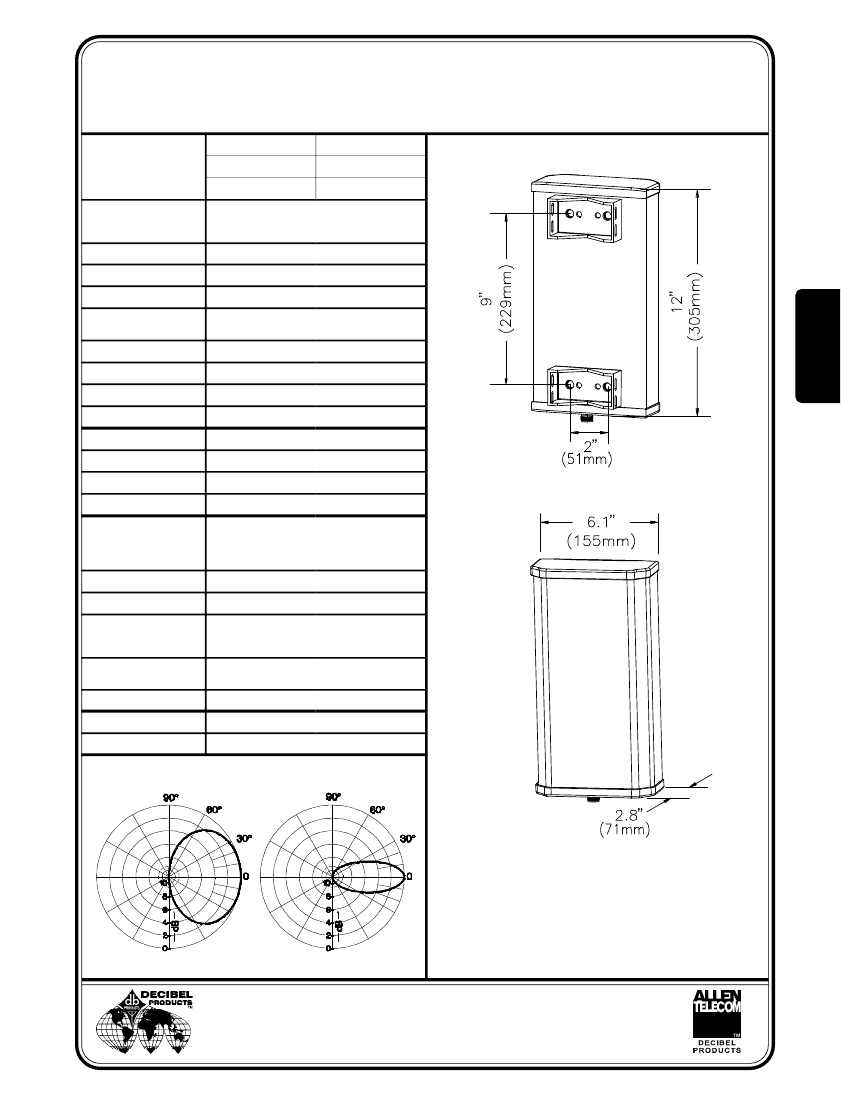

DB972H120(E/N/A/B/R/S)-M

120°, 8 dBd Directional Antenna

1850-1990 MHz

Model Number

DB972H120E-M

DB972H120A-M

DB972H120R-M

DB972H120N-M

DB972H120B-M

DB972H120S-M

N = Type N Female

B = Type N Female

S = Type N Female

Connector Options

DIN Bottom: E = 7/16

DIN Back: A = 7/16

DIN Top: R = 7/16

Frequency Range

Gain

VSWR

Beamwidth

(3dB from max)

Front to Back Ratio

Polarization

Max. Input Power

Application

Weight

Wind Area

Wind Load

Max. Wind Speed

Material

1850 - 1990 MHz

8 dBd or 10.1 dBi

< 1.4:1

120°

Horizontal

Vertical

120° ± 10°

30° ± 2°

> 25 dB

Vertical

250 Watts

PCN, PCS, DCS1800

1.8 lbs (0.8 kg)

.5 ft² (.05 m²)

20 lbf (89N) 9.0 kp (at 100 mph)

165 mph (266 km/h)

Reflector Screen:

Radiators:

Radome:

Mtg.Hardware:

Normal: Gray

DB392 and band clamps, included.

DB5095

(Note: Contact Decibel's Applications

Engineering for galvanized steel option.)

Fully protected by backplate and radome.

All metal parts grounded.

29" x 7" x 6" (74 x 18 x 15 cm)

4 lbs (1.8 kg)

Pass. Aluminum

PVC, UV Resistant

Aluminum,

Stainless Steel

Color

Mounting

Downtilt Brackets

(Optional)

Weather Protection

Lightning Protection

Packing Size

Shipping Weight

Antenna Patterns

8 dBd (10.1 dBi) Gain Directional

Antenna with 120° horizontal 3 dB

beamwidth 1850-1990 MHz.

Horizontal

Vertical

Specifications are for reference only.

099048-003-E 8/96

DECIBEL

Allen Telecom Inc.

PRODUCTS

A Division of

8635 Stemmons Freeway • P. O. Box 569610 • Dallas, Texas 75356-9610

214 / 631-0310 • Fax: 214 / 631-4706

DB972H120S-M Related Products

	DB972H120S-M	DB972H120A-M	DB972H120R-M	DB972H120B-M
Description	Base Station/Broadcast Transmission Antenna, 1850MHz Min, 1990MHz Max, 10.1dB Gain, 120deg 3dB Beamwidth	Base Station/Broadcast Transmission Antenna, 1850MHz Min, 1990MHz Max, 10.1dB Gain, 120deg 3dB Beamwidth	Base Station/Broadcast Transmission Antenna, 1850MHz Min, 1990MHz Max, 10.1dB Gain, 120deg 3dB Beamwidth	Base Station/Broadcast Transmission Antenna, 1850MHz Min, 1990MHz Max, 10.1dB Gain, 120deg 3dB Beamwidth
Reach Compliance Code	unknown	unknown	unknown	unknown
application	CELLULAR	CELLULAR	CELLULAR	CELLULAR
Beam Width-E	30 deg	30 deg	30 deg	30 deg
Beamwidth-H	120 deg	120 deg	120 deg	120 deg
front to back ratio	25 dB	25 dB	25 dB	25 dB
Gain	10.1 dB	10.1 dB	10.1 dB	10.1 dB
Omnidirectional	NO	NO	NO	NO
Maximum operating frequency	1990 MHz	1990 MHz	1990 MHz	1990 MHz
Minimum operating frequency	1850 MHz	1850 MHz	1850 MHz	1850 MHz
polarization	LINEAR VERTICAL	LINEAR VERTICAL	LINEAR VERTICAL	LINEAR VERTICAL
RF/Microwave Device Types	BASE STATION/BROADCAST TRANSMISSION ANTENNA	BASE STATION/BROADCAST TRANSMISSION ANTENNA	BASE STATION/BROADCAST TRANSMISSION ANTENNA	BASE STATION/BROADCAST TRANSMISSION ANTENNA
Maximum transmission power	250 W	250 W	250 W	250 W
Maximum voltage standing wave ratio	1.4	1.4	1.4	1.4
Commentary	165 mph	165 mph	165 mph	165 mph
Base Number Matches	1	1	1	-
