DB781S50N-C datasheet, PDF - EEWORLD Datasheet

DB781S50N-C: DescriptionBase Station/Broadcast Transmission Antenna, 824MHz Min, 894MHz Max; CategoryWireless rf/communication Radio frequency and microwave; File Size218KB，2 Pages; ManufacturerCommScope Inc

Download Datasheet Parametric Compare View All

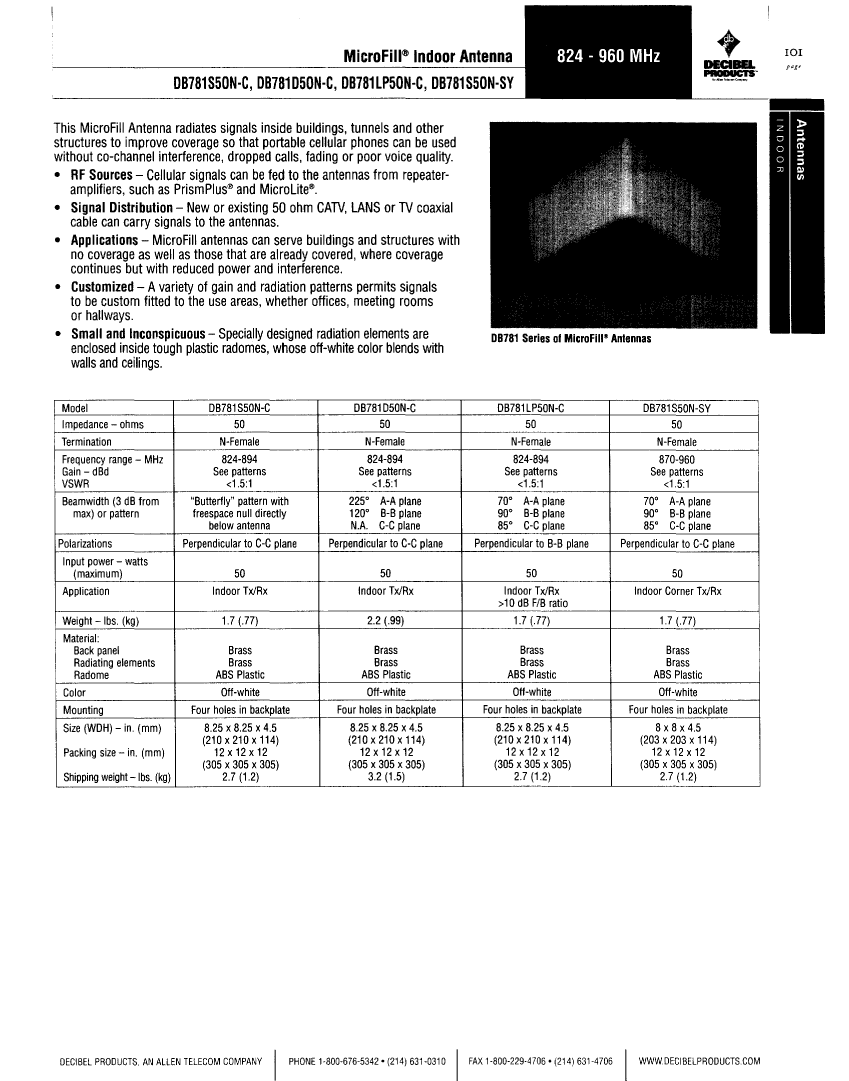

DB781S50N-C Overview

Base Station/Broadcast Transmission Antenna, 824MHz Min, 894MHz Max

Parameter Name	Attribute value
Reach Compliance Code	unknown
application	PCN/CELLULAR
Characteristic impedance	50 Ω
Omnidirectional	YES
Maximum operating frequency	894 MHz
Minimum operating frequency	824 MHz
polarization	LINEAR VERTICAL
RF/Microwave Device Types	BASE STATION/BROADCAST TRANSMISSION ANTENNA
Maximum transmission power	50 W
Maximum voltage standing wave ratio	1.5
Base Number Matches	1

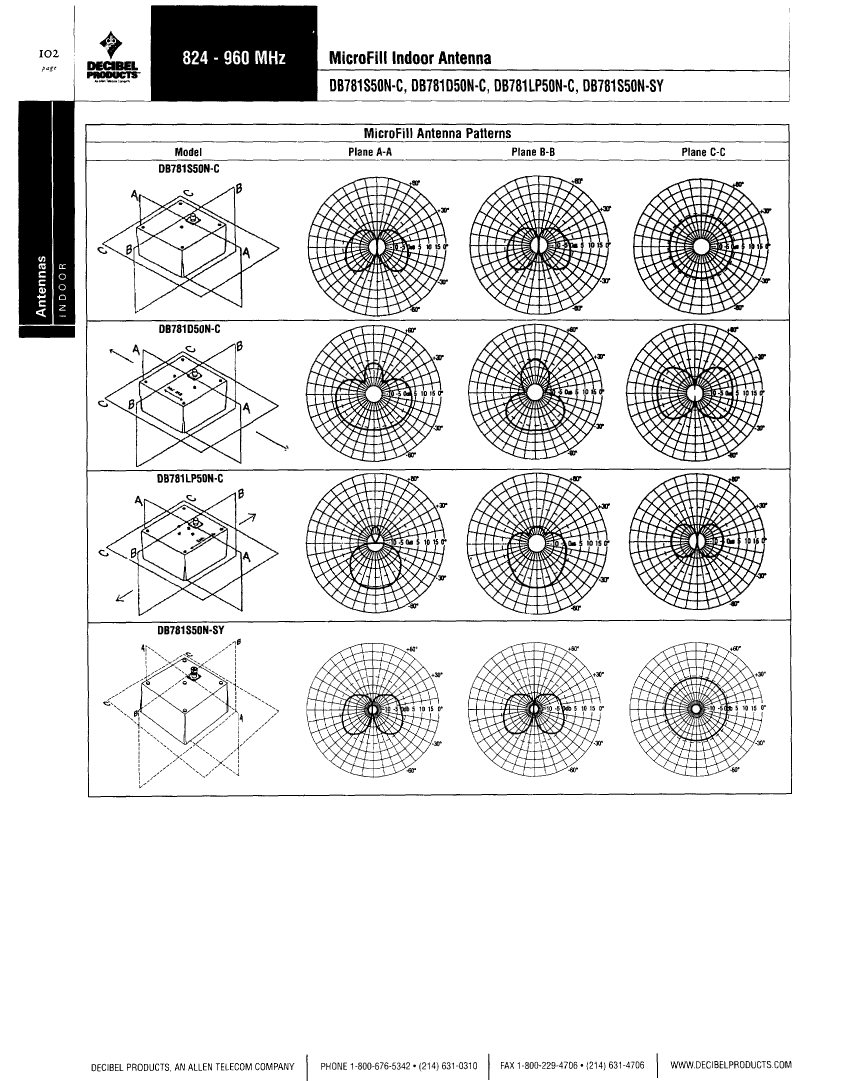

	DB781S50N-C	DB781D50N-C	DB781LP50N-C	DB781S50N-SY
Description	Base Station/Broadcast Transmission Antenna, 824MHz Min, 894MHz Max	RF/Microwave Antenna, 824MHz Min, 894MHz Max	RF/Microwave Antenna, 824MHz Min, 894MHz Max	Base Station/Broadcast Transmission Antenna, 870MHz Min, 960MHz Max, 2.1dB Gain
Reach Compliance Code	unknown	unknown	unknown	unknown
application	PCN/CELLULAR	PCN/CELLULAR	PCN/CELLULAR	CELLULAR
Characteristic impedance	50 Ω	50 Ω	50 Ω	50 Ω
Omnidirectional	YES	YES	NO	YES
Maximum operating frequency	894 MHz	894 MHz	894 MHz	960 MHz
Minimum operating frequency	824 MHz	824 MHz	824 MHz	870 MHz
polarization	LINEAR VERTICAL	LINEAR VERTICAL	LINEAR HORIZONTAL	LINEAR VERTICAL
RF/Microwave Device Types	BASE STATION/BROADCAST TRANSMISSION ANTENNA	ANTENNA-OTHER	ANTENNA-OTHER	BASE STATION/BROADCAST TRANSMISSION ANTENNA
Maximum transmission power	50 W	50 W	50 W	50 W
Maximum voltage standing wave ratio	1.5	1.5	1.5	1.5
Base Number Matches	1	1	1	1
