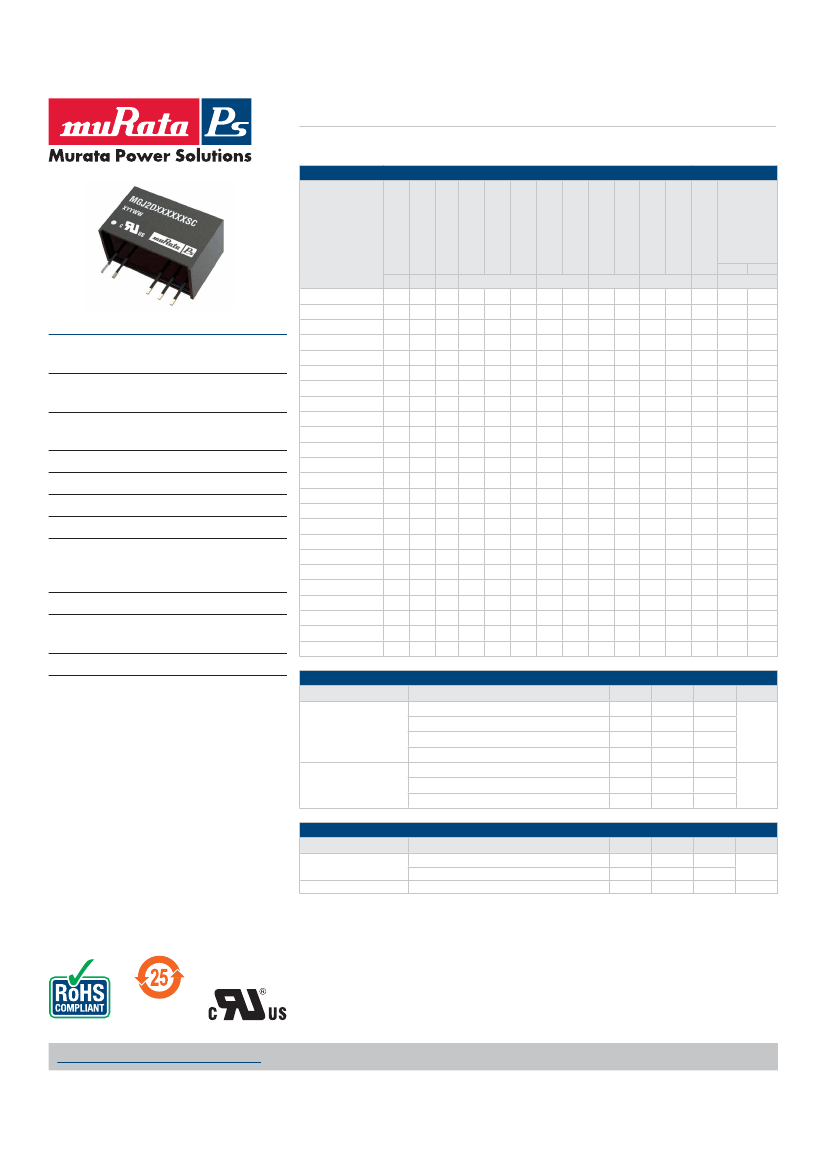

for powering ‘high side’ and ‘low side’ gate drive
circuits for IGBTs and Mosfets in bridge circuits.
A choice of asymmetric output voltages allows
optimum drive levels for best system efficiency
and EMI. The MGJ2 series is characterised for high
isolation and dv/dt requirements commonly seen in
bridge circuits used in motor drives and inverters,
while the MGJ2 industrial grade temperature
rating and construction gives long service life and
reliability.
Parameter
Voltage range
Conditions
Continuous operation, 5V input types
Continuous operation, 12V input types
Continuous operation, 15V input types
Continuous operation, 24V input types
5V input types
12V & 15V input types
24V input types
Min.
4.5
10.8
13.5
21.6
Typ.
5
12
15
24
40
20
15
Max.
5.5
13.2
16.5
26.4
MTTF
1
Units
V
Input reflected ripple
mA
ISOLATION CHARACTERISTICS
Parameter
Isolation test voltage
Resistance
Conditions
Production tested for 1 second
Qualification tested for 1 minute
Viso= 500VDC
Min.
5200
5200
Typ.
Max.
Units
VDC
1
GΩ
1. Calculated using MIL-HDBK-217 FN2 and Telecordia SR-332 calculation model with nominal input voltage at full load.
2. See ripple & noise test method.
3.UL60950-1 recognition is currently pending for the MGJ2Dxx1515SC variants.
4. ANSI/AAMI ES60601-1 recognition is currently pending for the MGJ2D241709SC
,MGJ2Dxx1515SC,
MGJ2Dxx1802SC and
MGJ2Dxx2003SC variants.
All specifications typical at T
A
=25°C, nominal input voltage and rated output current unless otherwise specified.
For full details go to
www.murata-ps.com/rohs
www.murata-ps.com/support
KDC_MGJ2_H01
Page 1 of 11
MGJ2 Series
5.2kVDC Isolated 2W Gate Drive DC-DC Converters
OUTPUT CHARACTERISTICS
Parameter
Rated Power
Voltage Set Point Accuracy
Line regulation
Conditions
T
A
=-40
ºC
to 100
ºC
See tolerance envelopes
High V
IN
to low V
IN
Min.
Typ.
Max.
2
Units
W
%/%
1.0
1.2
GENERAL CHARACTERISTICS
Parameter
Switching frequency
Conditions
All other types
MGJ2Dxx1802MC types
Min.
Typ.
45
50
Max.
Units
kHz
TEMPERATURE CHARACTERISTICS
Parameter
Specification
Storage
Conditions
All output types (see safety approval section for limitations)
Min.
-40
-55
Typ.
Max.
100
125
Units
5V input types
Case Temperature above ambient
All other input types
Cooling
Free air convection
24
20
°C
ABSOLUTE MAXIMUM RATINGS
Short-circuit protection
Lead temperature 1mm from case for 10 seconds
Input voltage V
IN
, MGJ2D05xxxxSC
Input voltage V
IN
, MGJ2D12xxxxSC
Input voltage V
IN
, MGJ2D15xxxxSC
Input voltage V
IN,
MGJ2D24xxxxSC
Continuous
260°C
5.5V
13.2V
16.5V
26.4V
www.murata-ps.com/support
KDC_MGJ2_H01
Page 2 of 11
MGJ2 Series
5.2kVDC Isolated 2W Gate Drive DC-DC Converters
TECHNICAL NOTES
ISOLATION VOLTAGE
‘Hi Pot Test’, ‘Flash Tested’, ‘Withstand Voltage’, ‘Proof Voltage’, ‘Dielectric Withstand Voltage’ & ‘Isolation Test Voltage’ are all terms that relate to the same thing, a test
voltage, applied for a specified time, across a component designed to provide electrical isolation, to verify the integrity of that isolation.
Murata Power Solutions MGJ2 series of DC-DC converters are all 100% production tested at 5.2kVDC for 1 second and have been qualification tested at 5.2kVDC for 1
minute.
A question commonly asked is, “What is the continuous voltage that can be applied across the part in normal operation?”
When the insulation in the MGJ2 series is not used as a safety barrier , i.e. provides functional isolation only, continuous or switched voltages across the barrier in excess
of 1.5kV are sustainable. Long term reliability testing at these voltages continues. Please contact Murata for further information.
The MGJ2 series
is recognised by
Underwriters Laboratory for various voltages, please see safety approval section below.
REPEATED HIGH-VOLTAGE ISOLATION TESTING
It is well known that repeated high-voltage isolation testing of a barrier component can actually degrade isolation capability, to a lesser or greater degree depending on
materials, construction and environment. We therefore strongly advise against repeated high voltage isolation testing, but if it is absolutely required, that the voltage be
reduced by 20% from specified test voltage.
SAFETY APPROVAL
MGJ2Dxx1515SC
ANSI/AAMI ES60601-1
The MGJ2Dxx1515SC variants are pending recognition by Underwriters Laboratory (UL) to ANSI/AAMI ES60601-1 and provides 1 MOOP (Means Of Operator Protection) based upon
a working voltage of 200 Vrms max and 280 Vpk max., between Primary and Secondary and between Primary and its Enclosure, in a maximum ambient temperature of 85°C and/
or case temperature limit of 130°C (case temperature measured on the face opposite the pins).
File Number E202895 applies.
UL60950
The MGJ2Dxx1515SC variants are pending recognition recognised by Underwriters Laboratory (UL) to UL60950 for basic/supplementary insulation to a working voltage of 200Vrms
in a maximum ambient temperature of 85°C and/or case temperature limit of 130°C (case temperature measured on the face opposite the pins).
File number E151252 applies.
Creepage and clearance 2mm
Working altitude OVC I 5000m
Fusing
The MGJ2 Series of converters are not internally fused so to meet the requirements of UL an anti-surge input line fuse should always be used with ratings as defined below.
MGJ2D051515SC: 2A
MGJ2D121515SC: 750mA
MGJ2D151515SC: 750mA
All fuses should be UL recognised and rated to 125V.
All other variants
ANSI/AAMI ES60601-1
The MGJ2 series has been recognised by Underwriters Laboratory (UL) to ANSI/AAMI ES60601-1 and provides 1 MOOP (Means Of Operator Protection) based on a working voltage
of 300Vrms or 2 MOOP based upon a working voltage of 200 Vrms, and 1 MOPP (Mean Of Patient Protection) based on a working voltage of 200Vrms., between Primary and
Secondary. The MGJ2D241709SC, MGJ2Dxx1802SC and MGJ2Dxx2003SC variants are currently pending recognition.
File number E202895 applies.
UL60950
The MGJ2 series is recognised by Underwriters Laboratory (UL) to UL60950 for reinforced insulation to a working voltage of 150Vrms and for basic/supplementary insulation to a
working voltage of 300Vrms.
File number E151252 applies.
Creepage and clearance 2mm.
Working altitude OVC II 5000m
Fusing
The MGJ2 Series of converters are not internally fused so to meet the requirements of UL an anti-surge input line fuse should always be used with ratings as defined below.
MGJ2D05xxxxSC: 1.25A
MGJ2D12xxxxSC: 750mA
MGJ2D15xxxxSC: 750mA
MGJ2D24xxxxSC: 750mA
All fuses should be UL recognised and rated to 125V.
www.murata-ps.com/support
KDC_MGJ2_H01
Page 3 of 11
MGJ2 Series
5.2kVDC Isolated 2W Gate Drive DC-DC Converters
RoHS COMPLIANCE INFORMATION
This series is compatible with RoHS soldering systems with a peak wave solder temperature of 260ºC for 10 seconds. The pin termination finish
on this product series is Tin Plate, Hot Dipped over Matte Tin with Nickel Preplate. The series is backward compatible with Sn/Pb soldering
systems. For further information, please visit www.murata-ps.com/rohs
PART NUMBER STRUCTURE
MGJ 2 D XX XXXX S C -RXX
Series name
Power rating
Output type
S - Single
D - Dual
T - Triple
Q - Quad
Packaging code
R7 - 7 inch reel
R13 - 13 inch reel
RoHS compliant
Package type
S - SIP
D - DIP
M - Surface mount
Z - ZIP
Input voltage
Output voltage
www.murata-ps.com/support
KDC_MGJ2_H01
Page 4 of 11
MGJ2 Series
5.2kVDC Isolated 2W Gate Drive DC-DC Converters

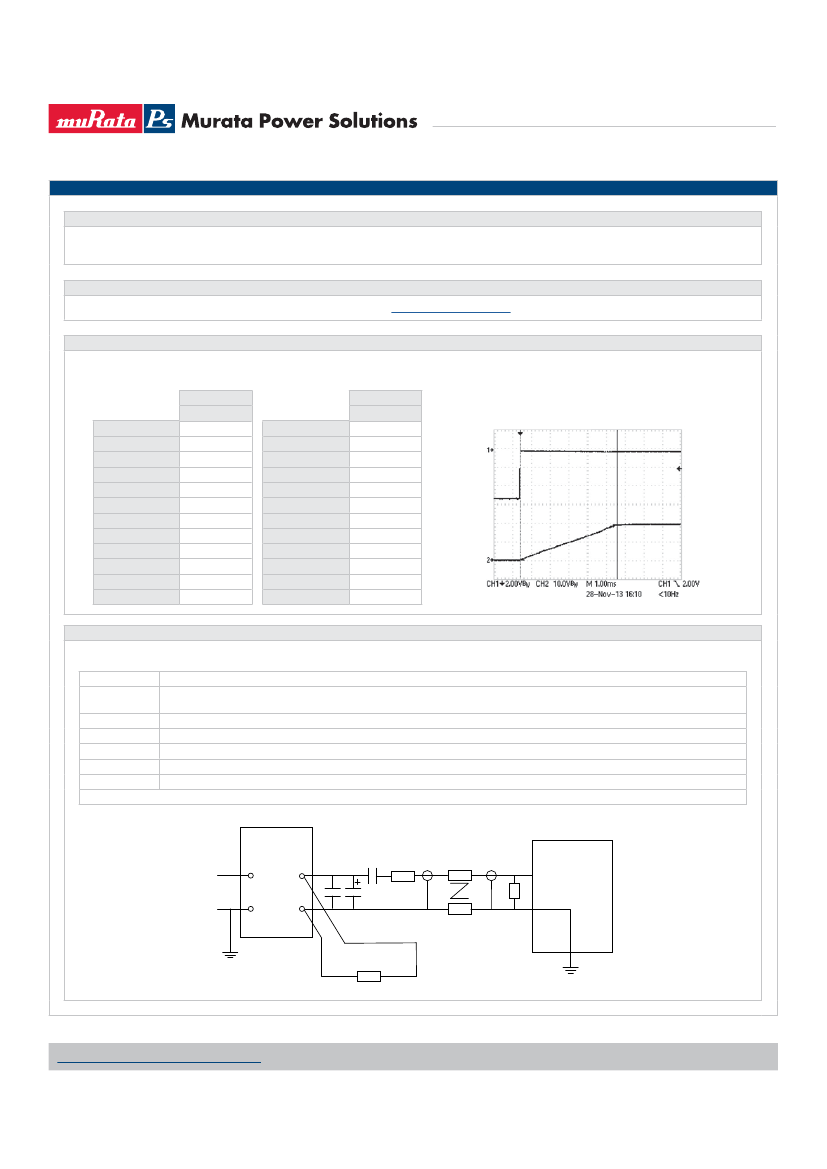

APPLICATION NOTES
Minimum load
The minimum load to meet datasheet specification is 10% of the full rated load across the specified input voltage range. Lower than 10% minimum loading will result in
an increase in output voltage, which may rise to typically 1.25 times the specified output voltage if the output load falls to less than 5%.
Gate Drive Applications Advisory Note
For general guidence for product usage in gate drive applications please refer to
“gate drive application notes”.
Capacitive loading and start up
Typical start up times for this series, with a typical input voltage rise time of 2.2μs and output capacitance of 10μF, are shown in the table below. The product
series will start into capacitance ranging from 47μF up to 220μF with increased start times.
Start-up time
ms
3.3
4.5
20.8
4
5
5.4
3.2
4
14.5
5
5
5.5
Start-up time
ms
2.5
3
10.5
3
5
4.5
2.7
3
4
3
4
4.2
Typical Start-Up Wave Form
MGJ2D051505SC
MGJ2D051509SC
MGJ2D051515SC
MGJ2D051802SC
MGJ2D052003SC
MGJ2D052005SC
MGJ2D121505SC
MGJ2D121509SC
MGJ2D121515SC
MGJ2D121802SC
MGJ2D122003SC
MGJ2D122005SC
MGJ2D151505SC
MGJ2D151509SC
MGJ2D151515SC
MGJ2D151802SC
MGJ2D152003SC
MGJ2D152005SC
MGJ2D241505SC
MGJ2D241509SC
MGJ2D241709SC
MGJ2D241802SC
MGJ2D242003SC
MGJ2D242005SC
Ripple & Noise Characterisation Method
Ripple and noise measurements are performed with the following test configuration.
1μF X7R multilayer ceramic capacitor, voltage rating to be a minimum of 3 times the output voltage of the DC-DC converter
10μF tantalum capacitor, voltage rating to be a minimum of 1.5 times the output voltage of the DC-DC converter with an ESR of less
C2
than 100mΩ at 100 kHz
C3
100nF multilayer ceramic capacitor, general purpose
R1
450Ω resistor, carbon film, ±1% tolerance
R2
50Ω BNC termination
T1
3T of the coax cable through a ferrite toroid
RLOAD
Resistive load to the maximum power rating of the DC-DC converter. Connections should be made via twisted wires
Measured values are multiplied by 10 to obtain the specified values.
[i=s]This post was last edited by lugl4313820 on 2022-6-4 06:23[/i]I mentioned earlier that the HDMI connection was wrong. After communicating with the official, they said that there was a problem wit...
