DPZ2MW32NV3-90M datasheet, PDF

Datasheet> All Categories > storage> storage> DPZ2MW32NV3-90M

DPZ2MW32NV3-90M: DescriptionFlash Module, 4MX16, 90ns, CPGA66, 1.090 X 1.090 INCH, 0.400 INCH HEIGHT, VERSA STACK, CERAMIC, PGA-66; Categorystorage storage; File Size463KB，14 Pages; ManufacturerB&B Electronics Manufacturing Company

Download Datasheet Parametric Compare View All

DPZ2MW32NV3-90M Overview

Flash Module, 4MX16, 90ns, CPGA66, 1.090 X 1.090 INCH, 0.400 INCH HEIGHT, VERSA STACK, CERAMIC, PGA-66

DPZ2MW32NV3-90M Parametric

Parameter Name	Attribute value
Parts packaging code	PGA
package instruction	1.090 X 1.090 INCH, 0.400 INCH HEIGHT, VERSA STACK, CERAMIC, PGA-66
Contacts	66
Reach Compliance Code	unknown
ECCN code	3A001.A.2.C
Maximum access time	90 ns
Other features	AUTOMATIC WRITE
Spare memory width	32
JESD-30 code	S-CPGA-P66
memory density	67108864 bit
Memory IC Type	FLASH MODULE
memory width	16
Number of functions	1
Number of terminals	66
word count	4194304 words
character code	4000000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
organize	4MX16
Output characteristics	3-STATE
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	PGA
Package shape	SQUARE
Package form	GRID ARRAY
Parallel/Serial	PARALLEL
Programming voltage	12 V
Certification status	Not Qualified
Maximum seat height	10.16 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	MOS
Temperature level	MILITARY
Terminal form	PIN/PEG
Terminal pitch	2.54 mm
Terminal location	PERPENDICULAR
type	NOR TYPE
Base Number Matches	1

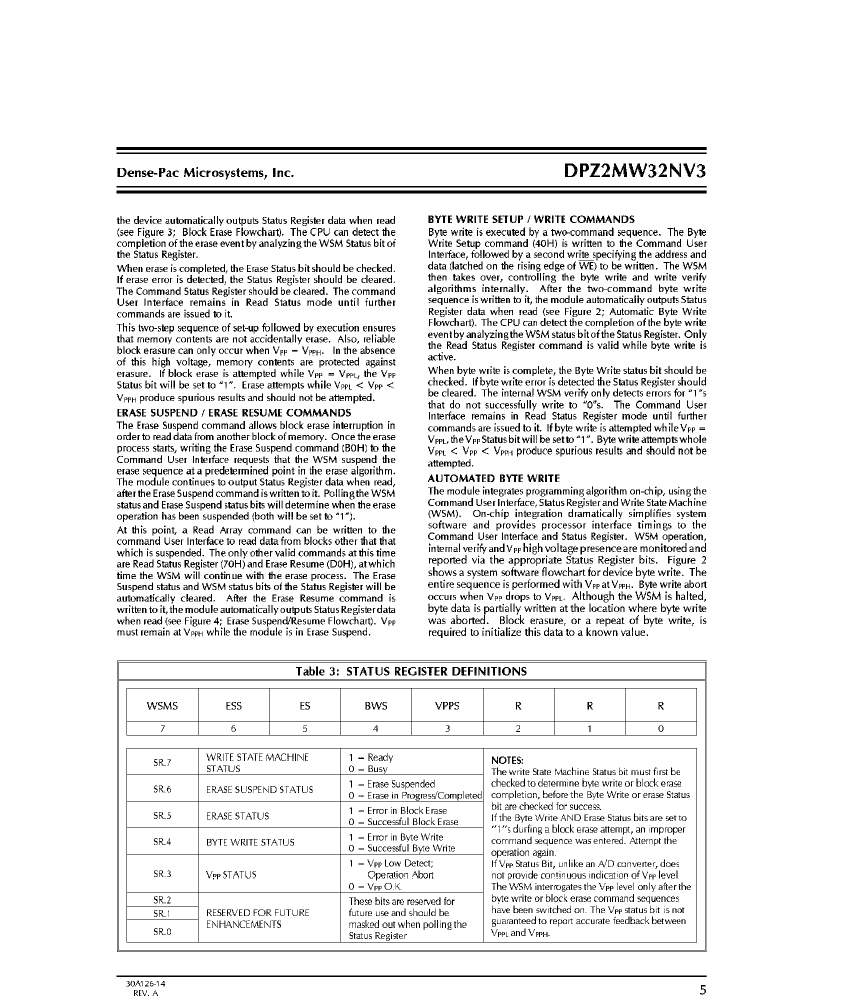

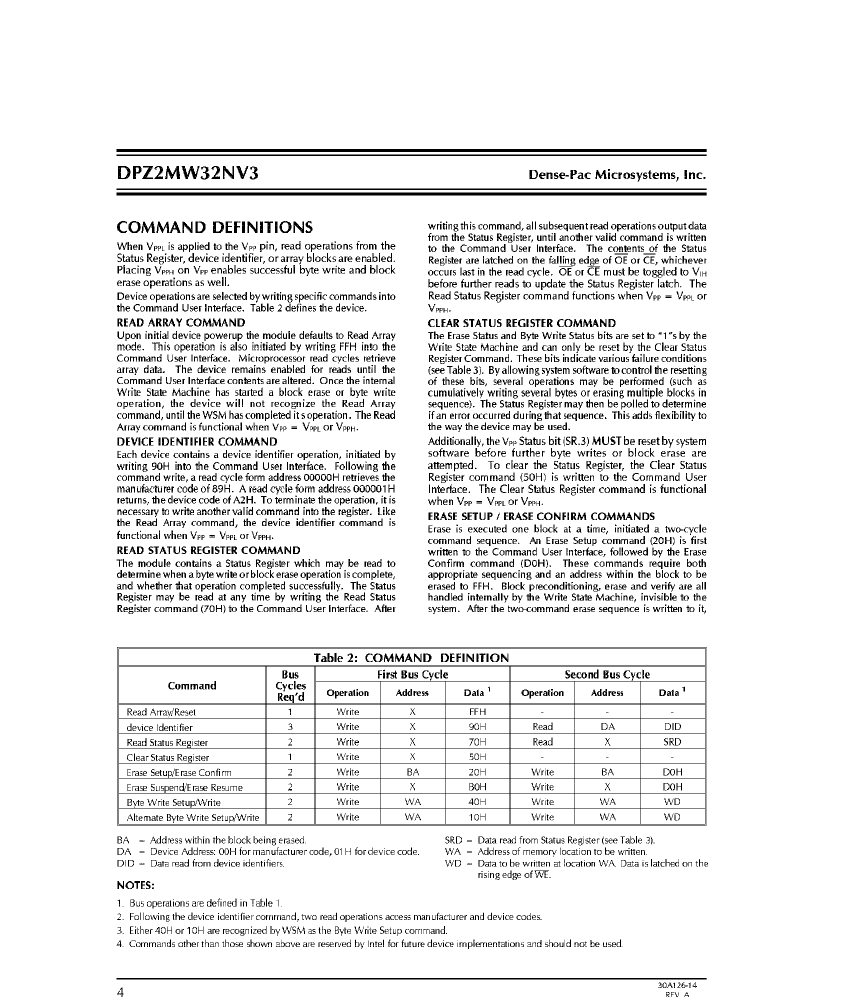

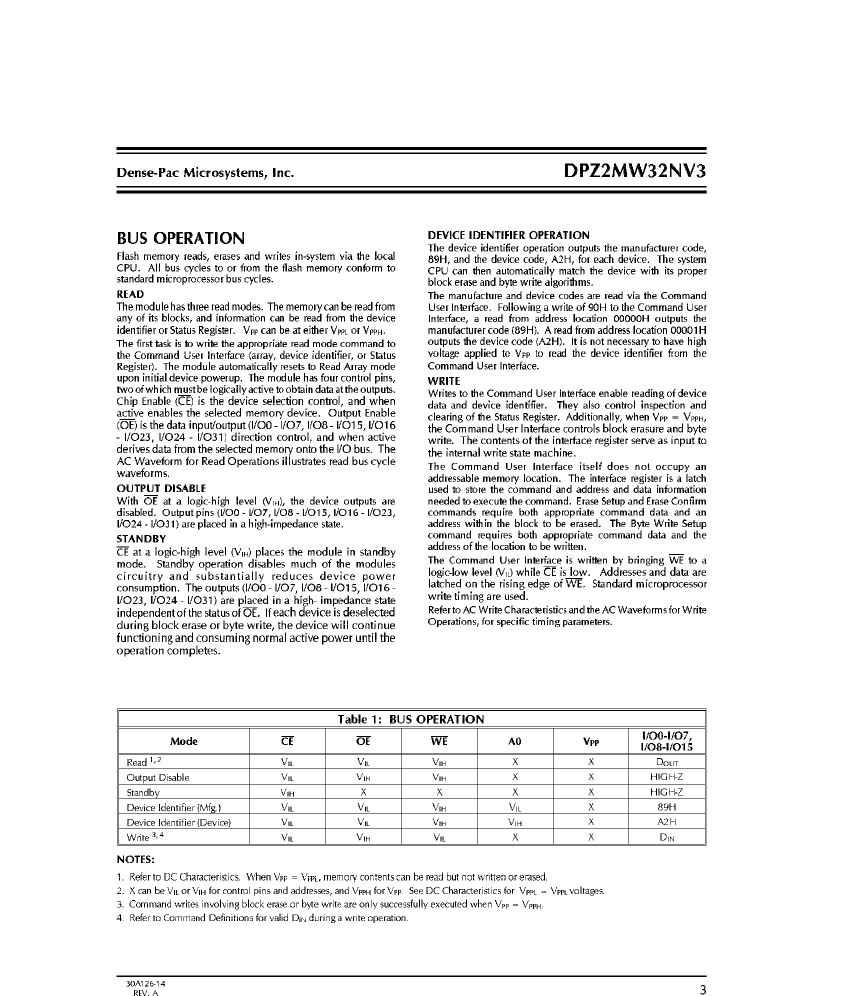

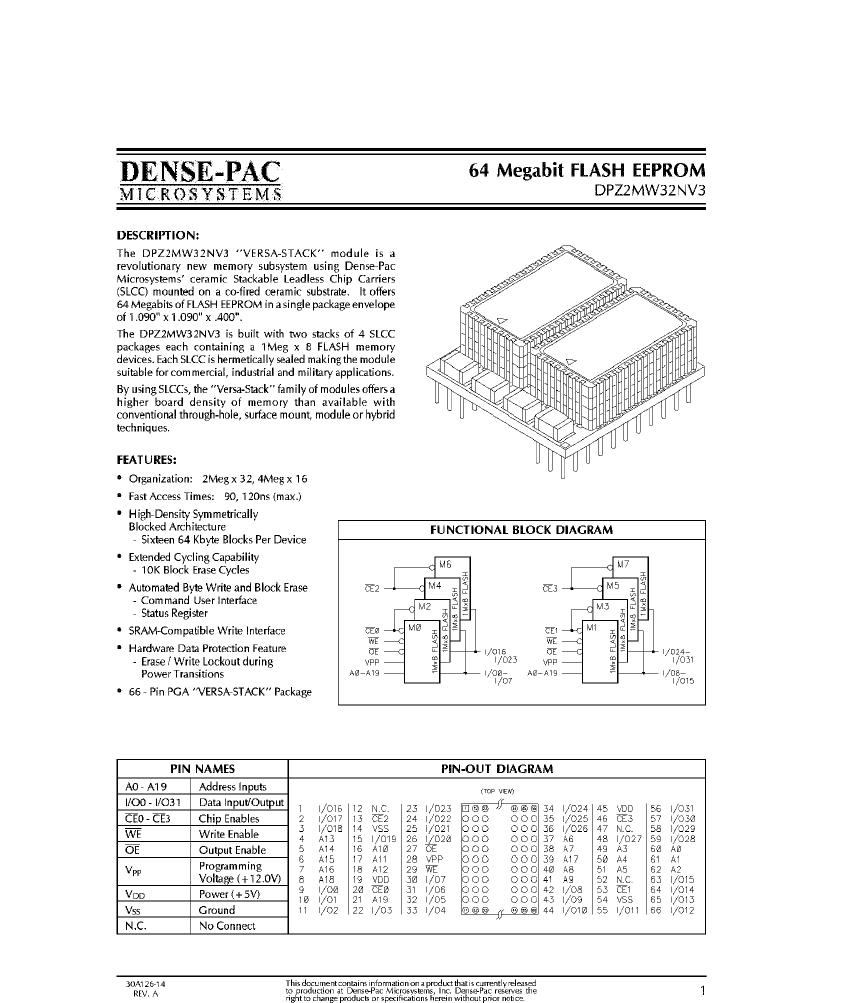

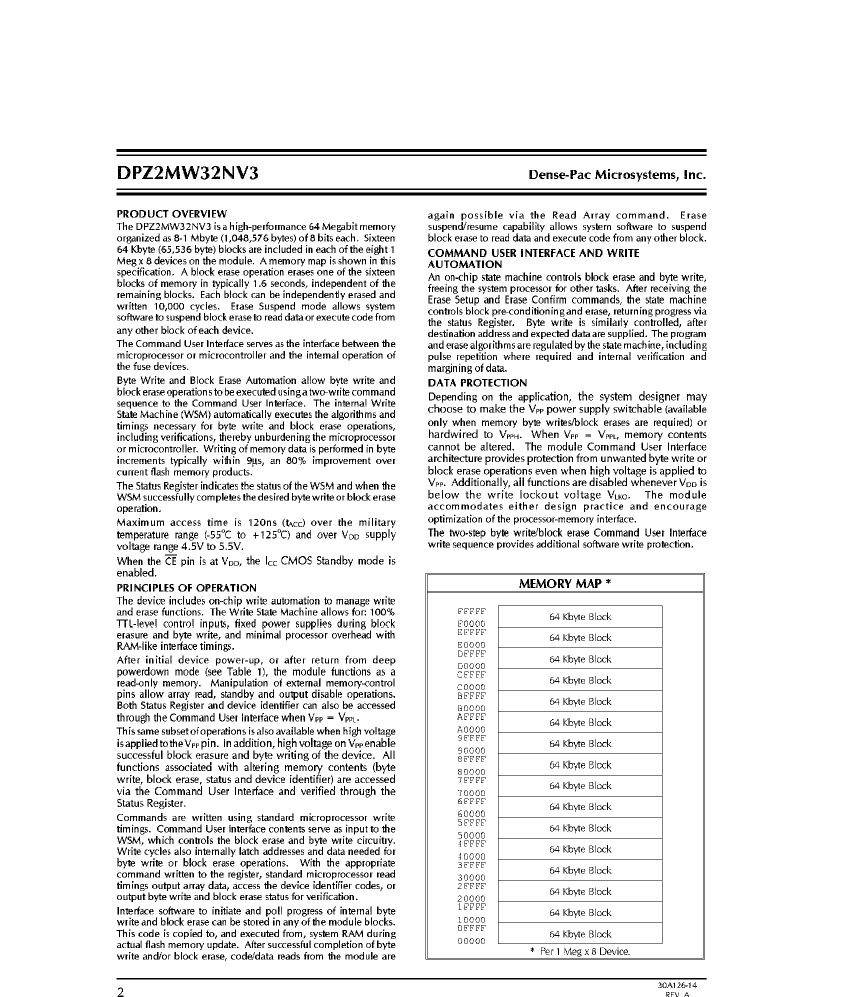

Preview

Download Datasheet

View All

DPZ2MW32NV3-90M Related Products

	DPZ2MW32NV3-90M	DPZ2MW32NV3-90B	DPZ2MW32NV3-90C	DPZ2MW32NV3-12C	DPZ2MW32NV3-12M	DPZ2MW32NV3-12I	DPZ2MW32NV3-90I	DPZ2MW32NV3-12B
Description	Flash Module, 4MX16, 90ns, CPGA66, 1.090 X 1.090 INCH, 0.400 INCH HEIGHT, VERSA STACK, CERAMIC, PGA-66	Flash Module, 4MX16, 90ns, CPGA66, 1.090 X 1.090 INCH, 0.400 INCH HEIGHT, VERSA STACK, CERAMIC, PGA-66	Flash Module, 4MX16, 90ns, CPGA66, 1.090 X 1.090 INCH, 0.400 INCH HEIGHT, VERSA STACK, CERAMIC, PGA-66	Flash Module, 4MX16, 120ns, CPGA66, 1.090 X 1.090 INCH, 0.400 INCH HEIGHT, VERSA STACK, CERAMIC, PGA-66	Flash Module, 4MX16, 120ns, CPGA66, 1.090 X 1.090 INCH, 0.400 INCH HEIGHT, VERSA STACK, CERAMIC, PGA-66	Flash Module, 4MX16, 120ns, CPGA66, 1.090 X 1.090 INCH, 0.400 INCH HEIGHT, VERSA STACK, CERAMIC, PGA-66	Flash Module, 4MX16, 90ns, CPGA66, 1.090 X 1.090 INCH, 0.400 INCH HEIGHT, VERSA STACK, CERAMIC, PGA-66	Flash Module, 4MX16, 120ns, CPGA66, 1.090 X 1.090 INCH, 0.400 INCH HEIGHT, VERSA STACK, CERAMIC, PGA-66
Parts packaging code	PGA	PGA	PGA	PGA	PGA	PGA	PGA	PGA
package instruction	1.090 X 1.090 INCH, 0.400 INCH HEIGHT, VERSA STACK, CERAMIC, PGA-66	1.090 X 1.090 INCH, 0.400 INCH HEIGHT, VERSA STACK, CERAMIC, PGA-66	1.090 X 1.090 INCH, 0.400 INCH HEIGHT, VERSA STACK, CERAMIC, PGA-66	1.090 X 1.090 INCH, 0.400 INCH HEIGHT, VERSA STACK, CERAMIC, PGA-66	1.090 X 1.090 INCH, 0.400 INCH HEIGHT, VERSA STACK, CERAMIC, PGA-66	1.090 X 1.090 INCH, 0.400 INCH HEIGHT, VERSA STACK, CERAMIC, PGA-66	1.090 X 1.090 INCH, 0.400 INCH HEIGHT, VERSA STACK, CERAMIC, PGA-66	1.090 X 1.090 INCH, 0.400 INCH HEIGHT, VERSA STACK, CERAMIC, PGA-66
Contacts	66	66	66	66	66	66	66	66
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknow
ECCN code	3A001.A.2.C	3A001.A.2.C	3A991.B.1.A	3A991.B.1.A	3A001.A.2.C	3A991.B.1.A	3A991.B.1.A	3A001.A.2.C
Maximum access time	90 ns	90 ns	90 ns	120 ns	120 ns	120 ns	90 ns	120 ns
Other features	AUTOMATIC WRITE	AUTOMATIC WRITE	AUTOMATIC WRITE	AUTOMATIC WRITE	AUTOMATIC WRITE	AUTOMATIC WRITE	AUTOMATIC WRITE	AUTOMATIC WRITE
Spare memory width	32	32	32	32	32	32	32	32
JESD-30 code	S-CPGA-P66	S-CPGA-P66	S-CPGA-P66	S-CPGA-P66	S-CPGA-P66	S-CPGA-P66	S-CPGA-P66	S-CPGA-P66
memory density	67108864 bit	67108864 bit	67108864 bit	67108864 bit	67108864 bit	67108864 bit	67108864 bit	67108864 bi
Memory IC Type	FLASH MODULE	FLASH MODULE	FLASH MODULE	FLASH MODULE	FLASH MODULE	FLASH MODULE	FLASH MODULE	FLASH MODULE
memory width	16	16	16	16	16	16	16	16
Number of functions	1	1	1	1	1	1	1	1
Number of terminals	66	66	66	66	66	66	66	66
word count	4194304 words	4194304 words	4194304 words	4194304 words	4194304 words	4194304 words	4194304 words	4194304 words
character code	4000000	4000000	4000000	4000000	4000000	4000000	4000000	4000000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	125 °C	125 °C	70 °C	70 °C	125 °C	85 °C	85 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-	-	-55 °C	-40 °C	-40 °C	-55 °C
organize	4MX16	4MX16	4MX16	4MX16	4MX16	4MX16	4MX16	4MX16
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	PGA	PGA	PGA	PGA	PGA	PGA	PGA	PGA
Package shape	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE
Package form	GRID ARRAY	GRID ARRAY	GRID ARRAY	GRID ARRAY	GRID ARRAY	GRID ARRAY	GRID ARRAY	GRID ARRAY
Parallel/Serial	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL
Programming voltage	12 V	12 V	12 V	12 V	12 V	12 V	12 V	12 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	10.16 mm	10.16 mm	10.16 mm	10.16 mm	10.16 mm	10.16 mm	10.16 mm	10.16 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	NO	NO	NO	NO	NO	NO	NO
technology	MOS	MOS	MOS	MOS	MOS	MOS	MOS	MOS
Temperature level	MILITARY	MILITARY	COMMERCIAL	COMMERCIAL	MILITARY	INDUSTRIAL	INDUSTRIAL	MILITARY
Terminal form	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	PERPENDICULAR	PERPENDICULAR	PERPENDICULAR	PERPENDICULAR	PERPENDICULAR	PERPENDICULAR	PERPENDICULAR	PERPENDICULAR
type	NOR TYPE	NOR TYPE	NOR TYPE	NOR TYPE	NOR TYPE	NOR TYPE	NOR TYPE	NOR TYPE
Base Number Matches	1	1	1	1	1	-	-	-
