116-P-4-CRD: DescriptionPushbutton Switch, SPDT, Latched, Solder Terminal, Panel Mount-threaded; CategoryMechanical and electronic products switch; File Size109KB，1 Pages; ManufacturerCarling Technologies; Environmental Compliance

Download Datasheet Parametric View All

116-P-4-CRD Overview

Pushbutton Switch, SPDT, Latched, Solder Terminal, Panel Mount-threaded

116-P-4-CRD Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	compli
ECCN code	EAR99
body width	12.14 mm
body height	28.75 mm
Body length or diameter	12.95 mm
Contact (AC) maximum rated R load	1A@125VAC
Maximum contact current (AC)	1 A
Maximum contact voltage (AC)	125 V
Electrical life	25000 Cycle(s)
Manufacturer's serial number	116-P
Installation features	PANEL MOUNT-THREADED
Maximum operating force	4.45 N
Maximum operating temperature	85 °C
Minimum operating temperature
surface mount	NO
Switch action	LATCHED
switch function	SPDT
Switch type	PUSHBUTTON SWITCH
Termination type	SOLDER
Base Number Matches	1

Preview

Download Datasheet

View All

Carling

Technologies

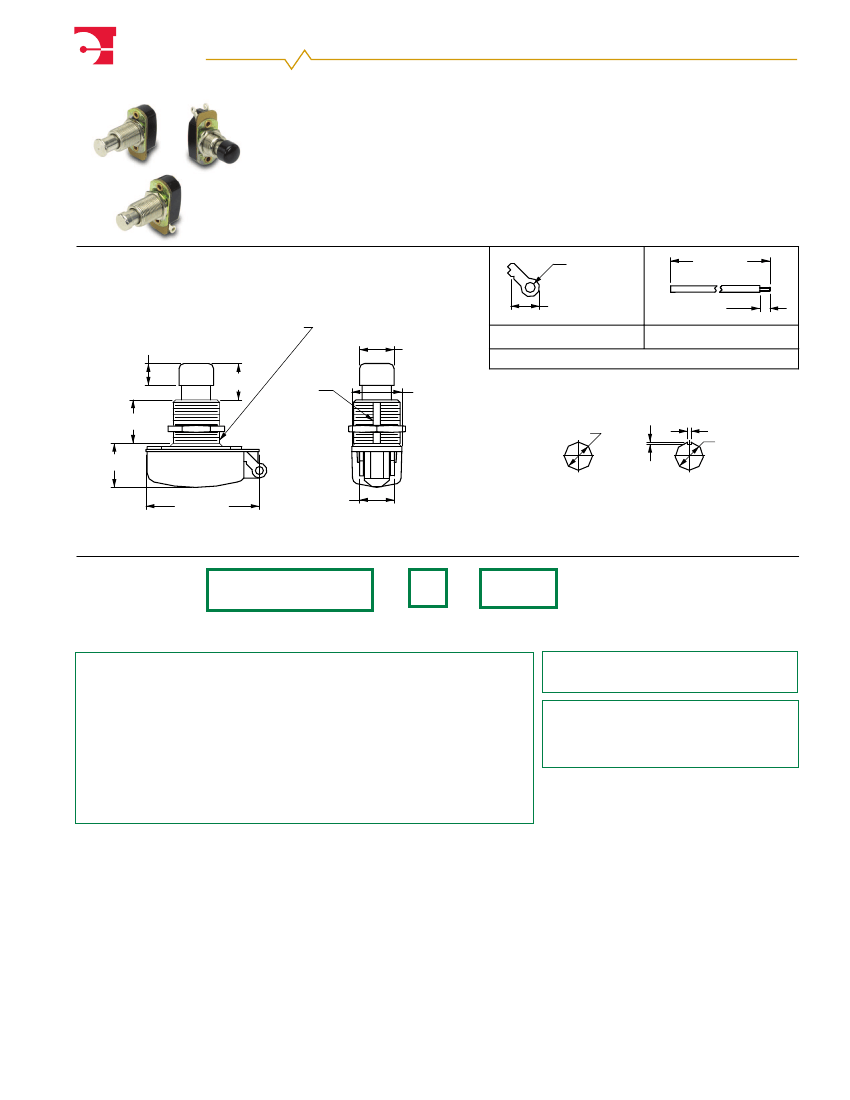

16-3P-Series Pushbutton Switches

™

16-3P-Series Pushbutton Switches

The 16-3P-Series pushbutton switches are single pole and

AC rated up to 3 amps. These momentary action switches

have a slow-make, slow-break contact mechanism and

require only light actuation force (4 oz. - 1 lb.). These switch-

es are typically used in general purpose applications requir-

ing finger actuation.

Dielectric Strength

UL/CSA: 1000V-live to dead

metal parts

Electrical Life

25,000 cycles

Mechanical Life

100,000 cycles

Operating Temperature

32°F to 185°F (0°C to 85°C)

.080[2.03] DIA

6.000[152.4]

.230[5.84]

15/32-32UNS-2A

THREAD

.500[12.70]

INTEGRATED WIRE LEAD

(no exposed conductors)

SOLDER LUG

.345[8.76] DIA

.140[3.56]

KEYWAY

.072[1.82]

X

.038[.965] DP

TERMINAL TYPE

.327[8.30]

.510[12.95]

.562[14.27]

.500[12.70] DIA

.062[1.57]

.500[12.70] DIA

.038[9.65]

MOUNTING HOLE

WITH KEYWAY

.478[12.14]

1.132[28.75]

.359[9.12]

16

-

3POFF

-

4

-

CBL

1

Base Part Number

2

Bushing

3

Actuator Style

1 BASE PART NUMBER: SERIES/POLES/CIRCUITRY/RATING/TERMINATION

Single Pole

solder lug

wire leads

3A 125VAC

OFF - (ON)

16-3POFF

16-3APOFF

OFF - (ON) with overtravel

1

16-3POFF-OV

16-3APOFF-OV

ON - OFF

16-3PON

16-3APON

1A 125VAC

ON - ON

116-P

116-AP

ON - ON with overtravel

1

116-P-OV

116-AP-OV

1 ON - 1 OFF (2 circuit)

516-P

516-AP

1 ON - 1 OFF with overtravel

1

(2 circuit)

516-P-OV

516-AP-OV

2 BUSHING STYLE

2

.312 length

4

.562 length

3 ACTUATOR STYLE

2

CBL

black plastic color cap

CRD

red plastic color cap

NOTES

1

Overtravel only available with #4 bushing.

2

When selection 3 is left blank, a standard nickel plated plunger is supplied.

()

Indicates momentary function.

www.carlingtech.com
